x210ii Package C

SKU: 6502
Part Number: x210ii Package C
Brand: -
UPC: 700646948796

$137.99
$134.492+
$132.493+
$131.894+

Description

Details

This is the latest revision (updated on Dec. 2012).
Please pay attention if you've bought an earlier one before.
Cortex-A8 development board designed for the SAMSUNG S5PV210 MCU

Overview

x210ii is a Cortex-A8 development board designed for the SAMSUNG S5PV210 microcontroller, consists of the mother board, the MCU core circuit, and the touch screen LCD.


What's on board

S5PV210 development board on board resource
  1. S5PV210:the high performance Cortex-A8 MCU which features:
    • 45-nanometer (nm) Low Power fabrication process and intricate low power architectures
    • 1GHz clock speed
    • supports up to 1GBytes DDR2
    • 0.65mm pitch, 17X17mm2 FBGA package
    • ARM® CORTEX™-A8 based
    • 32KB data and instruction caches, 512KB L2 cache
    • 64-bit multi buses
    • powerful built-in POWERVR SGX 3D graphics engine
    • supports MPEG4, H.263, H.264 [email protected] encode/decode, and MPEG4 [email protected] decode
    • up to 80Mpixels/s JPEG decoding
    • HDMI, TV OUT
    • supports LCD/camera with MIPI interface
  2. Memory: 512MB DDR2 onboard
  3. Flash: 4GB inand onboard
  4. 24-bit RGB interface
  5. Four USB HOST interface, supports connecting multi USB devices at the same time
  6. USB OTG interface
  7. Two RS232 interface
  8. SD card interface
  9. Four LEDs
  10. Reset button
  11. Software on/off button
  12. Hardware on/off button
  13. Onboard external speaker
  14. MIC input connector
  15. Earphone output connector
  16. Boot configuration switch
  17. Backlight multi-level adjustment
  18. Features HDMI interface
  19. Supports four-lines resistive touch control
  20. Supports capacitive touch control
  21. USB WIFI
  22. G-sensor
  23. Supports peripheral expansion using various interfaces, such as SPI, I2C, UART, etc.
  24. Supports MPEG2/MPEG4, H.263, H.264 encode/decode, MPEG4 [email protected] decode
  25. 2D, 3D high-performance graphics accelerator
  26. Real time clock
  27. DM9000CEP Ethernet
  28. Keypad interface
  29. Camera interface
  30. GPS interface
  31. GPRS interface
  32. Supports external USB 3G module
  33. Supports USB keyboard/mouse

Bootloader

The Cortex-A8 development board x210ii comes with dedicated bootloader which is called xboot. Comparing with traditional bootloader such as uboot or eboot, the xboot features:

  • Multi operating system selectable when startup, customized default system
  • Startup LOGO
  • Shell command line
  • One-touch upgrade, convenient for batch manufacturing
  • Supports eboot, supports starting up WINCE from SD card
  • Supports programming/debugging without hardware
  • Supports single-step debugging
  • Readable source code
  • Easy to add your own application
  • Totally free, open-source project, no license required
  • Supports eboot packaging, easy for upgrading program
  • Supports kernel packaging, convenient for debugging
  • Supports file system packaging, boot, kernel, ramdisk in one file

Supported Systems

The Cortex-A8 development board x210ii supports:

  • Linux + Android2.3
  • Linux + Android4.0
  • Linux + QT4.8 + Qtopia
  • WINCE6.0 (technical support is NOT available for WINCE)

Photos

Cortex-A8 development board
x210ii Cortex-A8 Development Board
Cortex-A8 development board

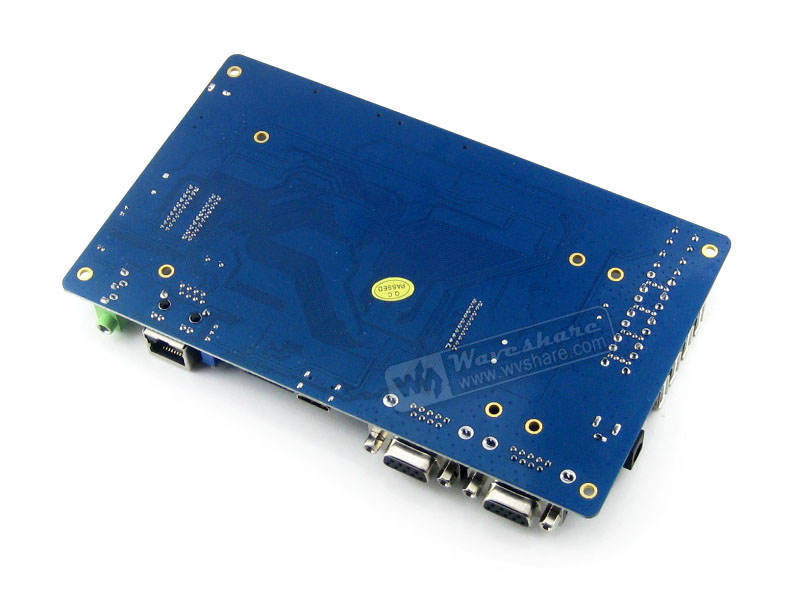

x210ii Cortex-A8 Development Board Back View

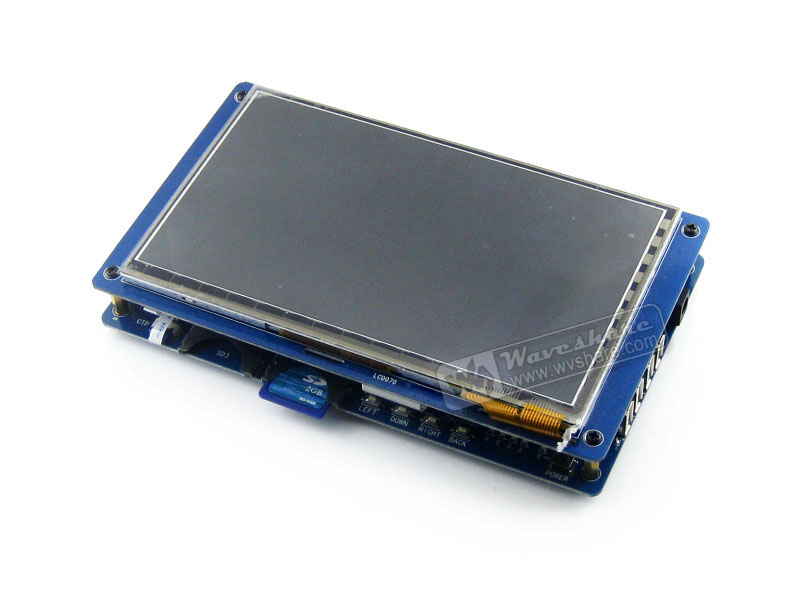

Cortex-A8 development board
x210ii Cortex-A8 Development Board + 7 inch LCD
Cortex-A8 development board
x210ii Cortex-A8 Development Board + 7 inch LCD

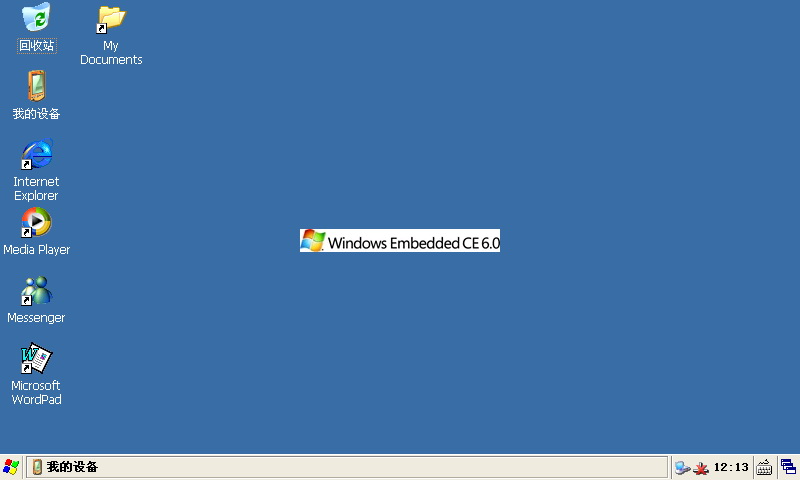

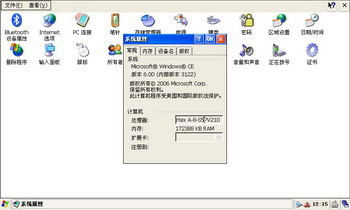

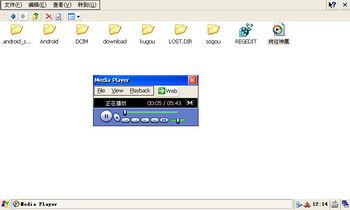

WINCE6.0 running on the Cortex-A8 development board x210ii

Cortex-A8 development boardCortex-A8 development boardCortex-A8 development boardCortex-A8 development board

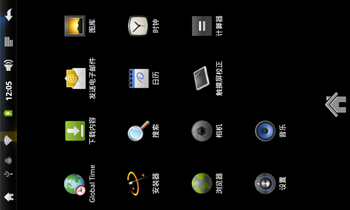

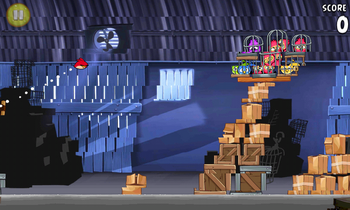

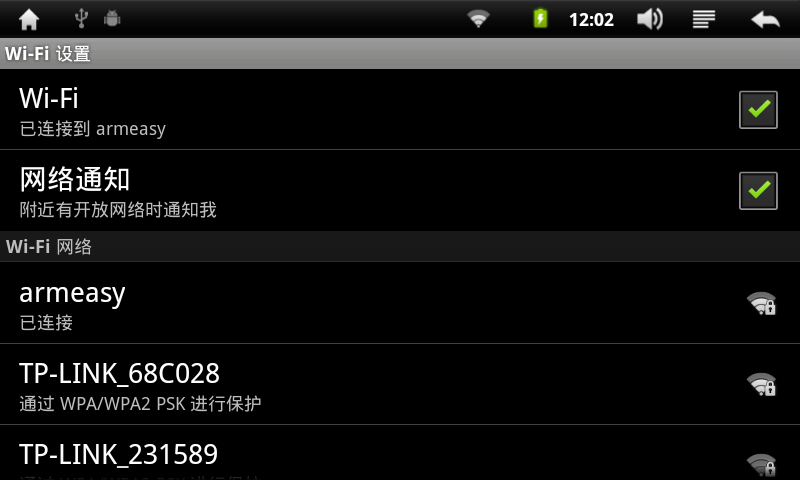

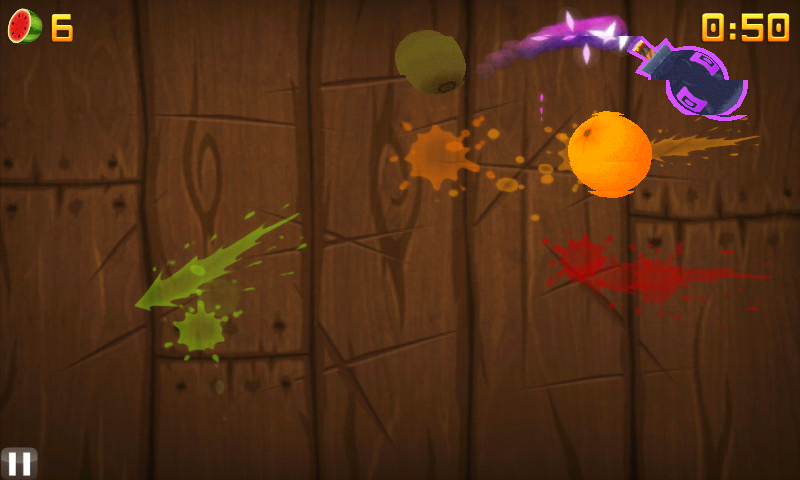

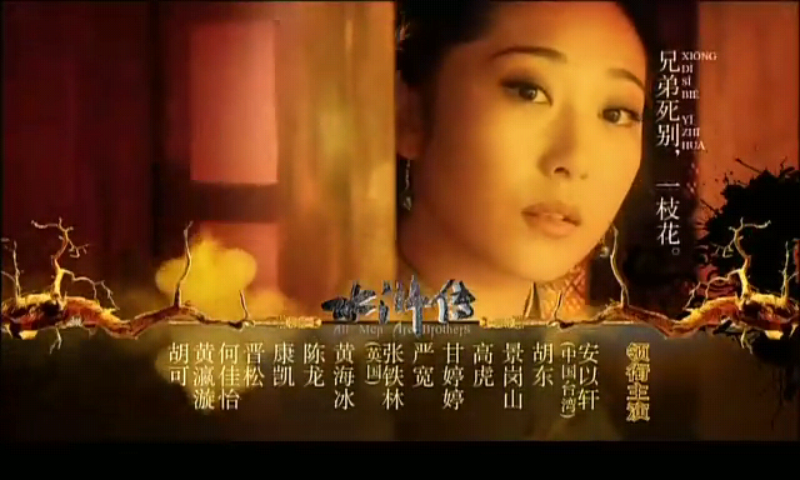

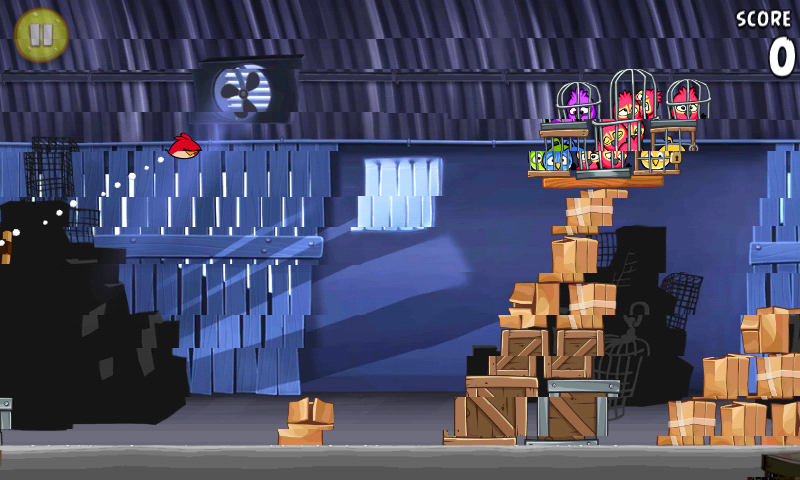

Android2.3 running on the Cortex-A8 development board x210ii

Cortex-A8 development boardCortex-A8 development boardCortex-A8 development boardCortex-A8 development boardCortex-A8 development boardCortex-A8 development boardCortex-A8 development boardCortex-A8 development boardCortex-A8 development boardCortex-A8 development boardCortex-A8 development boardCortex-A8 development boardCortex-A8 development boardCortex-A8 development board

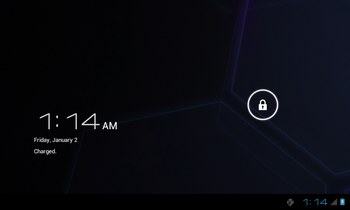

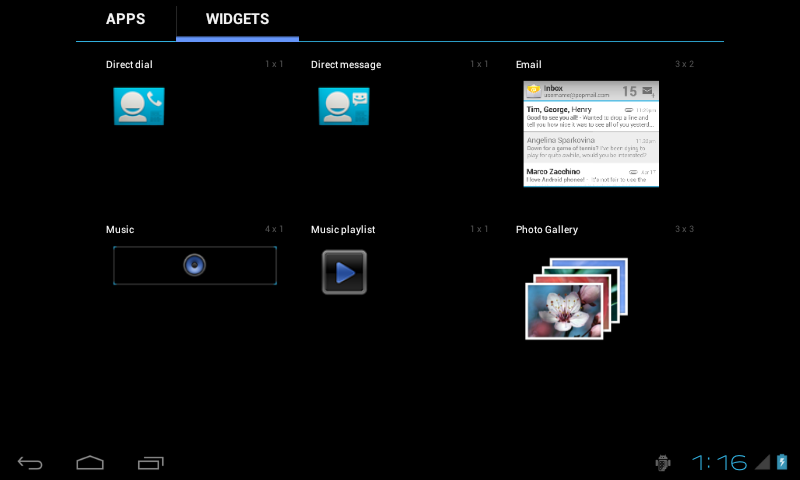

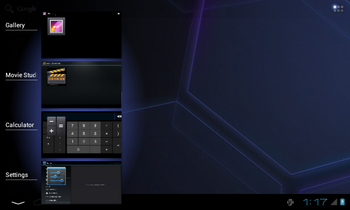

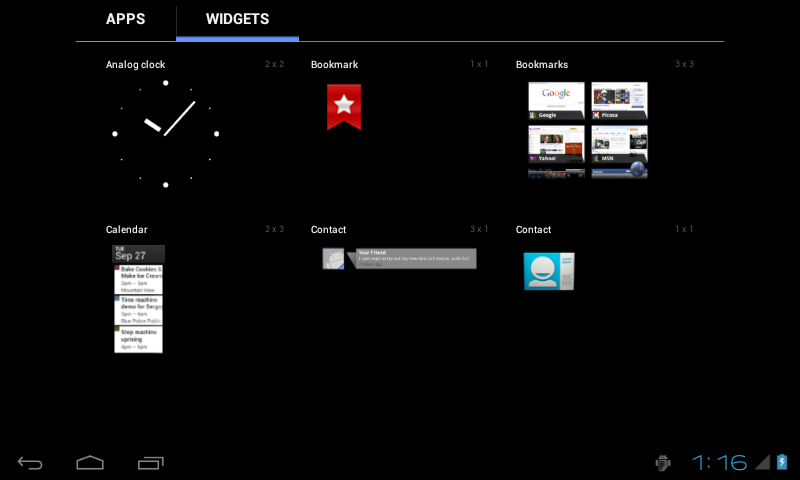

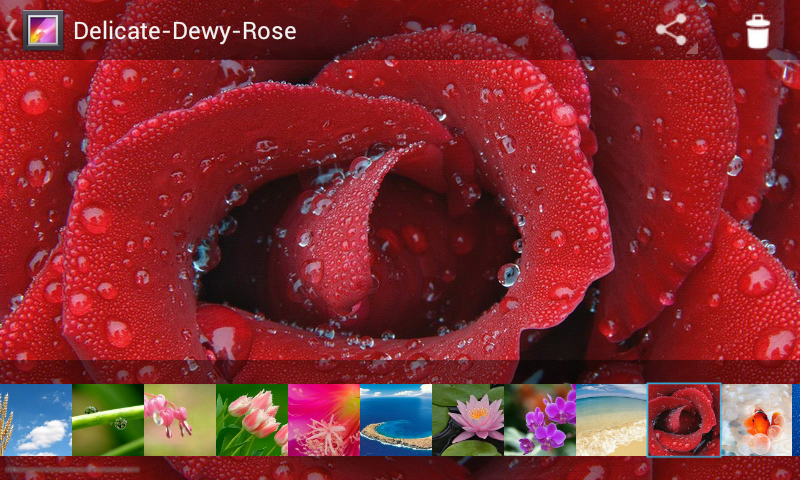

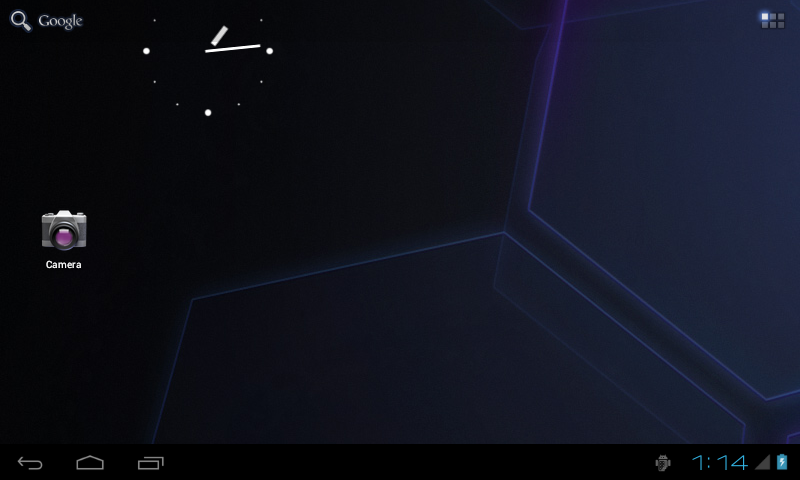

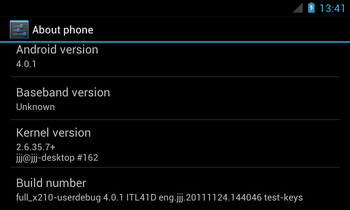

Android4.0 running on the Cortex-A8 development board x210ii

Cortex-A8 development boardCortex-A8 development boardCortex-A8 development boardCortex-A8 development boardCortex-A8 development boardCortex-A8 development boardCortex-A8 development boardCortex-A8 development boardCortex-A8 development boardCortex-A8 development boardCortex-A8 development boardCortex-A8 development boardCortex-A8 development boardCortex-A8 development boardCortex-A8 development boardCortex-A8 development board

Examples

For each supported system, the Cortex-A8 development board x210ii comes with development resources listed as follow:

  • Linux + Android2.3
    • Qunchuang AT070TN92 7 inch LCD
    • Four-lines resistive touch screen
    • Capacitive touch screen (compatible with SSD2531, goodix GT801, FT5406)
    • SD card
    • Press buttons
    • LED
    • Turn on/off
    • Wake up from sleep mode
    • Four USB HOST
    • One USB Device
    • Audio decoding
    • USB WIFI
    • G-sensor
    • OV2655 camera
    • Serial port
    • HDMI
    • Upgrading from SD card
    • Starting up WINCE eboot through xboot
    • DM9000CEP
  • Linux + Android4.0
    • x210ii supports Linux + Android4.0
  • Linux + QT4.8 + Qtopia
    • x210ii supports Linux + QT4.8 + Qtopia
  • WINCE6.0(technical support is NOT available for WINCE)
    • Qunchuang AT070TN92 7 inch LCD
    • Four-lines resistive touch screen
    • SD card
    • Press buttons
    • Image stored in inand
    • LED
    • Turn on/off
    • Four USB HOST
    • One USB Device
    • Audio decoding
    • USB WIFI
    • Serial port
    • HDMI
    • DM9000CEP
    • OV2655 camera

What's the Difference

x210ii Package B comes with 7 inch resistive touch screen LCD, which supports Linux+Android, Linux+QT, WINCE.

x210ii Package C comes with 7 inch capacitive touch screen LCD, which supports Linux+Android, Linux+QT, doesn't support WINCE.

Package Content

Weight: 0.99 kg

Quick Overview

Package Contains

  1. x210ii development board x 1
  2. 7 inch capacitive touch screen LCD x 1
  3. 9V/1.5A power adapter (NOT included any more)
  4. USB cable x 1
  5. Ethernet cable x 1
  6. Serial cable x 1
  7. Loudspeaker x 1
  8. DVD x 2
