Features

• High quality and durable
• Tested before shipping
• Easy to use

Applicable Devices

• Package
  • SSOP8
  • TSSOP8
• Pitch: 0.65mm
• Width: 4.4mm

Socket PN

• OTS-8(28)-0.65-01

Download

• Socket Datasheet

Pin Header Dimensions

• Pitch: 100mil (2.54mm)
• Width: 600mil-630mil (1.52cm-1.6cm)

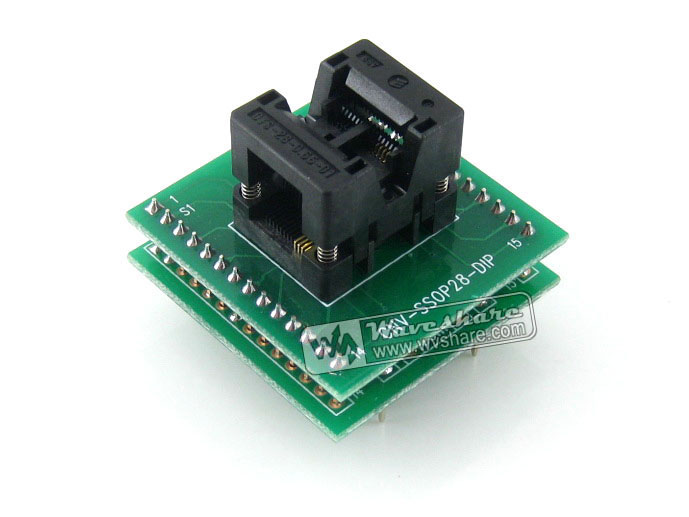

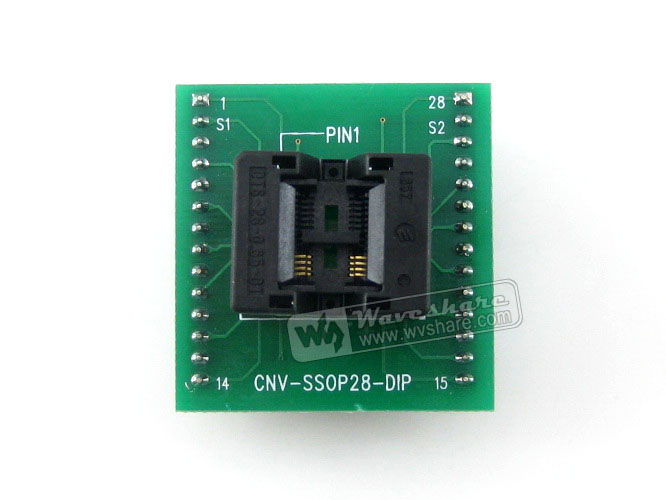

Note: we're going to ship the alternative A OR B randomly. As you can see in pictures below, there are nothing different between two alternatives, except the PCB sizes. They provide exactly the same functionality.

Alternative A (PCB sizes: 32mm * 38mm )

Alternative B (PCB sizes: 38mm * 39mm )

Outline and Dimensions

Part Number	Pitch	Pins	Applicable IC Dimensions (REF.)				Outside Dimensions (REF.)
			A	B	C	D	E	F	G	H
OTS-8(28)-0.65-01	0.65	8	6.4±0.05	4.4±0.05	5.2	-	20.2	17.6	17.5	3
