Details

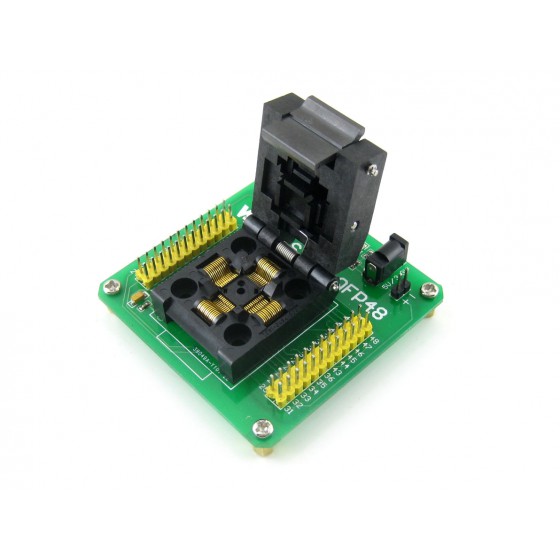

Yamaichi IC Test & Burn-in Socket with a simple board, especially for STM8 microcontroller in QFP48(0.5mm pitch) package
Features
- 4-pin SWIM Port for programming or testing
- External crystal can be connected via on board socket
- All the MCU pins are accessible on expansion connectors
Supported Devices
STM8 microcontroller in QFP48(0.5mm pitch) package with compatible pinouts
- STM8S105CxTx / STM8S207CxTx / STM8S208CxTx
- STM8AF51x8T / STM8AF52x8T / STM8AF61x8T / STM8AF62x8T

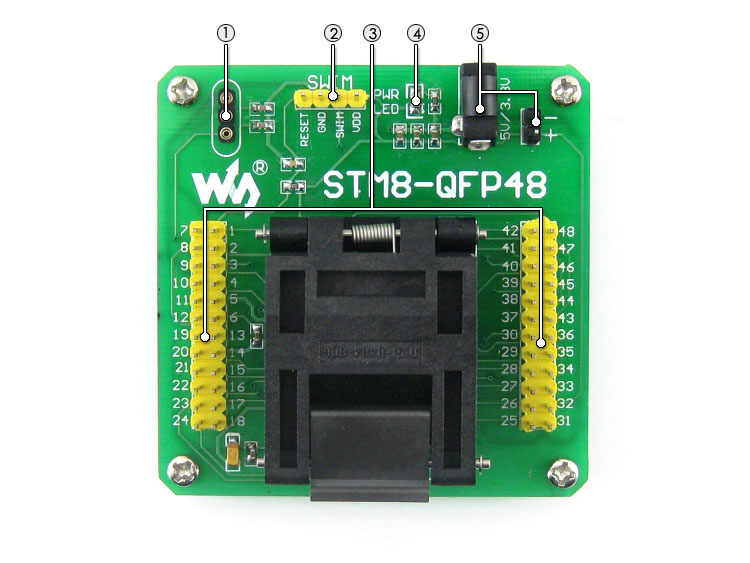

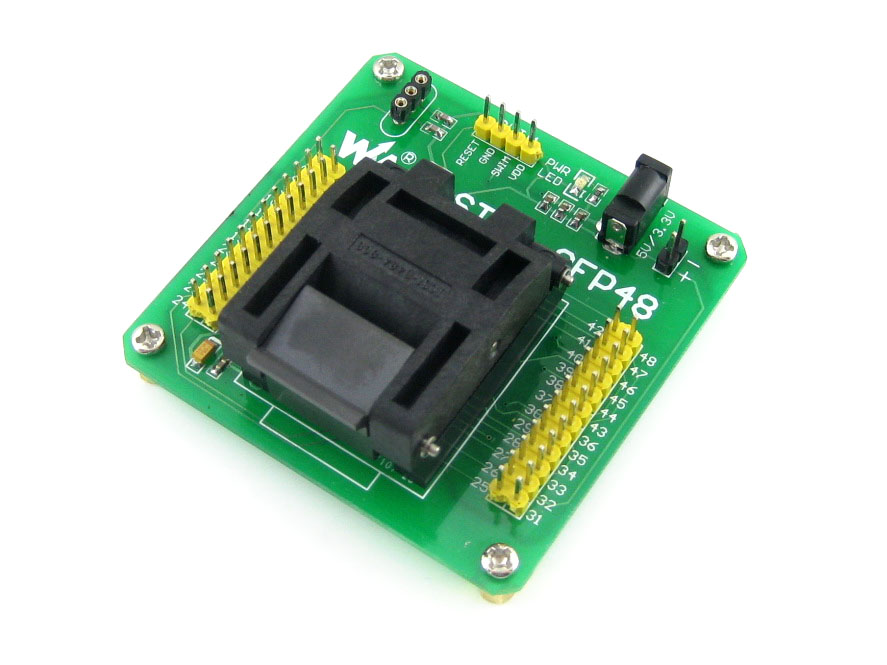

Photos
- External crystal socket
- insert crystal to the holes on two sides, regardless of the middle hole
- SWIM port
- for programming/debugging/testing
- compatible with ST-LINK, ST-LINK/V2, etc.
- Pin headers connected to MCU pins
- clearly labeled with onboard marks
- easy for testing and further expansion
- Power indicator
- Power input
- DC5V/3.3V
Outline and Dimensions
Unit: mm
| Part Number | Pitch | Pins | Applicable IC Dimensions (REF.) | Outside Dimensions (REF.) | |||
|---|---|---|---|---|---|---|---|
| A x B | C x D | E | F | G x H | |||
| IC51-0484-806 | 0.5 | 48 | 7 × 7 | 9 × 9 | 8.2 | - | 29 × 32 |
 |
|||||||
SWIM Port Header Pinout
The STM8-QFP48 houses SWIM headers for connecting a programmer. The header pinouts are shown in the figure 1 below.
Figure 1. SWIM header pinout
Downloads
Development resources:schematic, etc.
Wiki:
www.waveshare.com/wiki/STM8-QFP48
Weight: 0.075 kg
Quick Overview
- STM8-QFP48 × 1
- USB power cable × 1
