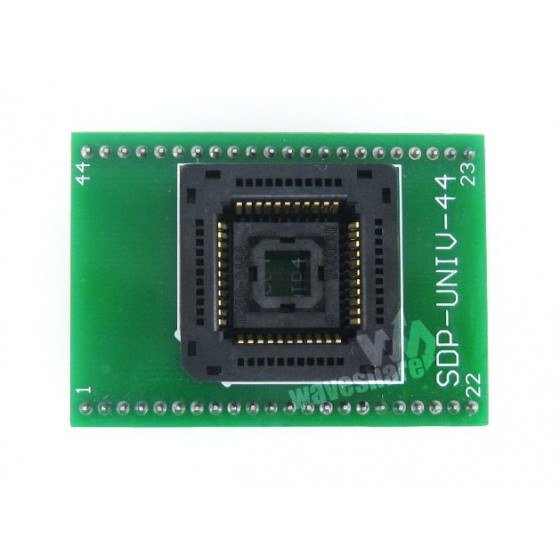

PLCC44 TO DIP44, Programmer Adapter

PLCC44 TO DIP44, Programmer Adapter

SKU: 3058
Part Number: PLCC44 TO DIP44
Brand: Yamaichi

$21.99
$20.992+
$19.993+
$18.994+

Share:
Description

Details

Yamaichi IC Programmer Adapter for PLCC44 package

Features

  • High quality and durable
  • Tested before shipping
  • Easy to use

Supported Devices

  • Package
    • PLCC44
  • Pitch: 1.27mm

Socket PN

  • IC120-0444-306

Download

DIP Pin Header Dimensions

  • Pitch: 100mil (2.54mm)
  • Width: 600mil (1.52cm)

Pinout Mapping

Outline and Dimensions

Unit: mm
Part Number Pitch Pins Socket Dim. Inserting Direction of IC
A B C
IC120-0444-306 1.27 44 28.0 28.0 19.3 Live-bug type

Weight: 0.036 kg

Quick Overview

  • PLCC44 TO DIP44 adapter × 1
