Details
Embedded with SH8601 Display Driver and FT3168 Capacitive Touch Chip
RP2350-Touch-AMOLED-1.8-EN
Standard version, without Lithium battery

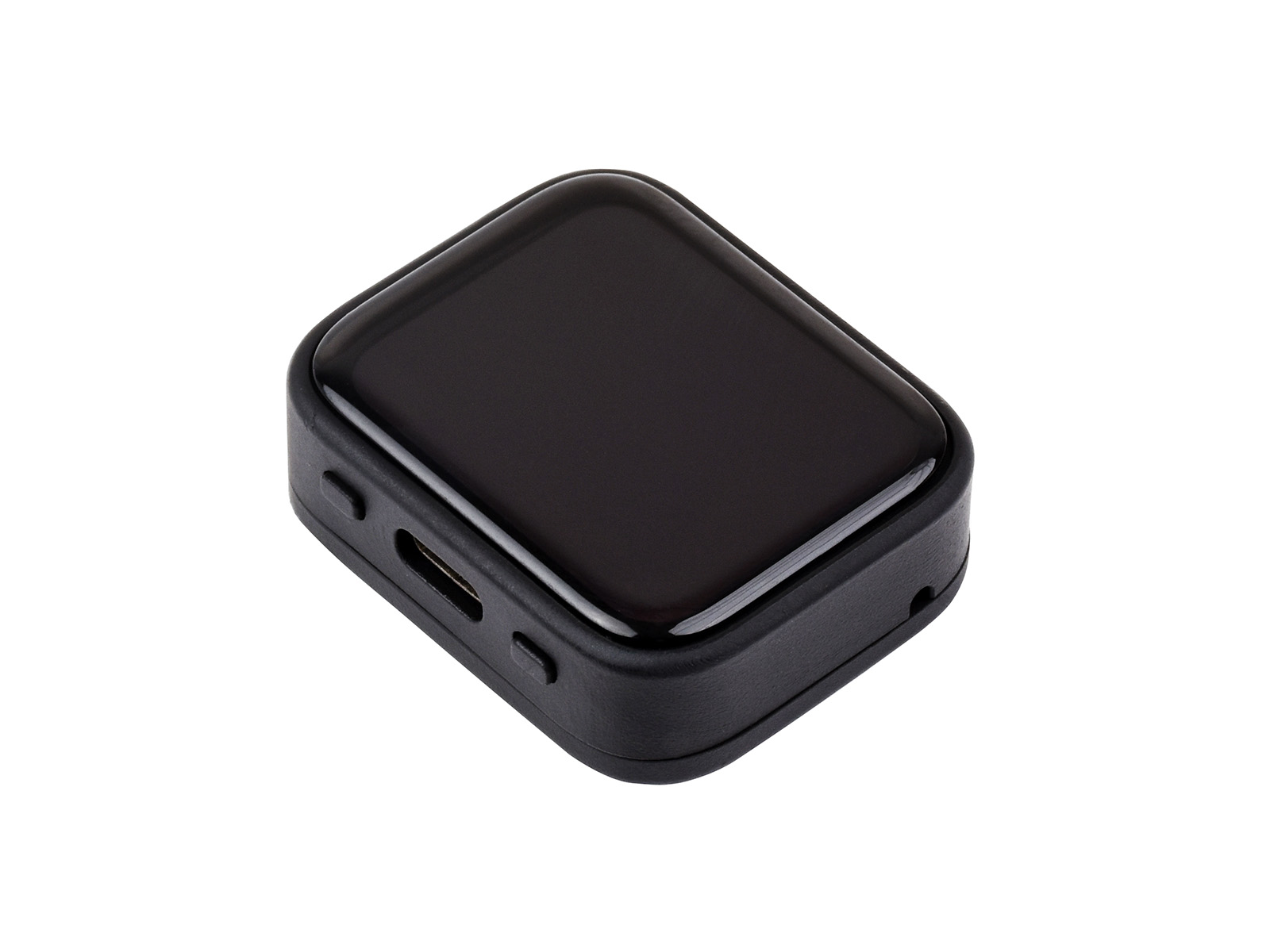

RP2350-Touch-AMOLED-1.8

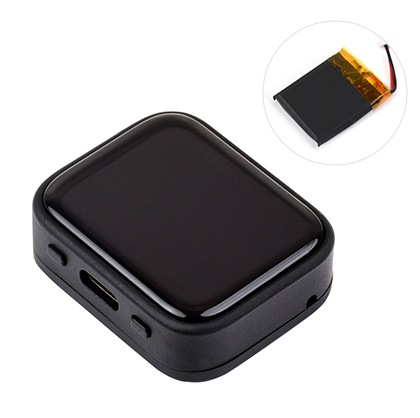

Comes with a 3.7V MX1.25 Lithium battery
(can be installed inside the case)

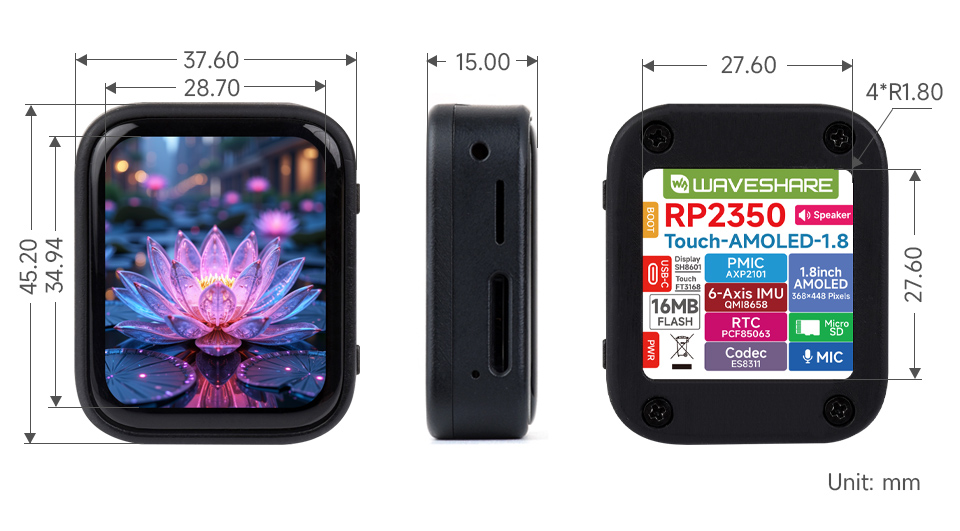

RP2350-Touch-AMOLED-1.8 is a high-performance, highly integrated MCU board designed by Waveshare. It features a compact size with an onboard 1.8inch AMOLED capacitive touch display, power management chip, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), RTC chip, low-power audio codec chip and so on, making it easy to develop and integrate into products quickly.
- RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
- Adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz
- 520KB of SRAM, and 16MB onboard Flash memory

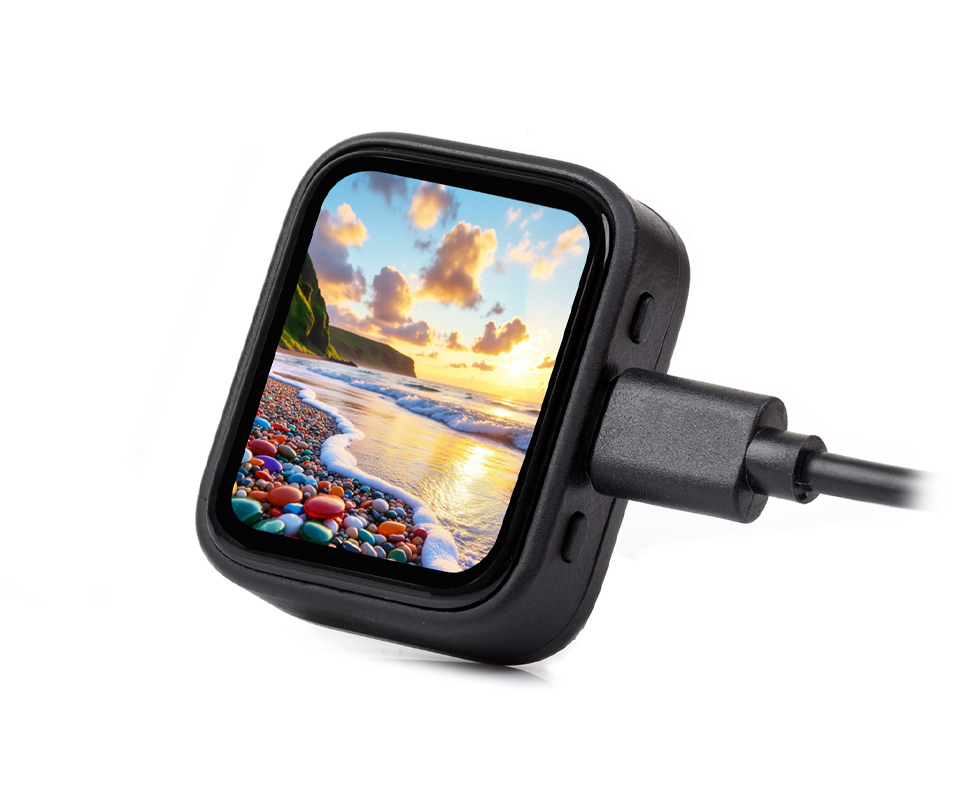

- Type-C connector for easier use

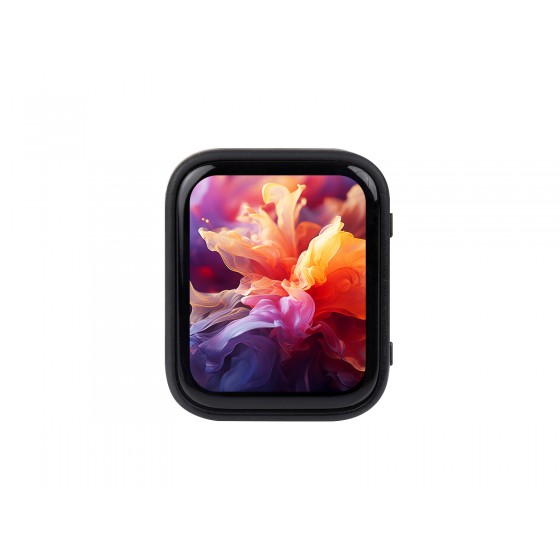

- Onboard 1.8inch AMOLED display for clear color picture display, 368 × 448 resolution, 16.7M color
- Built-in SH8601 display driver and FT3168 capacitive touch chip, using QSPI and I2C communication respectively
- Lithium battery recharge/discharge header, suitable for mobile applications
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- Adapting 5 × multi-function GPIO pins
- 2 × I2C, 1 × UART, 1 × 12-bit ADC, 5 × controllable PWM channels
- Accurate clock and timer on-chip
- Temperature sensor
- Accelerated floating-point libraries on-chip
- 12 × Programmable I/O (PIO) state machines for custom peripheral support
| Display Panel | AMOLED | Display Size | 1.8 inch |
|---|---|---|---|
| Resolution | 368 × 448 pixels | Display Colors | 16.7M |
| Brightness | 350 cd/㎡ | Contrast Ratio | 100000:1 |
| Communication Interface | QSPI | Driver IC | SH8601 |
| Touch | Supported | Touch IC | FT3168 |

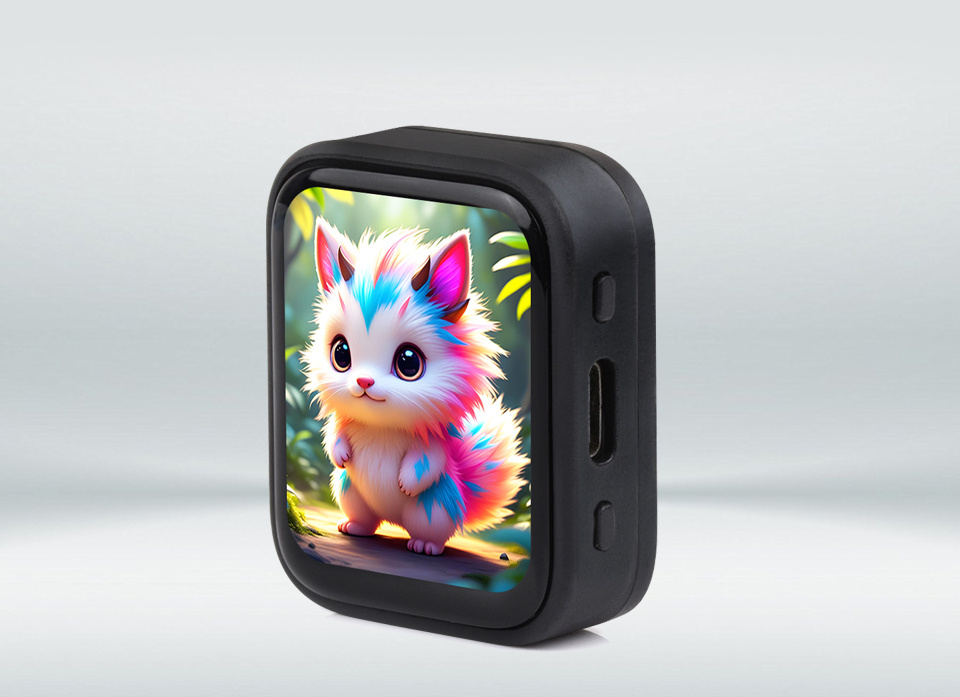

Suitable For Various Smart Devices Development, Can Realize Human-Computer Interaction Function. Supports installing battery* inside the case for independent operation.
The next-generation display technology, compared to traditional LCD displays, the AMOLED screen features precise light-control capability, representing more delicate colors, more picture details, and more vivid images

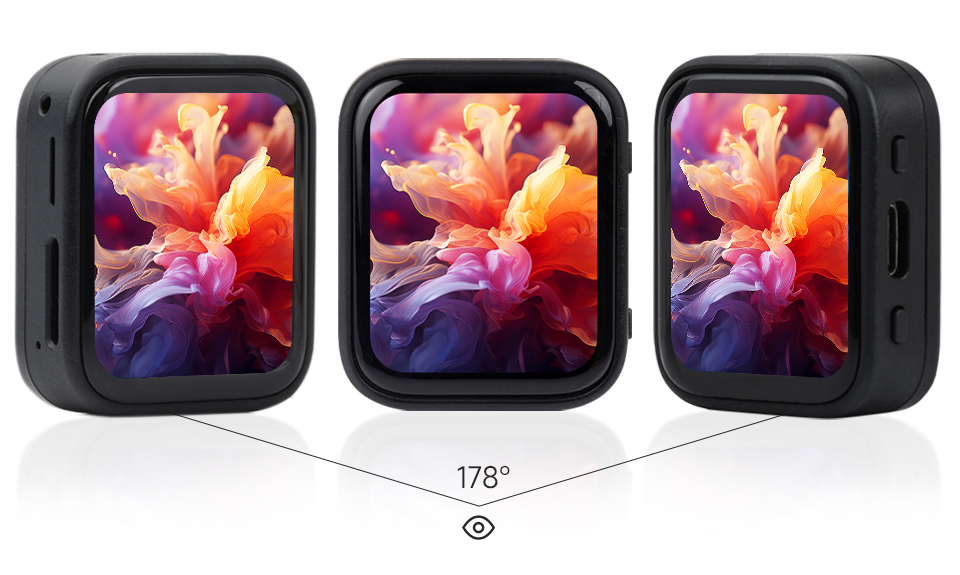

Excellent Display Performance, 16.7M color, wide viewing angle

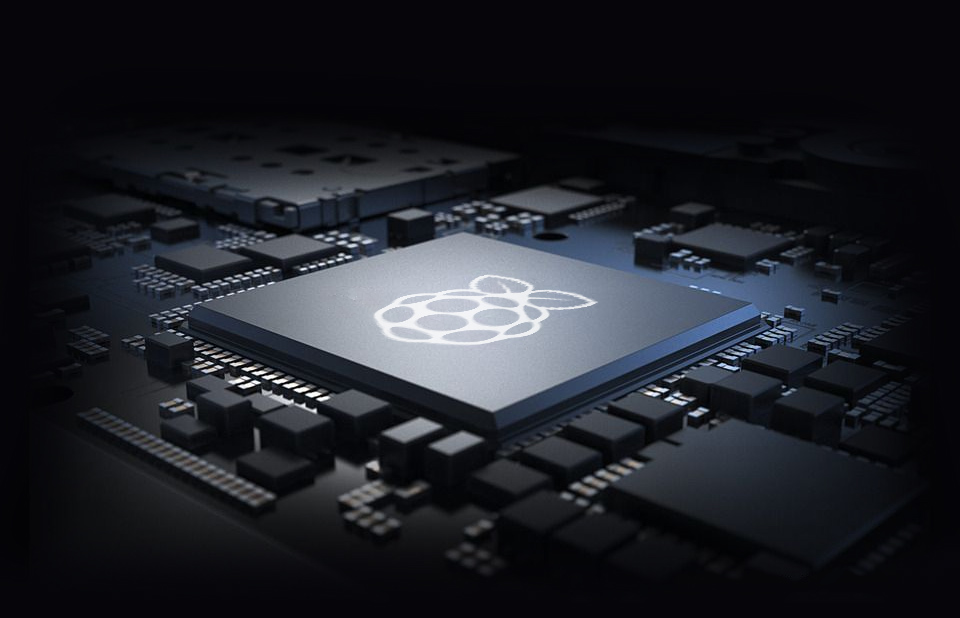

The unique dual-core, dual-architecture capability of RP2350A allows users to choose between a pair of industry-standard Arm Cortex-M33 cores, and a pair of open-hardware Hazard3 cores, giving developers a chance to experiment with the RISC-V architecture in a stable, well-supported environment
Supports high-quality audio processing, providing clear and high-quality audio input and output

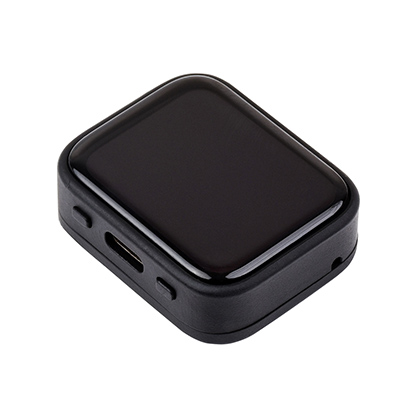

with removable back cover for easy embedded into the projects and DIY design
Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

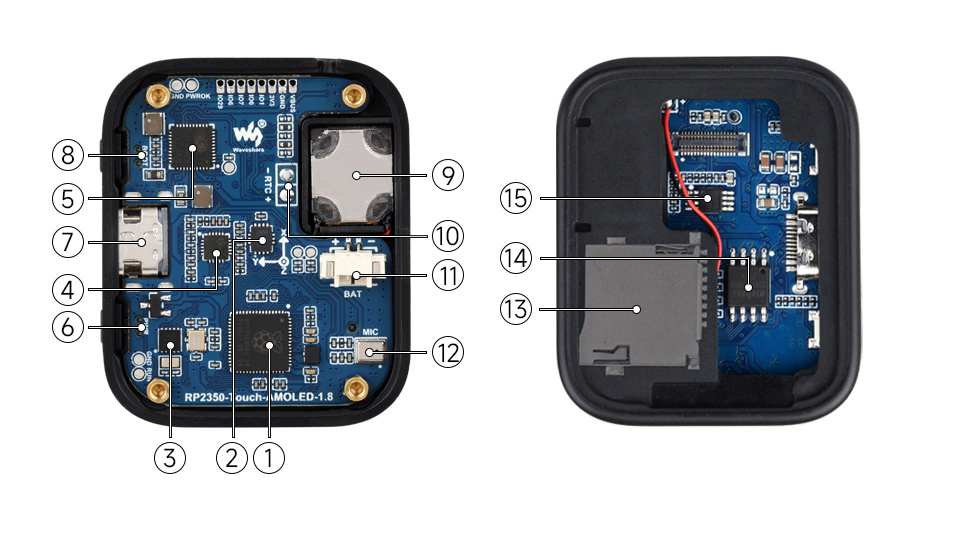

- RP2350A
Dual-core and dual-architecture design, up to 150 MHz operating frequency - QMI8658
6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer - PCF85063
RTC chip - ES8311
Low power mono audio codec - AXP2101
Highly integrated power management IC - PWR button
for system power supply ON/OFF, supports custom functions - Type-C connector
for programming, USB 1.1 with device and host support
- BOOT button
for device startup and function debugging - Speaker
- Backup battery pads
for connecting backup battery, ensuring RTC function during the replacement of the main battery - MX1.25 Lithium battery header
MX1.25 2P connector, for 3.7V Lithium battery (optional), supports charging and discharging. (To fit inside the case, a battery size of 3.85 × 24 × 28 mm is recommended) - Microphone
- TF card slot
- W25Q128JVSIQ
16MB NOR-Flash - NS4150B
Audio power amplifier

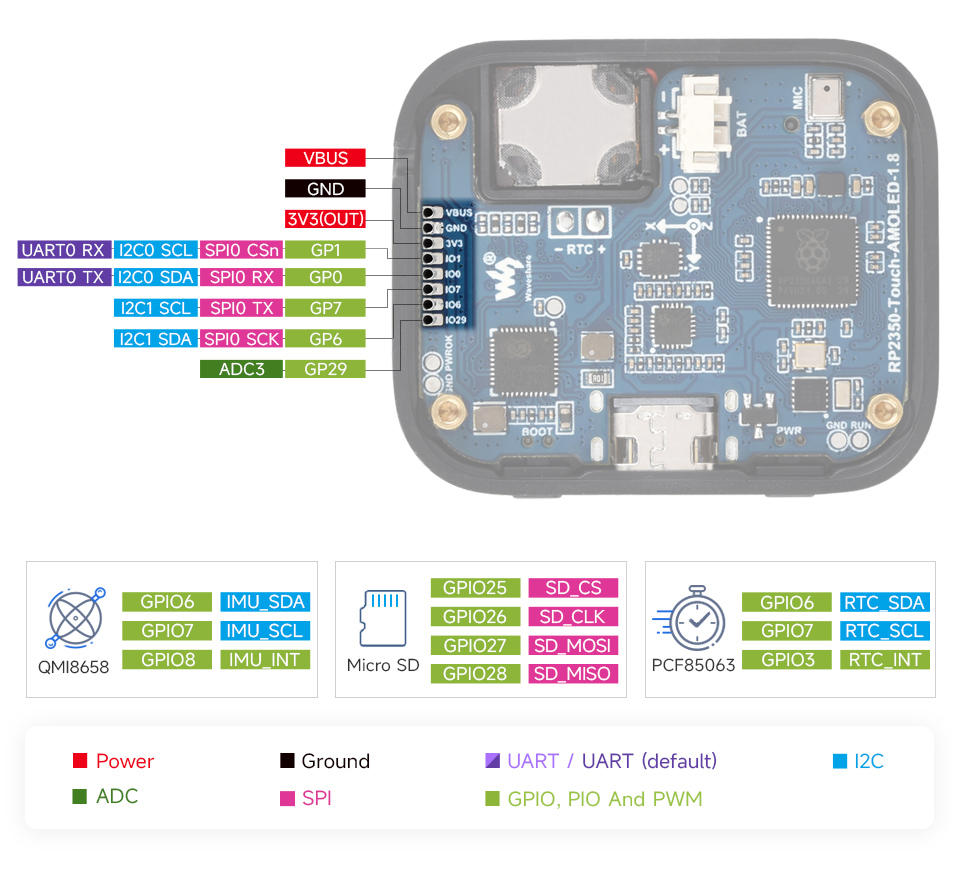

onboard multiple GPIO interfaces, more convenient for development, offers strong flexibility
| PRODUCT | Voltage regulator chip | USB | Flash | Lithium battery header | Onboard LCD |
|---|---|---|---|---|---|
| RP2350 chip | |||||
 Raspberry Pi Pico 2 |
DC-DC, 800mA | Micro USB | 4MB | - | - |
 Raspberry Pi Pico 2 W |
DC-DC, 800mA | Micro USB | 4MB | - | with WIFI and Bluetooth |
 Raspberry Pi Pico 2 WH |
DC-DC, 800mA | Micro USB | 4MB | - | with WIFI and Bluetooth |
 CAN ver. |
DC-DC, 2000mA | Type-C | 4MB | - | CAN interface |
 Type-A ver. |
LDO, 500mA | Type-A | 4MB | - | - |
 Type-C ver. |
LDO, 800mA | Type-C | 4MB | - | - |
 Tiny ver. |
LDO, 800mA | Separate Type-C port adapter | 4MB | - | Separate adapter board design, adapting USB Type-C port via FPC |
 ETH Port ver. |
LDO, 800mA | Type-C | 4MB | - | with Ethernet port |
 USB ver. |
LDO, 500mA | Type-A, Type-C | 2MB | - | with PIO-USB Type-A and USB Type-C port |
 1.28inch Round LCD ver. |
LDO, 300mA | Type-C | 4MB | Support(allows recharging the battery and powering the board at the same time) | 1.28inch IPS LCD |
 1.28inch Round Touch LCD ver. |
LDO, 300mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 1.28inch IPS touch LCD |
 1.43inch Round Touch AMOLED ver. |
DC-DC, 2000mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 1.43inch AMOLED Touch LCD |
 1.64inch Touch AMOLED ver. |
DC-DC, 2000mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 1.64inch AMOLED Touch LCD |
 1.8inch Touch AMOLED ver. |
DC-DC, 2000mA LDO，300mA |
Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 1.8inch AMOLED Touch LCD |
 1.47inch LCD ver. |
LDO, 300mA | Type-C | 16MB | - | 1.47inch IPS LCD |
 1.47inch LCD USB ver. |
LDO, 300mA | Type-A | 16MB | - | 1.47inch IPS LCD |
 1.69inch Touch LCD ver. |
LDO, 500mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 1.69inch Touch LCD |
 2inch Touch LCD ver. |
DC-DC, 2000mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 2inch Touch LCD |
 2.8inch Touch LCD ver. |
LDO, 800mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 2.8inch IPS Touch LCD |
 0.96 LCD ver. |
DC-DC, 2000mA | Type-C | 4MB | Support(allows recharging the battery and powering the board at the same time) | 0.96inch IPS LCD |
 Plus ver. |
DC-DC, 2000mA | Type-C | 4MB/16MB | Support(allows recharging the battery and powering the board at the same time) | - |
| RP2040 chip | |||||
 Raspberry Pi Pico W |
DC-DC, 3000mA | Micro USB | 2MB | - | with WIFI |
 Raspberry Pi Pico WH |
DC-DC, 3000mA | Micro USB | 2MB | - | with WIFI |
 Raspberry Pi Pico |
DC-DC, 800mA | Micro USB | 2MB | - | - |
 Raspberry Pi Pico H |
DC-DC, 800mA | Micro USB | 2MB | - | - |
 Type-A ver. |
LDO, 500mA | Type-A | 4MB | - | - |
 Mini ver. |
LDO, 800mA | Type-C | 2MB | - | - |
 Tiny ver. |
LDO, 500mA | Separate Type-C port adapter | 2MB | - | Separate adapter board design, adapting USB Type-C port via FPC |
 RGB Matrix ver. |
LDO, 500mA | Type-C | 2MB | - | Onboard 5×5 RGB LED matrix |
 BLE ver. |
LDO, 300mA | Separate Type-C port adapter | 2MB | - | Supports Bluetooth 5.1, separate adapter board design, adapting USB Type-C port via FPC |
 ETH Port ver. |
LDO, 500mA | Type-C | 4MB | - | with Ethernet port |
 0.99inch Round LCD with case ver. |
LDO, 500mA | Type-C | 2MB | - | 0.99inch IPS LCD, CNC metal case |
 1.28inch Round LCD ver. |
LDO, 300mA | Type-C | 2MB | Support(allows recharging the battery and powering the board at the same time) | 1.28inch IPS LCD |
 1.28inch Round LCD with case ver. |
LDO, 300mA | Type-C | 2MB | Support(allows recharging the battery and powering the board at the same time) | 1.28inch IPS LCD, CNC metal case |
 1.28inch Round Touch LCD ver. |
LDO, 500mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 1.28inch Touch LCD |
 1.28inch Round Touch LCD with case ver. |
LDO, 500mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 1.28inch Touch LCD, CNC metal case |
 1.69inch Touch LCD ver. |
LDO, 500mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 1.69inch Touch LCD |
 0.96 LCD ver. |
DC-DC, 1800mA | Type-C | 2MB | Support(allows recharging the battery and powering the board at the same time) | 0.96inch IPS LCD |
 Plus ver. |
DC-DC, 1800mA | Type-C | 4MB/16MB | Support(allows recharging the battery and powering the board at the same time) | - |
 DVI port ver. |
LDO, 300mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | Onboard DVI interface, TF card slot and PIO-USB port |
 Cam & LCD ver. |
- | Type-C | 16MB | - | Onboard grayscale camera and 1.14inch IPS LCD display |
Quick Overview
- RP2350-Touch-AMOLED-1.8 x1

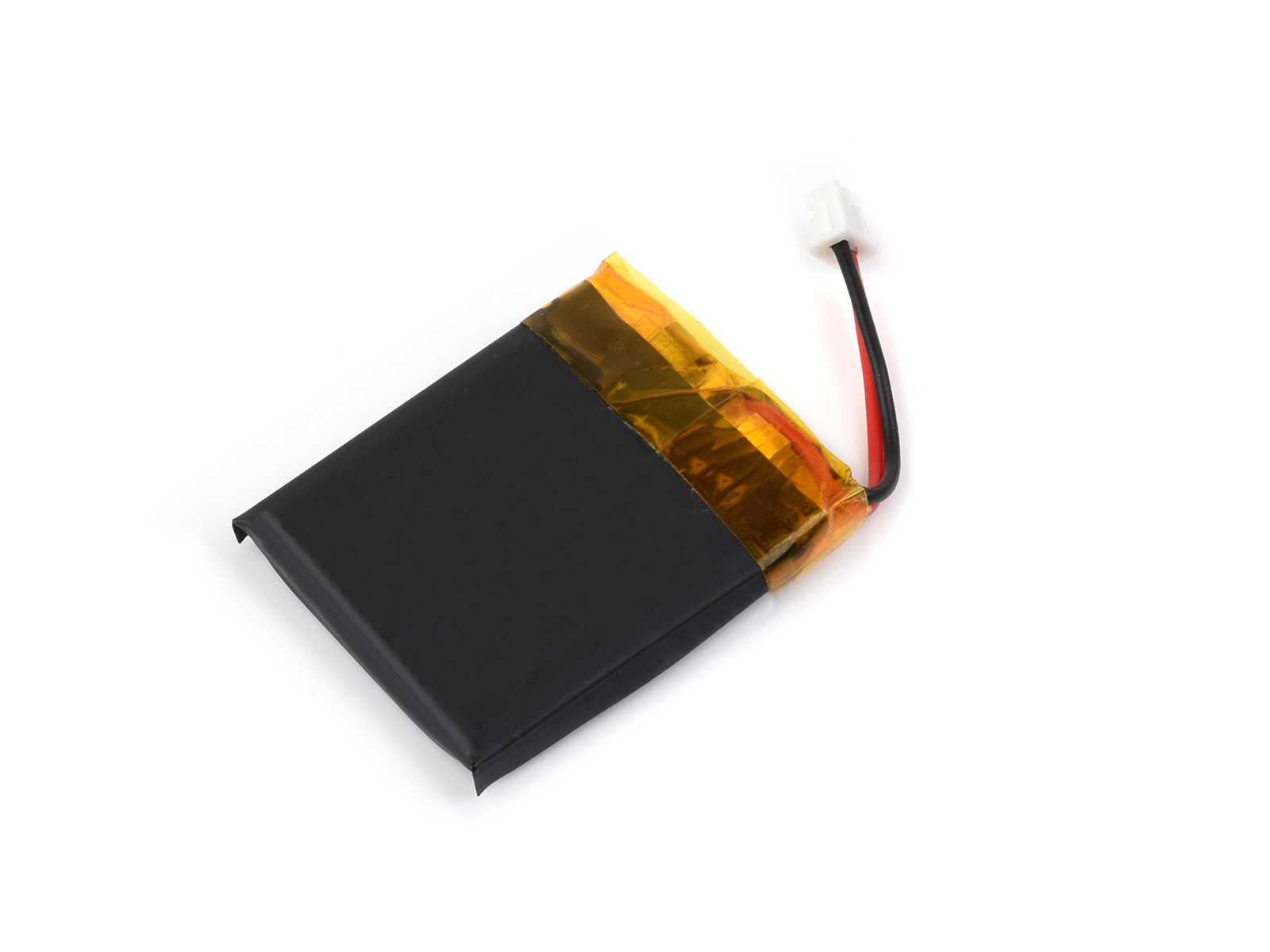

- OPTIONS 3.7V MX1.25 Lithium battery ×1
