Photo Interrupter Sensor, Speed Measuring

SKU: 12225
Part Number: Photo Interrupter Sensor
Brand: Waveshare
UPC: 614961950269

$3.59
$3.292+
$3.193+
$2.994+

Description

Details

Photo Interrupter Sensor, robot speed measuring module

Overview

  • Infrared detection, eliminating the interferences of external stray light
  • Schmitt trigger, stable wave form and signals
  • Signal output indicator (while breaking the beam, outputs low level, the indicator lights up)

Specifications

  • Power: 3.3V ~ 5V
  • Dimension: 26.8mm × 15mm × 18.7mm
  • Mounting holes size: 3mm
  • Gap width: 6mm

Applications

  • Motor speed detection
  • Pulse counter

How to Use

In the case of working with a MCU:

  • VCC ↔ 3.3V ~ 5V
  • GND ↔ GND
  • DOUT ↔ MCU.IO (digital output)

Dimensions

Photo Interrupter Sensor dimensions

Development Resources

Wiki : www.waveshare.com/wiki/Photo_Interrupter_Sensor

Package Content

Weight: 0.004 kg

Quick Overview

  1. Photo Interrupter Sensor x 1
  2. 20-slots encoder disk x 1

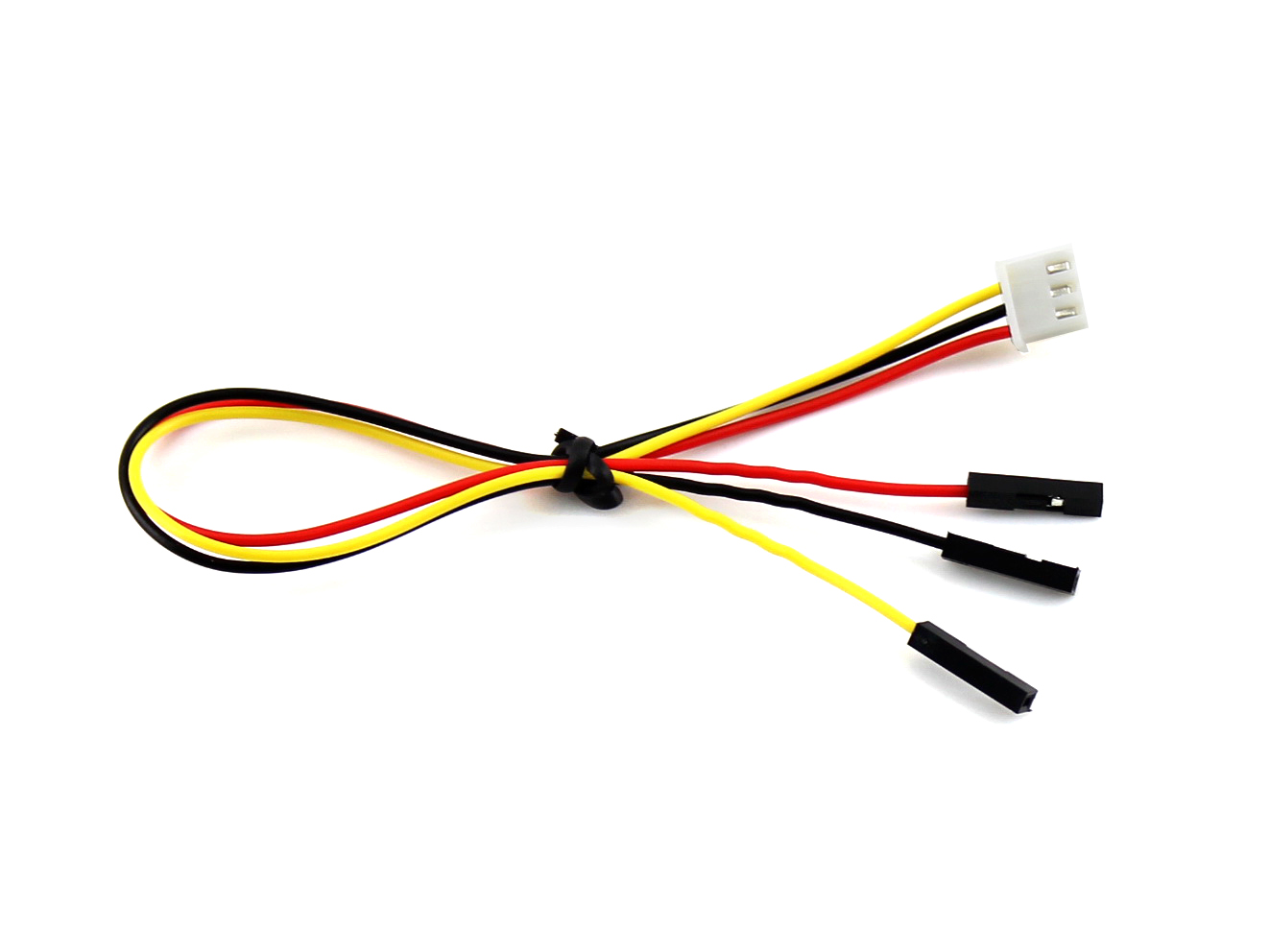

  3. XH2.54 3PIN wire x 1
