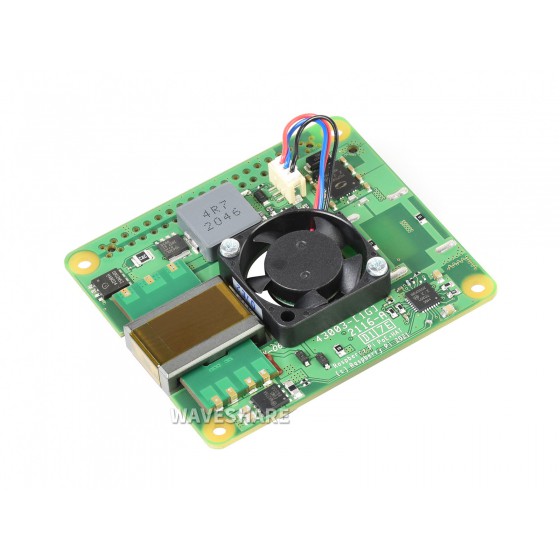

Raspberry Pi PoE+ HAT for Raspberry Pi 3B+/4B, 802.3af/at-compliant

SKU: 20092
Part Number: Raspberry Pi PoE+ HAT
Brand: Raspberry Pi Foundation


Related Products:



Raspberry Pi PoE+ HAT, compatible with Raspberry Pi 3B+/4B, 802.3af/at Power-Sourcing Equipment Required
Official Raspberry Pi PoE+ HAT

Compatible with Raspberry Pi 3B+/4B, 802.3af/at-compliant

Product overview

The Raspberry Pi PoE+ HAT is a Power Over Ethernet (PoE+) accessory for the Raspberry Pi 3B+/4B. Compared to its predecessor Raspberry Pi PoE HAT, it features better cooling effect, implementing the 802.3af/at standard with 5V DC/4A larger power output, providing enough power for both Raspberry Pi 3B+/4B at max load and other peripherals at the same time.

By using this small HAT and some proper 802.3af/at-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.

PoE standard 802.3af 802.3af/at
Input voltage 37-57 V DC, Class 2 device 37-57 V DC, Class 4 device
Output voltage/current 5V DC/2A 5V DC/4A
Current sense No Yes
Transformer design Wire-wound Planar
Fan Controllable brushless cooling fan Controllable brushless cooling fan
delivering 2.2 CFM for processor cooling
Fan size 25 x 25mm
Feature Fully isolated switched-mode power supply
Compatible with Raspberry Pi 3B+/4B
For use with Raspberry Pi 3B+/4B
Power Over Ethernet

providing both network connection and power supply for your Raspberry Pi in one cable
802.3af/at-compliant, 5V DC/4A larger power output

Raspberry Pi or PoE equipment is NOT included.
Stronger air flow, better cooling

25 x 25mm brushless cooling fan with fan control, delivering 2.2CFM air flow for cooling

Outline dimensions
Selection guide
ProductSupported PiPoE standardPoE power outputFeature
Raspberry Pi PoE HAT 3B+/4B 802.3af 5V 2.5A Raspberry Pi official
Raspberry Pi PoE+ HAT 802.3af/at 5V 4A Raspberry Pi official (second generation)
PoE HAT (B) 802.3af 5V 2.5A with OLED display, cost effective
PoE HAT (C) 802.3af/at 5V 4A / 12V 2A high power, cost effective
PoE HAT (D) 802.3af 5V 2.5A tailored for Raspberry Pi official case, cost effective

Weight: 0.057 kg

Quick Overview

  1. Raspberry Pi PoE+ HAT x1
  2. Standoffs pack x1
