PCIe TO 2-CH 2.5G ETH Adapter For Raspberry Pi 5, Supports Raspberry Pi OS / Ubuntu / OpenWrt, Equipped With Dual RTL8125 High-performance Chips
IoT, Interface / Expansion / Power, Interface Expansion, Raspberry Pi 5

PCIe TO 2-CH 2.5G ETH Adapter For Raspberry Pi 5, Supports Raspberry Pi OS / Ubuntu / OpenWrt, Equipped With Dual RTL8125 High-performance Chips

SKU:34932
Part No.:PCIE TO 2-CH 2.5G ETH HAT+
Brand:Waveshare

$29.99
PriceQuantity
1
$28.992
$28.493
$28.294+
Share:

Details

PCIe TO 2-CH 2.5G ETH adapter for Raspberry Pi 5, supports Raspberry Pi OS / Ubuntu / OpenWrt, equipped with dual RTL8125 high-performance chips
PCIE TO 2-CH 2.5G ETH adapter

Designed for Raspberry Pi 5, driver-free, plug and play

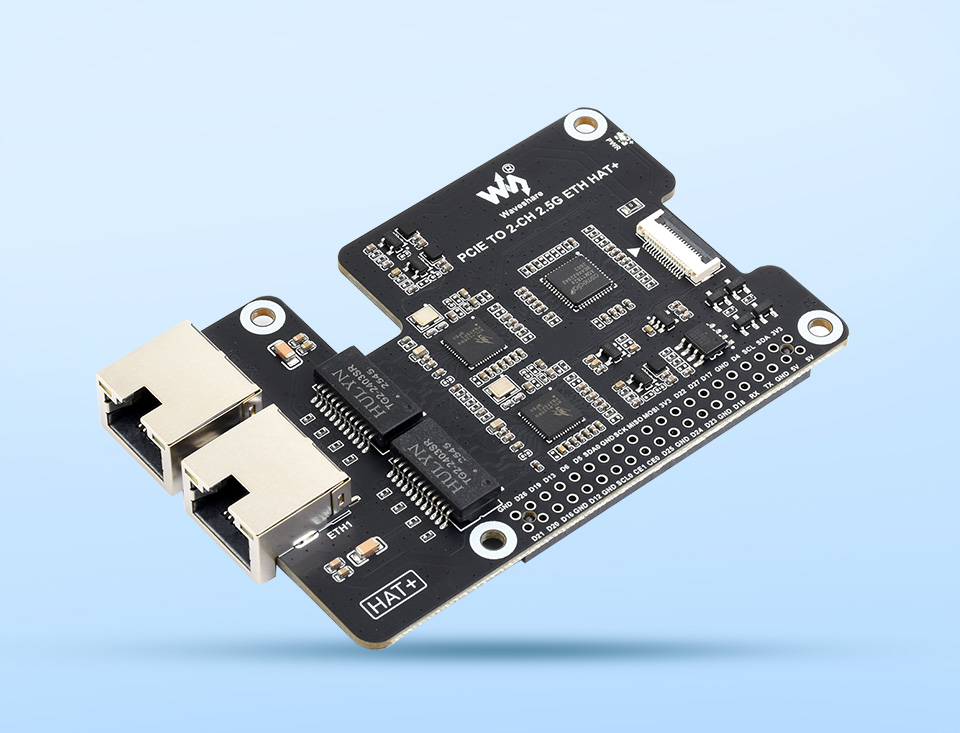

PCIE TO 2-CH 2.5G ETH adapter, front view
Specifications
CONTROLLER RTL8125
Ethernet Port RJ45 2.5G ETH × 2
PCIe Interface PCIe x1 Gen2
Power supply 5V
Network standard 10 / 100 / 1000 / 2500Mbps
Indicator status green indicator: keeps blinking when communication
yellow indicator: lights up when connected

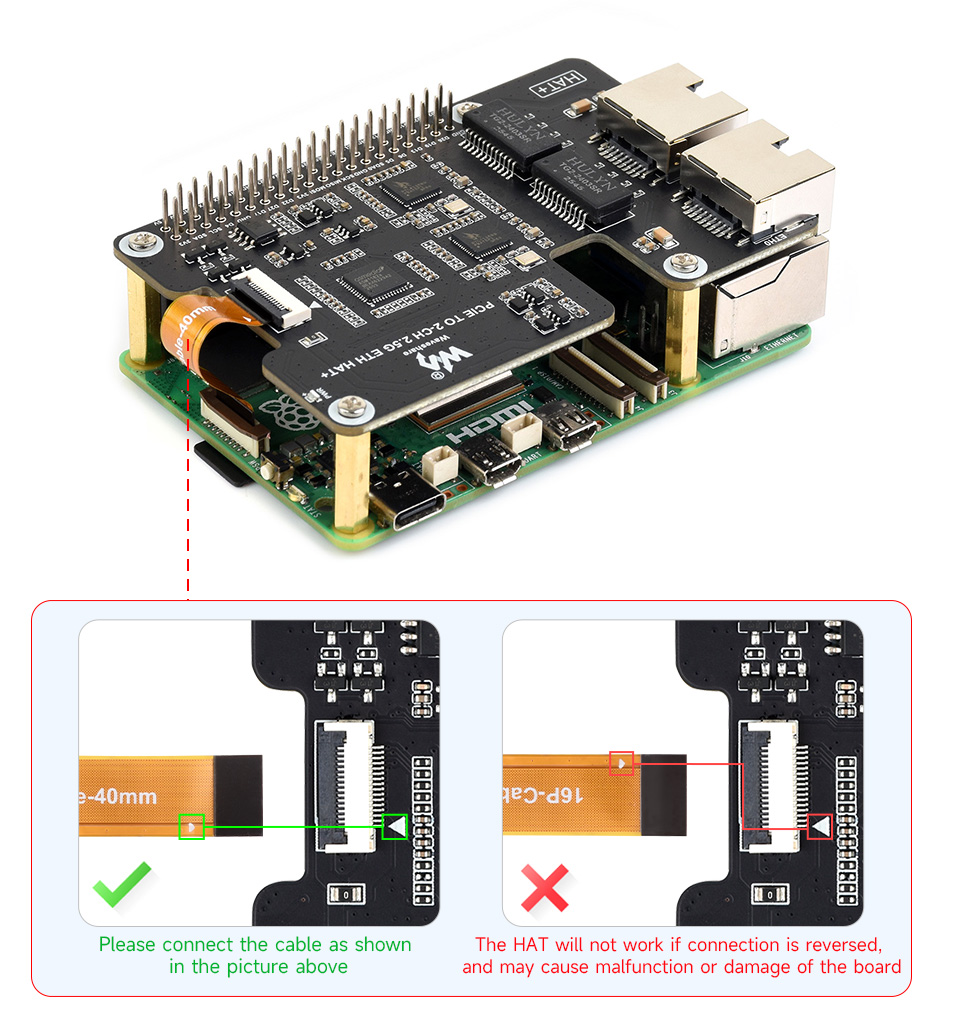

Connecting to Pi 5 via 16PIN Cable

Based on 16PIN PCIe Interface of Raspberry Pi 5

PCIE TO 2-CH 2.5G ETH adapter, Based on 16PIN PCIe Interface of Raspberry Pi 5

* for reference only, please refer to the Package Content for detailed part list

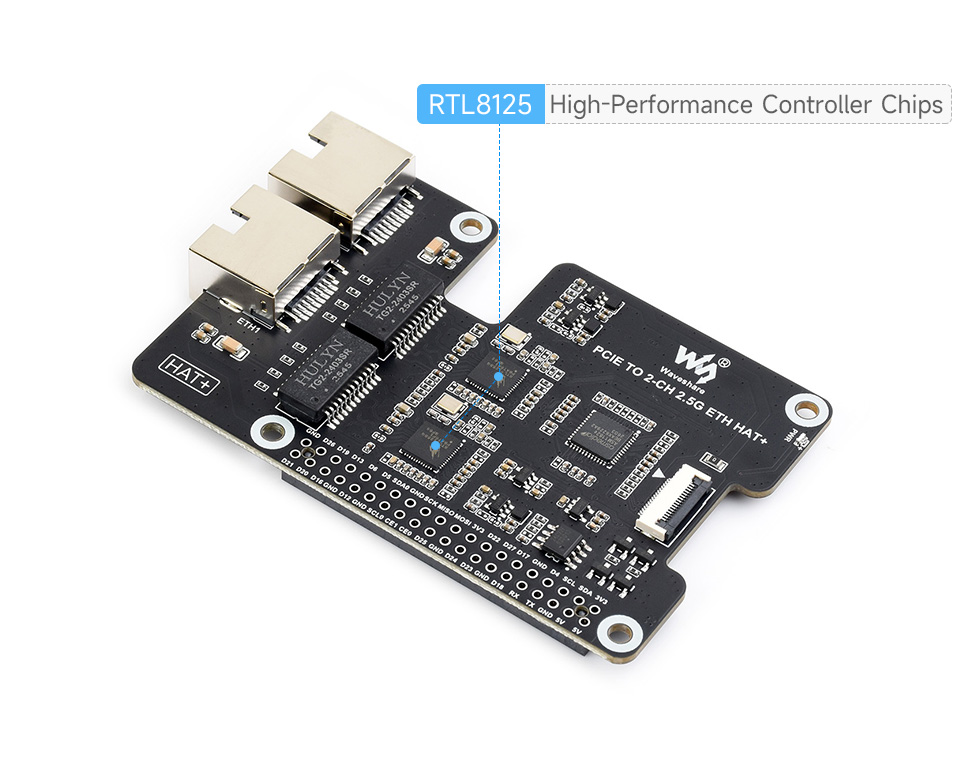

High-performance controller

Onboard high-performance dual RTL8125 chips, supports Raspberry Pi OS,
Driver-free, Plug and Play

PCIE TO 2-CH 2.5G ETH adapter, High-performance controller

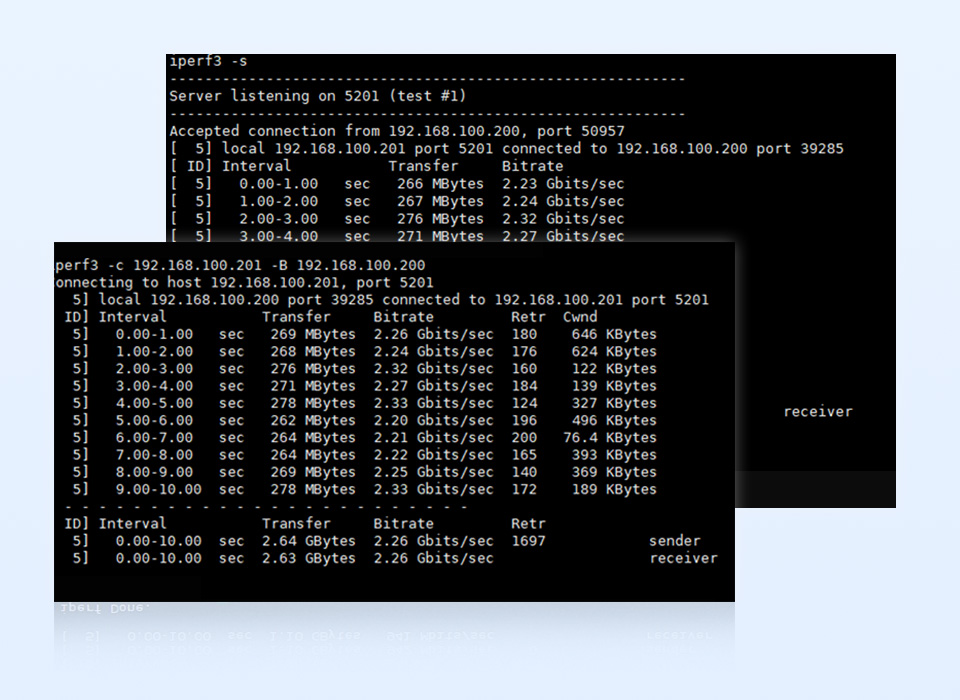

Network Speed Measurement

Supports Raspberry Pi OS / Ubuntu / OpenWrt, stable and reliable network speed

PCIE TO 2-CH 2.5G ETH adapter, Network Speed Measurement

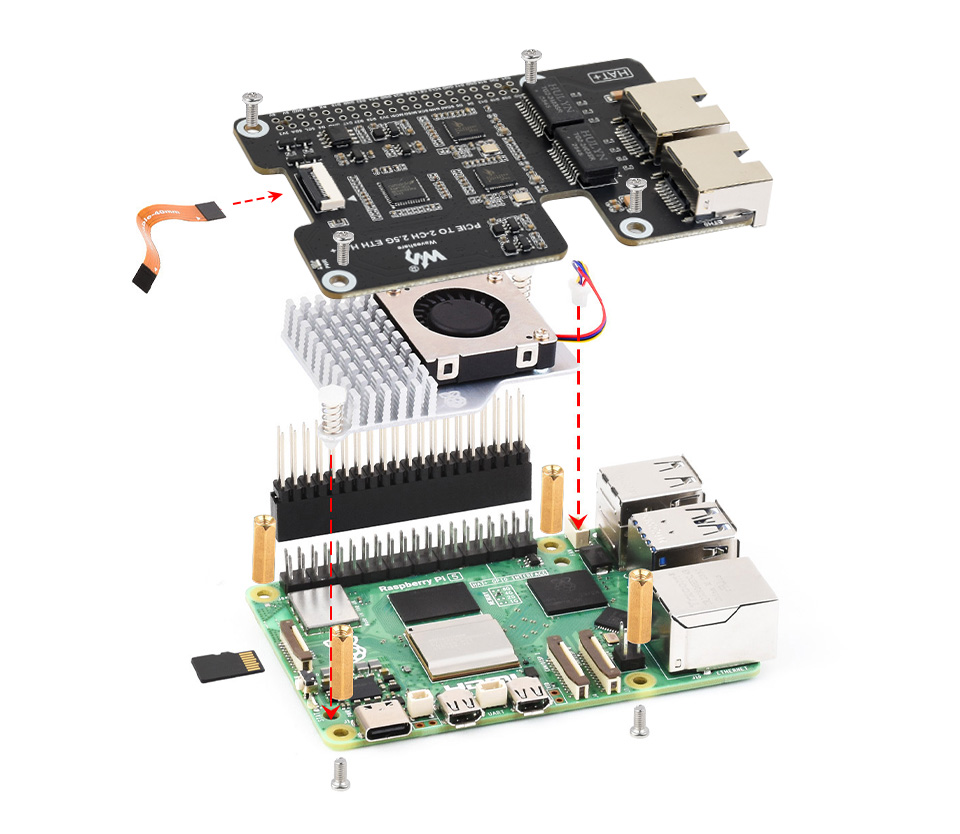

How to install
PCIE TO 2-CH 2.5G ETH adapter, How to install

* for reference only, please refer to the Package Content for detailed part list


PCIe TO MiniPCIe HAT+, Hat+ standard

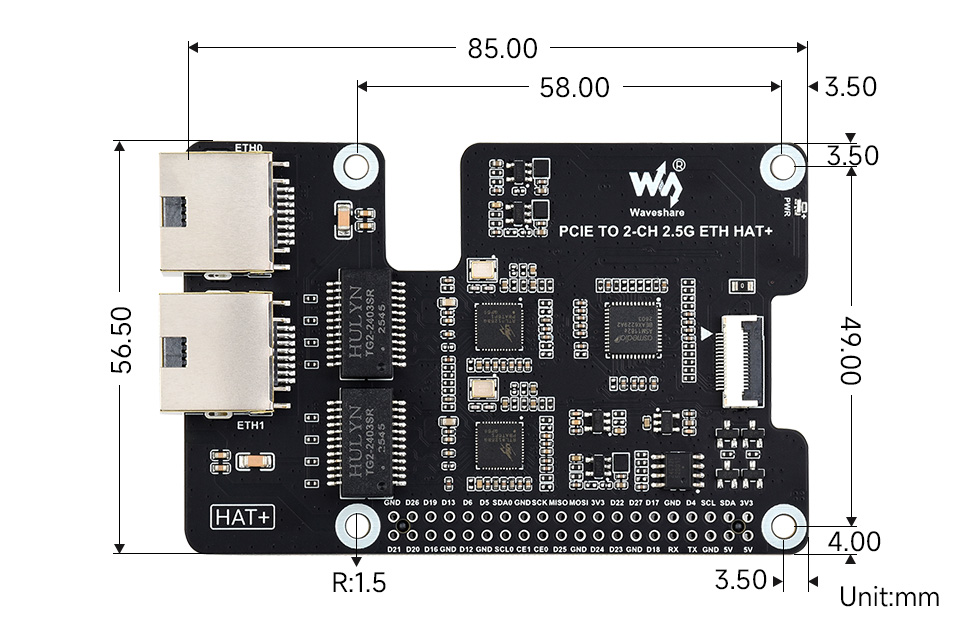

Outline dimensions
PCIe adapter board selection
Product Model Extended Interface PCIe Version mounting solution Power monitoring features

PCIe TO M.2 Board (D)		 M.2_M_KEY PCIe ×1 Gen2/3 on top NVME, 2280

PCIe TO 2-CH M.2 HAT+ (B)		 M.2_M_KEY × 2 PCIe ×1 Gen2 HAT+ √ 2-ch NVME, 2280

PCIe TO 2-CH M.2 HAT+		 M.2_M_KEY × 2 PCIe ×1 Gen2 HAT+ √ 2-ch NVME, 2242

PCIE TO 2-CH 2.5G ETH HAT+ 		2.5G ETH × 2 PCIe ×1 Gen2 HAT+ √ 2.5G ETH × 2

PCIe TO M.2 HAT+		 M.2_M_KEY PCIe ×1 Gen2/3 HAT+ √ NVME, 2242

PCIe TO M.2 MINI		 M.2_M_KEY PCIe ×1 Gen2/3 on top NVME, 2242, compact size

PCIe TO M.2 Board (C)		 M.2_M_KEY PCIe ×1 Gen2/3 on side NVME, 2280, side-mounting

PCIe TO Gigabit ETH Board (C)		 Gigabit ETH PCIe ×1 Gen2 on side Gigabit ETH port, side-mounting

PCIe TO 2.5G ETH Board (C) 		2.5G ETH PCIe ×1 Gen2 on side 2.5G ETH port, side-mounting

PCIe TO M.2 USB HAT+		 M.2_M_KEY, USB3.2 × 4 PCIe ×1 Gen2 on top √ NVME, 2280, expanded USB3.2 ports

PCIe TO 4G/5G M.2 USB3.2 HAT+		 M.2_B_KEY, USB3.2 × 3 PCIe ×1 Gen2 HAT+ √ supports 4G/5G modules, expanded USB3.2 ports

PCIe TO USB 3.2 Gen1 Board (C)		 USB3.2 × 4 PCIe ×1 Gen2 on side expanded USB3.2 ports, side-mounting

PCIe TO USB 3.2 Gen1 HAT+		 USB3.2 × 4 PCIe ×1 Gen2 HAT+ √ expanded USB3.2 ports

PCIe TO Gigabit ETH USB3.2 HAT+		 USB3.2 × 3, Gigabit ETH PCIe ×1 Gen2 HAT+ √ expanded USB3.2 ports and Gigabit ETH port

PCIe TO MiniPCIe GbE USB3.2 HAT+		 USB3.2 × 2, MiniPCIe, Gigabit ETH PCIe ×1 Gen2 HAT+ √ expanded MiniPCIe 4G module slot, USB3.2 ports and Gigabit ETH port

RM520N-GL 5G HAT+		 M.2_B_KEY PCIe ×1 Gen2 HAT+ √ access to 5G networking via PCIe interface, multiple 5G modules compatible

PoE M.2 HAT+		 M.2_M_KEY PCIe ×1 Gen2/3 HAT+ with PoE function, NVME, 2242

PoE M.2 HAT+ (B)		 M.2_M_KEY PCIe ×1 Gen2/3 HAT+ with PoE function, NVME, 2280

PoE M.2 HAT+ (C)		 M.2_M_KEY PCIe ×1 Gen2/3 HAT+ with PoE function, NVME, 2242

PoE M.2 E KEY HAT+		 M.2_E_KEY PCIe ×1 Gen2/3 HAT+ with PoE function, Wi-Fi, Bluetooth, 2230

PCIe TO ETH M.2 HAT+		 M.2_M_KEY, Gigabit ETH PCIe ×1 Gen2 HAT+ √ with Gigabit ETH port, NVME, 2280

PCIE TO M.2 E KEY HAT+		 M.2_E_KEY PCIe ×1 Gen2/3 HAT+ Wi-Fi, Bluetooth, M.2_E_KEY, 2230

PCIE TO M.2 E KEY HAT+ (D)		 M.2_E_KEY PCIe ×1 Gen2/3 on top Wi-Fi, Bluetooth, M.2_E_KEY, 2230

PCIe TO MiniPCIe HAT+		 MiniPCIe PCIe ×1 Gen2 HAT+ Wi-Fi, Bluetooth, MiniPCIe

PCIe TO PCIe x1 Board (C)		 PCIe ×1 PCIe ×1 Gen2/3 on side Compatible with PCIe x1, x4, x8, and x16 devices

PCIe TO 2-CH PCIe HAT		 PCIe 16PIN x2 PCIe ×1 Gen2 HAT Expands 2-Ch PCIe FFC connectors

PCIe TO 4-CH PCIe HAT		 PCIe 16PIN x4 PCIe ×1 Gen2 HAT Expands 4-Ch PCIe FFC connectors

PCIE TO 4-CH NVME Board (B)		 M.2_M_KEY × 4 PCIe ×1 Gen2 on bottom √ 4-ch NVME, 2280, onboard DC power jack

PCIe TO 2-CH SATA HAT+		 SATA × 2 PCIe ×1 Gen2 on top 2-ch SATA interfaces
PCIE TO 4-CH Gigabit ETH Board (B)
PCIE TO 4-CH 2.5G ETH Board (B)		 2.5G ETH × 4 PCIe ×1 Gen2 on bottom √ 4-ch ETH ports
PCIE TO 4-CH Gigabit ETH Board (B)
PCIE TO 4-CH Gigabit ETH Board (B)		 Gigabit ETH × 4 PCIe ×1 Gen2 on bottom √ 4-ch ETH ports

Weight: 0.043 kg

Quick Overview

  1. PCIE TO 2-CH 2.5G ETH HAT+ x1
  2. 16P-Cable-40mm x1
  3. 2*20 Pin header (2.54mm pitch) x1

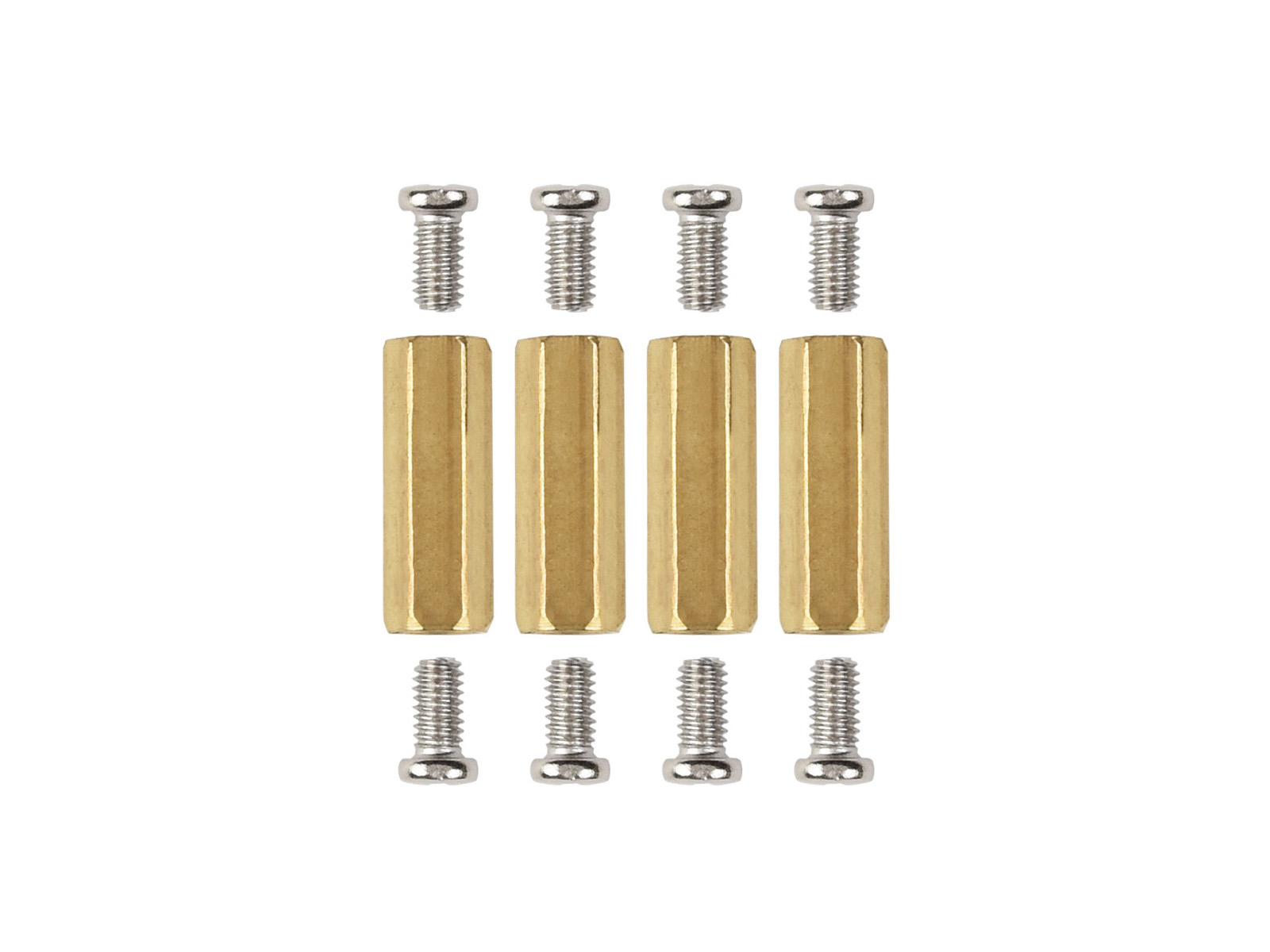

  4. Screws pack x1
1
216P-Cable-40mm
32*20 Pin header (2.54mm pitch)
4
