1.54inch OLED Display Module, 128×64 Resolution, SPI / I2C Communication

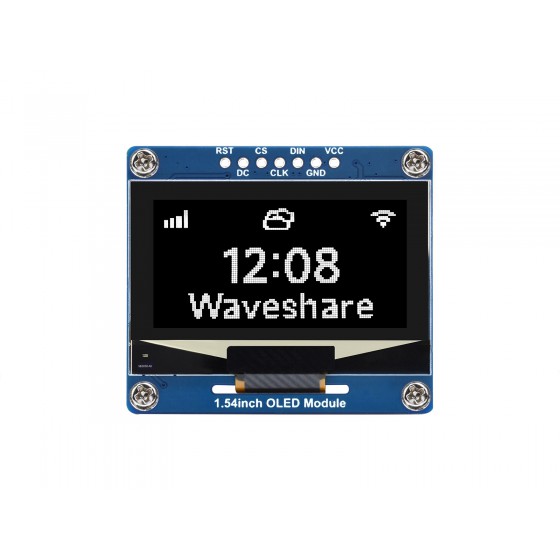

1.54inch OLED Display Module
Embedded SSD1309 driver chip, SPI / I2C Communication
Comes with examples for Raspberry Pi, Arduino, STM32, ESP32, Jetson Nano, etc.
- Size
1.54" - Resolution
128×64 - Display Color
options for white/blue - Display Panel
OLED - Driver
SSD1309 - Interface
SPI/I2C
Version Options
1.54inch OLED Module
white
1.54inch OLED Module (B)
blue
Features at a glance
- Onboard voltage translator, compatible with 3.3V / 5V MCUs
- Adopts 4-wire SPI and I2C interfaces, better compatibility, fast data rate
- Comes with online development resources (examples for Raspberry Pi/Arduino/STM32/ESP32/Jetson Nano)
Specifications
| Operating voltage | 3.3V / 5V | DISPLAY PANEL | OLED |
|---|---|---|---|
| Resolution | 128 × 64 pixels | PIXEL SIZE | 0.25 × 0.25 mm |
| Communication Interface | 4-wire SPI / I2C | Driver | SSD1309 |
| Display size | 35.05 × 17.52mm | Module size | 43.00 × 37.50mm |
| Display color | 1.54inch OLED Module: white 1.54inch OLED Module (B): blue |
||
Control Interface
| VCC | Power (3.3V / 5V input) |
|---|---|
| GND | Ground |
| DIN | Data input |
| CLK | Clock input |
| CS | Chip selection, low active |
| DC | Data/Command selection (high for data, low for command) |
| RST | Reset, low active |
Hardware connection
connecting with Raspberry Pi via SPI interface
connecting with Arduino board via SPI interface
Usage Example
for reference only, the STM32 board is NOT included.
Product Show
Outline dimensions
Selection Guide
| Part Number | Type | Color | Resolution | Display Size (mm×mm) | Interfaces | Driver | Dimension (mm×mm) | Pinheader |
|---|---|---|---|---|---|---|---|---|
| 0.49inch OLED Module | OLED | White | 64×32 | 14.40×11.50 | I2C | SSD1315 | 15.5×13.0 | MX1.25 connector |
| 0.85inch LCD Module | IPS | 65K colorful | 128×128 | 15.21×15.21 | 4-wire SPI | GC9107 | 19.0×22.5 | GH1.25 connector |
| 0.91inch OLED Module | OLED | White | 128×32 | 22.38×5.58 | I2C | SSD1306 | 36.0×12.5 | PH2.0 connector |
| 0.95inch RGB OLED (A) | OLED | 65K colorful | 96×64 | 20.14×13.42 | 4-wire SPI | SSD1331 | 31.7×37.0 | angled/horizontal |
| 0.95inch RGB OLED (B) | OLED | 65K colorful | 96×64 | 20.14×13.42 | 4-wire SPI | SSD1331 | 31.7×37.0 | straight/vertical |
| 0.96inch LCD Module | IPS | 65K colorful | 160×80 | 21.70×10.80 | 4-wire SPI | ST7735S | 32.5×26.0 | PH2.0 connector |
| 0.96inch OLED (A) | OLED | 1/4 yellow section, 3/4 blue section* | 128×64 | 21.70×11.20 | 3/4-wire SPI, I2C | SSD1306 | 33.0×33.5 | angled/horizontal |
| 0.96inch OLED (B) | OLED | 1/4 yellow section, 3/4 blue section* | 128×64 | 21.70×11.20 | 3/4-wire SPI, I2C | SSD1306 | 33.0×33.5 | straight/vertical |
| 0.96inch OLED Module (C) | OLED | 1/4 yellow section, 3/4 blue section* | 128×64 | 21.74×11.18 | 4-wire SPI, I2C | SSD1315 | 26.0×26.0 | straight/vertical |
| 0.96inch OLED Module (D) | OLED | White | 128×64 | 21.74×11.18 | 4-wire SPI, I2C | SSD1315 | 26.0×26.0 | straight/vertical |
| 0.96inch OLED Module (E) | OLED | Blue | 128×64 | 21.74×11.18 | 4-wire SPI, I2C | SSD1315 | 26.0×26.0 | straight/vertical |
| 0.96inch RGB OLED Module | OLED | 65K colorful | 64×128 | 10.862×21.736 | 3/4-wire SPI | SSD1357 | 32.5×26.0 | GH1.25 connector |
| 1.14inch LCD Module | IPS | 65K colorful | 240×135 | 24.91×14.86 | 4-wire SPI | ST7789 | 35.0×32.0 | PH2.0 connector |
| 1.27inch RGB OLED Module | OLED | 262K colorful | 128×96 | 25.708×19.28 | 3/4-wire SPI | SSD1351 | 42.2×29.0 | GH1.25 connector |
| 1.28inch LCD Module | IPS | 65K colorful | 240×240 | Φ32.4mm | 4-wire SPI | GC9A01 | 40.4×37.5 Φ37.5 |
PH2.0 connector |
| 1.28inch Touch LCD | IPS (with touch) |
65K colorful | 240×240 | Φ32.4mm | 4-wire SPI, I2C | GC9A01, CST816S | 39.89×38.5 Φ38.5 |
GH1.25 connector |
| 1.3inch LCD Module | IPS | 65K colorful | 240×240 | 23.40×23.40 | 4-wire SPI | ST7789 | 45.0×31.0 | PH2.0 connector |
| 1.3inch OLED (A) | OLED | Blue | 128×64 | 29.42×14.70 | 3/4-wire SPI, I2C | SH1106 | 40.5×37.5 | angled/horizontal |
| 1.3inch OLED (B) | OLED | Blue | 128×64 | 29.42×14.70 | 3/4-wire SPI, I2C | SH1106 | 40.5×37.5 | straight/vertical |
| 1.3inch OLED Module (C) | OLED | White | 64×128 | 14.70×29.42 | 4-wire SPI, I2C | SH1107 | 30.0×39.5 | PH2.0 connector |
| 1.32inch OLED Module | OLED | White (16 gray scale) | 128×96 | 26.86×20.14 | 4-wire SPI, I2C | SSD1327 | 34.3×30.5 | GH1.25 connector |
| 1.47inch LCD Module | IPS | 262K colorful | 172×320 | 17.39×32.35 | 4-wire SPI | ST7789V3 | 22.0×38.5 | PH2.0 connector |
| 1.5inch LCD Module | IPS | 262K colorful | 240×280 | 24.77×28.90 | 4-wire SPI | NV3030B | 28.5×35.0 | GH1.25 connector |
| 1.5inch OLED Module | OLED | White (16 gray scale) | 128×128 | 26.86×26.86 | 4-wire SPI, I2C | SSD1327 | 44.5×37.0 | PH2.0 connector |
| 1.5inch OLED Module (B) | OLED | White | 128×128 | 26.855×26.855 | 4-wire SPI, I2C | SH1107 | 38.5×44.5 | GH1.25 connector |
| 1.5inch RGB OLED Module | OLED | 65K colorful | 128×128 | 26.86×26.86 | 3/4-wire SPI | SSD1351 | 44.5×37.0 | PH2.0 connector |
| 1.54inch LCD Module | IPS | 65K colorful | 240×240 | 27.72×27.72 | 4-wire SPI | ST7789 | 50.0×35.0 | PH2.0 connector |
| 1.54inch OLED Module | OLED | White | 128×64 | 35.05×17.52 | 4-wire SPI, I2C | SSD1309 | 43.0×37.5 | GH1.25 connector |
| 1.54inch OLED Module (B) | OLED | Blue | 128×64 | 35.05×17.52 | 4-wire SPI, I2C | SSD1309 | 43.0×37.5 | GH1.25 connector |
| 1.69inch LCD Module | IPS | 262K colorful | 240×280 | 27.972×32.634 | 4-wire SPI | ST7789V2 | 31.5×39.0 | GH1.25 connector |
| 1.69inch Touch LCD Module | IPS | 262K colorful | 240×280 | 27.972×32.634 | 4-wire SPI, I2C | ST7789V2 | 33.13×41.13 | GH1.25 connector |
| 1.8inch LCD Module | TFT | 65K colorful | 128×160 | 28.30×34.50 | 4-wire SPI | ST7735S | 56.5×34.0 | PH2.0 connector |
| 1.83inch LCD Module | IPS | 65K colorful | 240×280 | 30.20×35.23 | 4-wire SPI | NV3030B | 33.0×40.0 | GH1.25 connector |
| 1.9inch LCD Module | IPS | 262K colorful | 170×320 | 22.70×42.72 | 4-wire SPI | ST7789V2 | 51.2×27.3 | GH1.25 connector |
| 2inch LCD Module | IPS | 262K colorful | 240×320 | 30.60×40.80 | 4-wire SPI | ST7789VW | 58.0×35.0 | PH2.0 connector |
| 2.4inch LCD Module | TFT | 65K colorful | 240×320 | 36.72×48.96 | 4-wire SPI | ILI9341 | 70.5×43.3 | PH2.0 connector |
| 2.42inch OLED Module | OLED | White | 128×64 | 55.01×27.49 | 4-wire SPI, I2C | SSD1309 | 61.50×39.50 | GH1.25 connector |
| 2.42inch OLED Module (C) | OLED | Yellow | 128×64 | 55.01×27.49 | 4-wire SPI, I2C | SSD1309 | 61.50×39.50 | GH1.25 connector |
| 2.8inch Capacitive Touch LCD | TFT | 262K colorful | 240×320 | 43.20×57.60 | 4-wire SPI, I2C | ST7789T3 | 50.54×73.06 | GH1.25 connector, 18Pin FPC slot |
*Note: the 0.96inch OLED consists of 1/4 yellow upper section and 3/4 blue lower section, not a regular dual-color display.
Quick Overview
- OPTIONS 1.54inch OLED Module x1
- GH1.25 7PIN cable x1
