Interface / Expansion / Power, Raspberry Pi 5

PCIe To M.2 Adapter With PoE Function (C) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading / Writing

SKU:31536
Part No.:PoE M.2 HAT+ (C)
Brand:Waveshare

$24.99 Qty:

PriceQuantity
1
$24.192
$23.793
$23.634+

Details

PCIe To M.2 Adapter With PoE Function (C) For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading / Writing

PCIe To M.2 with PoE HAT (C)

Designed For Raspberry Pi 5, Supports IEEE 802.3af/at Network Standard

Adapter For NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing

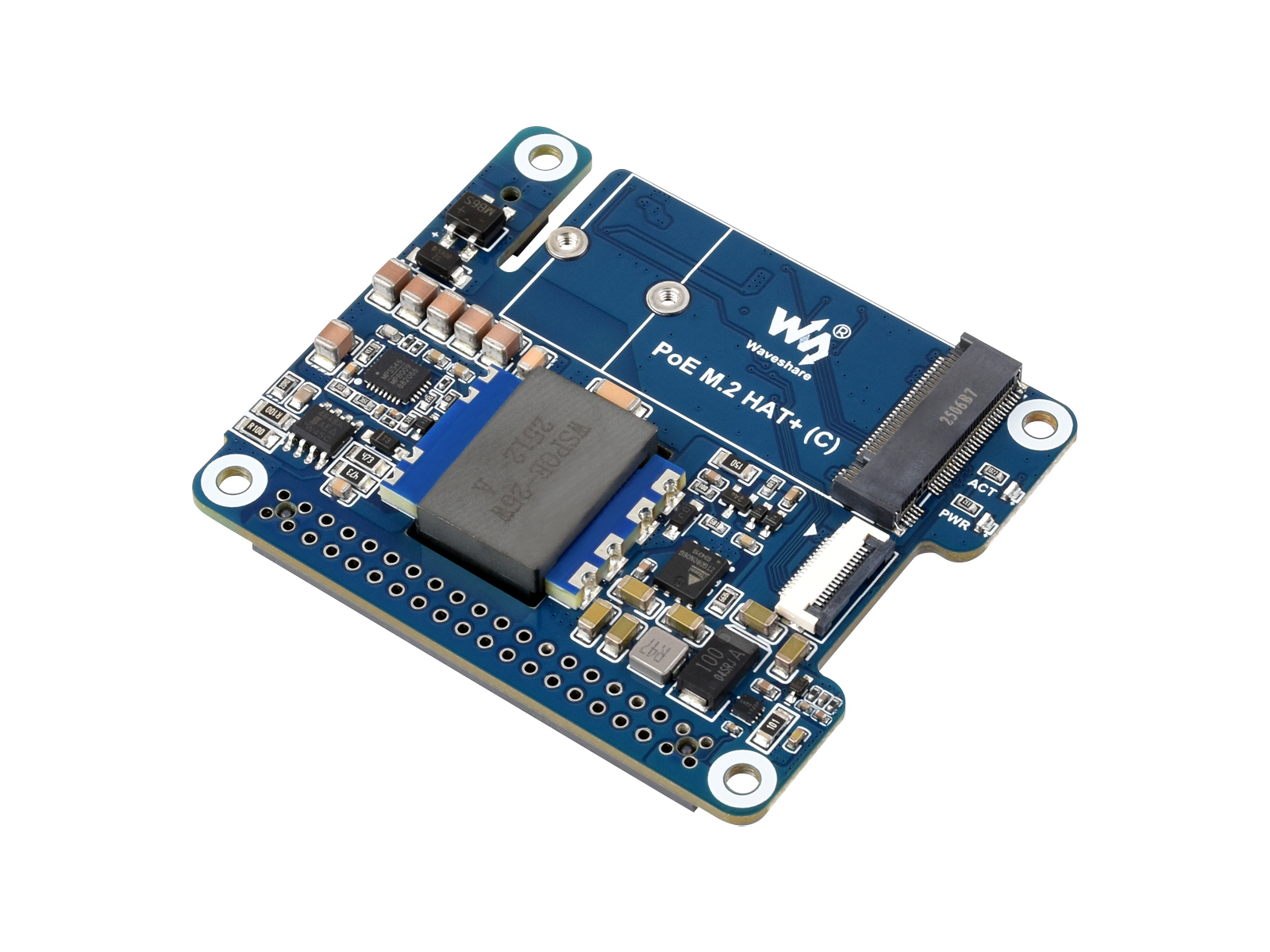

PCIe To M.2 with PoE HAT (C), front view and features

Specifications

PoE power input	37V ~ 57V DC in
Power output	GPIO header: 5V 5A (MAX)
Dimensions	56.5 × 66.0 (mm)
Network standard	IEEE 802.3af/at PoE

Product comparison

	PoE M.2 HAT+	PoE M.2 HAT+ (B)	PoE M.2 HAT+ (C)
PoE power input	37V ~ 57V DC in
Power output	GPIO header: 5V 4.5A (MAX) 2P header: 12V 2A (MAX)		GPIO header: 5V 5A (MAX)
Network standard	IEEE 802.3af/at PoE
PoE Transformer Type	Wire-wound transformer		Planar transformer
M.2 Solid State Drive support	2230 / 2242	2230 / 2242 / 2260 / 2280	2230 / 2242
supported M.2 protocol	Gen2/3
compatible with official Pi 5 Active Cooler	No (the product comes with cooling fan and heatsink)	Yes	Yes
Booting PI5 From Solid State Drive	supported
Dimensions	56.5 × 70.0 (mm)	56.0 × 85.0 (mm)	56.5 × 66.0 (mm)

Improves reading/writing speed of your Pi

PCIe To M.2 with PoE HAT (C), improves reading/writing speed

* for reference only, the Raspberry Pi 5 and Solid State Drive are not included.

NVMe Drive Slot Support

* Only supports the NVMe Protocol Solid State Drives.

Connecting to Pi 5 via 16PIN Cable

Based on 16PIN PCIe Interface of Raspberry Pi 5.
Standard Raspberry Pi 40PIN GPIO stackable header, allows connecting other HATs

* for reference only, the Raspberry Pi 5 is not included.

Onboard Dual LED Indicators

Easy to monitor the Working Status

NVMe Drive Protocol Support

Compatible With 2230 / 2242 Size M.2 Solid State Drive
Supports Gen2 and Gen3 Modes, Supports Booting PI5 From Solid State Drive

PCIe To M.2 with PoE HAT (C), compatible With 2230 / 2242 Size M.2 Solid State Drive

Power Over Ethernet

providing both network connection and power supply for your Raspberry Pi
in one cable

* for reference only, the Raspberry Pi 5, Network cable, and switch are NOT included.

How to Install

Attach the thermal tapes first, then install the Official Active Cooler and fix the HAT

* for reference only, please refer to the Package Content for detailed part list

PCIe To M.2 with PoE HAT (C), Hat+ standard

Outline dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/PoE_M.2_HAT+_(C)

PCIe adapter board selection

Product Model	Extended Interface	PCIe Version	mounting solution	Power monitoring	features
PCIe TO M.2 Board (D)	M.2_M_KEY	PCIe ×1 Gen2/3	on top		NVME, 2280
PCIe TO 2-CH M.2 HAT+ (B)	M.2_M_KEY × 2	PCIe ×1 Gen2	HAT+	√	2-ch NVME, 2280
PCIe TO 2-CH M.2 HAT+	M.2_M_KEY × 2	PCIe ×1 Gen2	HAT+	√	2-ch NVME, 2242
PCIe TO M.2 HAT+	M.2_M_KEY	PCIe ×1 Gen2/3	HAT+	√	NVME, 2242
PCIe TO M.2 MINI	M.2_M_KEY	PCIe ×1 Gen2/3	on top		NVME, 2242, compact size
PCIe TO M.2 Board (C)	M.2_M_KEY	PCIe ×1 Gen2/3	on side		NVME, 2280, side-mounting
PCIe TO Gigabit ETH Board (C)	Gigabit ETH	PCIe ×1 Gen2	on side		Gigabit ETH port, side-mounting
PCIe TO 2.5G ETH Board (C)	2.5G ETH	PCIe ×1 Gen2	on side		2.5G ETH port, side-mounting
PCIe TO M.2 USB HAT+	M.2_M_KEY, USB3.2 × 4	PCIe ×1 Gen2	on top	√	NVME, 2280, expanded USB3.2 ports
PCIe TO 4G/5G M.2 USB3.2 HAT+	M.2_B_KEY, USB3.2 × 3	PCIe ×1 Gen2	HAT+	√	supports 4G/5G modules, expanded USB3.2 ports
PCIe TO USB 3.2 Gen1 Board (C)	USB3.2 × 4	PCIe ×1 Gen2	on side		expanded USB3.2 ports, side-mounting
PCIe TO USB 3.2 Gen1 HAT+	USB3.2 × 4	PCIe ×1 Gen2	HAT+	√	expanded USB3.2 ports
PCIe TO Gigabit ETH USB3.2 HAT+	USB3.2 × 3, Gigabit ETH	PCIe ×1 Gen2	HAT+	√	expanded USB3.2 ports and Gigabit ETH port
PCIe TO MiniPCIe GbE USB3.2 HAT+	USB3.2 × 2, MiniPCIe, Gigabit ETH	PCIe ×1 Gen2	HAT+	√	expanded MiniPCIe 4G module slot, USB3.2 ports and Gigabit ETH port
RM520N-GL 5G HAT+	M.2_B_KEY	PCIe ×1 Gen2	HAT+	√	access to 5G networking via PCIe interface, multiple 5G modules compatible
PoE M.2 HAT+	M.2_M_KEY	PCIe ×1 Gen2/3	HAT+		with PoE function, NVME, 2242
PoE M.2 HAT+ (B)	M.2_M_KEY	PCIe ×1 Gen2/3	HAT+		with PoE function, NVME, 2280
PoE M.2 HAT+ (C)	M.2_M_KEY	PCIe ×1 Gen2/3	HAT+		with PoE function, NVME, 2242
PoE M.2 E KEY HAT+	M.2_E_KEY	PCIe ×1 Gen2/3	HAT+		with PoE function, Wi-Fi, Bluetooth, 2230
PCIe TO ETH M.2 HAT+	M.2_M_KEY, Gigabit ETH	PCIe ×1 Gen2	HAT+	√	with Gigabit ETH port, NVME, 2280
PCIE TO M.2 E KEY HAT+	M.2_E_KEY	PCIe ×1 Gen2/3	HAT+		Wi-Fi, Bluetooth, M.2_E_KEY, 2230
PCIE TO M.2 E KEY HAT+ (D)	M.2_E_KEY	PCIe ×1 Gen2/3	on top		Wi-Fi, Bluetooth, M.2_E_KEY, 2230
PCIe TO MiniPCIe HAT+	MiniPCIe	PCIe ×1 Gen2	HAT+		Wi-Fi, Bluetooth, MiniPCIe
PCIe TO PCIe x1 Board (C)	PCIe ×1	PCIe ×1 Gen2/3	on side		Compatible with PCIe x1, x4, x8, and x16 devices
PCIe TO 2-CH PCIe HAT	PCIe 16PIN x2	PCIe ×1 Gen2	HAT		Expands 2-Ch PCIe FFC connectors
PCIe TO 4-CH PCIe HAT	PCIe 16PIN x4	PCIe ×1 Gen2	HAT		Expands 4-Ch PCIe FFC connectors
PCIE TO 4-CH NVME Board (B)	M.2_M_KEY × 4	PCIe ×1 Gen2	on bottom	√	4-ch NVME, 2280, onboard DC power jack
PCIe TO 2-CH SATA HAT+	SATA × 2	PCIe ×1 Gen2	on top		2-ch SATA interfaces
PCIE TO 4-CH 2.5G ETH Board (B)	2.5G ETH × 4	PCIe ×1 Gen2	on bottom	√	4-ch ETH ports
PCIE TO 4-CH Gigabit ETH Board (B)	Gigabit ETH × 4	PCIe ×1 Gen2	on bottom	√	4-ch ETH ports
