Raspberry Pi Camera Scheduler, One Cable for Two Cameras

SKU:16740
Part No.:Camera Scheduler

$11.99
Bulk purchase only
PriceQuantity
$11.592+
$11.393+
$11.314+
Description

Details

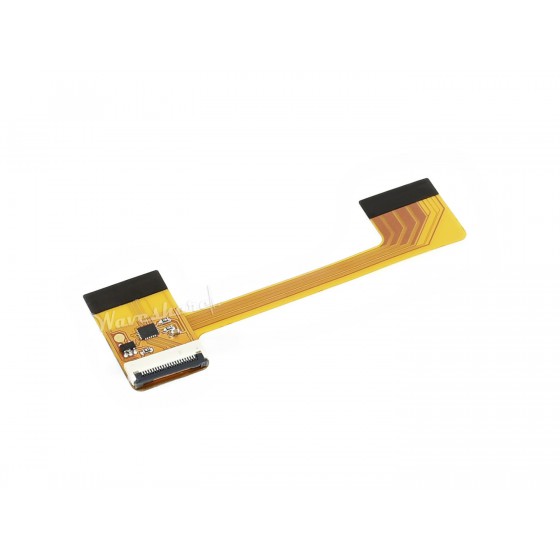

Camera Scheduler, Specific FPC Which Allows the Raspberry Pi to Connect Two Cameras

Overview

  • Time-share scheduling function: allows the Raspberry Pi to connect two cameras at the same time, and select the active one manually or automatically (by GPIO)
  • Dimensions: 76mm x 26mm
  • Applicable range: Raspberry Pi full series boards
  • Camera Option:
    • Workable: two 8MP IMX219 cameras OR two 5MP OV5647 cameras
    • NOT Workable: one 8MP IMX219 camera + one 5MP OV5647 camera

Development Resources

Wiki: www.waveshare.com/wiki/Camera_Scheduler

Weight: 0.01 kg

Quick Overview

  1. Camera Scheduler x1
  2. RPi Zero V1.3 Camera Cable 15cm x1
  3. Jumper wire 1PIN 2.54 Pitch 2PCS x1
  4. FFC 22PIN 160mm (opposite side contact) x1
1
2
3
4
