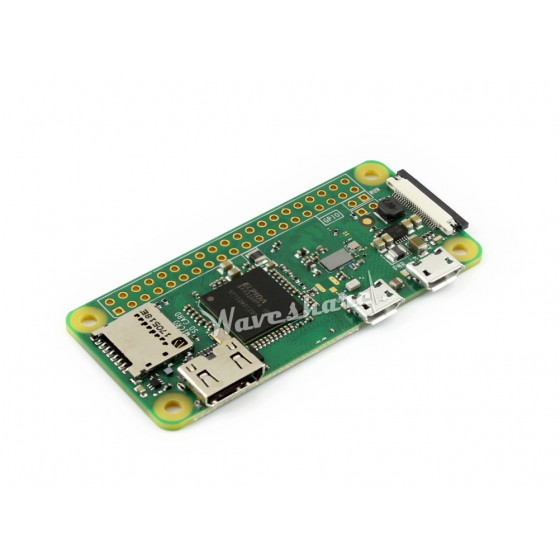

Raspberry Pi Zero W

SKU: 13563
Part Number: Raspberry Pi Zero W
Brand: Raspberry Pi Foundation
UPC: 614961951129


Related Products:



Raspberry Pi Zero W, the low-cost pared-down Pi, with built-in WiFi and Bluetooth


The Raspberry Pi Zero W extends the Pi Zero family. Launched at the end of February 2017, the Pi Zero W has all the functionality of the original Pi Zero, but comes with added WiFi and Bluetooth connectivity.

Raspberry Pi Zero W Features

  • Broadcom BCM2835
    • 1GHz ARM11 single-core processor
  • 512MB RAM
  • Added wireless connectivity
    • 802.11 b/g/n wireless LAN
    • Bluetooth 4.1
    • Bluetooth Low Energy (BLE)
  • Micro SD card slot
  • Mini-HDMI port (1080p60 video output)
  • Micro-USB power
  • Micro-USB OTG port
  • 40PIN unpopulated GPIO header (compatible with A+/B+/2B/3B)
  • CSI camera connector
  • Composite video header
  • Composite reset header
  • Dimension: 65mm x 30mm x 5mm

Selection Guide

Package Contents Products
Item Description Standard Package A Package B Package D Package E Package α
Raspberry Pi Zero W Raspberry Pi Zero W, with built-in WiFi
Mini HDMI to HDMI Adapter Mini HDMI male to standard HDMI female
Micro USB OTG Cable Micro USB to USB
2x20-pin 2.54 male pinheader strip Can be soldered in the Zero
2x20-pin 2.54 female pinheader strip Can be soldered in the Zero
Micro SD Card 16GB Class 10 16GB Micro SD Card
5V 2.5A Power Adapter 5V 2.5A output
Raspberry Pi Zero Case Official Case for the Zero
2.13inch e-Paper HAT (B) 2.13inch e-ink display, three-color: red, black, and white
AlphaBot2-PiZero Adapter board, for connecting RPi Zero W
AlphaBot2-Base Motor driver, integrates sensors for obstacle avoiding, line tracking
Ultrasonic sensor Ultrasonic obstacle avoiding, ranging
IR remote controller remotely control the robot
RPi Camera (B)  Raspberry Pi camera, adjustable focus
SG90 Servo, working with the pan head, controlling the rotation of the camera

Weight: 0.011 kg

Quick Overview

  1. Raspberry Pi Zero W x1
