Official Raspberry Pi PCIe To M.2 HAT, Designed for Raspberry Pi 5, HAT + Standard, Supports NVMe Protocol M.2 Solid State Drive, Raspberry Pi 5 HAT

SKU:27455
Part No.:Raspberry Pi M.2 HAT+
Brand:Raspberry Pi Foundation

$13.99
PriceQuantity
$13.592+
$13.393+
$13.314+
Related Products:
Description

Details

Official Raspberry Pi PCIe To M.2 HAT, Designed for Raspberry Pi 5, High-Speed Reading/Writing, HAT + Standard, Supports NVMe Protocol M.2 Solid State Drive, Raspberry Pi 5 HAT
Raspberry Pi M.2 HAT+

Official Raspberry Pi PCIe to M.2 HAT, Designed for Raspberry Pi 5

Adapter For NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing

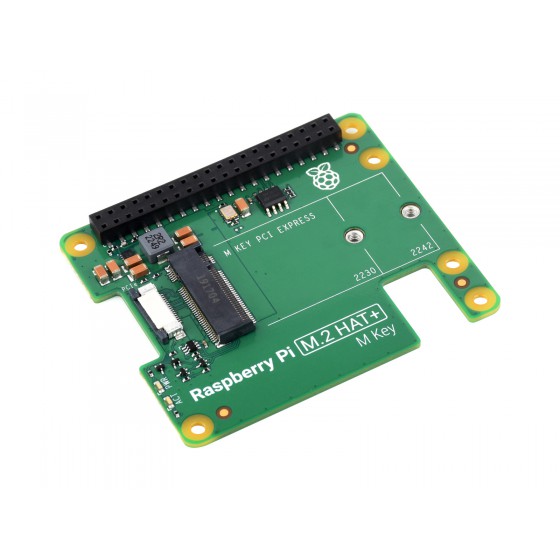

Raspberry Pi M.2 HAT for Raspberry Pi 5, front view

Suitable for Raspberry Pi 5

Comes with Official 16PIN PCIe cable for connecting the HAT to PI5

Raspberry Pi M.2 HAT+, connecting the HAT to PI5

* for reference only, the Raspberry Pi 5, cooling fan and Solid State Drive are not included


NVMe Drive Protocol Support

Compatible With 2230/2242 Size M.2 Solid State Drive
Supports Gen2 and Gen3 Modes, Supports Booting PI5 From Solid State Drive

Raspberry Pi M.2 HAT+, Compatible With 2230/2242 Size M.2 Solid State Drive

Onboard Dual LED Indicators

Easy to monitor the Working Status

Raspberry Pi M.2 HAT+, onboard dual LED indicators

Onboard EEPROM
Raspberry Pi M.2 HAT+, onboard EEPROM

How to install
Raspberry Pi M.2 HAT+, how to install
* for reference only, the Solid State Drive, Raspberry Pi 5, cooling fan and TF card are NOT included, please refer to the Package Content for detailed part list

Outline dimensions
Raspberry Pi M.2 HAT for Raspberry Pi 5, outline dimensions

Weight: 0.022 kg

Quick Overview

Raspberry Pi M.2 HAT+ x1

Raspberry Pi M.2 HAT+
