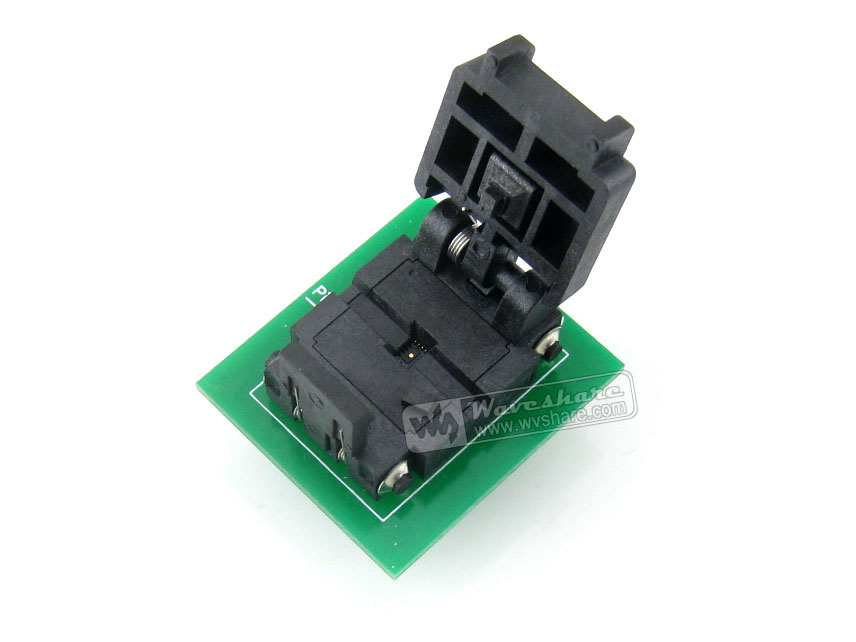

QFN8 TO DIP8 (D), Programmer Adapter

QFN8 TO DIP8 (D), Programmer Adapter

SKU: 6880
Part Number: QFN8 TO DIP8 (D)
Brand: Plastronics

$78.99
$77.992+
$76.993+
$75.994+

Share:
Description

Details

Plastronics IC Test Socket & Programming Adapter for QFN8 MLF8 MLP8 package

Features

  • High quality and durable
  • Tested before shipping
  • Easy to use

Applicable Devices

  • Package
    • QFN8
    • MLF8
    • MLP8
  • Pitch: 0.5mm

Socket PN

  • 08QN50T43020

Download

Pin Header Dimensions

  • Pitch: 100mil (2.54mm)
  • Width: 300mil 0.76cm)

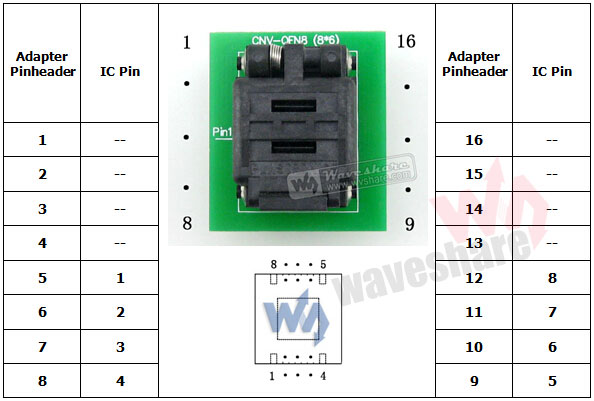

Pinout Mapping



Outline and Dimensions

Unit: mm
Part NumberPitchPinsApplicable IC Dimensions (REF.)Outside Dimensions (REF.)Ground Pin
A x B
08QN50T43020 0.5 8(4×2 Side) 3 x 2 27.34 x 20.32 YES

Weight: 0.013 kg

Quick Overview

  • QFN8 TO DIP8 (D) adapter × 1
