WS2812 Digital RGB LED Strip, High brightness, Energy-saving And Low power consumption, Cuttable and Programmable

SKU: 23414
Part Number: RGB-5050-5V-IP65-60D-1M
Brand: Waveshare

$4.99
$4.5910+
$4.3950+
$4.31100+

Description

Details

WS2812 Digital RGB LED Strip, High brightness, Energy-saving And Low power consumption, Cuttable and Programmable
WS2812 Digital RGB LED Strip

Programmable LED, Natural & Bright Color

Energy-saving, Colorful And Widely Used

Specifications
LED type 5050 IC WS-2812B
Voltage 5V Color RGB
PCB width 10mm Beam angle 120°
Operating power 0.3W/LED Length 1m/roll
Operating temperature -25~80℃ Grey scale 256 Adjustable (per color)
LED Quantity 60 LEDs/M Degree of protection IP65
Connection 3PIN SM connector cable + 2PIN voltage adding cables Installation method with 3M double-sided tape on the back
Cable definition Red cable (5V positive), white cable (5V negative) and green cable (DATA signal)

Product Details
* Note: Please cut it from the solder joint to avoid or reduce unnecessary waste and damage.

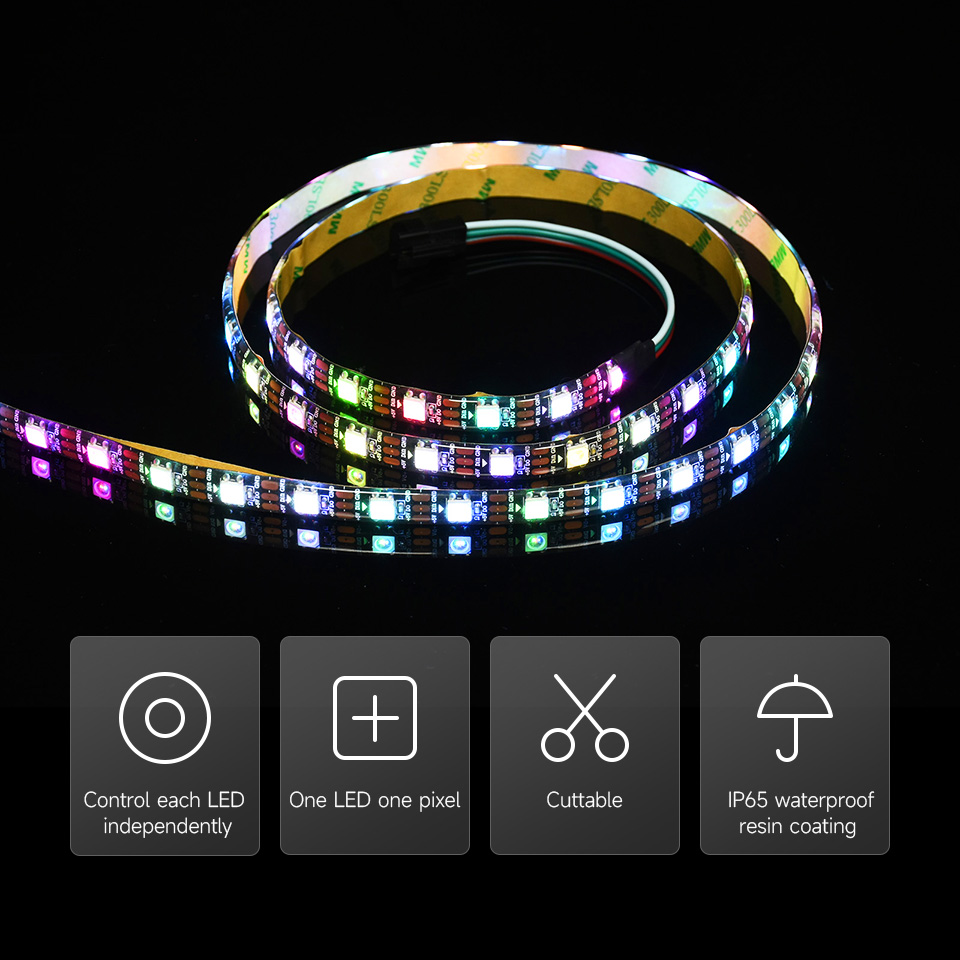

Flexible and Bendable

High light transmittance and flexible, insulated and anti-leakage,
can be bent into any shape

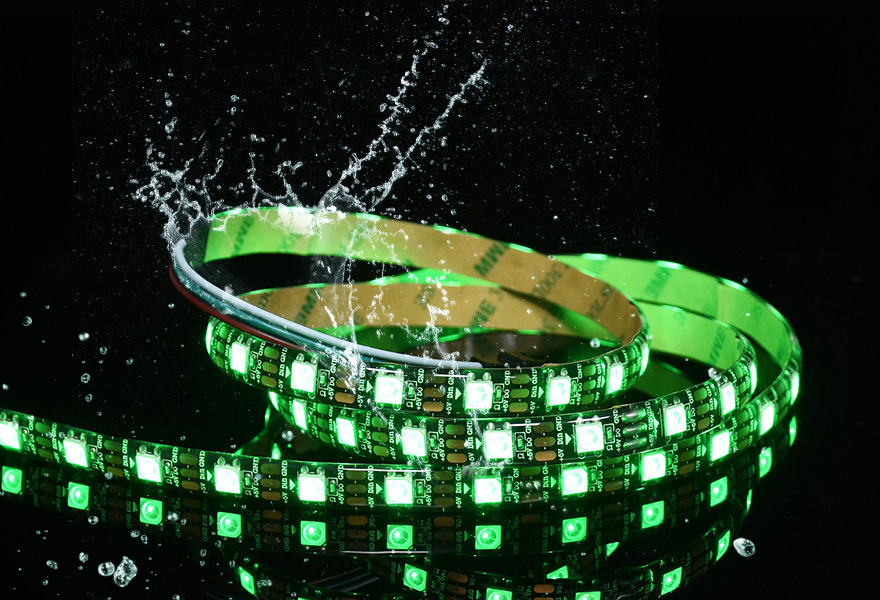

IP65 protection rating

Covered with high-transparency resin to protect against small water jets

Installation Mode
Product Demonstration

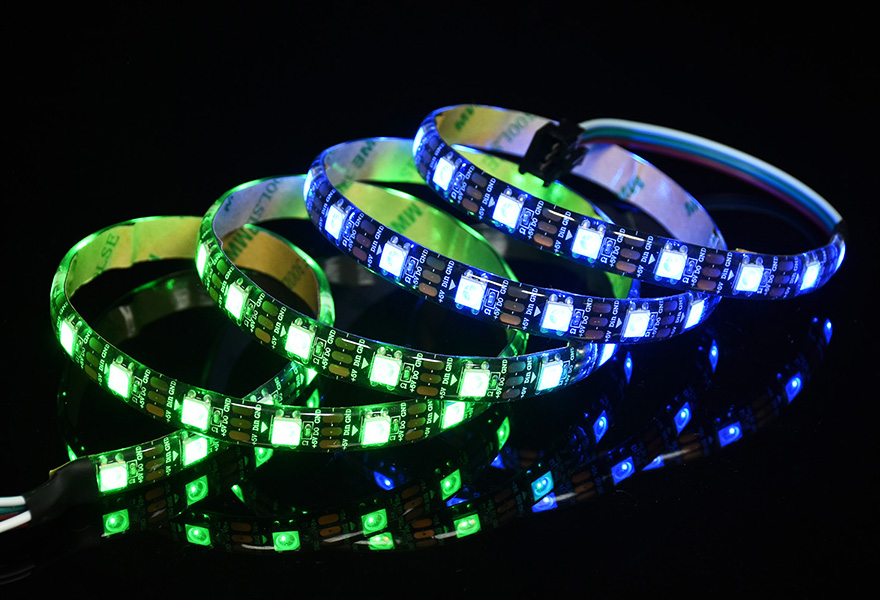

Product Show


Dimensions
Resources & Services

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Weight: 0.049 kg

Quick Overview

RGB-5050-5V-IP65-60D-1M x1
