86 Type, Options for 1500M / 3000M wireless speed
Note: This product supports centralized management via the Gigabit-POE-Router-AC.

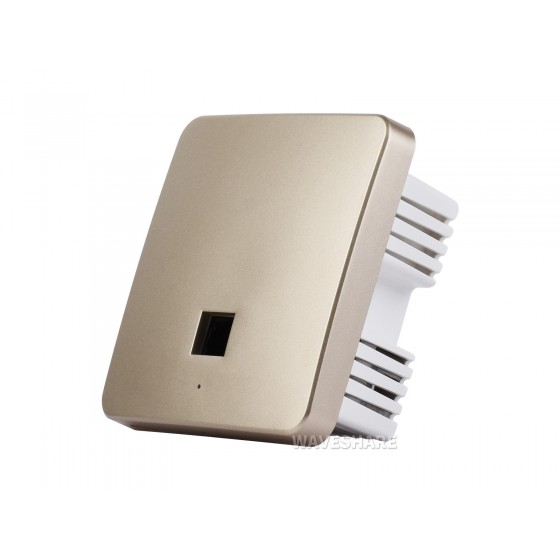

This product is a wall-mounted panel-type Access Point (AP), equipped with a high-performance processor and optimized RF design to ensure excellent network coverage and stability. The PoE power supply simplifies wiring, reduces installation costs, and improves overall deployment efficiency. Provides options for 1500 Mbps or 3000 Mbps speed to meet various home or commercial application requirements.
AP-AX1500G-POE
1500 Mbps total speed
AP-AX3000G-POE
3000 Mbps total speed
| Model | AP-AX1500G-POE | AP-AX3000G-POE |
|---|---|---|
| Product Description | 1500M 86-Type Wireless Access Point | 3000M 86-Type Wireless Access Point |
| Total Band Rate | 1500 Mbps | 3000 Mbps |
| AP Mode | Fit/Fat AP | |
| Physical Port | 1 × 10/100/1000 Base-T Ethernet WAN port (PoE power supply supported) 1 × 10/100/1000 Base-T Ethernet WAN port |
|
| Status Indicators | Status and activity indicators | |
| Physical Button | Hidden reset button | |
| Installation Method | Standard 86 Type Wall-Mount | |
| Color | Light gold | |
| Product Dimensions | 86mm × 86mm × 42mm | |
| Unit Weight | 155g ±10% | 190g ±10% |
| Package Weight | 185g ±10% | 215g ±10% |
| Bandwidth Support | Up to 80 MHz | Up to 160 MHz |
| Theoretical Wireless Speed | 2.4GHz: 300 Mbps 5GHz: 1201 Mbps |
2.4GHz: 574 Mbps 5GHz: 2402 Mbps |
| Recommended Connected Clients | Recommended ≤ 40, Max 128 | Recommended ≤ 64, Max 246 |
| Antenna Type | Built-in high-performance antenna | |
| Maximum Transmit Power | 2.4GHz: 21.5 ±1.5 dBm 5GHz: 23.5 ±1.5 dBm |
|
| Operating Environment | Operating temperature: 0°C – 40°C Storage temperature: -40°C – 70°C |
|
| Humidity Environment | Operating humidity: 10%–90% RH, non-condensing Storage humidity: 5%–90% RH, non-condensing |
|
* the devices should be connected using standard 8-core Network cables of CAT 5 or higher.
Quick Overview
OPTIONS 86-Type Wireless Access Point x1
