ESP32-C6 1.47inch Touch Display Development Board, 172×320 Resolution, 262K Display Color, Supports Wi-Fi 6 / BLE 5, 160MHz RISC-V Processor

ESP32-C6-Touch-LCD-1.47

Onboard 1.47inch IPS touch display, can smoothly run GUI programs such as LVGL

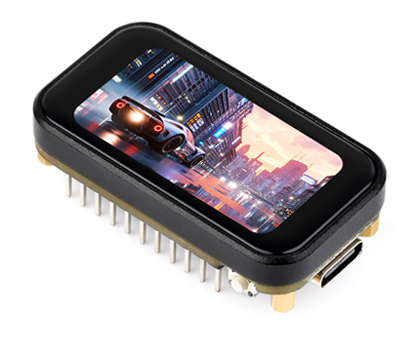

ESP32-C6 1.47inch Touch Display Development Board, front view

version options

ESP32-C6-Touch-LCD-1.47
Standard version

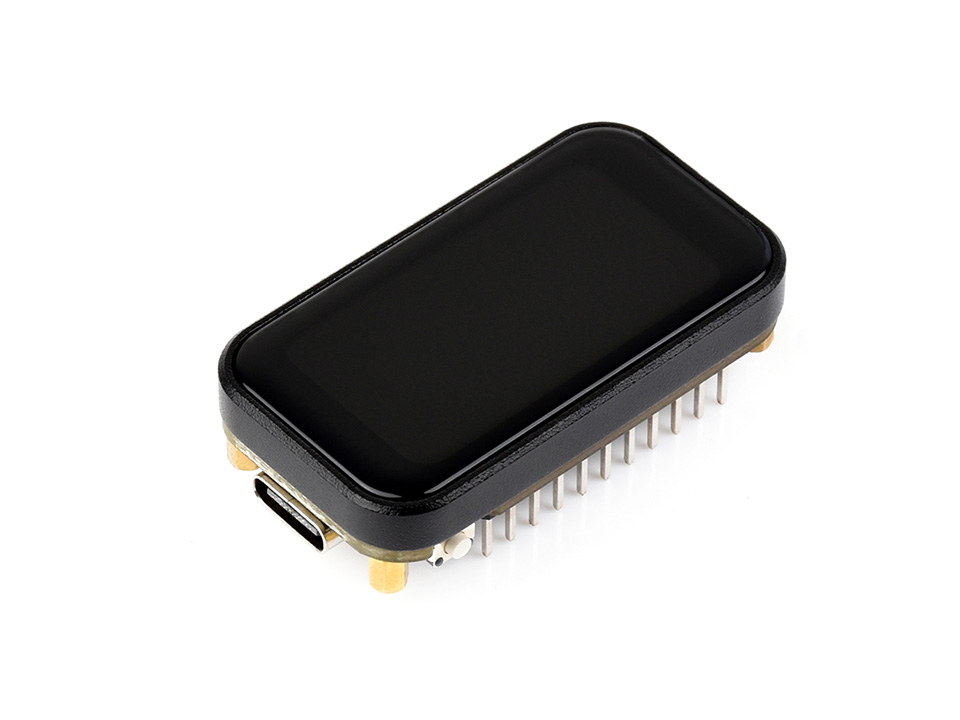

ESP32-C6-Touch-LCD-1.47-M
With pre-soldered header (black)

Features

ESP32-C6-Touch-LCD-1.47 uses ESP32-C6FH8 chip with 2.4GHz WiFi 6 and Bluetooth BLE 5 support, integrates 8MB Flash, Onboard 1.47inch IPS display can smoothly run GUI programs such as LVGL. It is suitable for the quick development of the HMI and other ESP32-C6 applications.

Equipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz, and a low-power 32-bit RISC-V processor with clock speed up to 20MHz
Supports 2.4GHz Wi-Fi 6 (802.11 ax/b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built-in 320KB ROM, 512KB HP SRAM, and 16KB LP SRAM, integrates 8MB Flash
Onboard 1.47inch capacitive touch LCD display, 172×320 resolution, 262K color
Adapting multiple IO interfaces, integrates full-speed USB port
Onboard TF card slot for external TF card storage of pictures or files
Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios

Display Specifications

DISPLAY SIZE	1.47inch	Resolution	172 × 320 pixels
Display Driver	JD9853	Touch Driver	AXS5106L
Display Interface	4-wire SPI	Touch Interface	I2C
DISPLAY PANEL	IPS	Touch Type	Capacitive

ESP32-C6 suitable for AIoT applications

Equipped with a high-performance 32-bit RISC-V processor and a low-power 32-bit RISC-V processor, the main frequency is up to 160 MHz, Powerful AI Computing Capability & Reliable security features

ESP32-C6 with high-performance 32-bit RISC-V processor

Wi-Fi 6 and BLE 5 support

ESP32-C6 integrates 2.4GHz Wi-Fi 6 (802.11 ax/b/g/n) with 40 MHz of bandwidth support, its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh

Application Scenarios

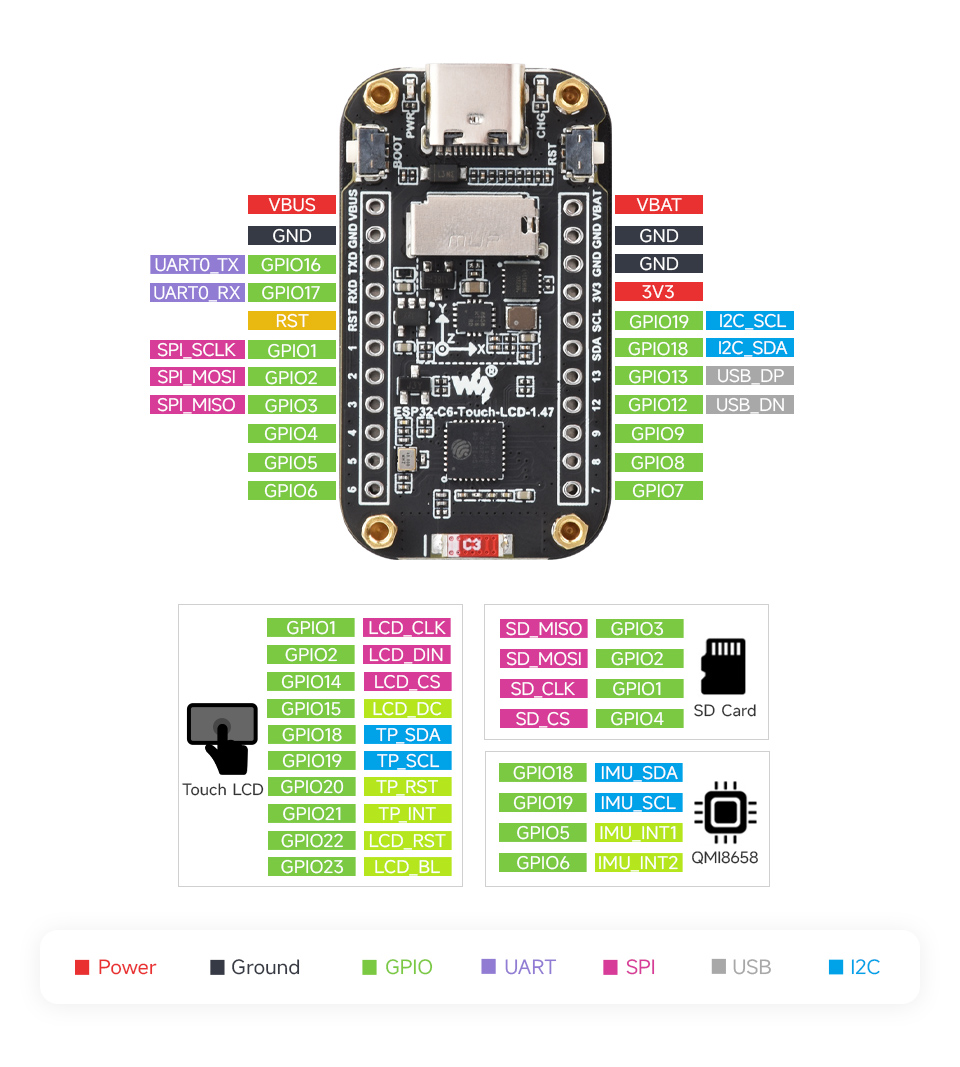

Pin Definition

Supports the expansion of multiple peripherals via GPIO header

What's On Board

ESP32-C6FH8
Onboard ceramic antenna
ME6217C33M5G
Low dropout regulator, 800mA output (Max.)
QMI8658
6-Axis IMU

ETA6098
TF card slot
RESET button
BOOT button
Type-C interface

Outline dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/ESP32-C6-Touch-LCD-1.47

ESP32 LCD Selection

Model	display				onboard resources								Peripheral interfaces
Model	pixels	Interface	Display	Touch	IMU	RTC	TF	Buzzer	Speaker	mic	battery header	antenna	Peripheral interfaces
