2.13inch E-Paper Cloud Module, 250×122, WiFi Connectivity

SKU: 19399
Part Number: 2.13inch e-Paper Cloud Module
Brand: Waveshare


Related Products:



2.13inch e-Paper Cloud Module, 250×122 pixels, WiFi Connectivity
2.13" e-Paper Cloud Module

WiFi Connectivity, low power consumption, wide viewing angle, paper-like effect

Ideal for price tags, shelf labels, industrial instruments...

  • Size2.13"
  • Resolution250×122
  • Viewing Angle>170°
  • Display ColorBlack / White
  • Grey Scale2
  • Communication 1WiFi 2.4GHz
  • Communication 2Bluetooth4.2
  • Display DurationPersists without Power
  • Display PanelE-paper
  • ExperiencePaper-like
  • Comfortably ReadingEye Care, No Bluelight
  • EnvironmentAmbient Light Required
  • Display TypePassively Reflective
Features at a glance

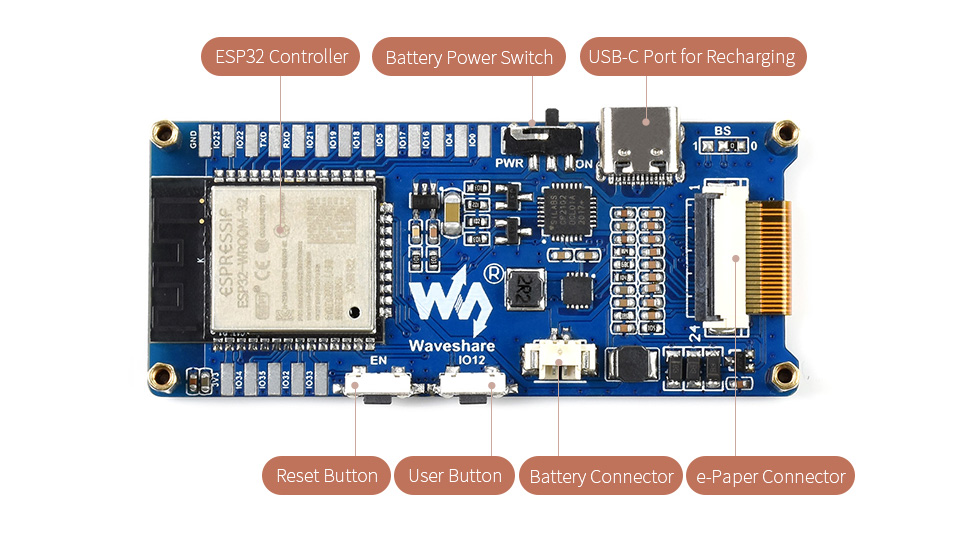

  • Incorporates ESP32, supports Arduino developing
  • No backlight, keeps displaying last content for a long time even when power down
  • Voltage detection circuit for preventing the battery from over-discharging
  • Features battery connector and recharge circuit, allows off-line running
  • Provides Android APP for refreshing the module via Bluetooth EDR, easy to use
  • Provides HTML host computer code for refreshing the module via remote webpage, easy to be integrated into sorts of Internet applications
  • Supports Floyd-Steinberg dithering algorithm, more color combinations, better shadow rendering for the original image
  • Supports popular image formats: BMP, JPEG, GIF, PNG, etc.
  • Delivered with embedded e-Paper driver (open source)
Communication WiFi 2.4GHz, Bluetooth4.2 Battery 1800 mAh
outline dimensions 71.0 × 30.2mm Display color black, white
display size 48.55 × 23.70mm Power supply battery
dot pitch 0.194 × 0.194mm Full refresh time 2s
resolution 250×122 pixels viewing angle >170°
Advantages of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Resources introduction
Refreshed via WiFi

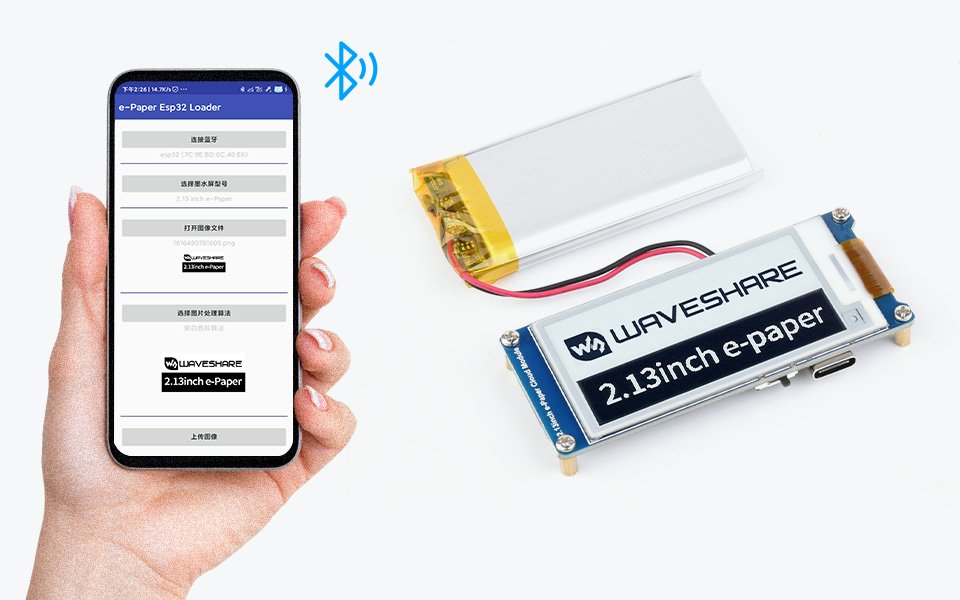

Android APP is also provided

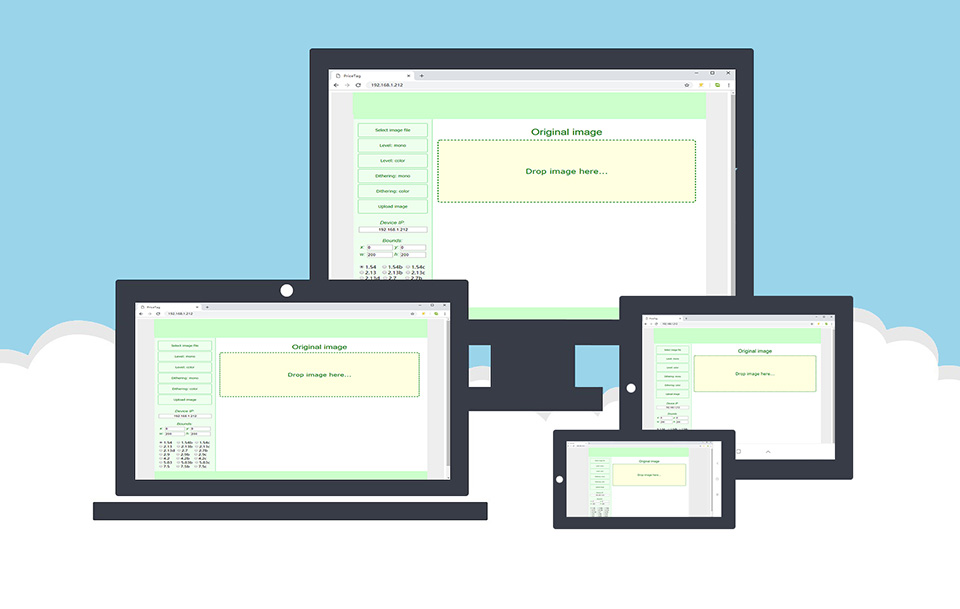

Refreshed via remote webpage

comes with HTML host computer code, suitable for sorts of Internet applications

Constant current control, better efficiency

the recharging efficiency of ETA6096 can be up to 94%

Application examples

Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags...

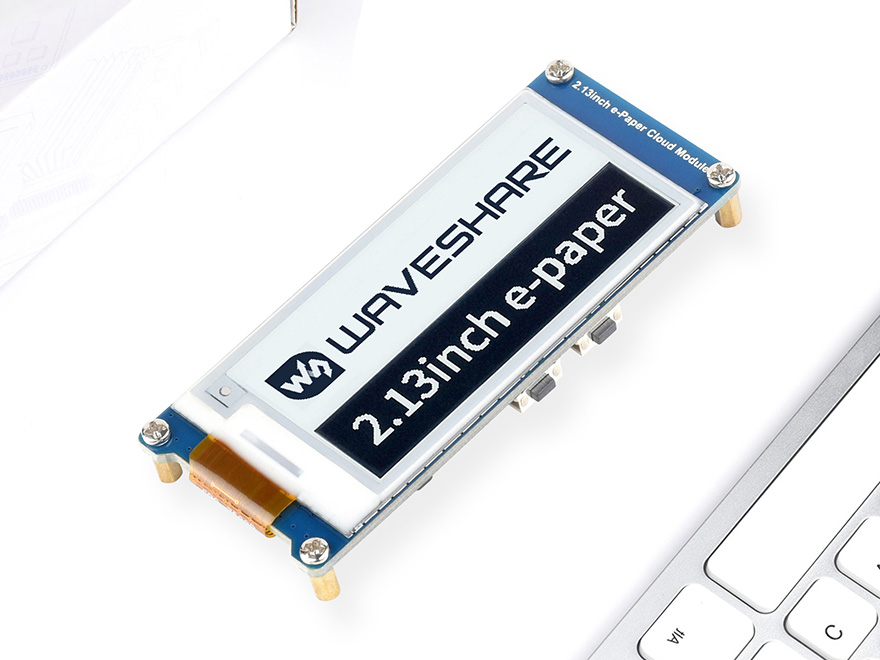

Product show

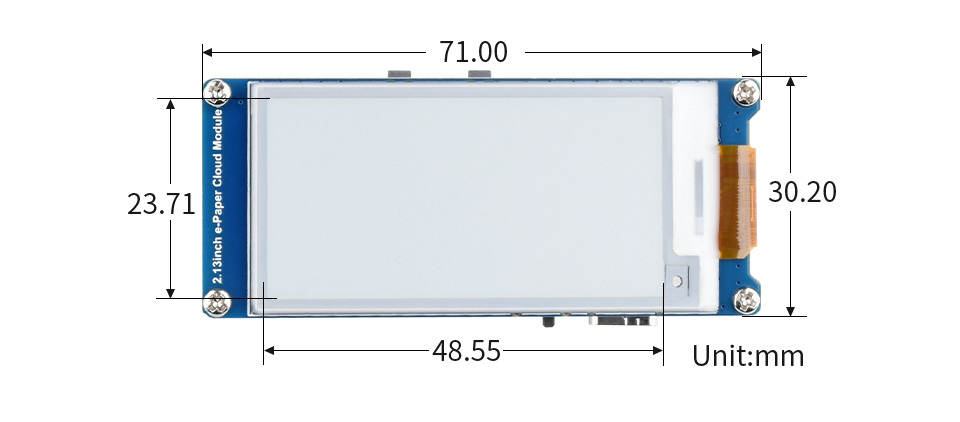

Outline dimensions
Resources & Services

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Weight: 0.047 kg

Quick Overview

  1. 2.13inch e-Paper Cloud Module x1
  2. Li-po battery 3.7V 1800mAh x1

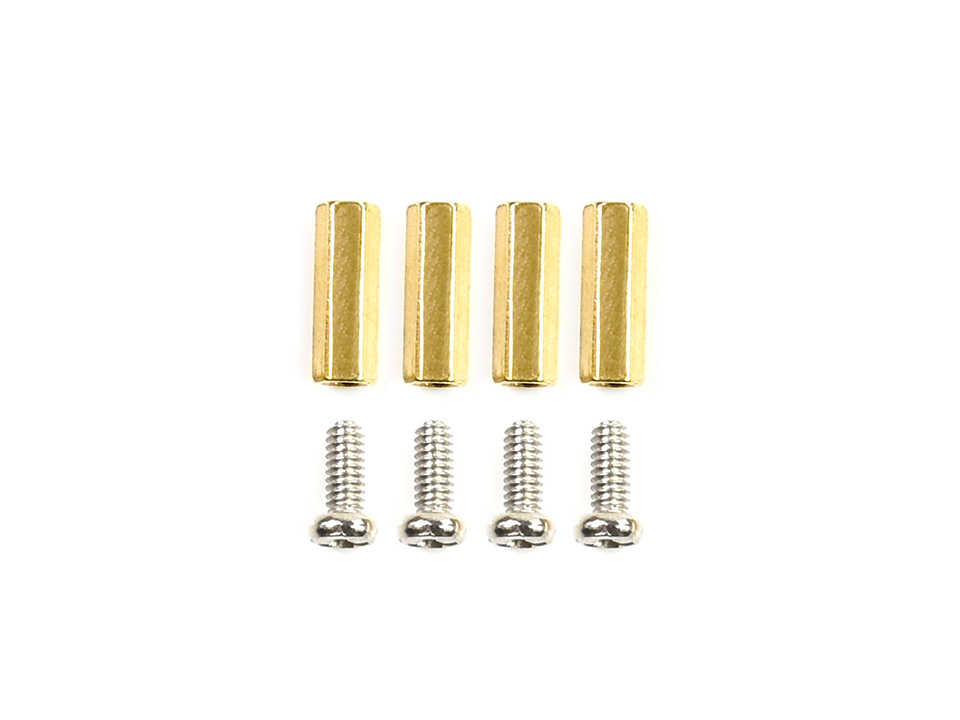

  3. Screws pack x1
