RA4M1-Zero Mini Development Board, Based On 32-bit MCU-RA4M1, 48MHz Operating Frequency, Built-in FPU, Supports Firmware Encryption

$6.49 - $7.49

Pinheader option

with pre-soldered header without header

Details

RA4M1-Zero mini development board, based on 32-bit MCU-RA4M1, 48MHz operating frequency, built-in FPU, supports firmware encryption

RA4M1-Zero Mini Development Board

Based on 32-bit MCU-RA4M1, onboard multiple GPIO pins

Castellated module, suitable for SMD applications

Board specifications

Powerful Core Performance: Adopts Renesas RA4M1 MCU, based on 32-bit ARM Cortex-M4 architecture. Operates at 48MHz with built-in FPU (Floating Point Unit), equipped with 256KB flash memory, 32KB SRAM, and 8KB EEPROM
Rich Hardware Resources: Equipped with 14-bit ADC, 12-bit DAC, CAN bus controller, USB 2.0 interface, and onboard RGB LED
Enhanced Security Features: Supports firmware encryption, secure boot, and tamper-proof to enhance data and system security, ensuring application security
Efficient Software Ecosystem: Compatible with Arduino IDE, enabling rapid development and convenient debugging while reducing development complexity
Compact Form Factor: Adopts Waveshare's classic Zero-size design (18 × 23.5 mm), suitable for applications with limited space
More Convenient For Mass Production: Adopts surface-mount technology (SMT) with all pads located on the front side and castellated hole design for easy custom expansion

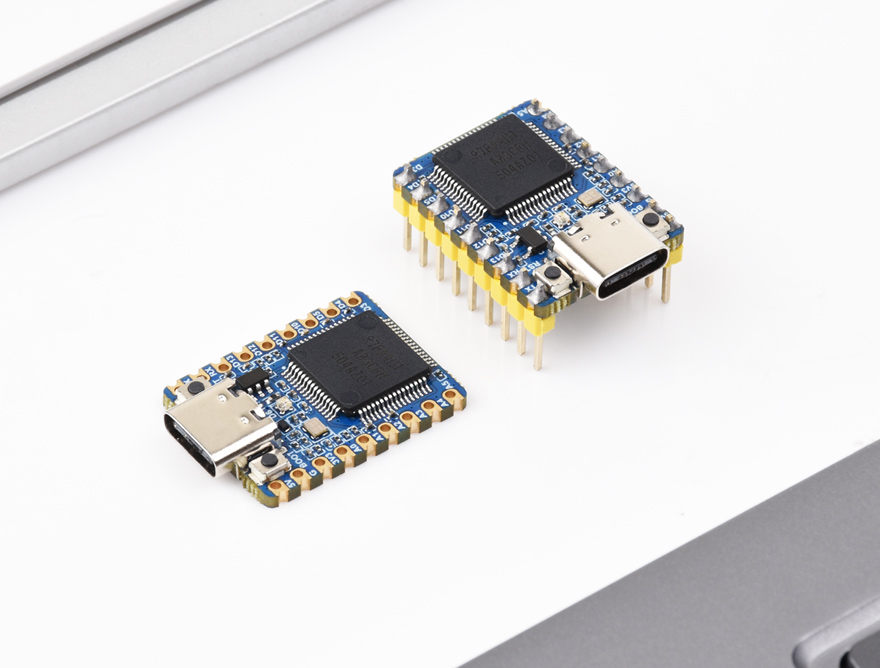

Version options

RA4M1-Zero
without pinheader

RA4M1-Zero-M
with pre-soldered header

Arduino Development Supported

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

What's On Board

USB Type-C connector
for program downloading, supports USB1.1 hosts and slave devices
RESET button
ME6217C33M5G
low dropout LDO, max current 800MA
0R resistor
3.3V / 5V MCU voltage selection, 3.3V by default

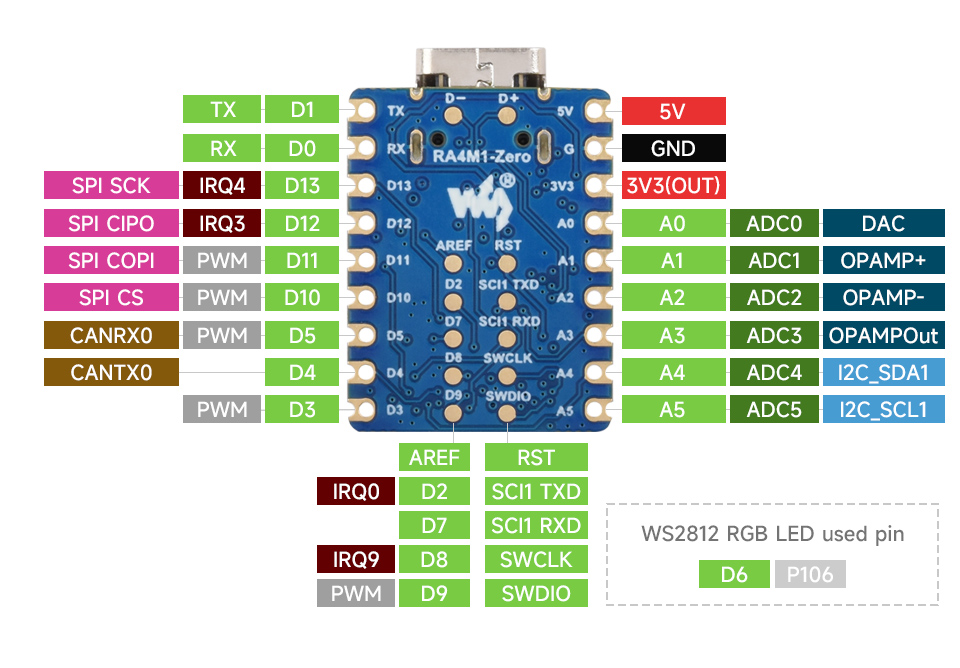

Pin Definition
