Environment Sensors Module for Jetson Nano, I2C Bus, with 1.3inch OLED Display

SKU: 19486
Part Number: Environment Sensor for Jetson Nano
Brand: Waveshare

$46.99
$45.992+
$45.493+
$45.294+

Description

Details

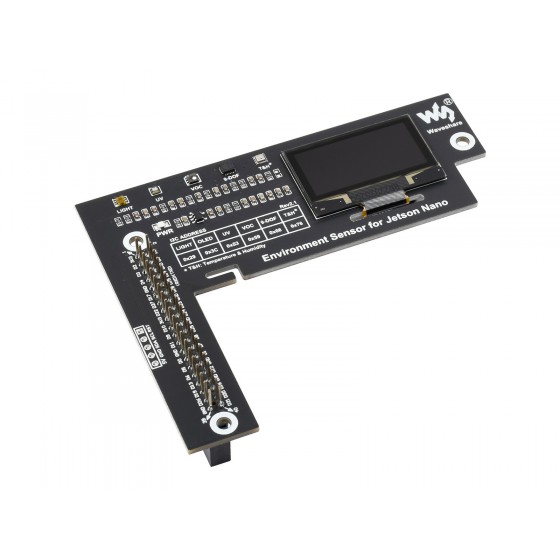

environment sensors module designed for Jetson Nano, I2C bus, with 1.3inch OLED display
environment sensors module

This environment sensors module gives Jetson Nano Developer Kit the ability to collect environment data like temperature & humidity, air pressure, ambient light intensity, VOC, IR ray, UV ray, etc. It can also be used to build a robot that can detect motion and orientation.

Features at a glance
  • Onboard TSL25911FN digital ambient light sensor, for measuring IR and visible light
  • Onboard BME280 sensor, for measuring temperature, humidity, and air pressure
  • Onboard MPU9250 motion sensor, accelerometer, gyroscope, and magnetometer
  • Onboard LTR390-UV-1 sensor, for measuring IR/UV rays
  • Onboard SGP40 sensor, for detecting ambient VOC
  • Onboard 1.3inch OLED display, for displaying environment data in real time
  • I2C bus, allows reading and displaying data by just using two wires
  • Comes with development resources and user manual (python examples)
Specifications
TSL25911FN digital ambient light sensor
I2C address 0x29
Effective range 0~88000Lux
BME280 temperature, humidity, and air pressure sensor
I2C address 0x76
Temperature detection -40 ~ 85℃ (0.01℃ resolution, ±1℃ accuracy)
Humidity detection 0~100%RH (0.008%RH resolution, ±3%RH accuracy, 1s response time, ≤2%RH delay)
Air pressure detection 300~1100hPa (0.18Pa resolution, ±1hPa accuracy)
MPU9250 motion sensor
(9-dof: 3-axis accelerometer, 3-axis gyroscrope, 3-axis magnetometer)
I2C address 0x68
Accelerometer resolution 16-bit
Accelerometer range (configurable) ±2, ±4, ±8, ±16g
Gyroscope resolution 16-bit
Gyroscope range (configurable) ±250, ±500, ±1000, ±2000°/sec
Magnetometer resolution 14-bit
Magnetometer range ±4800µT
LTR390-UV-1 IR/UV sensor
I2C address 0x53
Response wavelength 300nm ~ 350nm
SGP40 VOC sensor
I2C address 0x59
Measuring range 0 ~ 1,000 ppm ethanol equivalent
Limit condition < 0.05 ppm ethanol equivalent OR < 10 % preset concentration point (the larger one should prevail)
Response time < 10 s (tau 63 %)
Start time < 60 s
On-chip humidity compensation support
OLED display
I2C address 0x3C
Driver IC SH1106
Resolution 128x64
Display color blue
Onboard 1.3inch OLED

displaying collected environment data in real time

Tailored for Jetson Nano

Jetson Nano Developer Kit B01 (left) and Jetson Nano 2GB Developer Kit (right)


for reference only, Jetson Nano boards are NOT included.
What's on board
  1. TSL25911FN
    digital ambient light sensor, for measuring IR and visible light
  2. LTR390-UV-1
    IR/UV sensor
  3. SGP40
    VOC sensor
  4. MPU9250
    3-axis accelerometer, 3-axis gyroscrope, 3-axis magnetometer
  1. BME280
    temperature, humidity, and air pressure sensor
  2. Voltage level translator
    5V to 3.3V
  3. 1.3inch OLED
    128x64 resolution
Outline dimensions
Resources & Services

Weight: 0.137 kg

Quick Overview

  1. Environment Sensor for Jetson Nano x1
  2. Screws pack x1
