IMX462-99 IR-CUT Camera, Starlight Camera Sensor, Onboard ISP, Fixed-Focus, 2MP

SKU:22441
Part No.:IMX462-99 2MP Starlight Camera
Brand:Waveshare

$71.99 DISCONTINUED
PriceQuantity
1
$70.992
$70.493
$70.294+
Description

Details

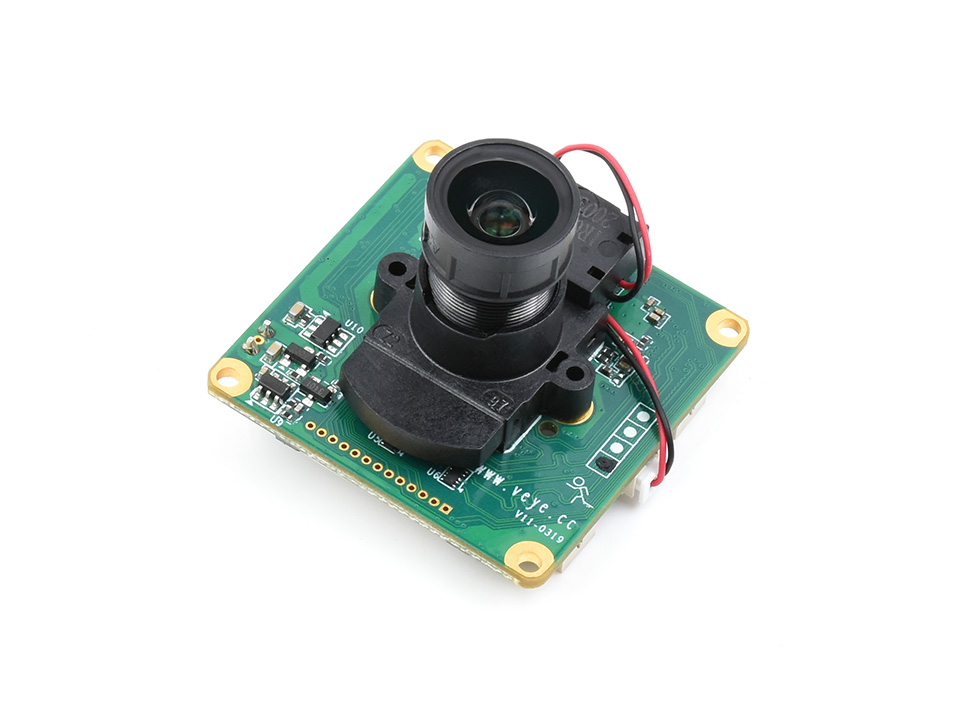

IMX462-99 IR-CUT Camera, Starlight Camera Sensor, Onboard ISP, Fixed-Focus, 2MP
IMX462 Starlight Camera

2MP | IR-CUT  | ISP 

Compatible with Raspberry Pi series boards and Jetson Nano

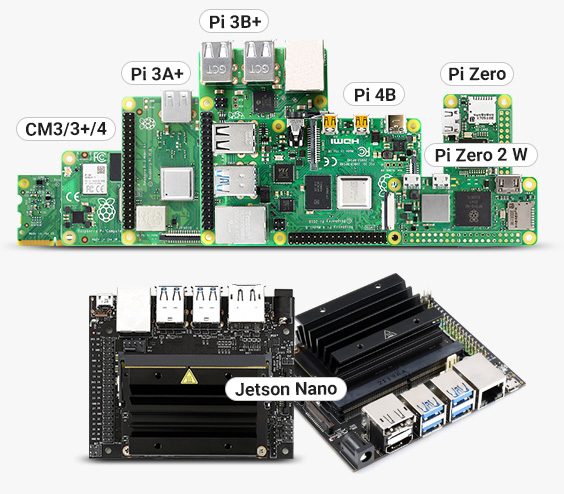

Device Support

Raspberry Pi series
Supports 4B / 3B+ / 3A+ / Zero / Zero 2 W,
and CM3/3+/4 (extra adapter board required)

Jetson Nano
Supports Jetson Nano developer kit
Specifications
Sensor IMX462-127 IMX462-99
CMOS SIZE 1/2.8 inch
PIXELS 2MP (1920 × 1080)
CAMERA TYPE Color
FOCUSING Fixed focus
SHUTTER Rolling Shutter
APERTURE F1.61 F1.0
FOCAL LENGTH 3.18mm 4.0mm
FIELD OF VIEW 127.9° 99.1°
DISTORTION < -51% < -33.8%
Starlight Camera

Clear Imaging even in Low Light Conditions

Built-in IR-CUT

Correct Color Deviation of Infrared Camera During the Daytime, Better Imaging Effect

Onboard ISP

Integrated Image Signal Processing Circuit, Clearer Imaging Effect

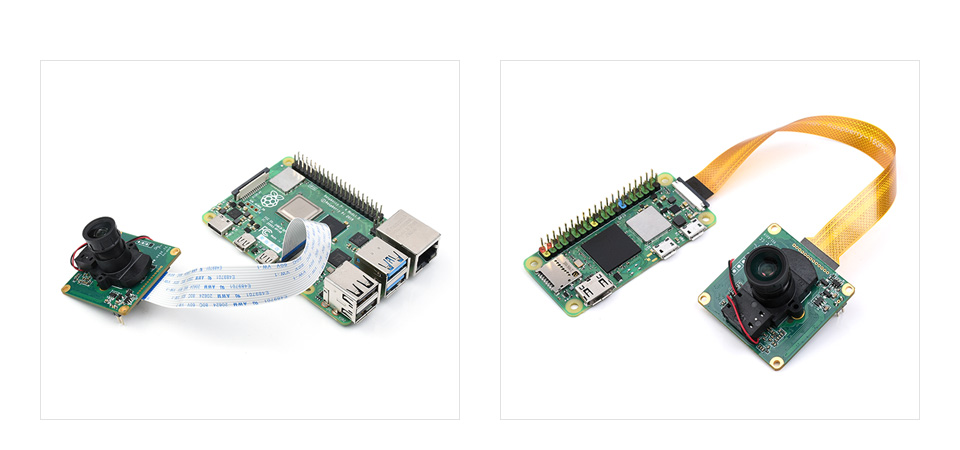

Working with Raspberry Pi

direct connect to Raspberry Pi different variants including 4B/3B+/3A+/3B/2B/B+/A+,
extra FPC cable is required for Zero / Zero 2 W series

  • for reference only, Raspberry Pi 4B and 2W are NOT included.
  • Specific driver is required for Raspberry Pi to use the IMX462 camera.

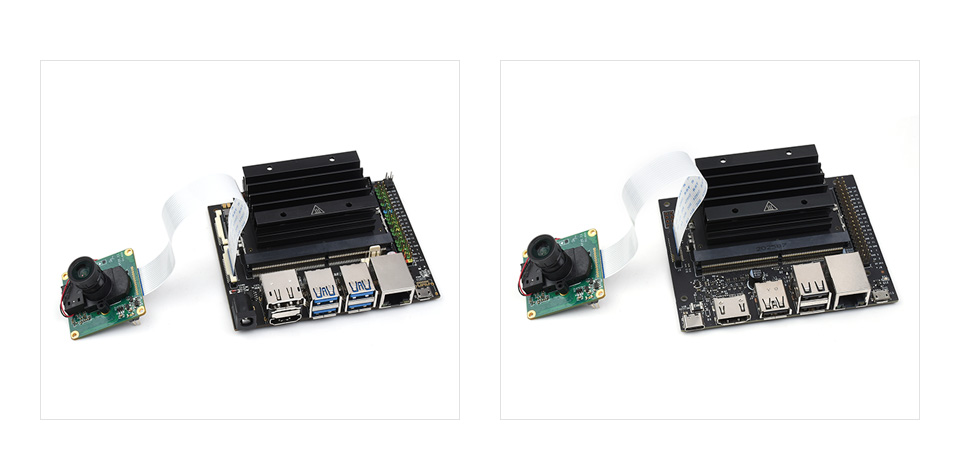

Working With Jetson Nano

Direct Connect To Jetson Nano Developer Kit

for reference only, Jetson Nano Developer Kit is NOT included.
Outline dimensions

Weight: 0.036 kg

Quick Overview

IMX462-99 2MP Starlight Camera x1
