IMX219-160 8MP IR-CUT Camera, IR-CUT Infrared Night Vision, 162° FOV, Applicable for Compute Module / Jetson Nano / Jetson Xavier NX

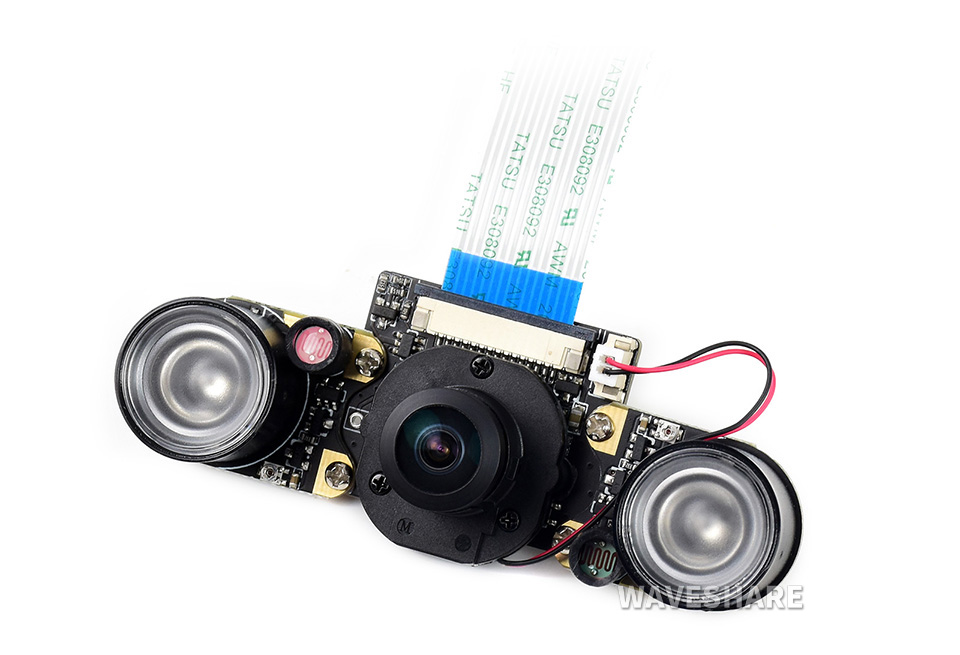

8MP IR-CUT camera module
IMX219 sensor, 8MP, comes with infrared LEDs
embedded IR-CUT, eliminating the reddish issue of normal IR cameras on daylight
Specifications
| Pixels | 8MP | |
|---|---|---|
| Sensor | IMX219 | |
| Camera | Sensor size | 1/4 inch |
| Aperture (F) | 2.7 | |
| Resolution | 3280 × 2464 | |
| Focal length (BFL) | 1.75 | |
| Field of view (FOV) | 162.4°(D) 124°(H) 91°(V) | |
| Distortion | <-22.7% | |
| 4x Mounting holes | used for attachment provides 3.3V power output supports connecting infrared LED and/or fill flash LED |
|
| Operating voltage | 3.3V | |
| Applications | suitable for AI applications like: facial recognition, road mark recognition, license plate number recognition, and so on. | |

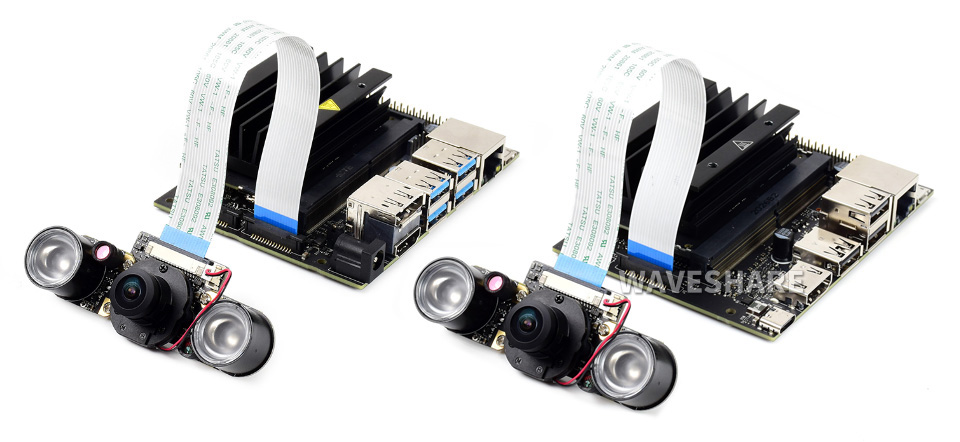

Working with Jetson Nano
Jetson Nano Developer Kit B01 (left) and Jetson Nano 2GB Developer Kit (right)

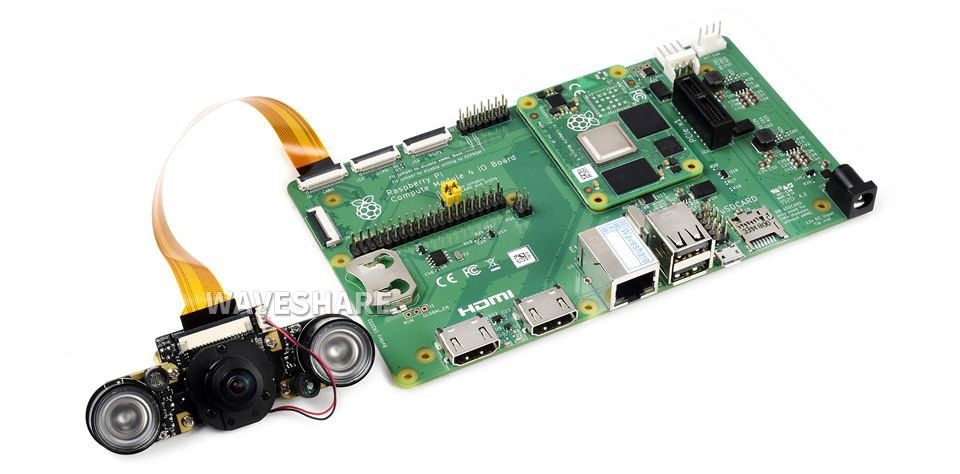

Working with Raspberry Pi Compute Module
Compatible with Raspberry Pi Compute Module CM3 / CM3+ / CM4

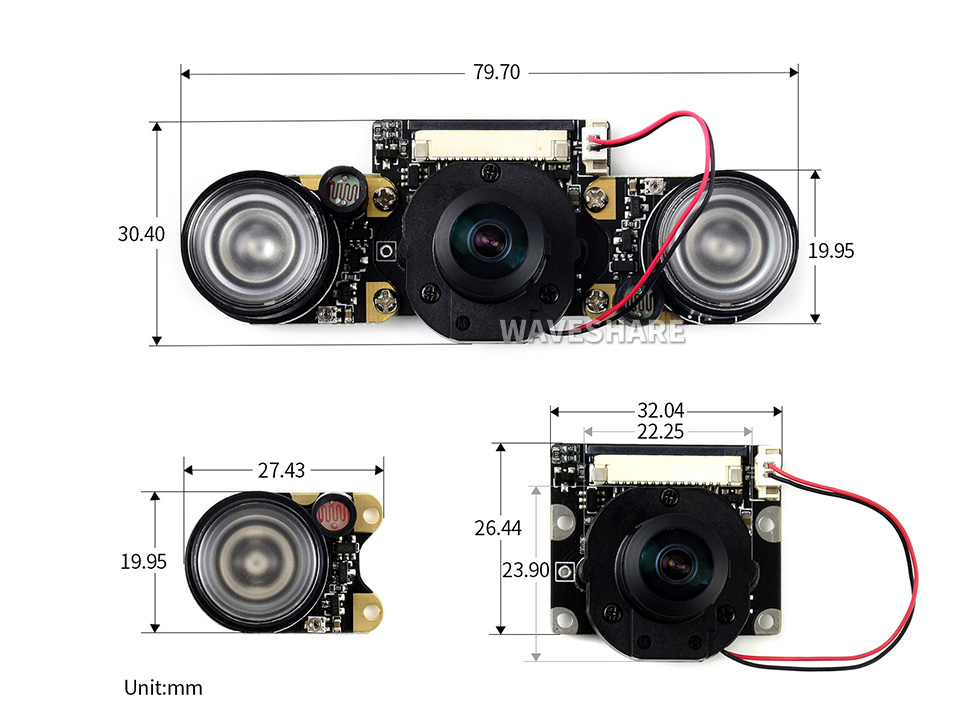

Outline dimensions
Selection Guide
| Product | Pixels | Sensor | Infrared | Camera | Angle of View (diagonal) (degree) | Aperture (F) | Focal Length (mm) | PCBA | Suit for |
|---|---|---|---|---|---|---|---|---|---|
| RPi Camera V2 | 8 Mega | IMX219 | × | 1 | 62.2 | 2.0 | 3.04 | √ | Raspberry Pi, CM3/3+/4, Jetson Nano, Jetson Xavier NX |
| IMX219-D160 | × | 1 | 160 | 2.35 | 3.15 | × | |||
| RPi NoIR Camera V2 | √ | 1 | 62.2 | 2.0 | 3.04 | √ | Raspberry Pi, CM3/3+/4, Jetson Nano |
||
| IMX219-77 Camera | × | 1 | 79.3 | 2.0 | 2.85 | √ | CM3/3+/4, Jetson Nano, Jetson Xavier NX |
||
| IMX219-77IR Camera | √ | 1 | 79.3 | 2.0 | 2.85 | √ | |||
| IMX219-120 Camera | × | 1 | 120 | 2.0 | 1.79 | √ | |||
| IMX219-160 Camera | × | 1 | 160 | 2.35 | 3.15 | √ | |||
| IMX219-160IR Camera | √ | 1 | 160 | 2.35 | 3.15 | √ | |||
| IMX219-160 IR-CUT Camera | √ | 1 | 162 | 2.7 | 1.75 | √ | |||
| IMX219-170 Camera | × | 1 | 170 | 2.4 | 2.2 | √ | |||
| IMX219-200 Camera | × | 1 | 200 | 2.0 | 0.87 | √ | |||
| IMX219-83-Stereo-Camera | × | 2 | 83 | 2.4 | 2.6 | √ | CM3/3+/4, Jetson Nano (B01), Jetson Xavier NX |
- The IR cameras will take curious reddish pictures by daylight for lacking of IR filter in the CCD, yet that is the reason why the camera can see in the dark with IR LEDs
- Jetson Nano —— supports both Jetson Nano Developer Kit (B01) and Jetson Nano 2GB Devekoper Kit
Jetson Nano (B01) —— supports Jetson Nano Developer Kit (B01) only
Jetson Xavier NX —— supports Jetson Xavier NX Developer Kit
Weight: 0.026 kg
Quick Overview
- IMX219-160 IR-CUT Camera (with FFC) x1
- Infrared LED Board (B) 2PCS x1
