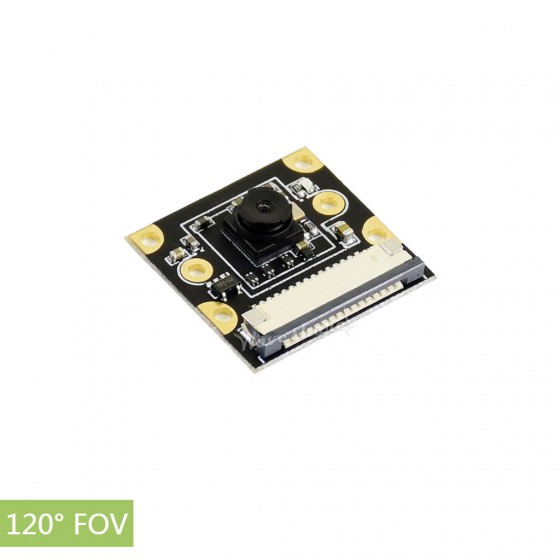

IMX219-120 Camera, Applicable for Jetson Nano, 8 Megapixels, 120° FOV
Features
- Supports CM3/3+/4, Jetson Nano, Jetson Xavier NX
- 8 Megapixels
- Sensor: IMX219
- Resolution: 3280 × 2464
- Lens specifications:
- CMOS size: 1/4inch
- Aperture (F): 2.0
- Focal Length: 1.79mm
- Angle of View (diagonal): 120 degree
- Distortion: <13.6%
- Lens dimensions: 6.5mm × 6.5mm
- 4 screw holes
- Used for attachment
- Provides 3.3V power output
- Dimension: 25mm × 24mm
Applications
Combined with the Jetson Nano AI computer, this camera suits for AI projects such as:
- Face recognition
- Road mark detection
- License plate recognition
Development Resources
Wiki: www.waveshare.com/wiki/IMX219-120_Camera
Selection Guide
| Product | Pixels | Sensor | Infrared | Camera | Angle of View (diagonal) (degree) | Aperture (F) | Focal Length (mm) | PCBA | Suit for |
|---|---|---|---|---|---|---|---|---|---|
| RPi Camera V2 | 8 Mega | IMX219 | × | 1 | 62.2 | 2.0 | 3.04 | √ | Raspberry Pi, CM3/3+/4, Jetson Nano, Jetson Xavier NX, VisionFive2 |
| IMX219-D160 | × | 1 | 160 | 2.35 | 3.15 | × | |||
| RPi NoIR Camera V2 | √ | 1 | 62.2 | 2.0 | 3.04 | √ | Raspberry Pi, CM3/3+/4, Jetson Nano, VisionFive2 |
||
| IMX219-77 Camera | × | 1 | 79.3 | 2.0 | 2.85 | √ | CM3/3+/4, Jetson Nano, Jetson Xavier NX, VisionFive2 |
||
| IMX219-77IR Camera | √ | 1 | 79.3 | 2.0 | 2.85 | √ | |||
| IMX219-120 Camera | × | 1 | 120 | 2.0 | 1.79 | √ | |||
| IMX219-160 Camera | × | 1 | 160 | 2.35 | 3.15 | √ | |||
| IMX219-160IR Camera | √ | 1 | 160 | 2.35 | 3.15 | √ | |||
| IMX219-160 IR-CUT Camera | √ | 1 | 162 | 2.7 | 1.75 | √ | |||
| IMX219-170 Camera | × | 1 | 170 | 2.4 | 2.2 | √ | |||
| IMX219-200 Camera | × | 1 | 200 | 2.0 | 0.87 | √ | |||
| IMX219-83-Stereo-Camera | × | 2 | 83 | 2.4 | 2.6 | √ | CM3/3+/4, Jetson Nano (B01), Jetson Xavier NX |
- The IR cameras will take curious reddish pictures by daylight for lacking of IR filter in the CCD, yet that is the reason why the camera can see in the dark with IR LEDs
- Jetson Nano —— supports both Jetson Nano Developer Kit (B01) and Jetson Nano 2GB Devekoper Kit
Jetson Nano (B01) —— supports Jetson Nano Developer Kit (B01) only
Jetson Xavier NX —— supports Jetson Xavier NX Developer Kit
Weight: 0.012 kg
Quick Overview
The included FFC is 16cm, if you need a longer cable, please consider: RPi Camera Cable 60cm
- IMX219-120 Camera x1
- 15-pin FFC (opposite sides contact) x1
