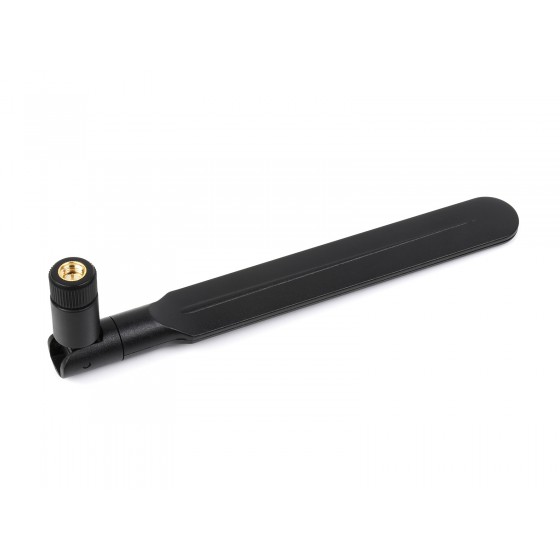

4G High Gain SMA Antenna, 4G/3G/2G/LPWA Support

SKU: 21121
Part Number: 4G/3G/2G/LPWA External Antenna




4G high gain SMA antenna, 4G/3G/2G/LPWA support, 700~2700MHz range, 90° flexible rotation
4G high gain SMA antenna

4G/3G/2G/LPWA support, SMA inner pin, 9DBI gain

Network support 4G/3G/2G/LPWA Gain 9DBI ± 0.7DBI
Frequency range 700~2700MHz Connector SMA inner pin
Output impedance 50Ω Length 17CM
VSWR ≤ 2.0 Material ABS
Polarisation Vertical Color Black
Application examples

using SMA to IPEX-1 cable

Connecting with SIM7600G-H-PCIE

Connecting with SIM7600G-H 4G HAT

using SMA to IPEX-4 cable

Connecting with SIM7600G-H-M.2

Connecting with SIM7600G-H 4G HAT (B)

for reference ONLY, please check the Package Content section for exact part list.
Outline dimensions

Weight: 0.016 kg

Quick Overview

  1. 4G/3G/2G/LPWA External Antenna x1
