UART GPS NEO-6M-C

SKU: 8747
Part Number: UART GPS NEO-6M-C

$17.99 DISCONTINUED
$15.3410+
$14.0250+
$13.49100+

Description

Details

UART GPS Module, NEO-6M-C onboard

Features

  • Compatible with UART GPS NEO-6M
  • NEO-6M-C onboard, with high-gain active antenna
  • IPX interface, for connecting different active antennas
  • Chargeable backup battery, keeps the ephemeris data when power down, supports hot starts
  • Onboard EEPROM for storing config information

Specifications

  • TTL level, compatible with 3.3V/5V systems
  • Default baud rate 9600, configurable via u-center
  • Operating voltage: 2.7V-5.0V (VCC input)
  • Operating current: 45mA
  • TXD/RXD impedance: 510Ω

Applications

  • GPS Navigator
  • Quadcopter Positioning

How to Use

In the case of working with a MCU:

  • VCC: connects to 3.3V/5V
  • GND: connects to GND
  • TXD: connects to MCU.RX
  • RXD: connects to MCU.TX
  • PPS: connects to MCU.IO, timepulse output (optional)

Software Demo

The UART GPS NEO-6M-C module supports software like u-center, GoogleEarth, etc., pretty easy to use. The following pictures show that using the module with u-center:

u-center user interface:

Positioning info on the text console:

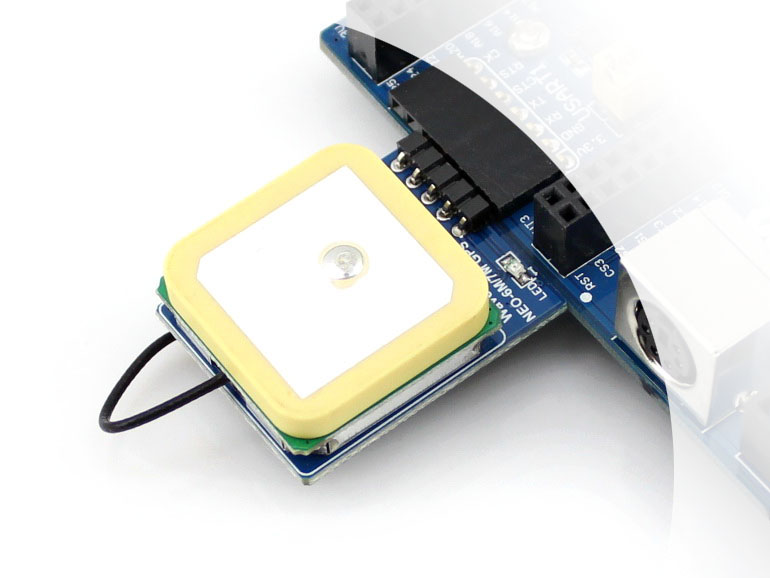

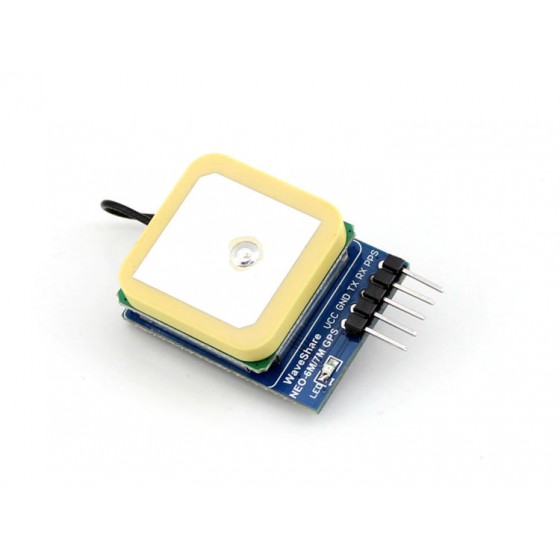

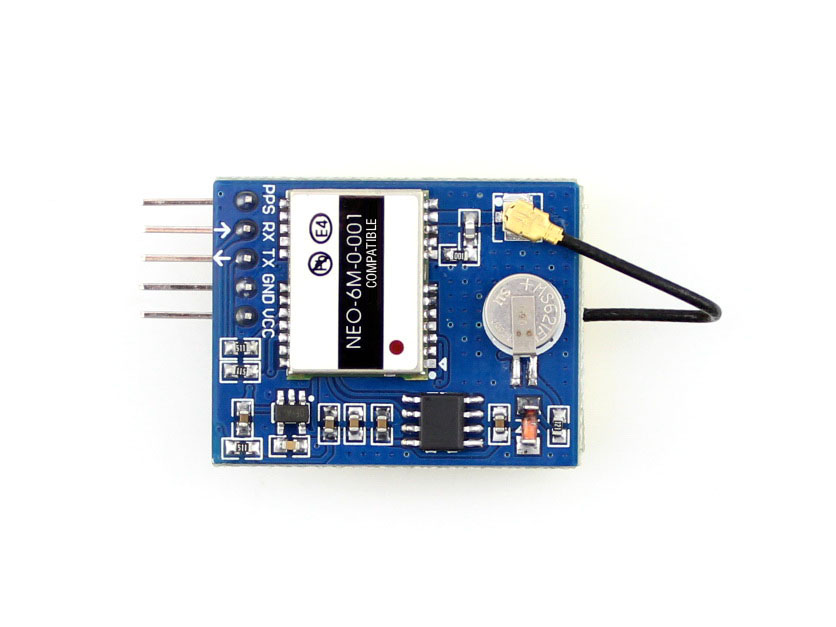

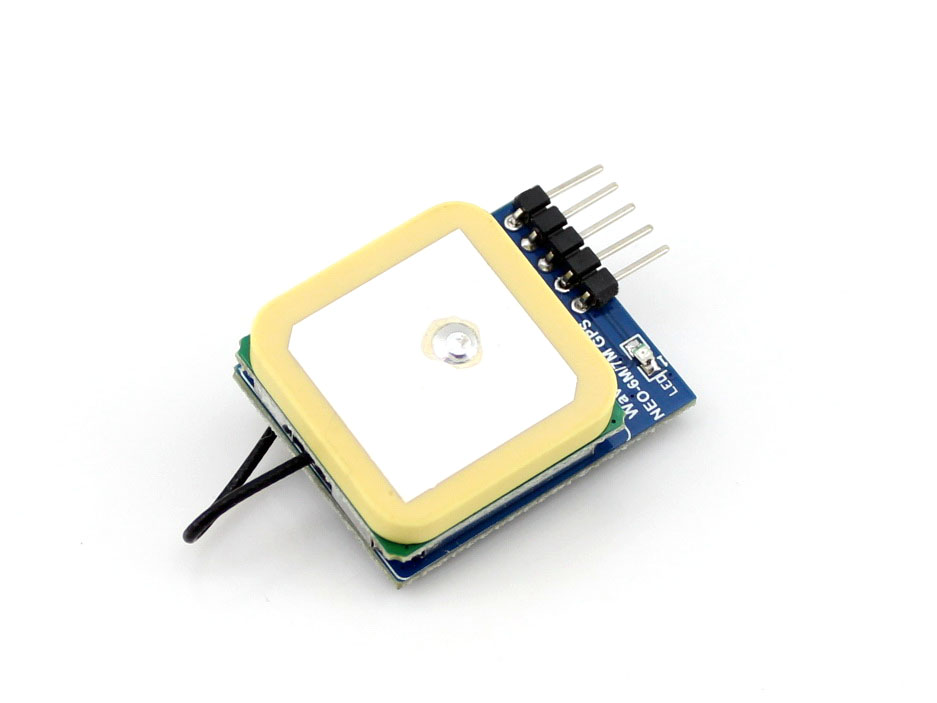

Photos


Recommended Items


Downloads

Development resources: demo codes, schematic, datasheets, etc.
Wiki: www.waveshare.com/wiki/UART_GPS_NEO-6M-C


Selection Guide

Part Number UART GPS
NEO-6M
UART GPS
NEO-6M (B)
UART GPS
NEO-7M-C
UART GPS
NEO-7M-C (B)
GPS Module NEO-6M NEO-6M NEO-7M NEO-7M
Pinheader curved/horizontal straight/vertical curved/horizontal straight/vertical
EEPROM X X
GLONASS X X
Receive channel 50 50 56 56
Operating current 45mA 45mA 35mA 35mA
Tracking sensitivity -161dBm -161dBm -162dBm -162dBm
Acquisition sensitivity (cold starts) -147dBm -147dBm -148dBm -148dBm
Navigation update rate 5Hz 5Hz 5Hz 5Hz
Oscillator Crystal Crystal TCXO TCXO

Weight: 0.017 kg

Quick Overview

  • UART GPS NEO-6M-C × 1
