TSOP48 TO DIP48 (B), Programmer Adapter

TSOP48 TO DIP48 (B), Programmer Adapter

SKU: 10092
Part Number: TSOP48 TO DIP48 (B)
Brand: Enplas

$41.99
$39.992+
$38.993+
$38.594+

Share:
Description

Details

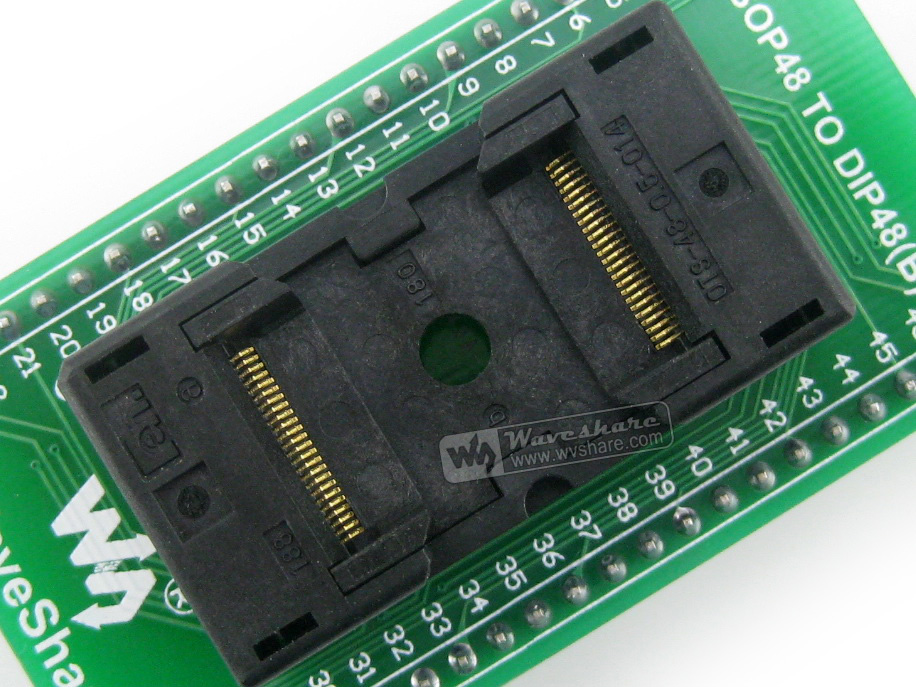

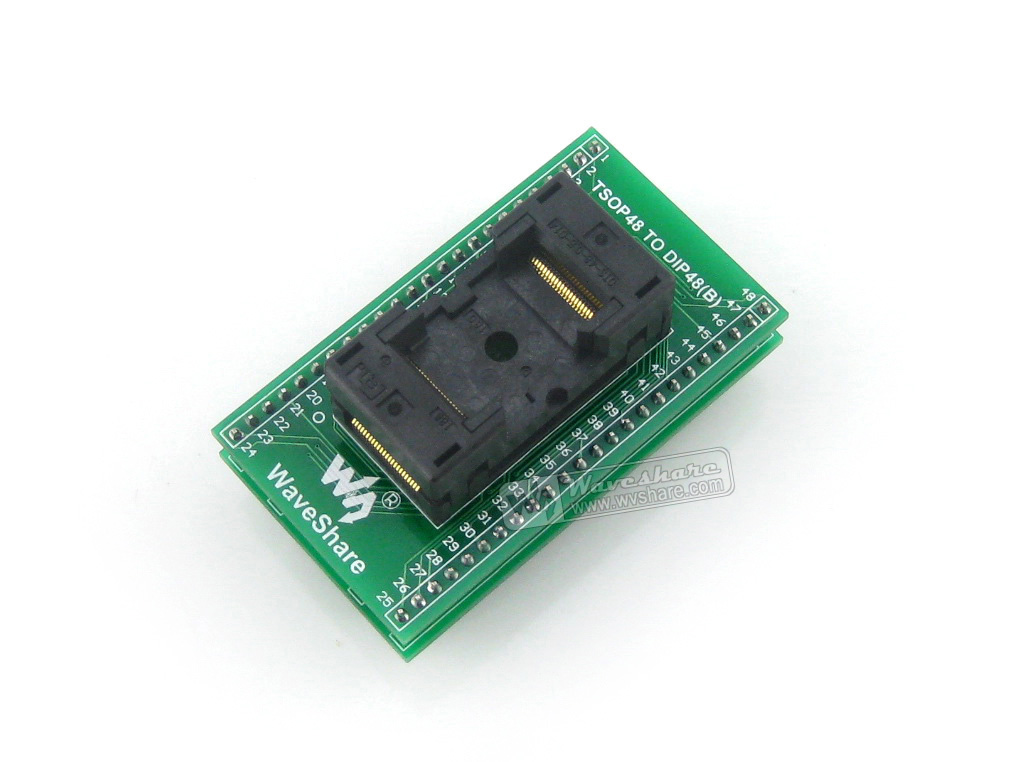

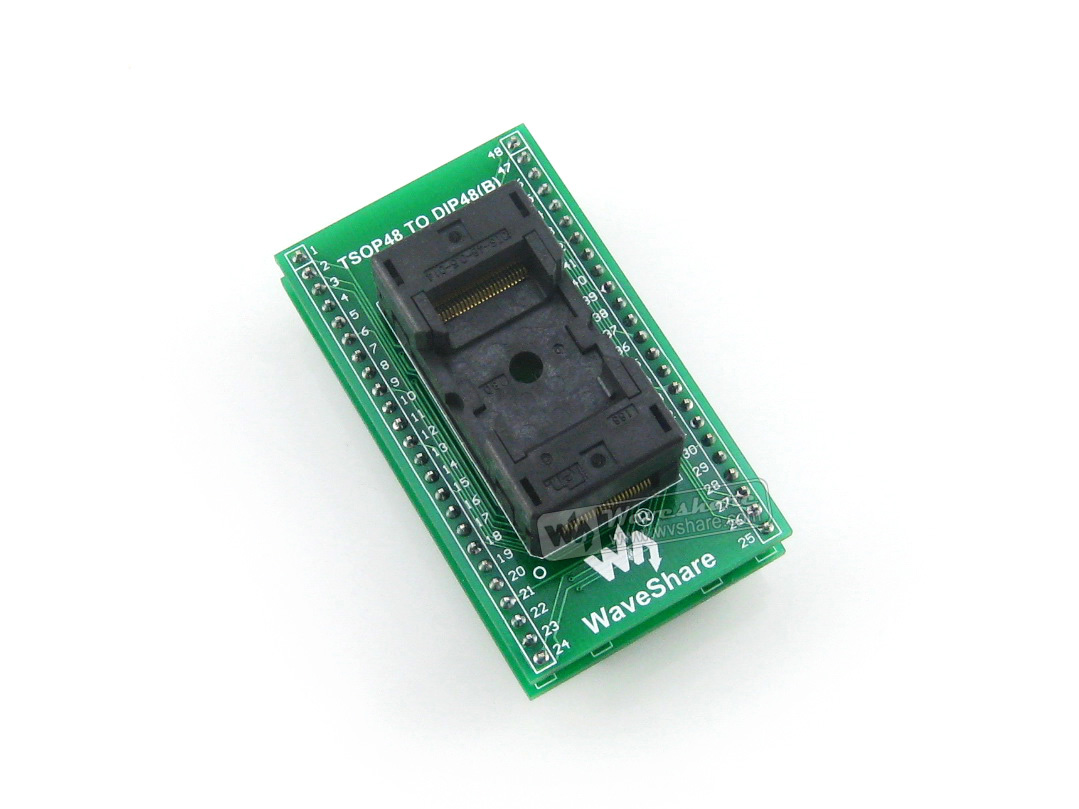

Enplas IC Programmer Adapter for TSOP48 package

Features

  • High quality and durable
  • Tested before shipping
  • Easy to use

Supported Devices

  • Package
    • TSOP48
  • Pitch: 0.5mm
  • Width:18.4mm

Socket PN

  • OTS-48-0.5-014 OR OTS-48-0.5-12

Download

DIP Pin Header Dimensions

  • Pitch: 100mil (2.54mm)
  • Width: 600mil (1.52cm)

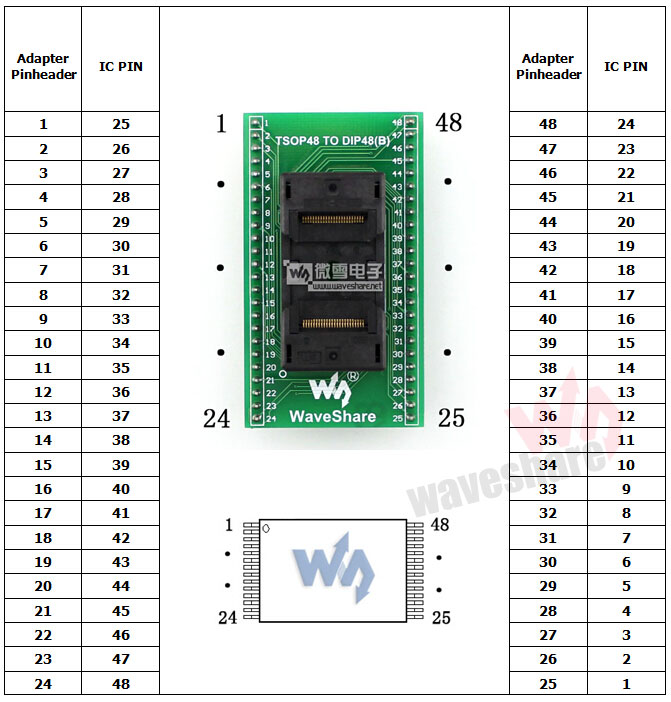

Pinout Mapping

Outline and Dimensions

Unit: mm
Part Number Pitch Pins APPLICABLE IC DIMENSIONS (REF.) OUTSIDE DIMENSIONS (REF.) REMARKS
A B C D E F G H
OTS-48-0.5-014 OR OTS-48-0.5-12 0.5 48 20 18.4 18.8 12.35 38 20 14.3 3.2 -


Weight: 0.03 kg

Quick Overview

  • TSOP48 TO DIP48 (B) adapter × 1
