BB Black (BeagleBone Black)

SKU: 8103
Part Number: BB Black
Brand: -

$69.99
$68.192+
$67.193+
$66.894+

Select Version:

Description

Details

BB Black/BeagleBone Black, from BeagleBoard family

BB-Black

Overview

BeagleBone Black is an MSRP community-supported development platform for developers and hobbyists. Boot Linux in under 10 seconds and get started on development in less than 5 minutes with just a single USB cable.


Features

BB-Black on board resource
  • Processor: TI Sitara AM335x, 1GHz, 2000 MIPS
    • 1 GHz ARM® Cortex™-A8
    • SGX530 Graphics Engine
    • Programmable Real-Time Unit Subsystem
  • Memory
    • SDRAM: 512MB DDR3L 800MHZ
    • eMMC Flash:
      • Rev B: 2GB (discontinued)
      • Rev C: 4GB (as of 2014.05.21)
  • SD/MMC Connector for microSD
  • Power management: TPS65217C PMIC is used along with a separate LDO to provide power to the system
  • Debug Support: Optional Onboard 20-pin CTI JTAG, Serial Header
  • Power Source
    • miniUSB USB or DC Jack
    • 5VDC External Via Expansion Header
  • Connectivity
    • High speed USB 2.0 Client port: Access to USB0, Client mode via miniUSB
    • High Speed USB 2.0 Host port: Access to USB1, Type A Socket, 500mA LS/FS/HS
    • Serial Port: UART0 access via 6 pin 3.3V TTL Header. Header is populated
    • 10/100M Ethernet (RJ45)
  • User Input / Output
    • Reset Button
    • Boot Button
    • Power Button
    • LED power indicator
    • 4 user configurable LEDs
  • Video/Audio Interfaces
    • HDMI D type interface
    • LCD interface
    • Stereo audio over HDMI interface
  • Expansion Interfaces
    • LCD,  UART, eMMC
    • ADC, I2C, SPI, PWM
  • Operating Power: 5V@0.35A
  • Board Size: 3.4” x 2.1”

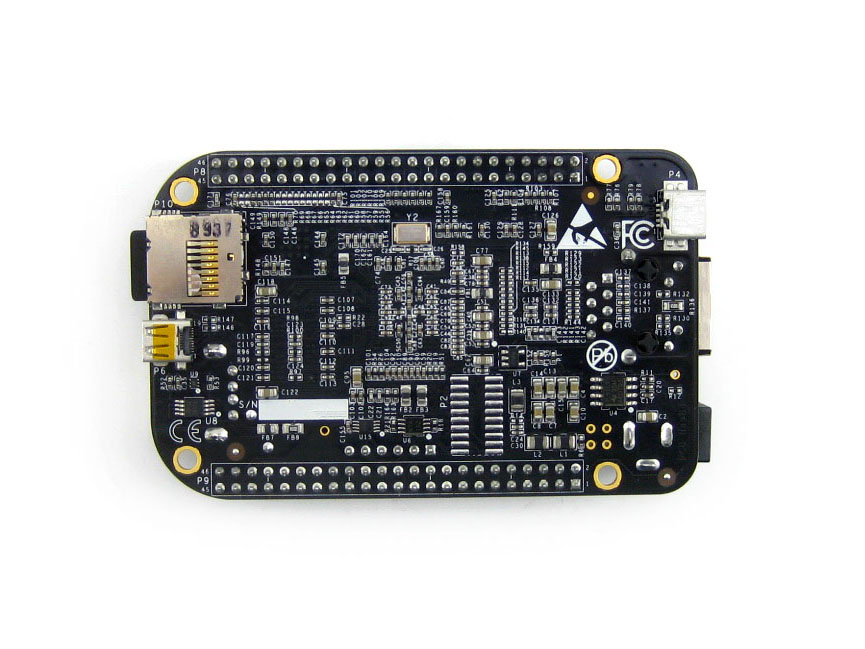

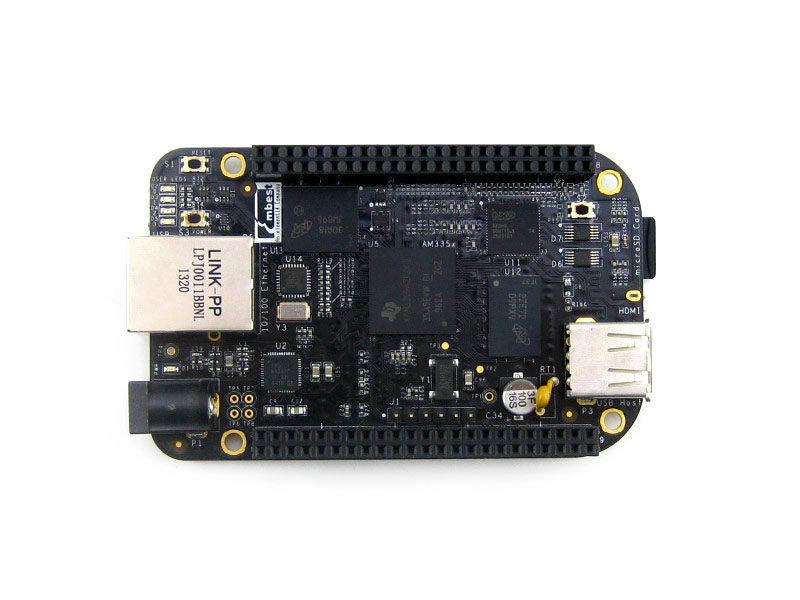

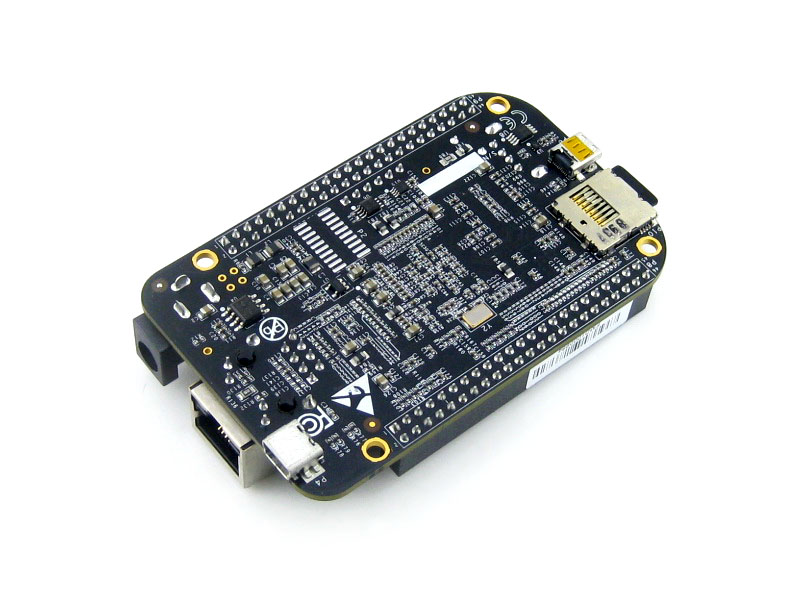

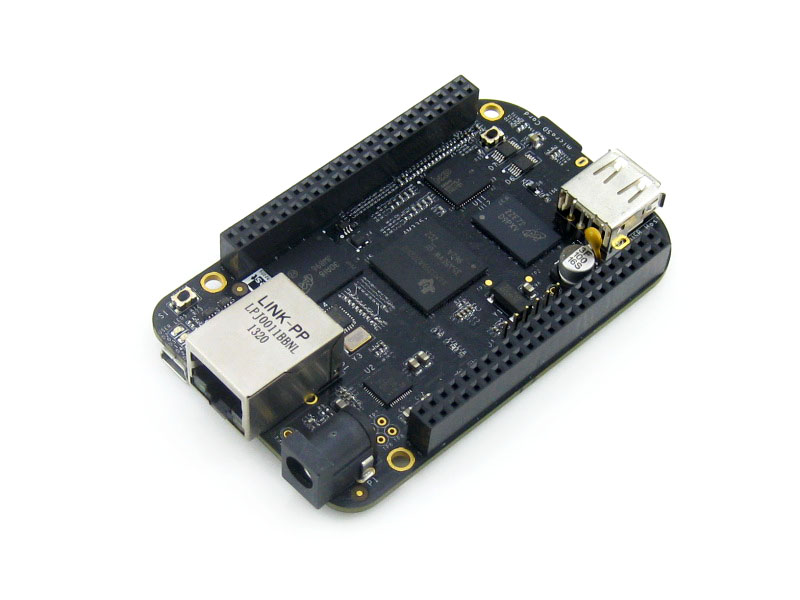

Photos

dividerdividerdividerdivider

Block Diagram

BB-Black

Dimension

BB-Black

Downloads

Development resources:user manual, Image, schematic, etc.
Download: www.waveshare.com/wiki/BB_Black

Optional Items

Package Content

Weight: 0.152 kg

Quick Overview

Package Contains

  1. BB Black x 1
  2. USB type A plug to mini-B plug cable x 1
