Description

The STM32F429 Discovery kit (32F429IDISCOVERY) allows users to easily develop applications with the STM32F429 high-performance MCUs with ARM®Cortex®-M4 core.

It includes an ST-LINK/V2-B embedded debug tool, a 2.4" QVGA TFT LCD, an external 64-Mbit SDRAM, an ST MEMS gyroscope, a USB OTG micro-AB connector, LEDs and push-buttons.

Key Features

• STM32F429ZIT6 microcontroller featuring 2 Mbytes of Flash memory, 256 Kbytes of RAM in an LQFP144 package
• On-board ST-LINK/V2-B
• mbed™ -enabled (mbed.org)
• USB functions:
  • debug port
  • virtual COM port
  • mass storage
• Board power supply: through the USB bus or from an external 3 V or 5 V supply voltage
• 2.4" QVGA TFT LCD
• 64-Mbit SDRAM
• L3GD20, ST MEMS motion sensor 3-axis digital output gyroscope
• Six LEDs:
  • LD1 (red/green) for USB communication
  • LD2 (red) for 3.3 V power-on
  • Two user LEDs: LD3 (green), LD4 (red)
  • Two USB OTG LEDs: LD5 (green) VBUS and LD6 (red) OC (over-current)
• Two push-buttons (user and reset)
• USB OTG with micro-AB connector
• Extension header for LQFP144 I/Os for a quick connection to the prototyping board and an easy probing
• Comprehensive free software including a variety of examples, part of STM32CubeF4 package or STSW-STM32138 for legacy standard libraries usage

32F429IDISCOVERY: TOP LAYOUT

32F429IDISCOVERY: BOTTOM LAYOUT

Product Images

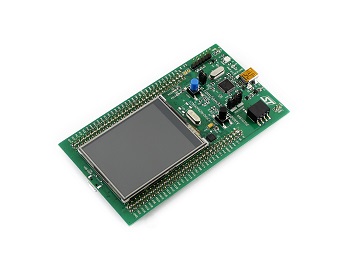

32F429IDISCOVERY green version front view

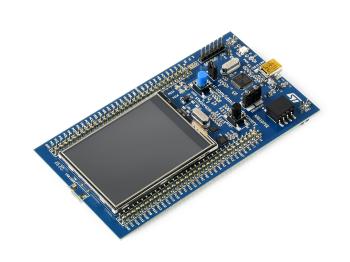

32F429IDISCOVERY blue version front view

32F429IDISCOVERY green version back view

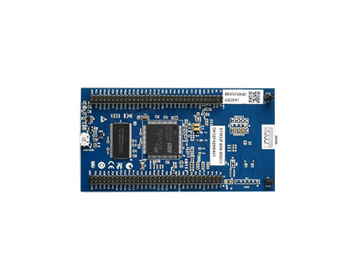

32F429IDISCOVERY blue version back view

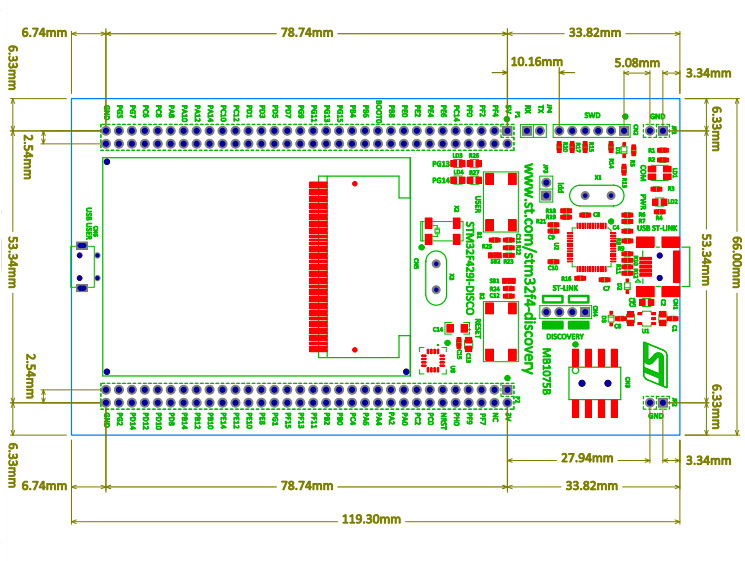

Dimensions

Design Support

For Technical Documentation, Software & Development Tools, Hardware Resources, view the 32F429IDISCOVERY official page on www.st.com to get more information: http://www.st.com/web/catalog/tools/FM116/SC959/SS1532/LN1199/PF259090
