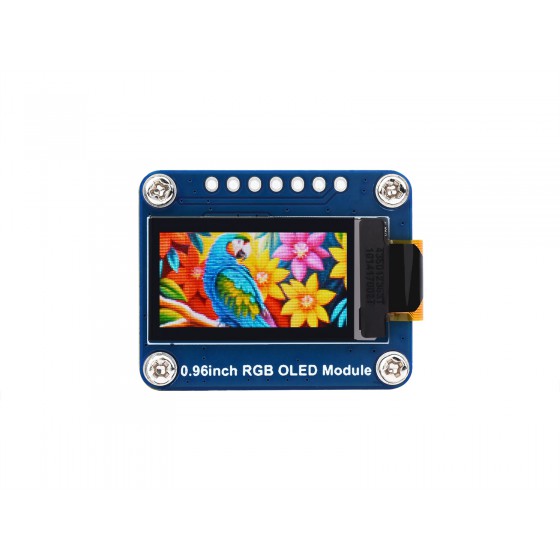

0.96inch RGB OLED Display Module, 64×128 Resolution, 65K Colors, SPI Interface

SKU: 25133
Part Number: 0.96inch RGB OLED Module
Brand: Waveshare

$12.99
$12.3910+
$12.0950+
$11.97100+

Related Products:

Description

Details

0.96inch RGB OLED Display Module, 64×128 Resolution, 65K Colors, SPI Interface
0.96inch OLED Display Module

Embedded SSD1357 driver chip, SPI Communication

Comes with examples for Raspberry Pi, Arduino, STM32, etc.



  • Size0.96"
  • Resolution64×128
  • RGB Backlight65K Colors

  • InterfaceSPI
  • Display PanelOLED
  • DriverSSD1357

Features at a glance
  • 64×128 resolution OLED display, 65K colors, clear and colorful displaying effect
  • SPI interface, minimizes required IO pins
  • Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)

Specifications
Operating voltage 3.3V / 5V Resolution 64 × 128 pixels
Communication Interface 3/4-wire SPI Display size 10.862 × 21.736mm
DISPLAY PANEL OLED PIXEL SIZE 0.0327 × 0.146mm
Driver SSD1357 Module size 32.5 × 26.0mm

Control Interface

VCC Power (3.3V / 5V input)
GND Ground
DIN SPI data input
CLK SPI clock input
CS Chip selection, low active
DC Data/Command selection (high for data, low for command)
RST Reset, low active

Hardware connection

connecting with Raspberry Pi


connecting with Arduino board



Usage Example

for reference only, the STM32 board is NOT included.


Product Show

Outline dimensions

Selection Guide

Part NumberTypeColorResolutionDisplay Size (mm×mm)InterfacesDriverDimension (mm×mm)Pinheader
0.85inch LCD Module IPS 65K colorful 128×128 15.21×15.21 4-wire SPI GC9107 19.0×22.5 GH1.25 connector
0.91inch OLED Module OLED White 128×32 22.38×5.58 I2C 1306 36.0×12.5 PH2.0 connector
0.95inch RGB OLED (A) OLED 65K colorful 96×64 20.14×13.42 SPI(4-wire SPI) 1331 31.7×37.0 angled/horizontal
0.95inch RGB OLED (B) OLED 65K colorful 96×64 20.14×13.42 SPI(4-wire SPI) 1331 31.7×37.0 straight/vertical
0.96inch LCD Module IPS 65K colorful 160×80 21.70×10.80 4-wire SPI ST7735S 32.5×26.0 PH2.0 connector
0.96inch OLED (A) OLED 1/4 yellow section, 3/4 blue section* 128×64 21.7×11.2 3-wire SPI, 4-wire SPI, I2C 1306 33.0×33.5 angled/horizontal
0.96inch OLED (B) OLED 1/4 yellow section, 3/4 blue section* 128×64 21.7×11.2 3-wire SPI, 4-wire SPI, I2C 1306 33.0×33.5 straight/vertical
0.96inch OLED Module (C) OLED 1/4 yellow section, 3/4 blue section* 128×64 21.74×11.18 4-wire SPI, I2C SSD1315 26.0×26.0 straight/vertical
0.96inch OLED Module (D) OLED White 128×64 21.74×11.18 4-wire SPI, I2C SSD1315 26.0×26.0 straight/vertical
0.96inch OLED Module (E) OLED Blue 128×64 21.74×11.18 4-wire SPI, I2C SSD1315 26.0×26.0 straight/vertical
0.96inch RGB OLED Module OLED 65K colorful 64×128 10.862×21.736 3/4-wire SPI SSD1357 32.5×26.0 GH1.25 connector
1.14inch LCD Module IPS 65K colorful 240×135 24.91×14.86 4-wire SPI ST7789 35.0×32.0 PH2.0 connector
1.27inch RGB OLED Module OLED 262K colorful 128×96 25.708×19.28 3/4-wire SPI SSD1351 42.2×29.0 GH1.25 connector
1.28inch LCD Module IPS 65K colorful 240×240 Φ32.4mm 4-wire SPI GC9A01 40.4×37.5
Φ37.5
PH2.0 connector
1.28inch Touch LCD IPS
(with touch)
65K colorful 240×240 Φ32.4mm 4-wire SPI, I2C GC9A01, CST816S 39.89×38.5
Φ38.5
GH1.25 connector
1.3inch LCD Module IPS 65K colorful 240×240 23.40×23.40 4-wire SPI ST7789 45.0×31.0 PH2.0 connector
1.3inch OLED (A) OLED Blue 128×64 29.42×14.7 3-wire SPI, 4-wire SPI, I2C SH1106 40.5×37.5 angled/horizontal
1.3inch OLED (B) OLED Blue 128×64 29.42×14.7 3-wire SPI, 4-wire SPI, I2C SH1106 40.5×37.5 straight/vertical
1.3inch OLED Module (C) OLED White 64×128 14.70×29.42 4-wire SPI, I2C SH1107 30.0×39.5 PH2.0 connector
1.32inch OLED Module OLED White (16 gray scale) 128×96 26.86×20.14 4-wire SPI, I2C SSD1327 34.3×30.5 GH1.25 connector
1.47inch LCD Module LCD 262K colorful 172×320 17.39×32.35 4-wire SPI ST7789V3 22.0×38.5 PH2.0 connector
1.5inch LCD Module IPS 262K colorful 240×280 24.77×28.90 4-wire SPI NV3030B 28.5×35.0 GH1.25 connector
1.5inch OLED Module OLED White (16 gray scale) 128×128 26.86×26.86 4-wire SPI, I2C 1327 44.5×37.0 PH2.0 connector
1.5inch OLED Module (B) OLED White 128×128 26.855×26.855 4-wire SPI, I2C SH1107 38.5×44.5 GH1.25 connector
1.5inch RGB OLED Module OLED 65K colorful 128×128 26.86×26.86 3-wire SPI, 4-wire SPI 1351 44.5×37.0 PH2.0 connector
1.54inch LCD Module IPS 65K colorful 240×240 27.72×27.72 4-wire SPI ST7789 50.0×35.0 PH2.0 connector
1.54inch OLED Module OLED White 128×64 35.05×17.52 4-wire SPI, I2C SSD1309 43.0×37.5 GH1.25 connector
1.54inch OLED Module (B) OLED Blue 128×64 35.05×17.52 4-wire SPI, I2C SSD1309 43.0×37.5 GH1.25 connector
1.69inch LCD Module IPS 262K colorful 240×280 27.97×32.63 4-wire SPI ST7789V2 31.5×39.0 GH1.25 connector
1.8inch LCD Module TFT 65K colorful 128×160 34.50×28.30 4-wire SPI ST7735S 56.5×34.0 PH2.0 connector
1.9inch LCD Module IPS 262K colorful 170×320 22.70×42.72 4-wire SPI ST7789V2 51.2×27.3 GH1.25 connector
2inch LCD Module IPS 262K colorful 240×320 30.60×40.80 4-wire SPI ST7789 58.0×35.0 PH2.0 connector
2.4inch LCD Module TFT 65K colorful 240×320 36.72×48.96 4-wire SPI ILI9341 70.5×43.3 PH2.0 connector
2.42inch OLED Module OLED White 128×64 55.01×27.49 4-wire SPI, I2C SSD1309 61.50×39.50 GH1.25 connector
2.42inch OLED Module (C) OLED Yellow 128×64 55.01×27.49 4-wire SPI, I2C SSD1309 61.50×39.50 GH1.25 connector

*Note: the 0.96inch OLED consists of 1/4 yellow upper section and 3/4 blue lower section, not a regular dual-color display.

Weight: 0.009 kg

Quick Overview

  1. 0.96inch RGB OLED Module x1
  2. GH1.25 7PIN cable x1
