SIM7080G NB-IoT / Cat-M(eMTC) / GNSS Module for Raspberry Pi Pico, Global Band Support

SKU:20036
Part No.:Pico-SIM7080G-Cat-M/NB-IoT (EN)
Brand:Waveshare

$29.99
PriceQuantity
1
$29.392
$29.093
$28.974+
Related Products:
Description

Details

Prohibited by the module manufacturer SIMCOM, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.

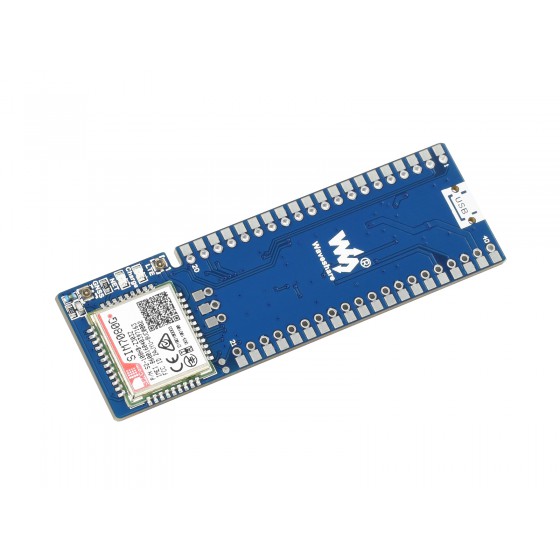

SIM7080G NB-IoT / Cat-M(eMTC) / GNSS module for Raspberry Pi Pico, global band support
SIM7080G NB-IoT / Cat-M / GNSS
module for Pico

NB-IoT, Cat-M(eMTC), and GNSS positioning with global band support

Features at a glance

The Pico-SIM7080G-Cat-M/NB-IoT is an NB-IoT (NarrowBand-Internet of Things), Cat-M (aka eMTC, enhanced Machine Type Communication), and GNSS (Global Navigation Satellite System) module designed for Raspberry Pi Pico. It supports multiple NB-IoT frequency band, can be controlled via serial AT commands, and supports communication protocols like HTTP/MQTT/LWM2M/COAP, etc. Due to the advantages of low delay, low power, low cost, and wide coverage, it is the ideal choice for IoT applications such as intelligent instruments, asset tracking, remote monitoring, and so on.

  • Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
  • UART communication, serial AT commands control
  • Communication protocol support: TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT...
  • GNSS positioning support: GPS, GLONASS, BeiDou, and Galileo
  • Integrates 3.7V Li-po battery connector and recharge circuit, allows being powered from external rechargeable Li-po battery, or recharging it in turn
  • 2x LED indicators, for monitoring the module operating status
  • Onboard Nano SIM card slot, supports ONLY 1.8V SIM card (3V SIM card is not available)
  • Comes with development resources and manual (MicroPython examples)
Specifications
 SIM868SIM7080GSIM7020E
Applicable region most countries/regions global applicable Asia, Europe, Africa, Australia
Frequency band
NB-IoT N/A B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/
B20/B25/B26/B28/B66/B71/B85
LTE-FDD: B1/B3/B5/B8/B20/B28
Cat-M N/A B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/
B19/B20/B25/B26/B27/B28/B66/B85
N/A
2G GSM 850/EGSM 900/DCS
1800/PCS 1900 MHz
N/A N/A
GNSS GPS, GLONASS, BeiDou GPS, GLONASS, BeiDou, Galileo N/A
Data rate
NB-IoT(Kbps) - 136(DL)/150(UL) 26.15(DL)/62.5(UL)
Cat-M(Kbps) - 589(DL)/1119(UL) -
2G(Kbps) 85.6(DL)/85.6(UL) - -
Others
Communication protocol TCP/UDP/HTTP/SSL/FTP
/POP3/SMTP/MQTT...
TCP/UDP/HTTP/HTTPS/TLS/DTLS
/PING/LWM2M/COAP/MQTT...
Power supply External Li-po battery OR Raspberry Pi Pico USB port
Battery interface 3.7V ~ 4.2V
Logic level 3.3V
Module standalone current Idle mode: 12mA Idle mode: 10mA Idle mode: 5.6mA
Sleep mode: 0.65mA Sleep mode: 1.2mA Sleep mode: 0.4mA
Backup mode: 8uA PSM mode: 3.2uA PSM mode: 3.4uA
Audio input/output onboard microphone,
with speaker header
N/A
Indicator NET: network indicator
Charge: recharge indicator
Switch Li-po battery and USB power supply switch Li-po battery power supply switch
SIM card 2G SIM card (1.8V / 3V) NB-IoT / Cat-M card (1.8V ONLY) NB card (1.8V / 3V)
Antenna connector LTE, GNSS, BT LTE, GNSS LTE
Dimensions 76.15 × 24.00mm 73.5 × 24.00mm
Raspberry Pi Pico header compatibility

the Pico can be SMD-mounted (left), or attached via female header (right)

connecting with other expansion module and antenna

Raspberry Pi Pico is NOT included.
The pin headers are NOT soldered by default.
Global band support of NB-IoT / Cat-M

NB-IoT: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66/B71/B85
Cat-M: B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B66/B85

Cloud Communication

Supports communication protocols including: TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT

GNSS positioning support

supports GPS, GLONASS, BeiDou, and Galileo

Application example

While connecting to Internet via SIM7080G, the Raspberry Pi Pico will be able to send data to Cloud server by MQTT protocol,
making it possible for users to monitor the Pico in real time via smartphone APP or webpage.

Pinout definition
Outline dimensions
Resources & Services

Weight: 0.112 kg

Quick Overview

Warning: battery inside.
  1. Pico-SIM7080G-Cat-M/NB-IoT x1
  2. LTE antenna x1
  3. GPS antenna x1
  4. 20PIN female pin header x2
  5. 40PIN male pin header × 1
  6. 3.7V rechargeable Li-po battery x1
1
2
3
4
5
6
