Details
IMX219 Camera Module For Raspberry Pi 5, 8MP, MIPI-CSI Interface, Options For 79.3° / 120° FOV, Comes With Pi5 CSI Flexible Cable 200mm
8MP Camera Module for Raspberry Pi 5
IMX219 sensor, MIPI-CSI Interface, Options for 79.3° / 120° FOV
Version Options
Pi5-IMX219-77
79.3° FOV
Pi5-IMX219-120
120° FOV
Specifications
| Model | Pi5-IMX219-77 | Pi5-IMX219-120 |
|---|---|---|
| PIXELS | 8MP | |
| Sensor | IMX219 | |
| resolution | 3280×2464 | |
| CMOS size | 1/4 inch | |
| Aperture (F) | 2.0 | |
| Focal length | 2.85mm | 1.79mm |
| Field of view | 79.3° | 120° |
| DISTORTION | <1% | <13.6% |
| Lens dimensions | 6.5×6.5mm | |
| Screw holes | 4 × screw holes, used for attachment, provides 3.3V power output | |
| Dimension | 25×24mm | |
Working With Raspberry Pi 5
Comes with CSI flexible cable 200mm, easy to use with Raspberry Pi 5
for reference only, the Raspberry Pi 5 is NOT included

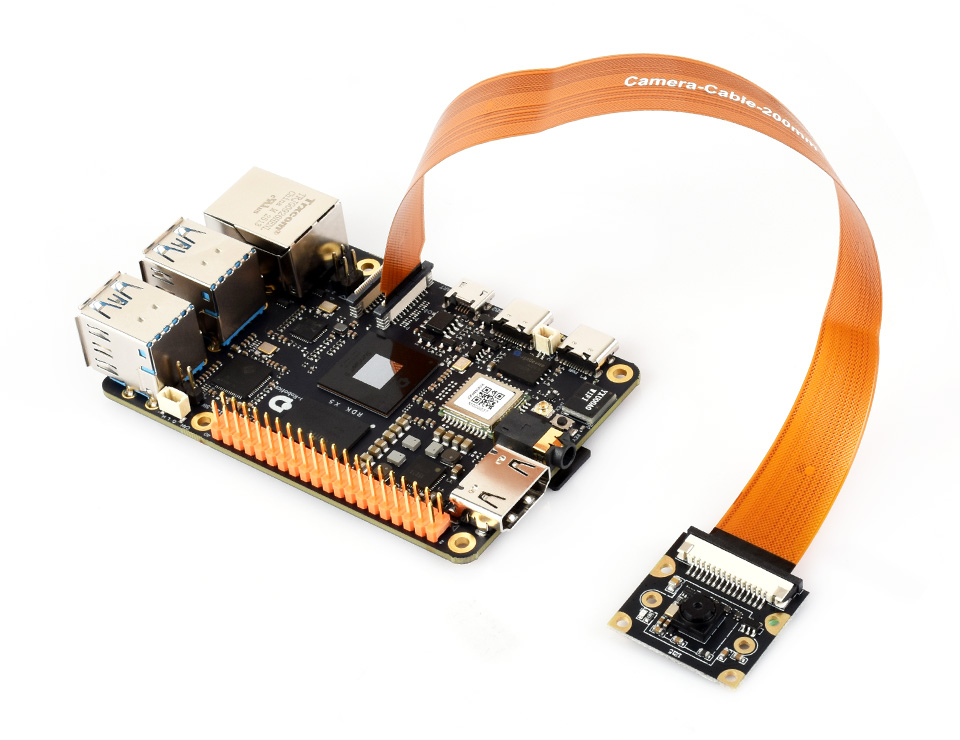

Working With RDK X5
Comes with CSI flexible cable 200mm, easy to use with RDK X5
for reference only, the RDK X5 is NOT included
Product Show
outline dimensions
Quick Overview
OPTIONS Pi5-IMX219 (with Pi5-Camera-Cable-200mm) x1
