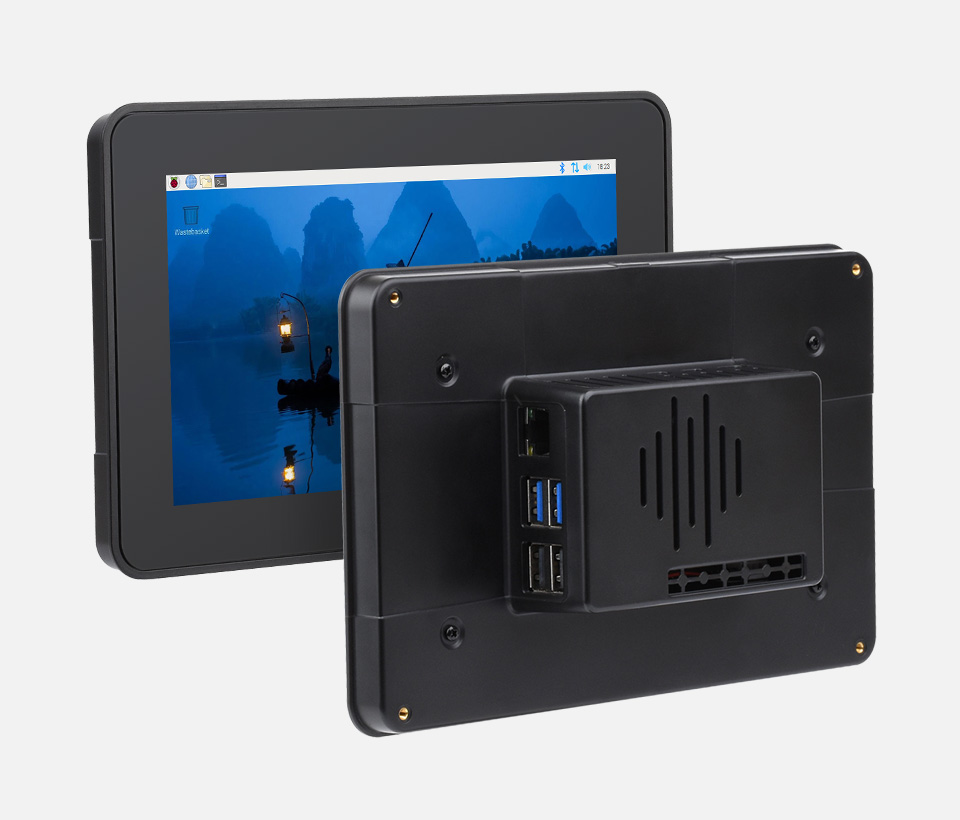

Protective Case For Raspberry Pi 7inch Touch Display 2 And Raspberry Pi 5, Compatible With Multiple 7inch Screens, Supports Installing Raspberry Pi HATs, Reserved Rich Interfaces
Protective Case For Raspberry Pi 7inch Touch Display 2
Designed for Raspberry Pi 5
* for reference only, the Raspberry Pi 5 and LCD display are NOT included.
Features
- Adopts high-precision injection molding and tooling process, features a robust unibody structure with outstanding strength and dimensional accuracy. Designed to withstand long-term use without deformation, it is suitable for various environments
- A sleek and minimalist industrial design with a modern appearance, smooth lines, and rounded edges, ideal for education, office, and industrial control applications
- Highly compatible with the Raspberry Pi 5 and the official Raspberry Pi 7inch capacitive touch display, with precisely reserved mounting holes. No modification is needed, simply install the Raspberry Pi 5 and DSI touchscreen quickly and securely
- Modular structural design allows for quick assembly and disassembly, facilitating heatsink installation, cable routing, and accessory replacement, enhancing system maintainability

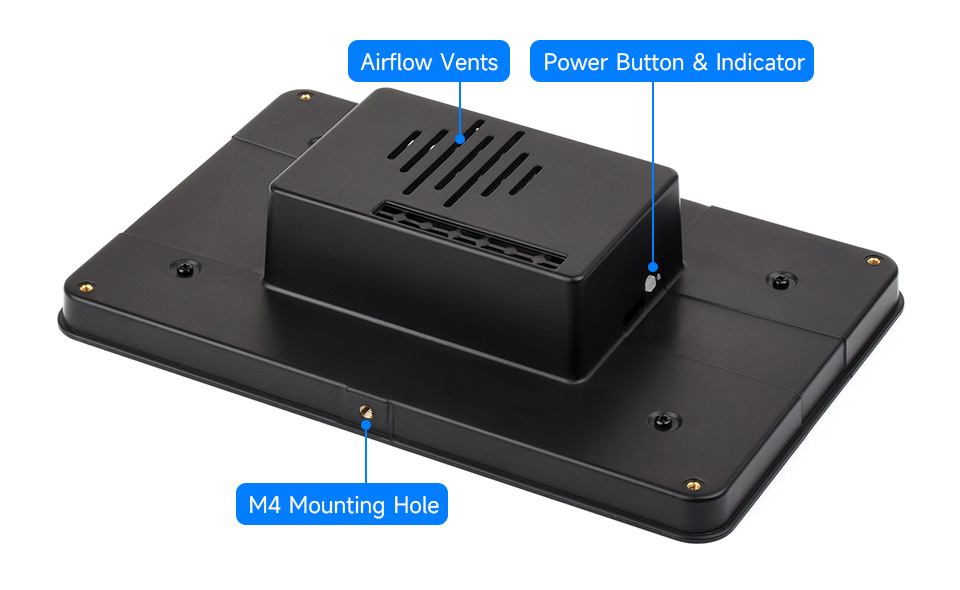

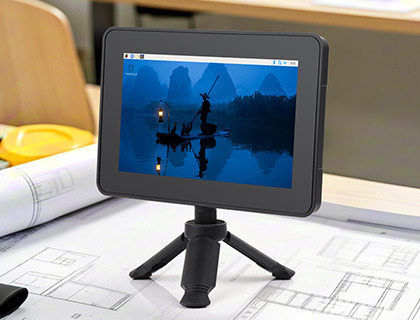

- Reserved multiple mounting holes on the top, bottom, and back for flexible installation, supports external bracket for desktop / wall mounting (the bracket is not included), providing stable support and a comfortable viewing angle
- Reserved rich cut-outs for GPIO header, HDMI port, and power supply port, etc. Supports installing Raspberry Pi HATs, meeting the development needs of various projects

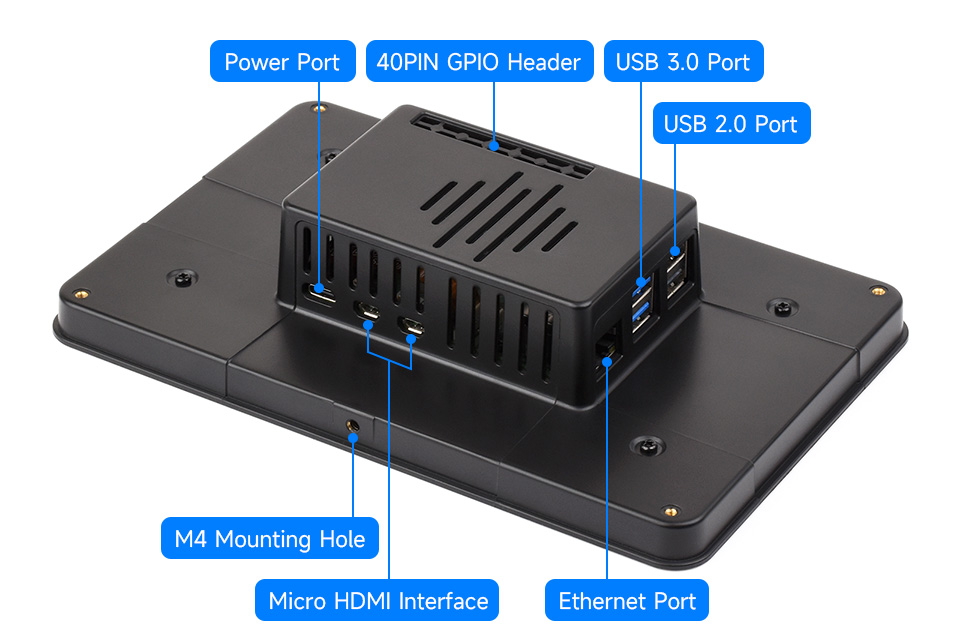

Precise cut-outs for multiple connectors
Compatible with multiple 7inch screens
Supports Installing Raspberry Pi HATs
The interior space of the case is compatible with multiple Raspberry Pi HATs
Application scenarios
Raspberry Pi Desktop Terminal

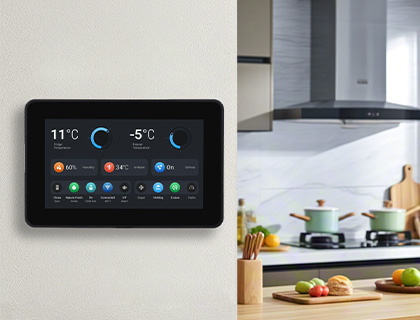

Smart Home Control Panel

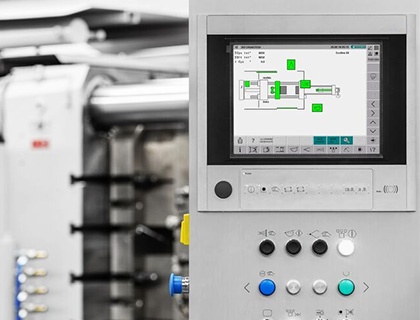

Industrial Human-Machine Interface (HMI)
Educational Display Equipment
How to install

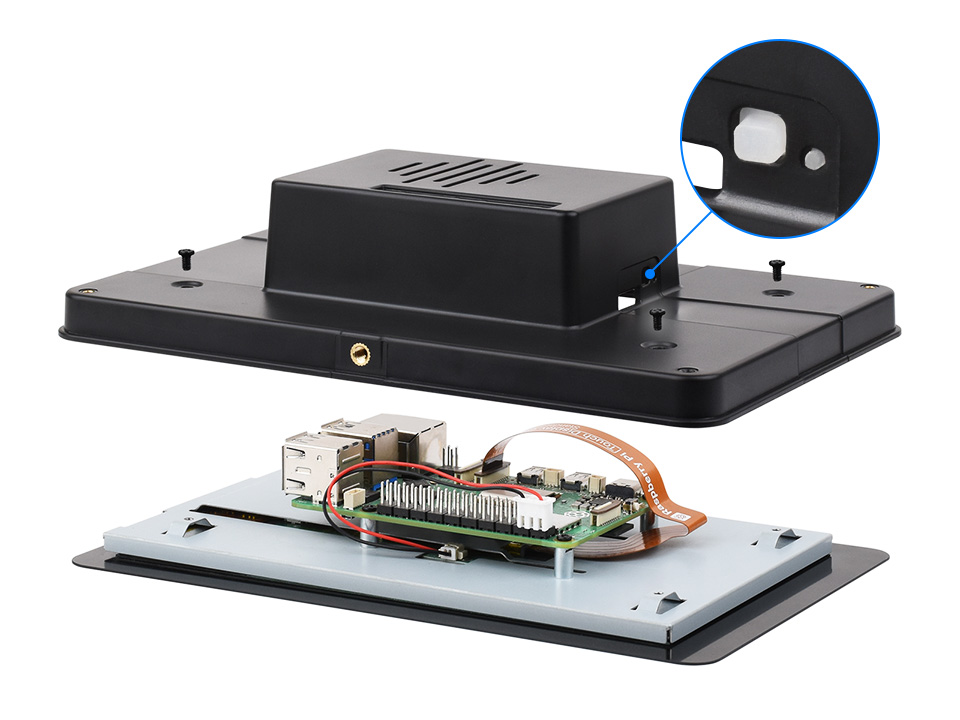

First, fix the silicone button cap inside the case as picture below, and then use the PM2.5 * 4mm black metal screws to secure the case and screen
* for reference only, the Raspberry Pi board and LCD display are not included.

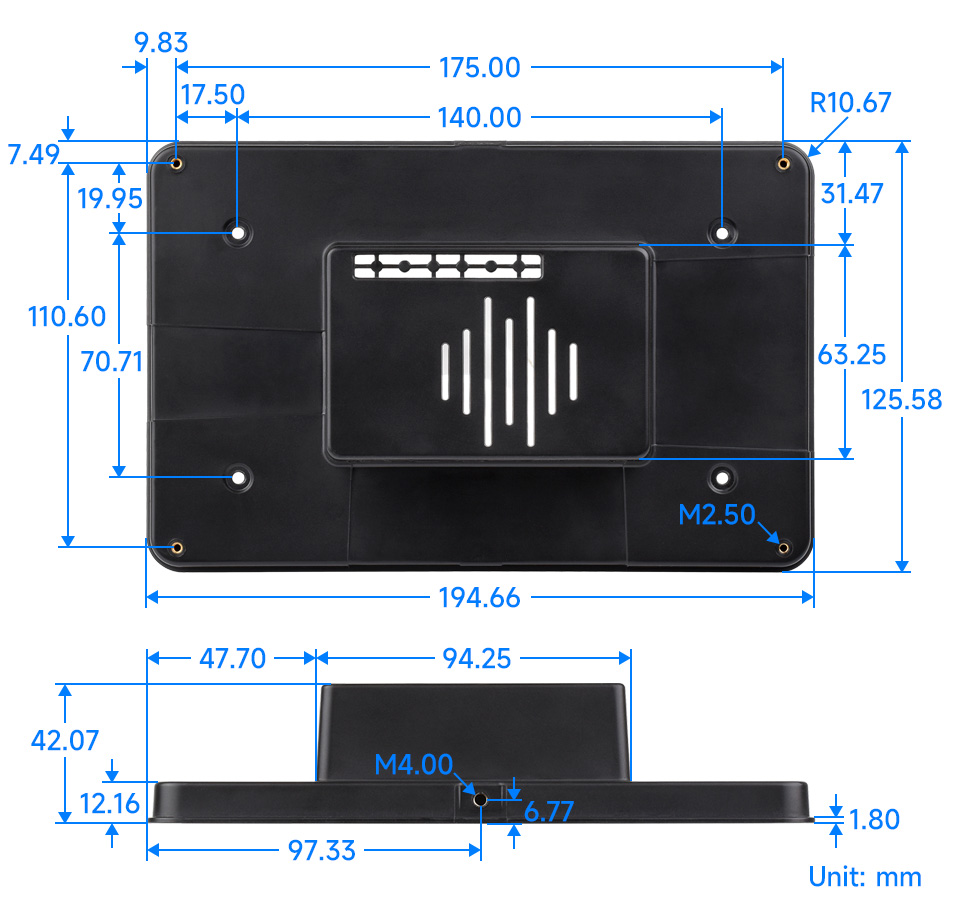

Outline dimensions
Weight: 0.082 kg
Quick Overview
- PI5-CASE-TD2 × 1
- Silicon button cap × 1
- Screwspack × 1
