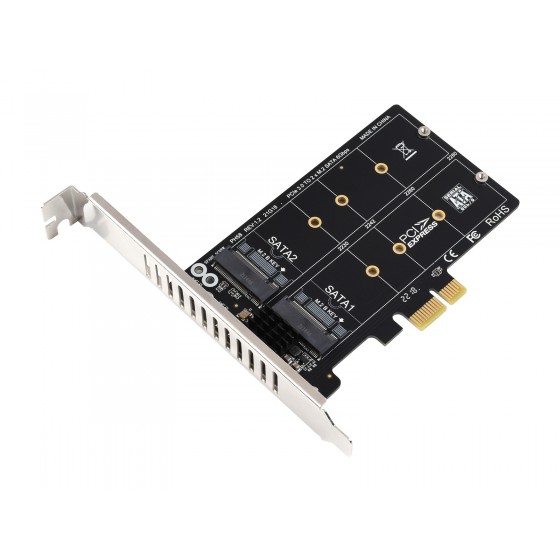

PCIe X1 to 2-ch M.2 SATA 6Gbps Expander, JMB582 control chip

SKU: 23319
Part Number: PCIe-SATA-M2-2P-A
Brand: Waveshare

$13.99
$13.592+
$13.393+
$13.314+

Related Products:

Description

Details

PCIe X1 to 2-ch M.2 SATA 6Gbps Expander, JMB582 control chip
PCIe X1 to 2-ch M.2 SATA 6Gbps Expander
Specifications
Supported Hard Drives M.2 SATA channel Solid State Drive
Transfer interface Support PCIe X1/X4/X8/X16
Operating system Windows / Linux
Dimensions 100.0 × 55.0mm

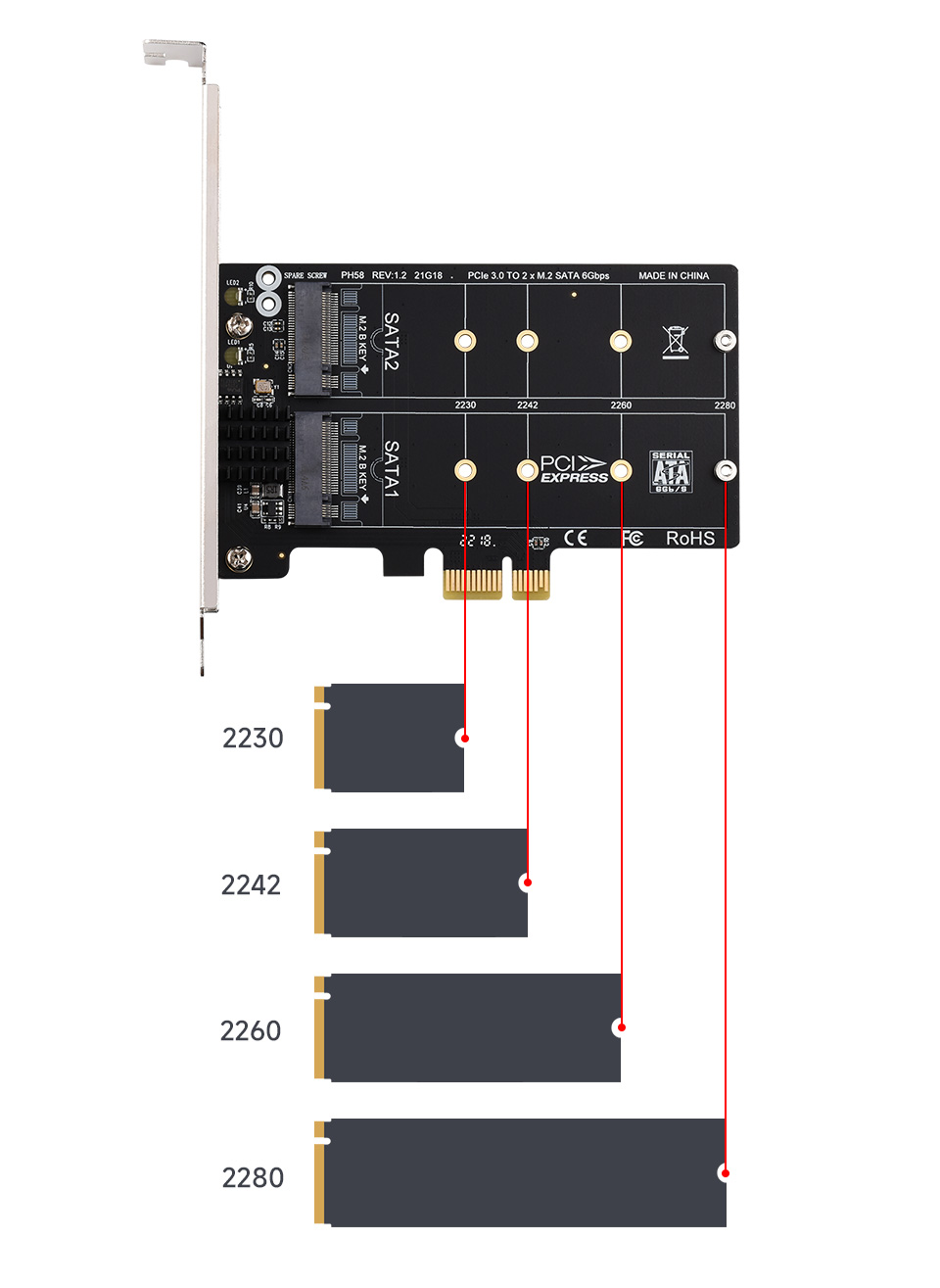

Multiple size compatible
JMB582 control chip

Adopts JMB582 control chip with high-speed transmission and stable performance,
meeting the needs of the application which required large data space

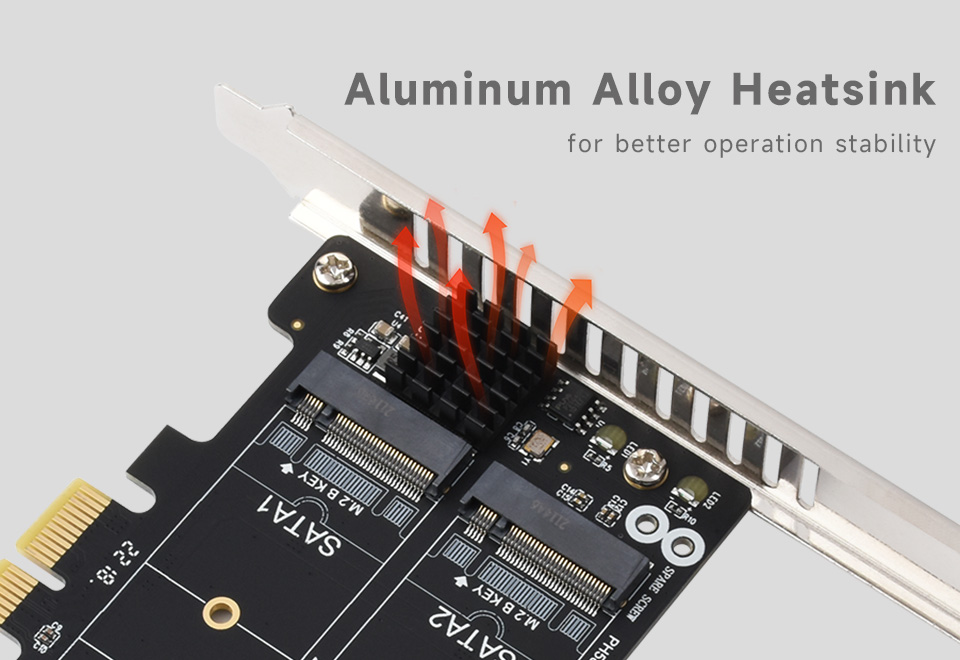

Onboard cooling design


Support PCIe X1/X4/X8/X16 interface

Compatible with four types of PCIe sockets

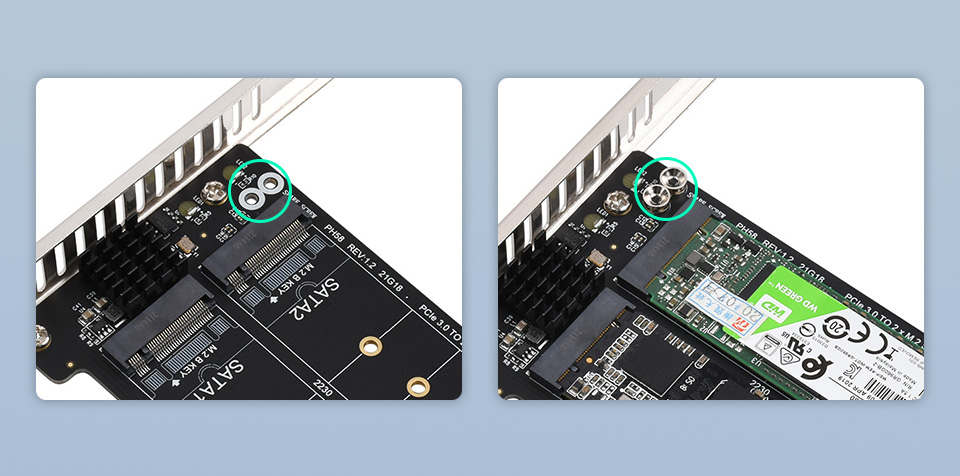

Storage ports for spare screws

For storing spare screws, not easy to lose

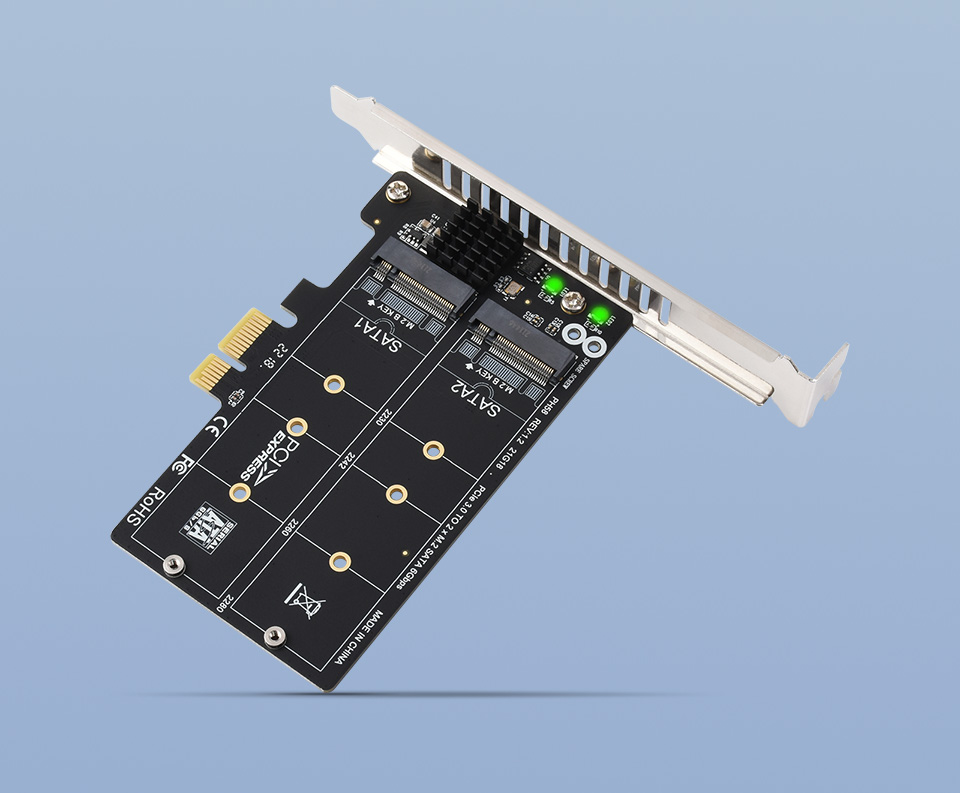

Onboard LED Indicators
Application Example
for reference only, SATA hard drives and M2-SATA-5P are not included.

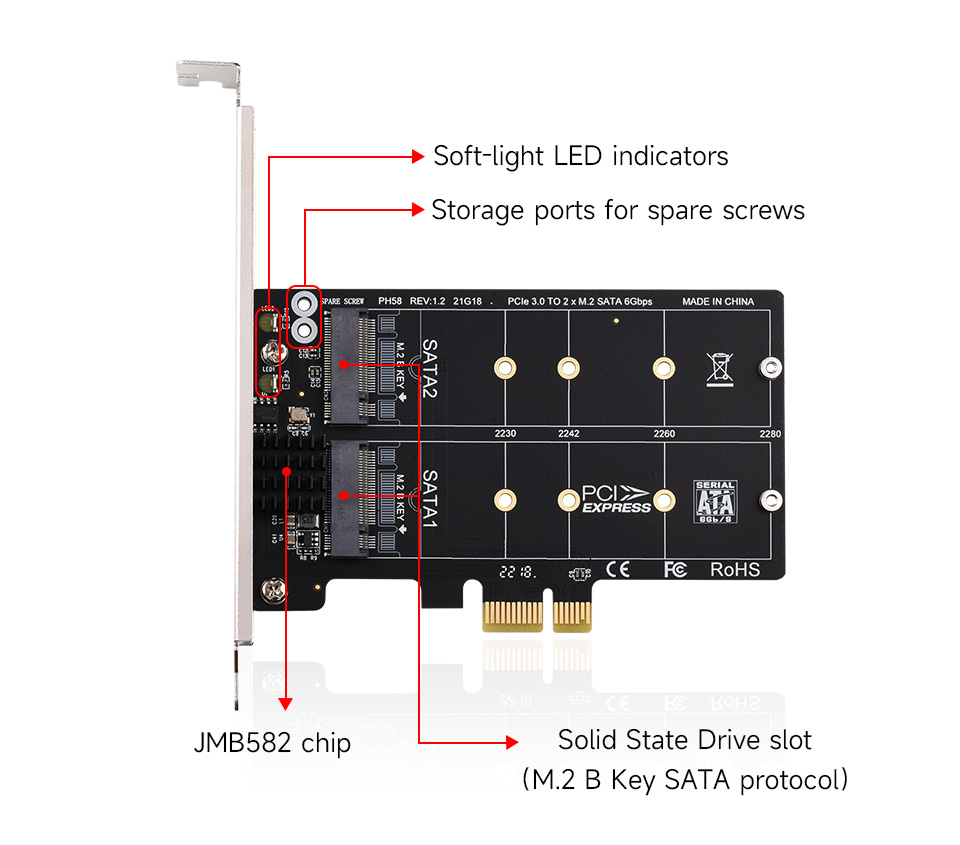

Onboard Resources

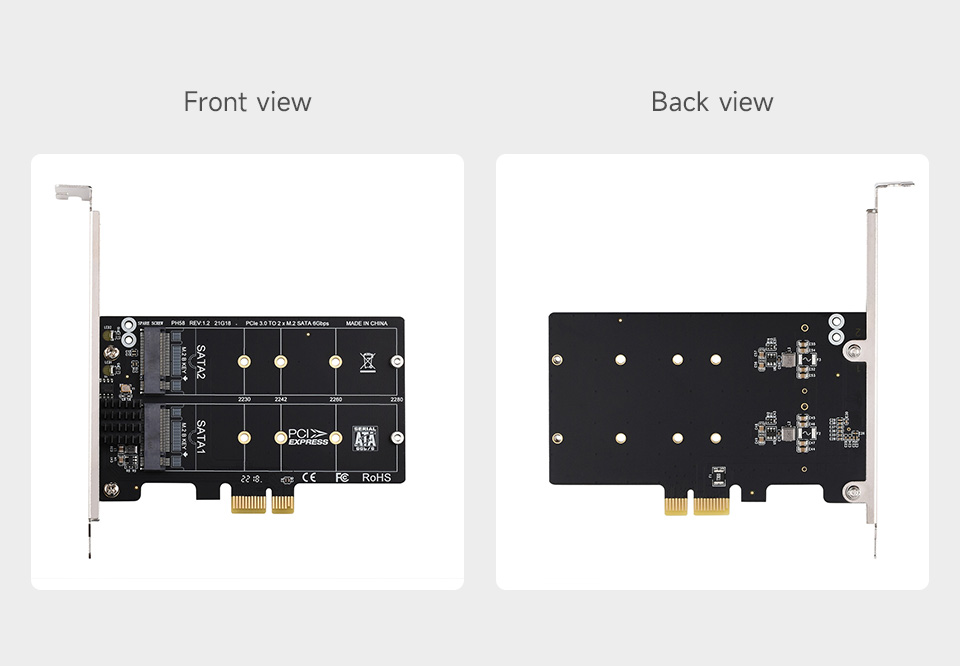

Product Show

Outline dimensions
Resources & Services

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Weight: 0.045 kg

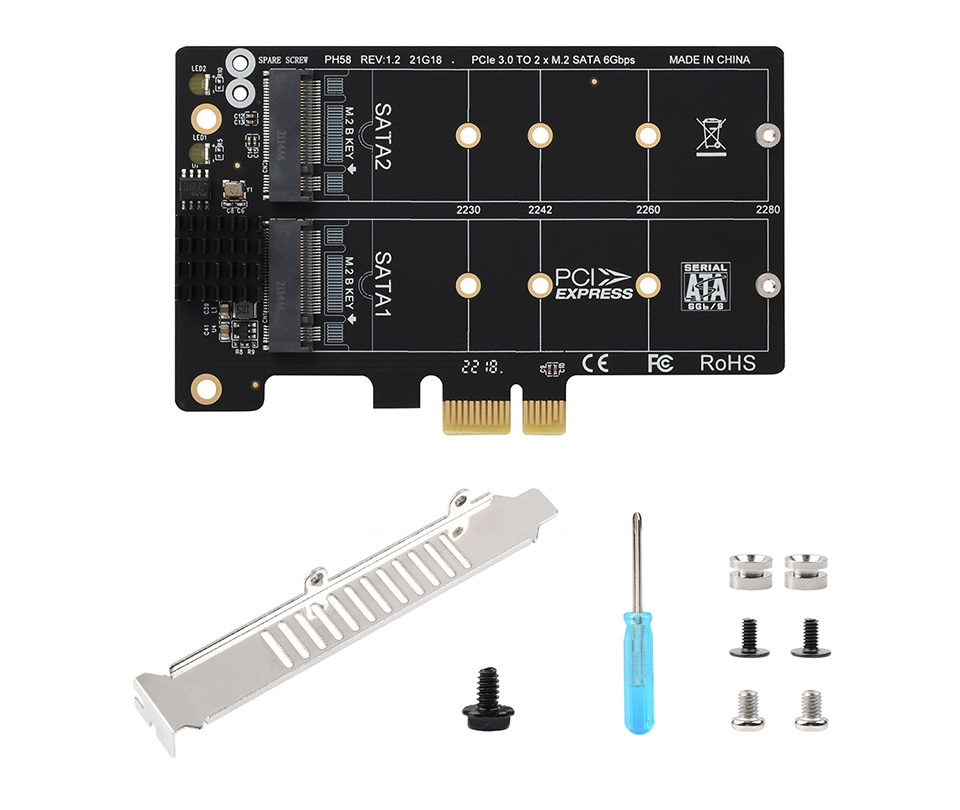

Quick Overview

PCIe-SATA-M2-2P-A x1
