OV9281-160 Mono Camera for Raspberry Pi, Global Shutter, 1MP

SKU: 21583
Part Number: OV9281-160 Camera
Brand: Waveshare




OV9281-160 mono Camera for Raspberry Pi, Global Shutter, 1MP
OV9281-160 mono camera

1MP, Global Shutter, 160°FOV

Compatible with Raspberry Pi series boards

Device Support

Raspberry Pi series
Supports 4B / 3B+ / 3A+ / Zero / Zero 2 W,
and CM3/3+/4 (extra adapter board required)
Sensor OV9281 CMOS size 1/4 inch
CAMERA type mono Pixels 1MP (1280 × 800)
SHUTTER Global Shutter Aperture F2.35
Distortion < 14.3% Field of view 160°(D)/126°(H)/91°(V)
Focal length 3.15mm FOCUSING manual
Global shutter, more clear imaging

the global shutter eliminates jello-effect while shooting fast moving objects
more suitable for high frame rate capturing

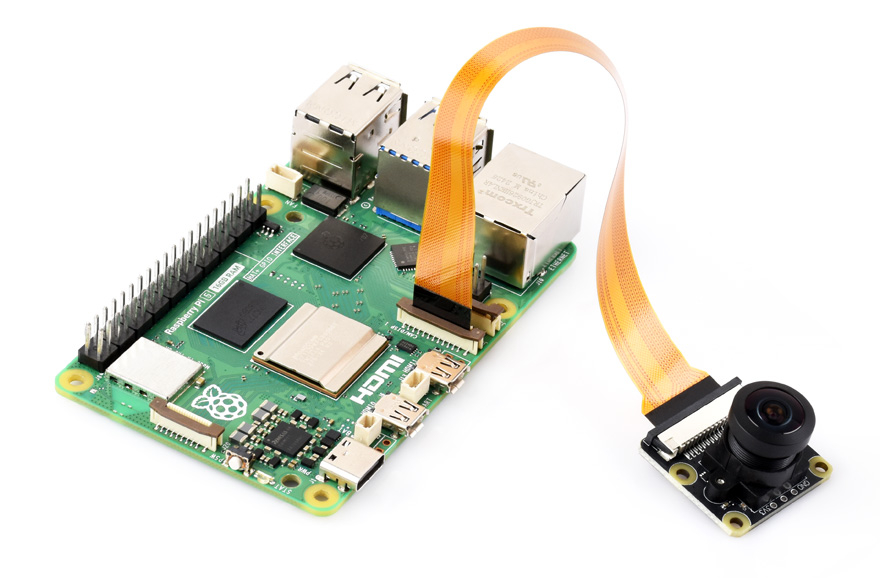

Working with Raspberry Pi

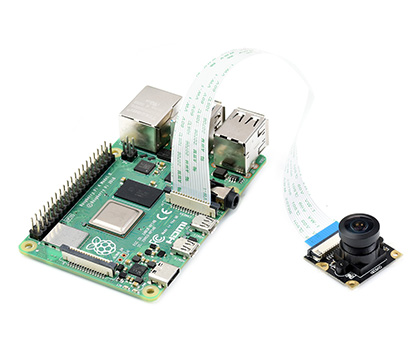

direct connect to Raspberry Pi different variants including 4B/3B+/3A+/3B/2B/B+/A+,

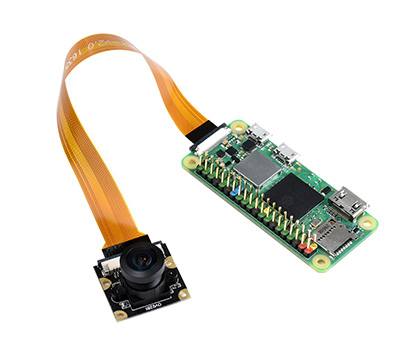

extra FPC cable is required for Zero / Zero 2 W series

* for reference only, Raspberry Pi and yellow FPC are NOT included.
Outline dimensions
Resources & Services
Selection Guide
Partnumber Type Pixels Aperture Foal Length (mm) Field of View Distortion Dimensions (mm)
OV9281-110 Camera mono 1MP 2.2 2.1 110° < 1% 25×23.86
OV9281-120 Camera mono 1MP 2.5 3.15 120° < 7.5% 25×23.86
OV9281-160 Camera mono 1MP 2.35 3.15 160° < 14.3% 25×24

Weight: 0.017 kg

Quick Overview

  1. OV9281-160 Camera x1
  2. 15-pin FFC (opposite sides contact) x1
