NUCLEO-L152RE, STM32L NUCLEO Board

SKU: 8508
Part Number: NUCLEO-L152RE
Brand: ST

$19.99
$19.292+
$18.893+
$18.494+

Description

Details

NUCLEO-L152RE, Development board for STM32 L1 series - with STM32L152RE MCU, supports Arduino

NUCLEO-L152RE Description

The STM32 Nucleo board provides an affordable and flexible way for users to try out new ideas and build prototypes with any STM32 microcontroller line, choosing from the various combinations of performance, power consumption and features. The Arduino™ connectivity support and ST Morpho headers make it easy to expand the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.

The STM32 Nucleo board does not require any separate probe as it integrates the ST-LINK/V2-1 debugger/programmer.

The STM32 Nucleo board comes with the STM32 comprehensive software HAL library together with various packaged software examples, as well as direct access to mbed online resources.

NUCLEO-L152RE Key Features

  • STM32 microcontroller with LQFP64 package
    • STM32L152RET6 ( 512K FLASH )
  • Two types of extension resources
    • Arduino Uno Revision 3 connectivity
    • STMicroelectronics Morpho extension pin headers for full access to all STM32 I/Os
  • mbed-enabled (mbed.org)
  • On-board ST-LINK/V2-1 debugger/programmer with SWD connector
    • selection-mode switch to use the kit as a standalone ST-LINK/V2-1
  • Flexible board power supply
    • USB VBUS or external source(3.3 V, 5 V, 7 - 12 V)
    • Power management access point
  • Three LEDs
    • USB communication (LD1), user LED (LD2), power LED (LD3)
  • Two push buttons: USER and RESET
  • USB re-enumeration capability: three different interfaces supported on USB
    • Virtual Com port
    • Mass storage
    • Debug port
  • Comprehensive free software HAL library including a variety of software examples
  • Supported by wide choice of Integrated Development Environments (IDEs) including IAR, Keil, GCC-based IDEs

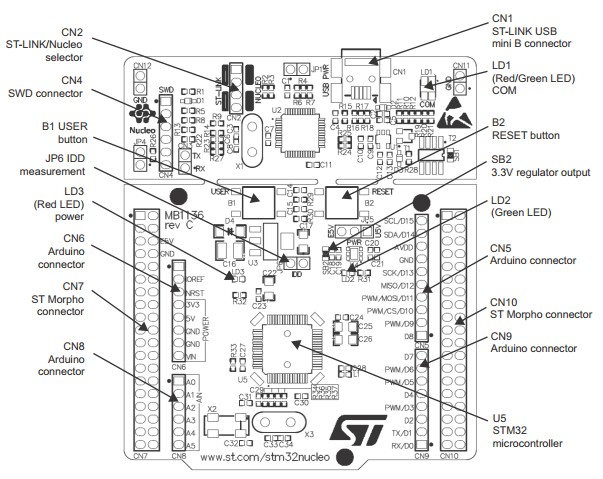

What's the NUCLEO-L152RE

NUCLEO-L152RE what's onboard

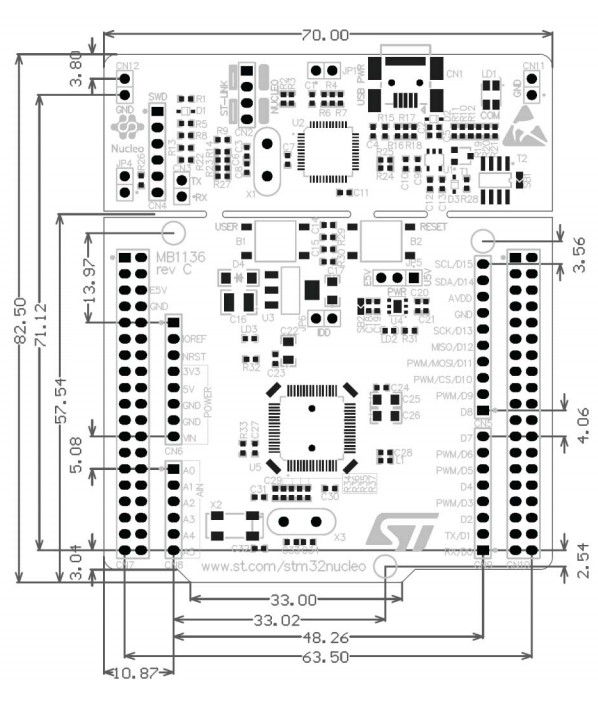

NUCLEO-L152RE Dimensions

NUCLEO-L152RE board dimensions

Photos

NUCLEO-L152RE evaluation development board

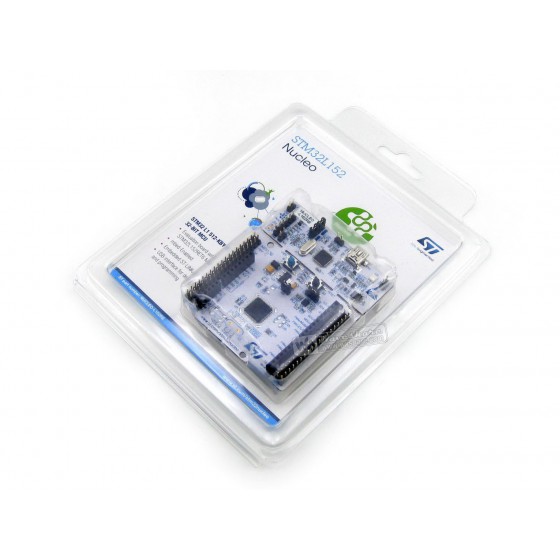

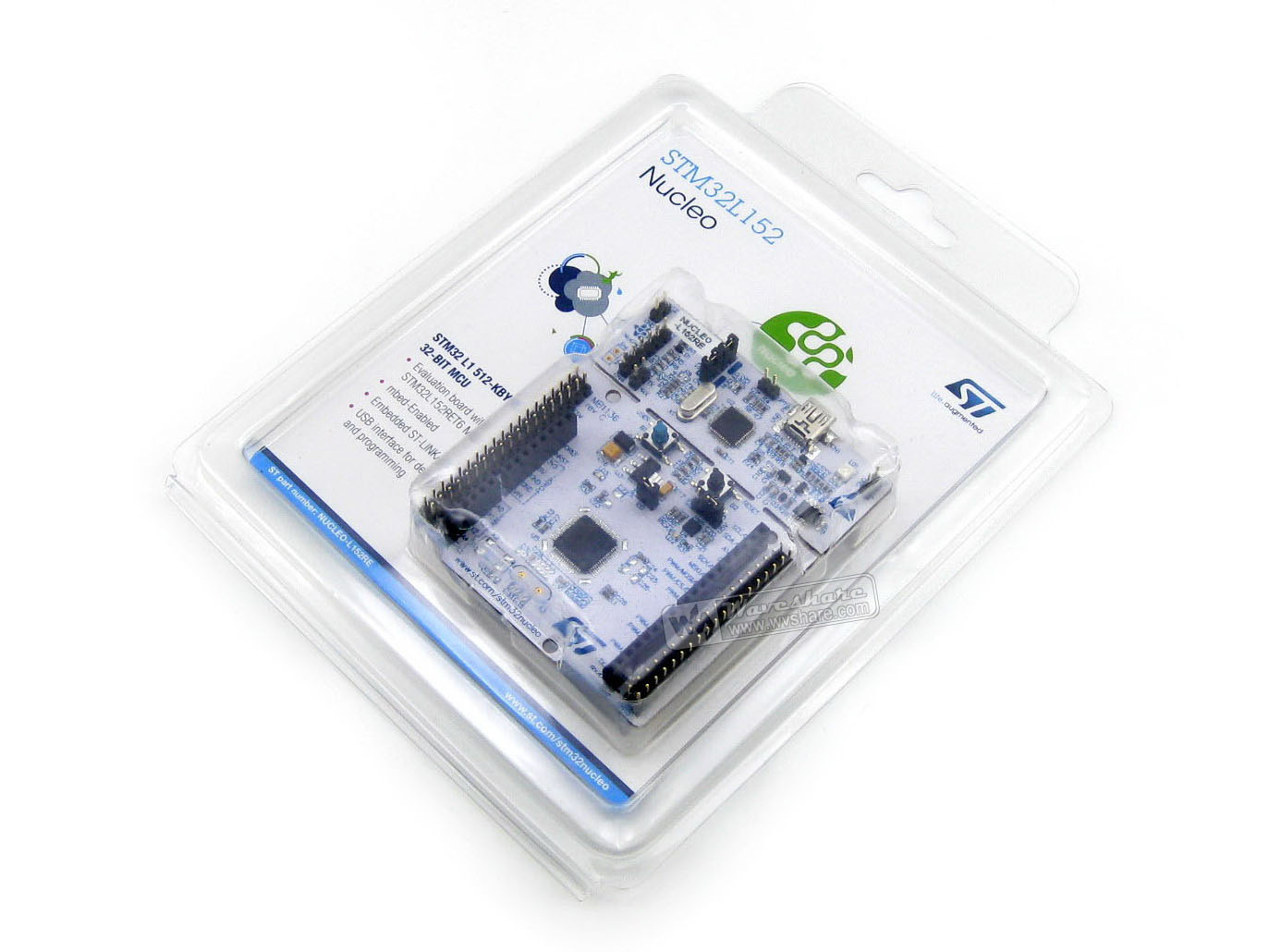

NUCLEO-L152RE Packaging
NUCLEO-L152RE evaluation development board

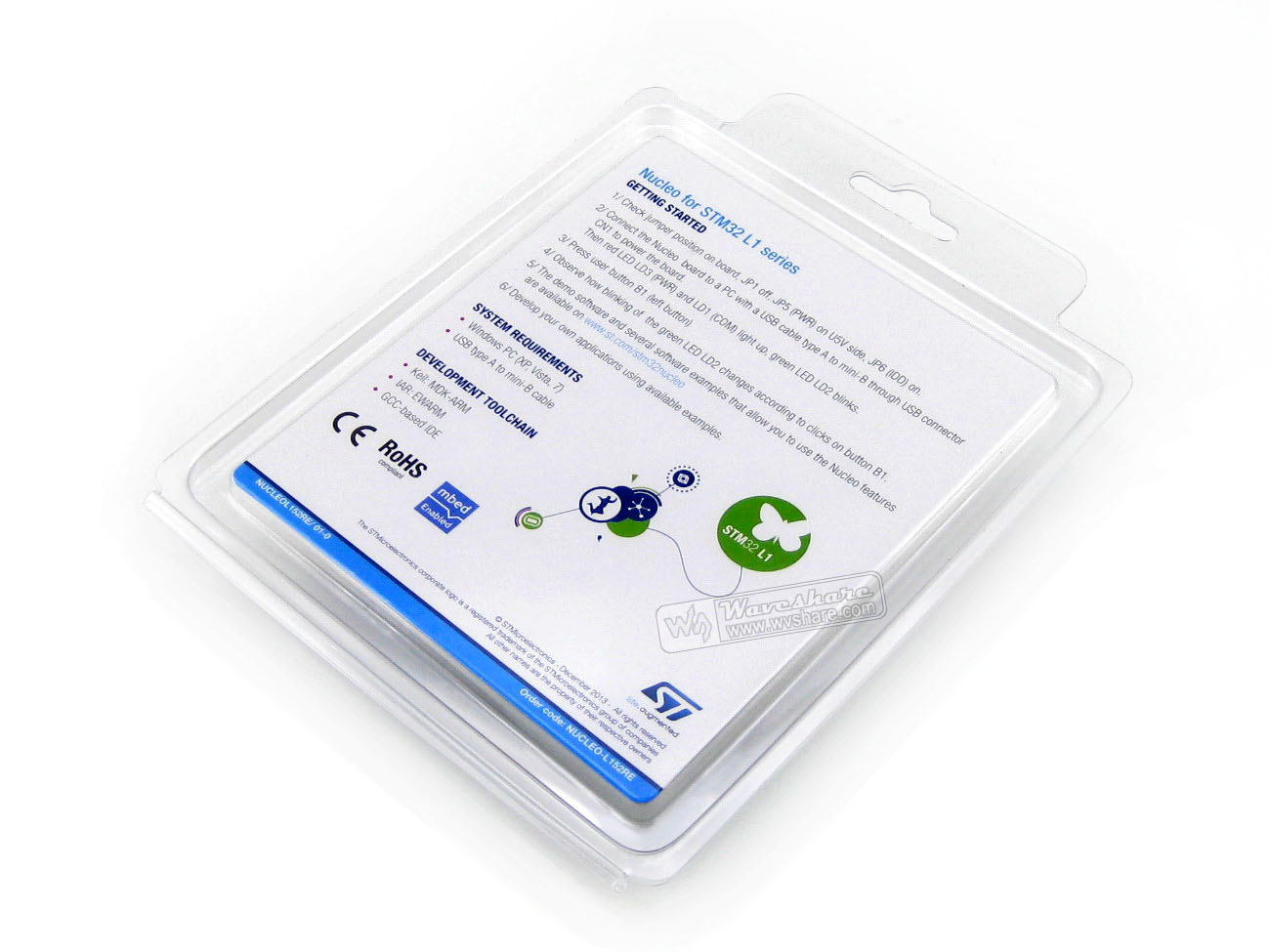

NUCLEO-L152RE Packaging Back View
NUCLEO-L152RE evaluation development board

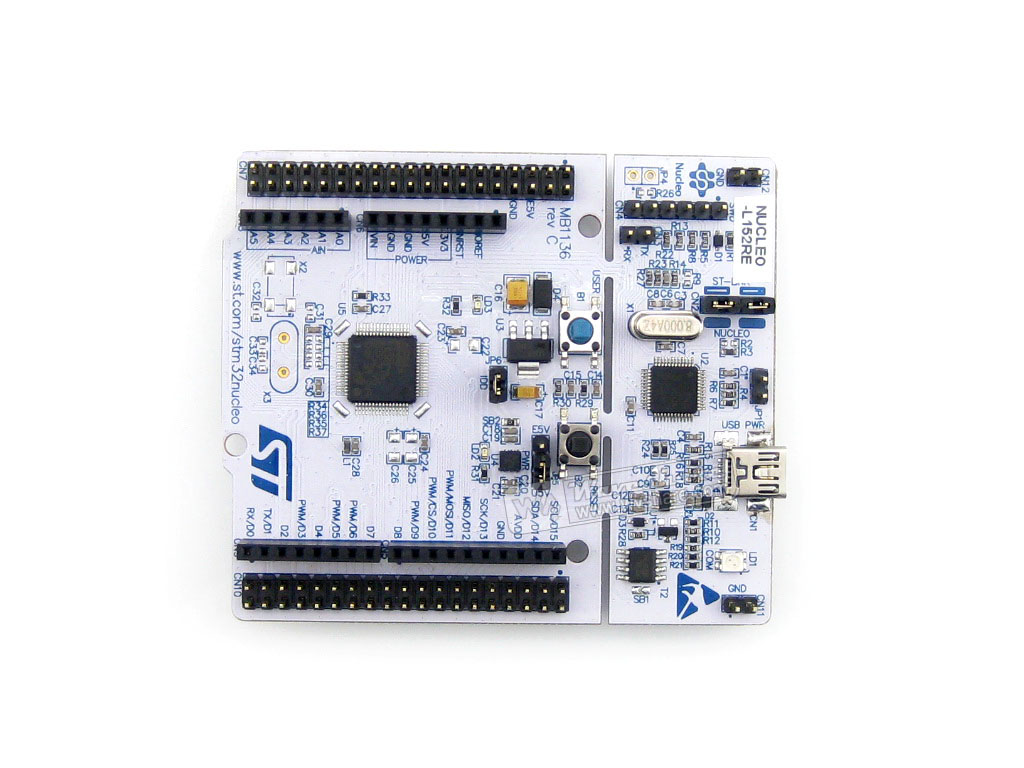

NUCLEO-L152RE Development Board
NUCLEO-L152RE evaluation development board

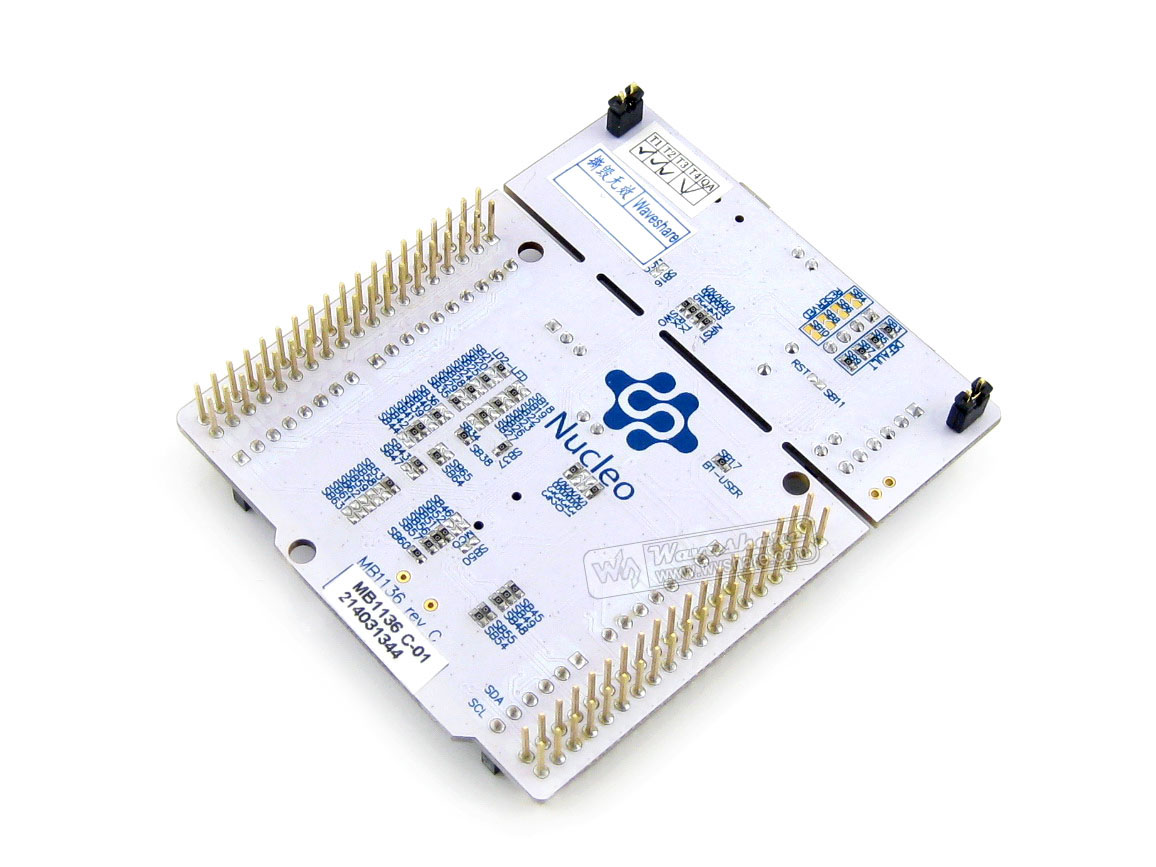

NUCLEO-L152RE Development Board Back View
NUCLEO-L152RE evaluation development board
NUCLEO-L152RE Development Board

Development Resources

Wiki : www.waveshare.com/wiki/NUCLEO-L152RE

Package Content

Weight: 0.078 kg

Quick Overview

  1. NUCLEO-L152RE × 1
