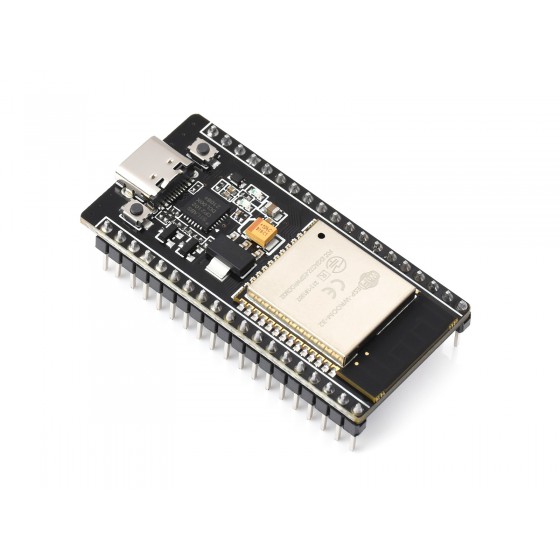

NodeMCU-32S ESP32 WiFi+Bluetooth Development Board

SKU: 16611
Part Number: NodeMCU-32S
Brand: Ai-Thinker
UPC: 614961954984

$7.99
$7.692+
$7.493+
$7.394+

Description

Details

NodeMCU-32S ESP32 Development Board, WiFi / Bluetooth / UART / Keys / Extension Headers

Overview

This is the NodeMCU development board based on ESP32, features WiFi+Bluetooth connectivity, onboard CP2102 and keys. What's more, all the I/O pins of ESP-WROOM-32 module are accessible via the extension headers.

Thanks to the rich open-source resources, it supports development in various ways such as Lua/AT commands/MicroPython/Arduino/IOT source code, etc. helps you to fast prototype IoT applications.

Features

  • Onboard ESP-WROOM-32 module
  • Onboard CP2102, USB to UART converter
  • USB port for power input, firmware programming, or UART debugging
  • 2x19pin extension headers, breakout all the I/O pins of the module
  • 2x keys, used as reset or user-defined

Specifications

  • WIFI module: ESP-WROOM-32
    • Processor: ESP32-D0WDQ6
  • Built-in Flash: 32Mbit
  • Antenna: Onboard PCB antenna
  • Peripheral interface: UART/GPIO/ADC/DAC/SDIO/PWM/I2C/I2S
  • WiFi protocol: IEEE 802.11 b/g/n
  • Bluetooth: Bluetooth 4.2
  • Frequency range: 2.4G ~ 2.5G (2400M ~ 2483.5M)
  • WIFI mode: Station / SoftAP / SoftAP+Station
  • Power supply: 5V
  • Logic level: 3.3V
  • Dimensions: 48.26mm x 25.4mm

Applications

The NodeMCU-32S suit for IOT applications such as:

  • Smart home
  • Intelligent building
  • Industrial automation
  • Wearable devices
  • IP camera
  • Intelligent agriculture

Pinouts

Development Resources

Wiki : www.waveshare.com/wiki/NodeMCU-32S

Package Content

Weight: 0.01 kg

Quick Overview

  1. NodeMCU-32S x1
