Beaglebone MISC CAPE

SKU:9976
Part No.:MISC CAPE
Brand:Waveshare

$14.99 DISCONTINUED
PriceQuantity
$14.292+
$13.993+
$13.694+
Description

Details

BB Black Expansion CAPE, Features Miscellaneous Components and Functions

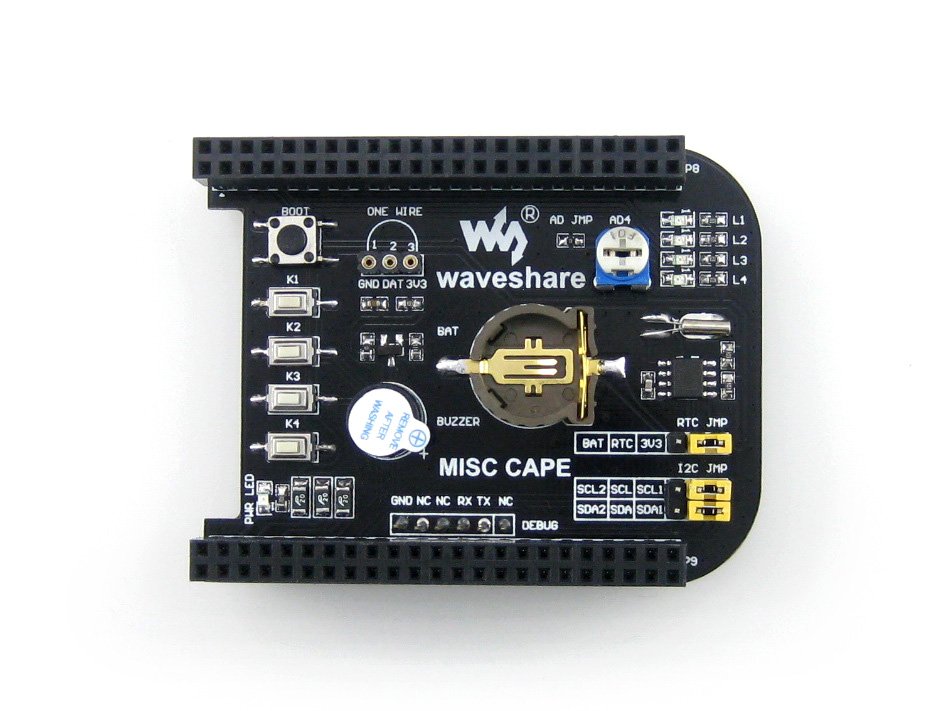

What's on the MISC CAPE

BB Black Expansion CAPE on board resource
  1. BB_BLACK connector : for connecting BB Black
  2. DEBUG interface : BB Black debug interface, for connecting serial modules
  3. ONE-WIRE interface: easily connects to ONE-WIRE devices (TO-92 package), such as temperature sensor (DS18B20), electronic registration number (DS2401), etc.
  4. BOOT selection button : Boot from TF card
  5. User button : 4 buttons
  6. Buzzer
  7. Power indicator
  8. User LED : 4 LEDs
  9. Potentiometer : AD adjustable potentiometer
  10. 32.768KHz crystal : for RTC
  11. PCF8563 : RTC
  12. RTC battery holder : for 3.3V battery
  13. RTC power selection jumper
  14. RTC I2C selection jumper: select I2C1 OR I2C2

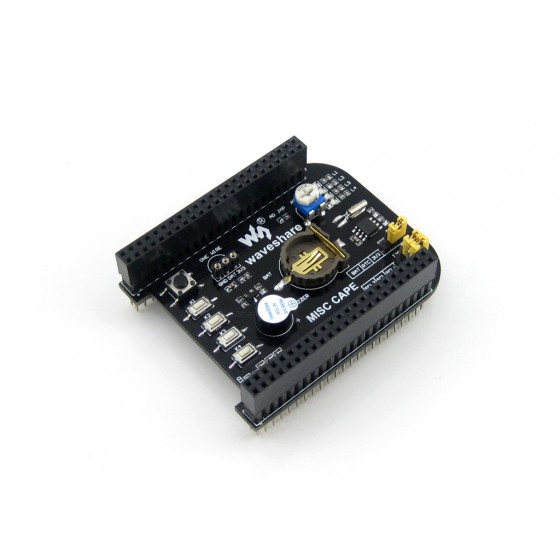

MISC CAPE Photos

BB Black Expansion CAPE
MISC CAPE BB Black Expansion CAPE
BB Black Expansion CAPE
MISC CAPE BB Black Expansion CAPE back view
BB Black Expansion CAPE
MISC CAPE BB Black Expansion CAPE
BB Black Expansion CAPE
Connecting with BB Black

Examples

Peripheral Device/Interface LINUX
LED I/O Y
Buzzer PWM Y
Push Buttons EVENT2 Y
DS18B20 Temperature sensor 1-WIRE Y
ADC I/O Y
RTC I2C1 Y
PL2303 USB TO UART UART0 Y
USB CAMERA VIDEO0 Y
USB WIFI WLAN0 Y

MISC CAPE Development Resources

MISC CAPE wiki

Weight: 0.032 kg

Quick Overview

  1. MISC CAPE x 1
