MarsBoard AM335X, Flexible Designed Development Board Powered by TI AM335X

MarsBoard AM335X Overview

The MarsBoard AM335X is a flexible designed development board powered by the TI Cortex-A8 processor AM335X. It consists of CM-AM335X and SIM-AM335X, both of which are in pretty cool BLACK color.

The CM-AM335 is a CPU module based on AM335X, features 512MB DDR3, 4GB Nand Flash, power management chip TPS65910, Ethernet PHY LAN8710A, and all the unused pins of AM335X are accessible on the two 2 x 50PIN expansion headers.

The SIM-AM335X is a base board/evaluation board designed for the CPU module, features TDA19988 HDMI Transmitter, CP2102 USB TO UART converter, HDMI interface, 10/100M Ethernet, USB-DEBUG, USB-OTG, USB-HOST, and TF card slot.

MarsBoard AM335X supports multi operating systems, provides an easy way for rapid product prototyping. What's more, the CPU module is separable and can be integrated into final product directly, this will greatly save your product development time.

MarsBoard AM335X Vs. BB Black

Compare MarsBoard AM335X BB Black
CPU AM3358 ARM Cortex™[email protected]
Memory 512MB DDR3
Storage 4GB eMMC
Ethernet 10M/100M
Extension port Supports related extension board
System Android, Angstrom, Debian, Ubuntu
HDMI spec. Type A (supports audio output) Micro (supports audio output)
Power management TPS65910 TPS65217
Backup battery Button battery included N/A
Serial debug Integrates CP2102 USB TO UART (easy for debugging) N/A (external serial module is required)
Form CPU module + Base board (suit for study & prototyping, the CPU module can be integrated into final product directly) All-in-one (suit for study & evaluation)

What's on the Base Board

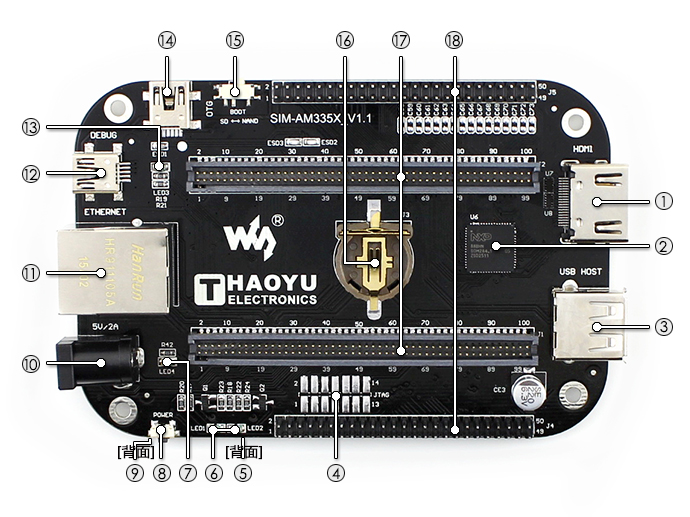

SIM-AM335X on board resource
  1. HDMI type A interface
  2. TDA19988 HDMI converter
  3. USB HOST
  4. JTAG interface (not soldered)
  5. TF card slot (bottom side)
  6. User LED
  7. Power indicator
  8. POWER button
  9. RESET button (bottom side)
  10. 5V/2A power jack
  11. 10M/100M Ethernet connector
  12. USB DEBUG
  13. USB DEBUG indicator
  14. USB OTG
  15. Boot selection
  16. Battery holder
  17. CM-AM335X interface
  18. Expansion pin headers

What's on the CM-AM335X

CM-AM335X on board resource

  1. TI AM335X
    • 1-GHz Sitara™ ARM® Cortex®-A8 32-Bit RISC Processor
    • NEON™ SIMD Coprocessor
    • SGX530 3D Graphics Engine
    • Programmable Real-Time Unit Subsystem
    • 32KB of L1 Instruction and 32KB of Data Cache With Single-Error Detection (Parity)
    • 256KB of L2 Cache With Error Correcting Code (ECC)
  2. 512MB DDR3 SDRAM
  3. 4GB eMMC Flash
  4. TPS65910 power management chip
  5. Power indicator
  6. LAN8710A 10M/100M Ethernet PHY
  7. Expansion headers : Two 2 x 50PIN, 1.27mm pitch

Photos


CPU Module CM-AM335X

CPU Module CM-AM335X

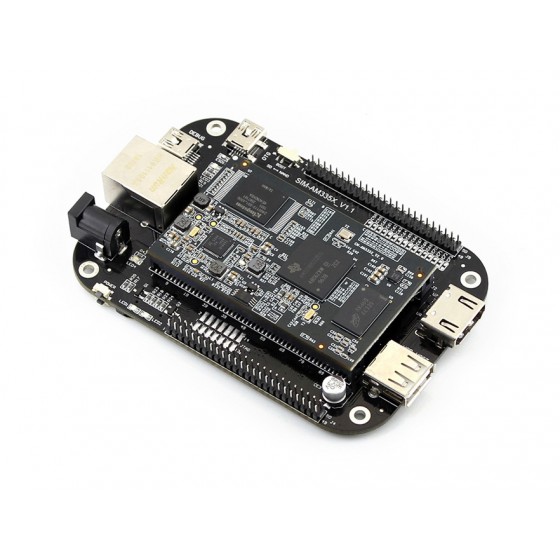

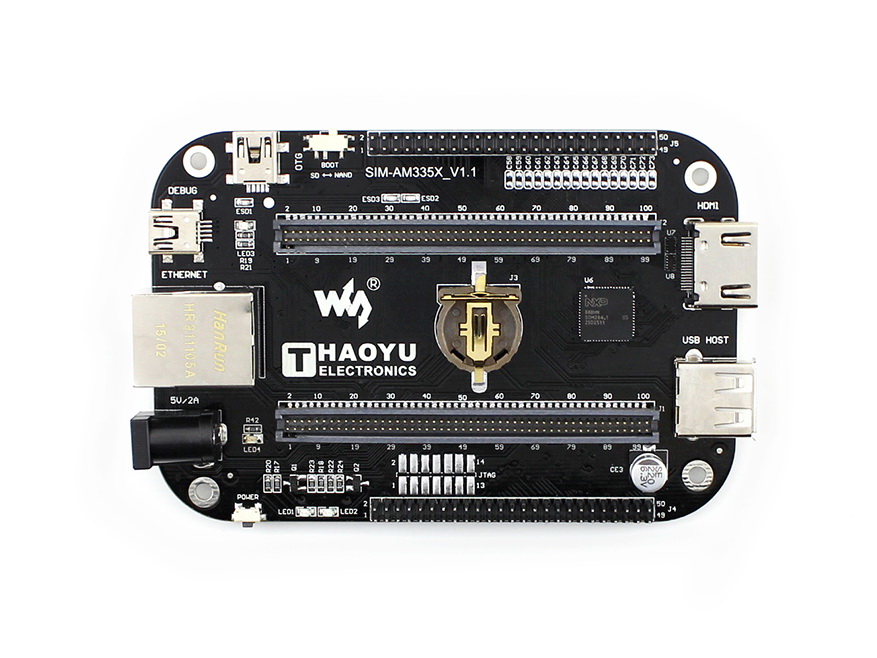

Base Board SIM-AM335X

Base Board SIM-AM335X

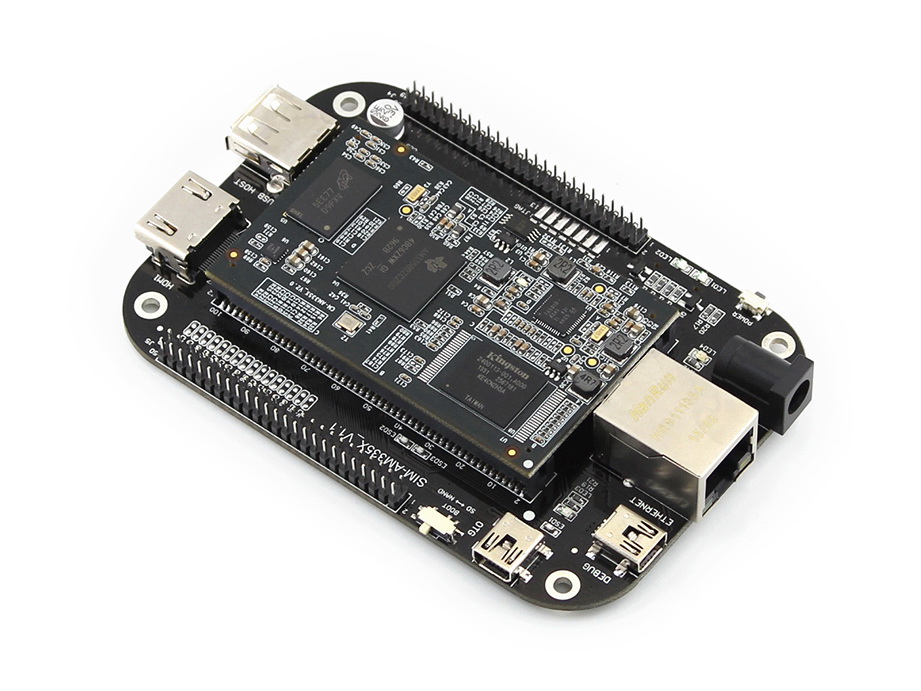

Connecting the CM-AM335X and SIM-AM335X

Connecting the CM-AM335X and SIM-AM335X


Dimensions

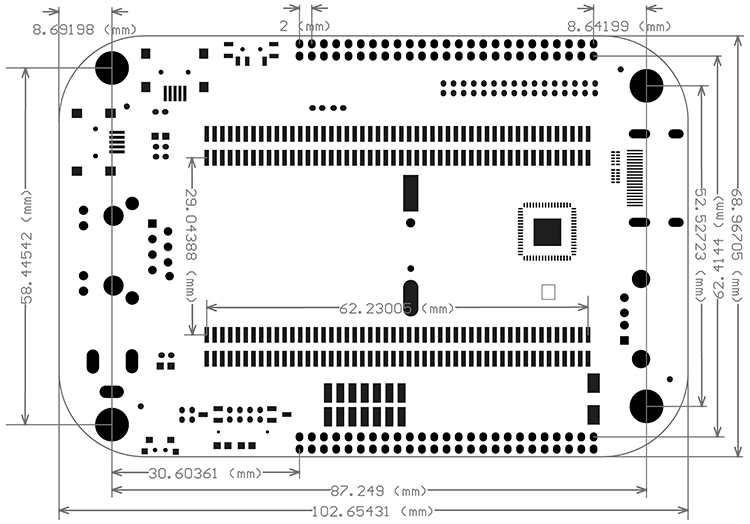

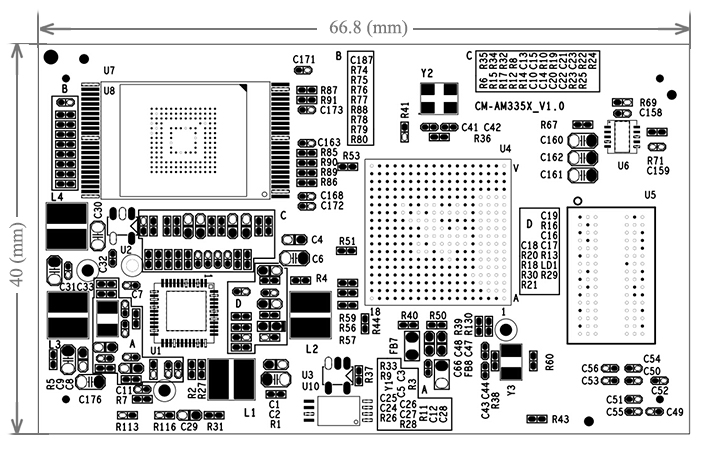

CM-AM335X dimensions SIM-AM335X dimensions

Development Resources

Wiki : www.waveshare.com/wiki/MarsBoard_AM335X

Package Content

Weight: 0.211 kg

Quick Overview

  1. CM-AM335X x 1
  2. SIM-AM335X x 1
  3. Power Adapter US Standard 5V 2A 5.5/2.1mm × 1
  4. USB type A plug to mini-B plug cable x 1
