Overview

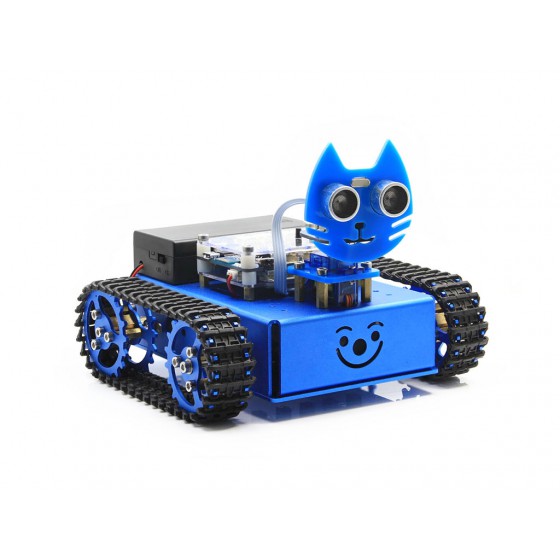

KitiBot is specially designed for STEAM education, comes with graphical programming software to help kids to learn programming just like easily building blocks. KitiBot-MG-T is the tracked version.
Combined with the open source demo codes from Waveshare, KitiBot is also an ideal choice for electronics enthusiasts and creators to fast get started with robotic development.
KitiBot features a control board based on 2560, and several typical robotic functional modules includes: line tracking, obstacle avoiding, ultrasonic ranging, servo, IR remote control, etc.
What's on the Control Board 2560
The 2560 is an ATM*G*2560-16AU development board, compatible with the M*G* 2560 R3, offers higher performance and more RAM than the U*O R3.
There're various programmable modules like dual-mode Bluetooth, gesture sensor, ambient light sensor, IR receiver, RGB LED, buzzer, and so on. For easily connecting with more expansion devices, it also breakout I2C, SPI, UART interfaces and provides sufficient sensor connectors.
- ATM*G*2560-16AU:
FLASH: 256KB (8KB for bootloader)
SRAM: 8KB
EEPROM: 4KB - TB6612FNG: dual H-bridge motor driver
- Dual-mode Bluetooth: Bluetooth remote control, compatible with both iOS and Android
- AMS1117-5.0: 5V regulator
- FT232RL: USB to UART
- IR receiver: IR remote control
- MPU9255 gesture sensor: 3-axis gyroscope, 3-axis accelerometer, and 3-axis compass/magnetometer
- TSL2581FN light sensor: detect ambient light
- Buzzer: essential component to play music
- WS2812B: RGB LED
- User button
- Power switch
- Indicators:
USR: user indicator
STA: Bluetooth status indicator
PWR: power indicator - Reset
- Micro USB connector: for programming or UART debugging
- Peripheral connectors: for connecting external devices and sensors
- Motor interface
- Power supply interface: 7V~12V input
![KitiBot-MG-T illustration](/img/devkit/KitiBot-MG-T/KitiBot-MG-T-detail_01.jpg)
![KitiBot-MG-T illustration](/img/devkit/KitiBot-MG-T/KitiBot-MG-T-detail_02.jpg)
![KitiBot-MG-T illustration](/img/devkit/KitiBot-MG-T/KitiBot-MG-T-detail_03.jpg)
![KitiBot-MG-T illustration](/img/devkit/KitiBot-MG-T/KitiBot-MG-T-detail_04.jpg)
![KitiBot-MG-T illustration](/img/devkit/KitiBot-MG-T/KitiBot-MG-T-detail_05.jpg)
Development Resources
- Tutorials
- KitiBot how-to-install
- Demo code
- Circuit diagram
- Development software
Weight: 0.755 kg
Quick Overview
- The 18650 batteries are NOT included.
- Please note that the battery length SHOULD be less than 67mm, some batteries with protection plate in the market are NOT supported, learn more
- Metal box x1
- Gears 8PCS x1
- Caterpillar track 2PCS x1
- 2560 control board x1
- Acrylic panels for control board 2PCS x1
- Line tracking sensor x1
- Ultrasonic sensor x1
- KitiBot acrylic head x1
- Servo x1
- Servo mounting board x1
- Ultrasonic adapter x1
- 370 coding motors 2PCS x1
- Infrared remote controller x1
- 18650 battery holder x1
- PH2.0 20cm 4Pin same side contact cable x1
- PH2.0 20cm 7Pin same side contact cable x1
- PH2.0 20cm 6Pin same side contact cable 2PCS x1
- USB type A plug to micro B plug cable x1
- KitiBot-MG-T screws x1
- Screwdrivers 2PCS x1
