Ethernet / USB HUB HAT for Raspberry Pi, 1x RJ45 Ethernet Port, 3x USB Ports

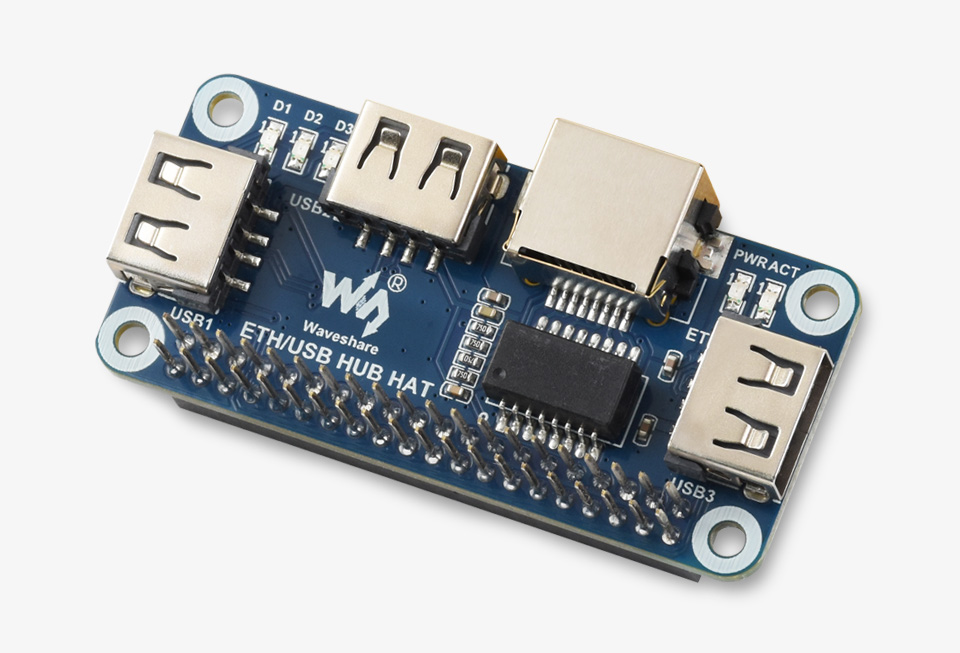

Ethernet / USB HUB HAT
Compatible with Raspberry Pi series boards
RJ45 Ethernet port × 1 | USB 2.0 port × 3
Features
The ETH/USB HUB HAT is an Ethernet and USB HUB designed for Raspberry Pi, providing 1-ch RJ45 Ethernet port and 3-ch USB 2.0 ports. Suitable for Raspberry Pi Zero series boards, it can also be connected to other Raspberry Pi boards through a USB cable.
- Onboard 3-ch USB ports, compatible with USB2.0/1.1
- Onboard RTL8152B Ethernet chip, supports 1-ch RJ45 Ethernet port, 10/100M auto-negotiation
- Onboard multiple indicators for easy monitoring of the power, Ethernet, and USB ports
Supports connecting to Raspberry Pi
Zero Series Boards
Zero Series Boards

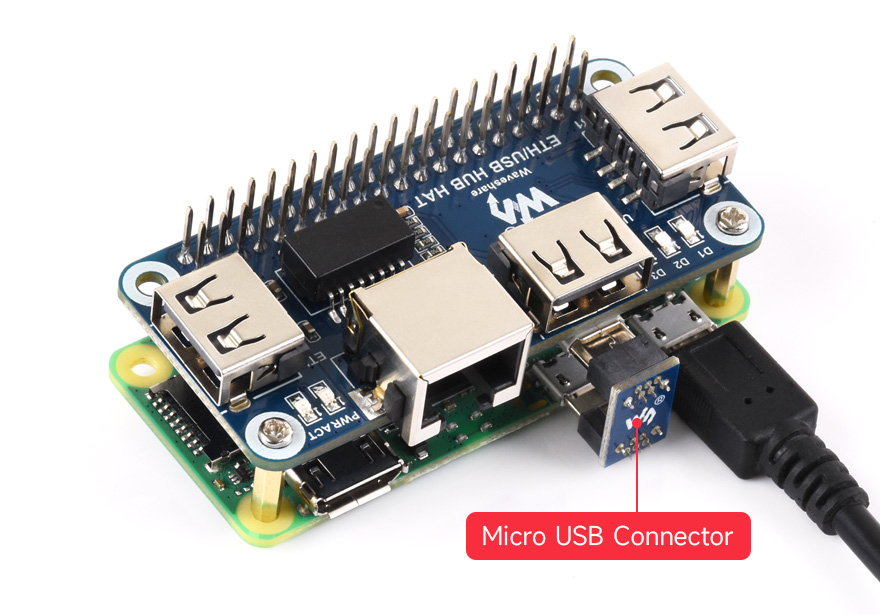

Compatible with Raspberry Pi Zero / Zero W / Zero WH / Zero 2 W boards. Simply connect the module to the board via the 40PIN GPIO header and use the included Micro USB connector to connect the board's USB port to the module's USB HUB interface, enabling Ethernet connectivity and USB HUB.
* for reference only, the Raspberry Pi board is NOT included, please refer to
the package content for detailed part list.
Supports connecting to other Raspberry
Pi Series Boards
Pi Series Boards

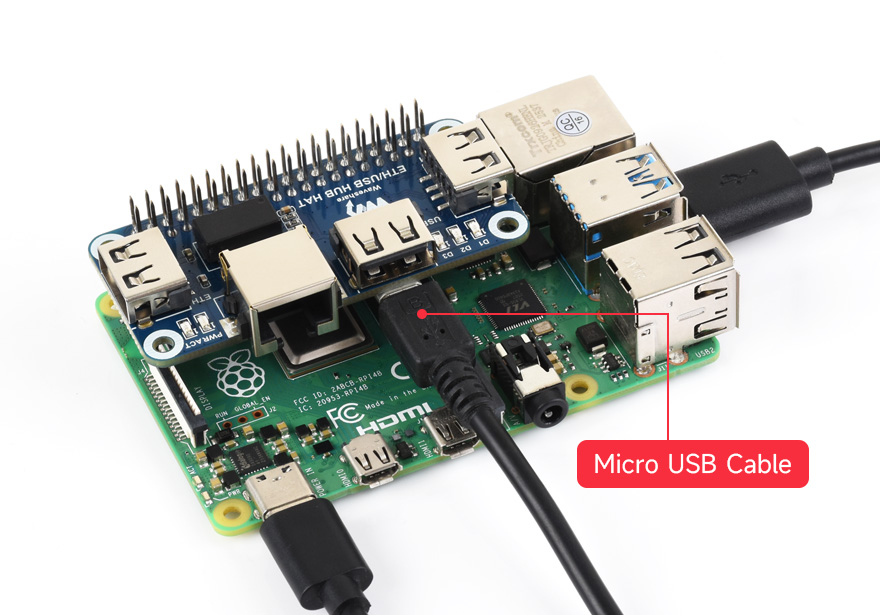

Simply connect the module to a USB port on Raspberry Pi B+ / 2B / 3B / 3B+ / 4B boards using the included USB cable, without connecting the GPIO header
* for reference only, the Raspberry Pi board is NOT included, please refer to
the package content for detailed part list.
Interfaces introduction

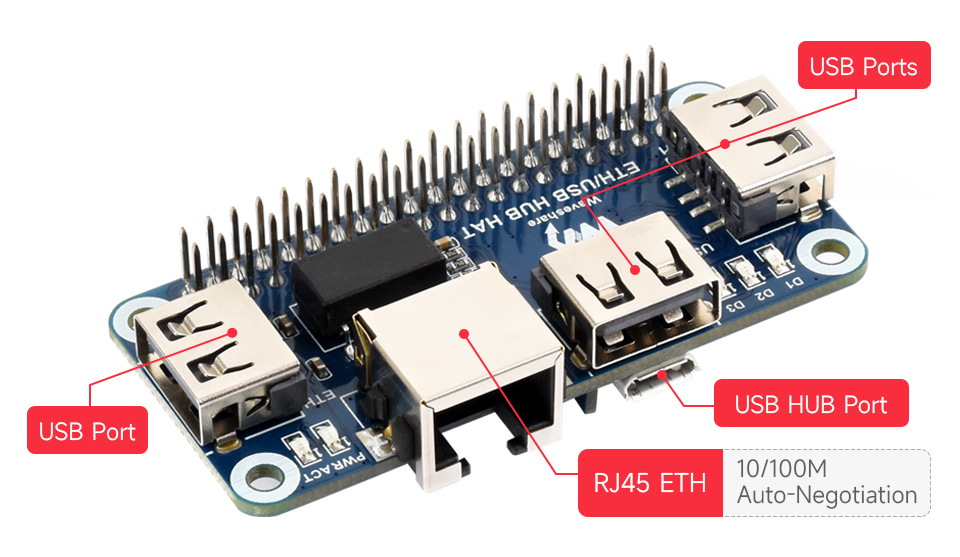

Onboard 1-ch RJ45 Ethernet port with 10/100M auto-negotiation,
and onboard 3-ch USB ports, compatible with USB2.0/1.1
and onboard 3-ch USB ports, compatible with USB2.0/1.1

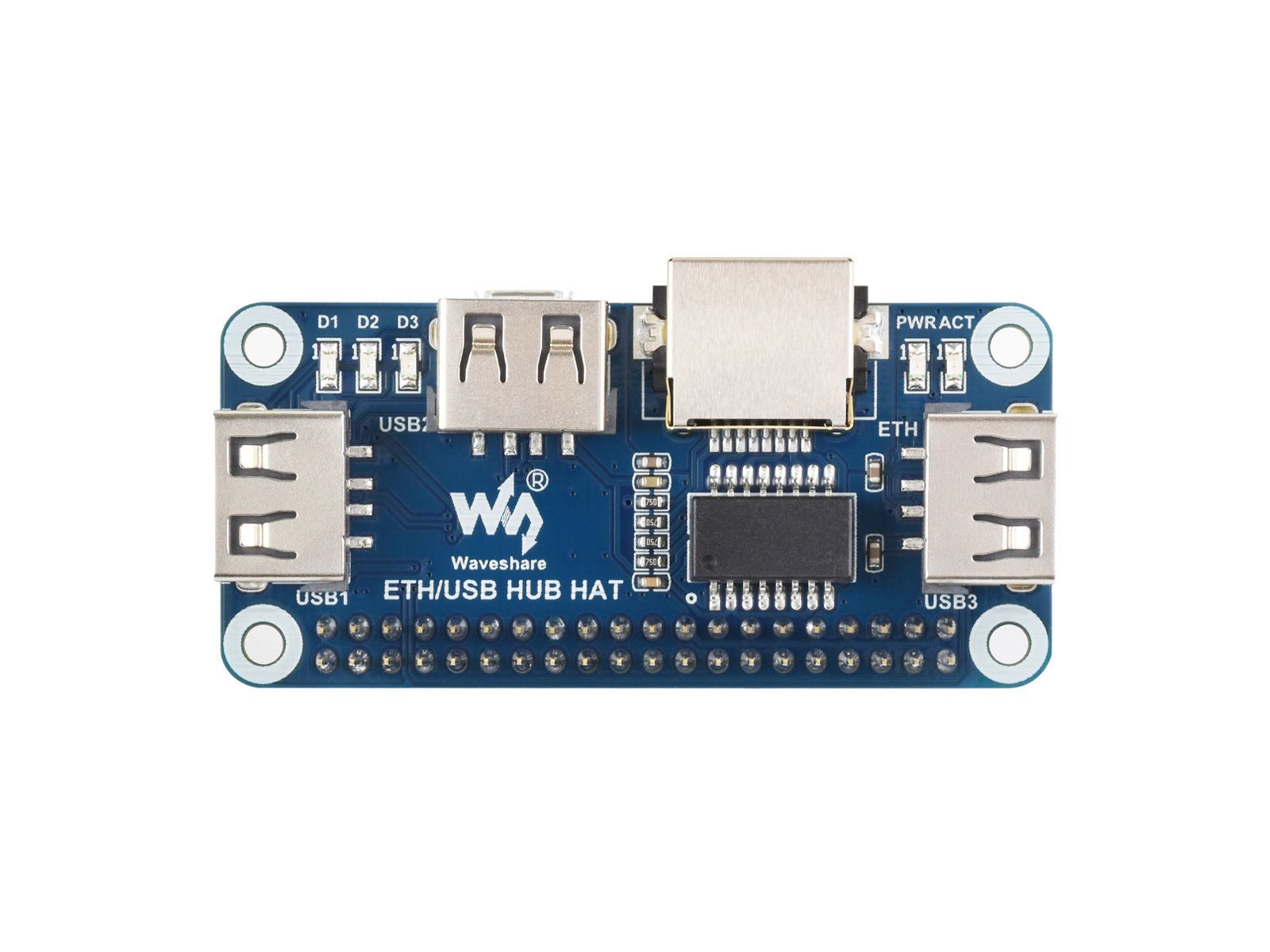

What's On Board

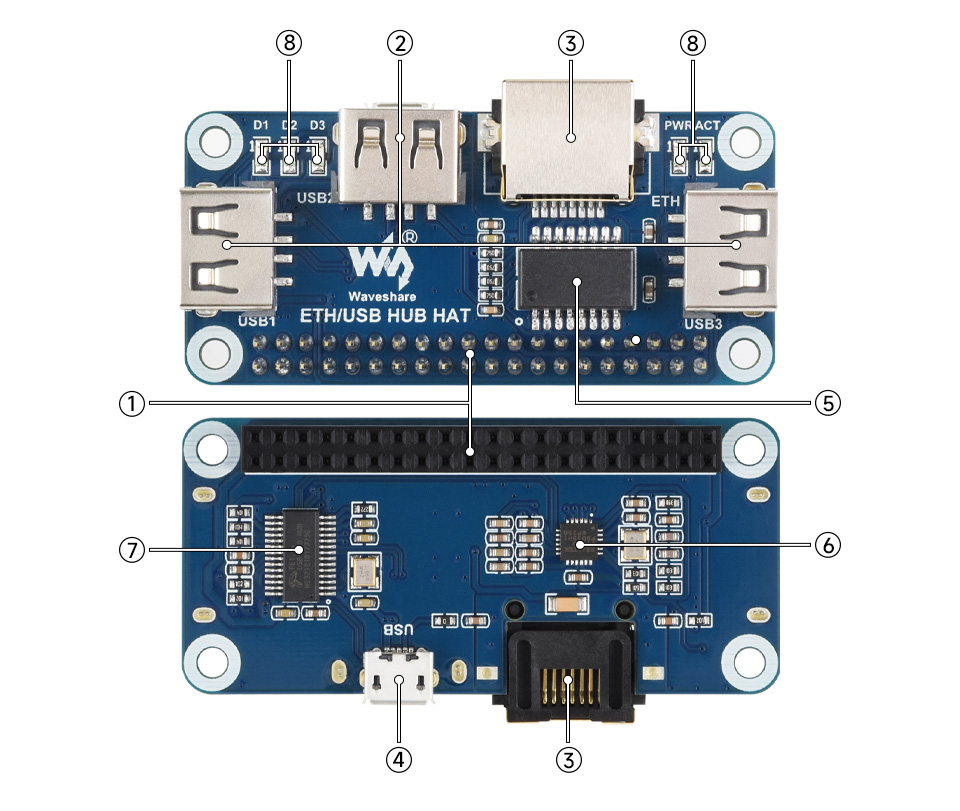

- Raspberry Pi GPIO connector
for connecting Raspberry Pi - USB extended ports
USB1 ~ USB3, 3-ch USB ports - RJ45 Ethernet port
10/100M auto-negotiation -
USB HUB port (bottom)
for connecting the HUB to the Raspberry Pi USB port:
Raspberry Pi Zero / Zero 2W / Zero W / Zero WH: connected via Micro USB connector
Raspberry Pi B+ / 2B / 3B / 3B+ /4B: connected via Micro USB cable
- TS8121A
Ethernet wave filter - RTL8152B
10/100M Ethernet chip - FE1.1S
USB HUB chip - LED indicators
PWR: power indicator
ACT: Ethernet indicator
D1 ~ D3: USB1 ~ USB3 status indicators

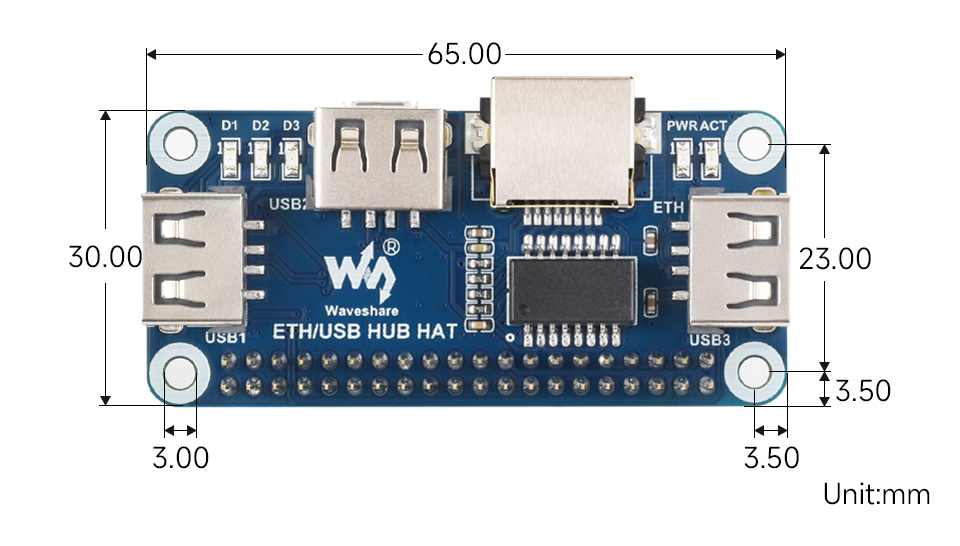

Outline dimensions
Weight: 0.068 kg
Quick Overview
- ETH/USB HUB HAT x1
- Micro USB connector x1
- USB Type-A male port to Micro USB male port cable x1
- RPi screws pack (2pcs) x1
