ESP32-S3 Mini Development Board, Based on ESP32-S3FH4R2/ESP32-S3-PICO-1-N8R8 Dual-Core Processor, 240MHz Running Frequency, USB Port Adapter Board Optional
ESP32-S3-Tiny Development Board

Based on ESP32-S3FH4R2/ESP32-S3-PICO-1-N8R8, USB Port Adapter Board Optional

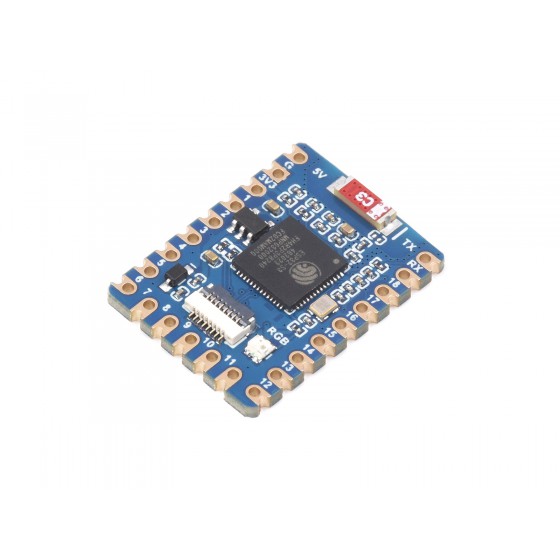

ESP32-S3-Tiny mini development board, front view
Board specifications
  • Adopts ESP32-S3FH4R2/ESP32-S3-PICO-1-N8R8 chip with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
  • Built in 512KB of Static RAM and 384KB ROM, options for 4MB Flash memory with 2MB PSRAM / 8MB Flash memory with 8MB PSRAM
  • Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance
  • Onboard FPC 8PIN connector, supports adapting USB Type-C port via adapter board
  • 34 × multi-function GPIO pins
  • Rich peripheral interfaces, including SPI, I2C, UART, ADC, and PWM, etc. to achieve various functions flexibly
  • Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios
Version Options
ESP32-S3-Tiny, the development board only

ESP32-S3-Tiny
4MB Flash and 2MB PSRAM
The development board only

ESP32-S3-Tiny, with adapter board

ESP32-S3-Tiny-Kit
4MB Flash and 2MB PSRAM
Development board + Adapter board + FPC cable

ESP32-S3-Tiny, the development board only

ESP32-S3-Tiny-N8R8
8MB Flash and 8MB PSRAM
The development board only

ESP32-S3-Tiny, with adapter board

ESP32-S3-Tiny-N8R8-Kit
8MB Flash and 8MB PSRAM
Development board + Adapter board + FPC cable


Designed For AIoT Applications

Powered By Xtensa 32-Bit LX7 Dual-Core Processor With Frequency Up To 240 MHz. Powerful AI Computing Capability & Reliable Security Features

ESP32-S3, powered by Xtensa 32-Bit LX7 dual-core processor
WIFI And BLE 5 Support

ESP32-S3 Integrates 2.4 GHz Wi-Fi (802.11 B/G/N) With 40 MHz Of Bandwidth Support. Its Bluetooth Low Energy Subsystem Supports Bluetooth 5 (LE) And Bluetooth Mesh

ESP32-S3-Tiny, with WIFI and BLE 5 support
Multi-platform support

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started


Compact size, Separate adapter board design

Castellated holes with immersion gold design, highly integrated packaging, easy to embed into various product applications

ESP32-S3-Tiny, compact size
Options for Type-C port adapter board

Adapting USB Type-C port via adapter board
(available in ESP32-S3-Tiny-Kit and ESP32-S3-Tiny-N8R8-Kit versions)

ESP32-S3-Tiny, separate adapter board design
34 × Multi-function GPIO Pins

Configurable Pin Function, Allows Flexible Development and Integration

ESP32-S3-Tiny, pin definition

What's On Board
ESP32-S3-Tiny, onboard components
  1. ESP32-S3FH4R2/ESP32-S3-PICO-1-N8R8
    dual-core processor, up to 240MHz operating frequency
  2. ME6217C33M5G
    low dropout LDO, 800mA (Max)
  3. FPC connector
    0.5mm pitch 8PIN
  4. WS2812 RGB LED
  1. GPIO pins
  2. USB Type-C Port
  3. Power indicator
  4. RESET button
  5. BOOT button


outline dimensions
ESP32-S3-Tiny outline dimensions
Resources & Services
Wiki: www.waveshare.com/wiki/ESP32-S3-Tiny

Quick Overview

ESP32-S3-Tiny

ESP32-S3-Tiny x1

ESP32-S3-Tiny

ESP32-S3-Tiny-Kit

ESP32-S3-Tiny with adapter board + FPC cable x1

ESP32-S3-Tiny-Kit

ESP32-S3-Tiny-N8R8

ESP32-S3-Tiny-N8R8 x1

ESP32-S3-Tiny

ESP32-S3-Tiny-N8R8-Kit

ESP32-S3-Tiny-N8R8-Kit x1

ESP32-S3-Tiny
