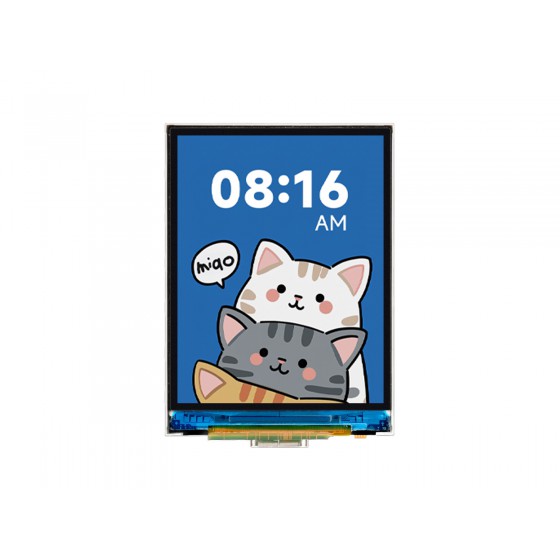

ESP32-S3 2inch Display Development Board, 240×320 Pixels, 32-bit LX7 Dual-core Processor, Supports WiFi & Bluetooth, Onboard Camera Interface, ESP32 With Display

SKU:30308
Part No.:ESP32-S3-LCD-2-C
Brand:Waveshare

$17.99 Qty:

PriceQuantity
1~9
$17.1910~49
$16.7950~99
$16.63100+

OV5640 camera module

Included NOT Included

Related Products:

ESP32-S3 7inch Display Development Board Type B, ESP32 With Display, 1024×600, Optional For Touch Function, 32-bit LX7 Dual-core Processor, Up to 240MHz Frequency, Supports WiFi & Bluetooth

ESP32-S3 7inch Display Development Board, ESP32 With Display, 800×480, Options For Touch Function, 32-bit LX7 Dual-core Processor, Up to 240MHz Frequency, Supports WiFi & Bluetooth

ESP32-S3 5inch Display Development Board, 32-Bit LX7 Dual-Core Processor, Up To 240MHz Frequency, Supports WiFi & Bluetooth, With Onboard Antenna, ESP32 With Display

ESP32-S3 4.3inch AI Voice Touch Display Development Board, 800 × 480 Resolution, 5-Point Touch, Dual-MIC Array, Supports 2.4GHz Wi-Fi & BLE 5

ESP32-S3 4.3inch Display Development Board, 800×480, Options For Touch Function, 32-bit LX7 Dual-core Processor, Up to 240MHz Frequency, Supports WiFi & Bluetooth

ESP32-S3 4.3inch Touch LCD Development Board Type B, 800×480, 5-point Touch, 32-bit LX7 Dual-core Processor

ESP32-S3 3.16inch Display Development Board, 320×820 Pixels, 262K Color, 32-bit LX7 Dual-core Processor, Up to 240MHz Frequency, WiFi & Bluetooth 5, ESP32 With Display

ESP32-S3 4inch Display Development Board, 480×480, 32-Bit LX7 Dual-Core Processor, Up To 240MHz Frequency, Supports WiFi & Bluetooth, With Onboard Antenna, ESP32 With Display

ESP32-S3 2.8inch Round Display Development Board, 480×480, 32-bit LX7 Dual-core Processor, Supports WiFi & Bluetooth, Options For Touch Function, ESP32 With Display

ESP32-S3 3.5inch Capacitive Touch Display Development Board, 320×480 Pixels, IPS Panel, 262K Color, Onboard Camera Interface, Supports Wi-Fi and Bluetooth 5, ESP32 With Display

ESP32-S3 3.5inch Capacitive Touch Display Development Board Type B, 320×480 Pixels, IPS Panel, 262K Color, QSPI Interface, Onboard Camera Interface, Supports Wi-Fi and Bluetooth 5, ESP32 With Display

ESP32-S3 2.8inch Display Development Board Type B, 480×640, IPS, 32-bit LX7 Dual-core Processor, Supports WiFi & Bluetooth, ESP32 With Display

ESP32-S3 2.8inch Display Development Board, 240×320, IPS, 32-bit LX7 Dual-core Processor, Up to 240MHz Frequency, Supports WiFi & Bluetooth, With Onboard Antenna, ESP32 With Display

ESP32-S3 2.1inch Capacitive Touch Round Display Development Board, 480×480, IPS, 32-bit LX7 Dual-core Processor, Supports WiFi & Bluetooth, 262K Color, ESP32 With Display

ESP32-S3 2.06inch AMOLED Touch Watch Development Board, 32-bit LX7 Dual-core Processor, 410×502 Pixels, QSPI Interface, Onboard Dual Digital Microphones Array, ESP32 With Display

ESP32-S3 2.41inch AMOLED Touch Display Development Board, 600×450, 32-bit LX7 Dual-core Processor, Onboard Accelerometer And Gyroscope Sensor, ESP32 With Display

ESP32-S3 2inch Capacitive Touch Display Development Board, 240×320 Pixels, IPS Panel, 32-bit LX7 Dual-core Processor, Supports WiFi & Bluetooth, Onboard Camera Interface, ESP32 With Display

ESP32-S3 1.91inch AMOLED Display Development Board, 240×536, 32-bit LX7 Dual-core Processor, Up to 240MHz Frequency, Accelerometer And Gyroscope Sensor, ESP32 With Display

ESP32-S3 1.9inch Display Development Board, 170×320 Pixels, 262K Color, 32-bit LX7 Dual-core Processor, Supports 90° Hardware Rotation, Optional For Touch Function, ESP32 With Display

ESP32-C6 1.9inch Display Development Board, 170×320 Pixels, 262K Color, 160MHz Running Frequency RISC-V Single-core Processor, WiFi 6 & Bluetooth, Optional For Touch Function, ESP32 With Display

ESP32-S3 1.85inch Round LCD Development Board, 360×360, Supports Wi-Fi & Bluetooth BLE 5, AI Speech, Smart Speaker Box, ESP32 With Display

ESP32-S3 1.85inch Round Display Development Board, 360×360, 32-bit LX7 Dual-core Processor, Up to 240MHz Frequency, Supports WiFi & Bluetooth, ESP32 With Display, Optional for Touch Function

ESP32-S3 1.8inch Knob Display Development Board, Multi-functional Knob Screen, Capacitive Touch, 2.4GHz Wi-Fi / Bluetooth Wireless Connection, CNC Metal Case

ESP32-S3 1.75inch AMOLED Round Touch Display Development Board, 32-bit LX7 Dual-core Processor, 466×466 Pixels, QSPI Interface, Onboard Dual Microphone Array, ESP32 With Display

ESP32-S3 1.75inch AMOLED Round Touch Display Development Board, 466 × 466 resolution, Aluminum Alloy Case, Onboard Dual Microphones Array, Portable Mini Display

ESP32-S3 1.8inch AMOLED Touch Display Development Board, 32-bit LX7 Dual-core Processor, 368×448 Pixels, Accelerometer And Gyroscope Sensor, ESP32 With Display

ESP32-S3 1.85inch LCD Capacitive Touch Display Development Board, 360 × 360 Resolution, CNC-machined Aluminum Alloy Case, Portable Mini Display, Supports Online LLM Platforms & DIY Customization

ESP32-S3 1.69inch Touch Display Development Board, 240×280 Pixels, Micro LCD Display With ESP32-S3, Accelerometer And Gyroscope Sensor

ESP32-C6 1.69inch LCD Development Board, 240×280 Pixels, Supports Wi-Fi 6 / BLE 5, 160MHz RISC-V Processor, AI Speech, ESP32 With Display

ESP32-S3 1.69inch Display Development Board, 240MHz Dual-Core Processor, 240×280 Pixels, Supports WiFi/Bluetooth, Micro LCD Display With ESP32-S3

ESP32-C6 1.69inch Touch Display Development Board, 240×280 Pixels, Supports Wi-Fi 6 / BLE 5, 160MHz RISC-V Processor, AI Speech, ESP32 With Display

ESP32-S3 1.64inch AMOLED Touch Display Development Board, 280×456, QSPI Interface, Onboard Accelerometer And Gyroscope Sensor, ESP32 With Display

ESP32-C6 1.47inch Display Development Board, 172×320, 262K Color, 160MHz Running Frequency Single-core Processor, Supports WiFi 6 & Bluetooth, ESP32 With Display

ESP32-C6 1.47inch Touch Display Development Board, 172×320 Resolution, 262K Display Color, Supports Wi-Fi 6 / BLE 5, 160MHz RISC-V Processor

ESP32-C3 1.47inch LCD Display Development Board, RISC-V 32-bit Single-core Processor, 172×320 Resolution, 262K Display Color, Supports 2.4GHz Wi-Fi And BLE 5

ESP32-S3 1.47inch Display Development Board, 172×320, 262K Color, Up to 240MHz Frequency, Supports WiFi & Bluetooth, With Colorful RGB LED, ESP32 With Display

ESP32-S3 1.47inch LCD display Development Board Type B, 172×320 Resolution, 262K Display Color, Supports 2.4GHz Wi-Fi / BLE 5, 240MHz LX7 Dual-core Processor, ESP32 With Display

ESP32-S3 1.47inch Touch Display Development Board, 172×320 Resolution, 262K Display Color, Supports 2.4GHz Wi-Fi / BLE 5, 240MHz LX7 Dual-core Processor

ESP32-S3 1.46inch Round Display Development Board, 412×412, Supports WiFi & Bluetooth, Accelerometer And Gyroscope Sensor, Onboard Speaker And Microphone, ESP32 With Display

ESP32-S3 1.43inch AMOLED Display Development Board, 466×466, QSPI Interface Round Display, Accelerometer And Gyroscope Sensor, Optional For CNC Metal Case, ESP32 With Display

ESP32-C6 1.32inch AMOLED Round Touch Display Development Board, 466×466 Pixels, QSPI Interface, Supports Wi-Fi 6 and Bluetooth 5

ESP32-C6 1.43inch AMOLED Round Touch Display Development Board, 160MHz RISC-V Processor, 466×466 Pixels, QSPI Interface, Onboard Dual Microphone Array, ESP32 With Display

ESP32-S3 1.32inch AMOLED Round Touch Display Development Board, 466×466 Pixels, QSPI Interface, Supports Wi-Fi and Bluetooth 5

ESP32-C6 1.3inch LCD Display Development Board, 240 × 240 Pixels, 262K Color, Supports Wi-Fi 6 And BLE 5

ESP32-S3 1.3inch Display Development Board, 240×240 Pixels, Built-in ST7789V2 Chip And 6-Axis IMU, 262K Color, SPI Communication, ESP32 With Display

ESP32-S3 Development Board, 32-bit LX7 Dual-core Processor, Integrates GC9A01 Display Driver Chip, With 1.28inch IPS Round LCD

ESP32-S3 Development Board, 32-bit LX7 Dual-core Processor, With 1.28inch IPS Round LCD, Supports WiFi/Bluetooth, Round Display, With CNC Metal Case

ESP32-S3 Development Board, with 1.28inch Round Touch LCD, Compact size, Accelerometer And Gyroscope Sensor

ESP32-S3 Development Board, with 1.28inch Round Touch LCD, Accelerometer And Gyroscope Sensor, Round Display, With CNC Metal Case

Waveshare ESP32-GEEK Development Board, Based On ESP32-S3R2 Controller Chip, With 1.14inch 65K Color LCD, Supports WiFi & Bluetooth LE

Details

ESP32-S3 2inch Display Development Board, 240×320 Pixels, IPS Panel, 262K color, 32-bit LX7 Dual-core Processor, Up To 240MHz Frequency, Supports WiFi & Bluetooth, Onboard Camera Interface, ESP32 With Display

ESP32-S3-LCD-2

Onboard camera interface and TF card slot

Embedded with ST7789T3 Display Driver, SPI communication

ESP32-S3 2inch touch display development board, front view

ESP32-S3 2inch touch display development board, features

Version Options

ESP32-S3-LCD-2
Standard version

ESP32-S3-LCD-2-C
Comes with an OV5640 camera

Features

ESP32-S3-LCD-2 is a low-cost, high-performance MCU board designed by Waveshare, tiny size, with onboard 2inch LCD display, Lithium battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), camera interface, and so on, which makes it easy for you to develop and integrate it into the products quickly.

Key features include:

Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
Type-C connector, improving device compatibility, easier to use
Onboard 2inch LCD display for clear color picture display, 240 × 320 resolution, 262K color
Built-in ST7789T3 display driver, using SPI communication, effectively saving the IO resources
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope)
Onboard 3.7V MX1.25 Lithium battery recharge/discharge header
Onboard USB Type-C port for power supply, program downloading, and debugging, more convenient for development use
Onboard TF card slot for external TF card storage of pictures or files
Adapting 22 × GPIO pins for flexible configuration of pin function
Onboard camera interface, compatible with mainstream cameras such as OV2640 and OV5640 for image and video acquisition

LCD parameters

Display Panel	IPS LCD	Display Size	2inch
Resolution	240 × 320 pixels	Display Colors	262K
Dispaly Interface	4-wire SPI	Driver IC	ST7789T3

Supports ESP-IDF, Arduino IDE

Comprehensive SDK, dev resources, and tutorials to help you easily get started

ESP32-S3 2inch Touch LCD, supports ESP-IDF, Arduino

IPS Display Panel

Excellent display performance, 262K color, wide viewing angle

Supports OV2640 / 0V5640 and other mainstream cameras

Optional for OV5640 5MP camera module, suitable for image capture, video monitoring and other applications to meet different needs

usage example

* Note: the OV5640 camera is optional.

Pin Definition

What's On Board

ESP32-S3 2inch touch display development board, onboard components

outline dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/ESP32-S3-LCD-2

ESP32 LCD Selection

Model	Core Configuration			display				onboard resources						Peripheral interfaces
Model	CPU	PSRAM	Flash	pixels	Interface	Display	Touch	IMU	RTC	TF	Speaker	mic	battery header	Peripheral interfaces
AMOLED display
ESP32-S3-Touch-AMOLED-2.41	ESP32-S3R8	8MB	16MB	600 × 450	QSPI	RM690B0	FT6336	√	√	√	-	-	√	I2C, UART, USB, 34PIN GPIO header
ESP32-S3-Touch-AMOLED-2.41-B	ESP32-S3R8	8MB	16MB	600 × 450	QSPI	RM690B0	FT6336	√	√	√	-	-	√	I2C, UART, USB, 34PIN GPIO header, with case
ESP32-C6-Touch-AMOLED-2.16	ESP32-C6	-	16MB	480 × 480	QSPI	CO5300	CST9220	√	√	√	√	√	√	I2C, UART, USB, and GPIO pads
ESP32-S3-Touch-AMOLED-2.16	ESP32-S3R8	8MB	16MB	480 × 480	QSPI	CO5300	CST9220	√	√	√	√	√	√	I2C, UART, USB, and GPIO pads
ESP32-S3-Touch-AMOLED-2.06	ESP32-S3R8	8MB	32MB	410 × 502	QSPI	CO5300	FT3168	√	√	√	√	√	√	I2C, UART, and USB reserved pads
ESP32-C6-Touch-AMOLED-2.06	ESP32-C6	-	16MB	410 × 502	QSPI	CO5300	FT3168	√	√	-	√	√	√	I2C, UART, and USB reserved pads
ESP32-S3-Touch-AMOLED-1.91	ESP32-S3R8	8MB	16MB	240 × 536	QSPI	RM67162	FT3168	√	-	√	-	-	√	40PIN header
ESP32-S3-AMOLED-1.91	ESP32-S3R8	8MB	16MB	240 × 536	QSPI	RM67162	-	√	-	√	-	-	√	40PIN header
ESP32-C6-Touch-AMOLED-1.8	ESP32-C6	-	16MB	368 × 448	QSPI	SH8601	FT3168 / FT6146	√	√	√	√	√	√	I2C, UART, USB pads
ESP32-S3-Touch-AMOLED-1.8	ESP32-S3R8	8MB	16MB	368 × 448	QSPI	SH8601	FT3168 / FT6146	√	√	√	√	√	√	I2C, UART, GPIO pads
ESP32-S3-Touch-AMOLED-1.75	ESP32-S3R8	8MB	16MB	466 × 466	QSPI	CO5300	CST9217	√	√	√	√	√	√	I2C, UART, USB, 8PIN headers (2.54mm pitch)
ESP32-S3-Touch-AMOLED-1.75-B	ESP32-S3R8	8MB	16MB	466 × 466	QSPI	CO5300	CST9217	√	√	√	√	√	√	I2C, UART, USB, 8PIN headers (2.54mm pitch)
ESP32-S3-Touch-AMOLED-1.75C	ESP32-S3R8	8MB	32MB	466 × 466	QSPI	CO5300	CST9217	√	-	-	√	√	√	I2C, UART, USB, GPIO pads
ESP32-C6-Touch-AMOLED-1.64	ESP32-C6	-	16MB	280 × 456	QSPI	CO5300	FT6146	√	-	√	-	-	√	22PIN header (2.54mm pitch)
ESP32-S3-Touch-AMOLED-1.64	ESP32-S3R8	8MB	16MB	280 × 456	QSPI	CO5300	FT3168	√	-	√	-	-	√	2 × 11PIN headers (2.54mm pitch)
ESP32-C6-Touch-AMOLED-1.43	ESP32-C6	-	16MB	466 × 466	QSPI	CO5300	FT6146	√	√	√	√	√	√	UART, I2C, 16PIN header (2.54mm pitch)
ESP32-C6-Touch-AMOLED-1.43-B	ESP32-C6	-	16MB	466 × 466	QSPI	CO5300	FT6146	√	√	√	√	√	√	UART, I2C, 16PIN header (2.54mm pitch)
ESP32-S3-Touch-AMOLED-1.43	ESP32-S3R8	8MB	16MB	466 × 466	QSPI	SH8601 /C05300	FT3168 /FT6146	√	√	√	-	-	√	I2C, UART, USB, 2 × 14PIN headers
ESP32-S3-Touch-AMOLED-1.43-B	ESP32-S3R8	8MB	16MB	466 × 466	QSPI	SH8601 /C05300	FT3168 /FT6146	√	√	√	-	-	√	I2C, UART, USB, 2 × 14PIN headers
ESP32-S3-Touch-AMOLED-1.43C	ESP32-S3	8MB	8MB	466 × 466	QSPI	CO5300	CST820	-	-	-	√	√	√	I2C, UART, USB pads
ESP32-C6-Touch-AMOLED-1.32	ESP32-C6	-	16MB	466 × 466	QSPI	CO5300	CST820	-	-	-	√	√	√	SH1.0 12PIN header
ESP32-C6-Touch-AMOLED-1.32	ESP32-C6	-	16MB	466 × 466	QSPI	CO5300	CST820	-	-	-	√	√	√	SH1.0 12PIN header
ESP32-S3-Touch-AMOLED-1.32	ESP32-S3-PICO-1-N8R8	8MB	8MB	466 × 466	QSPI	CO5300	CST820	-	-	-	√	√	√	SH1.0 12PIN header
LCD display
ESP32-Touch-LCD-3.5	ESP32-D0WDR2-V3	2MB	16MB	320 × 480	SPI	ST7796	FT6336	-	√	√	√	√	√	32PIN GPIO header
ESP32-S3-Touch-LCD-3.5	ESP32-S3R8	8MB	16MB	320 × 480	SPI	ST7796	FT6336	√	√	√	√	√	√	32PIN GPIO header, camera interface
ESP32-S3-Touch-LCD-3.5-C	ESP32-S3R8	8MB	16MB	320 × 480	SPI	ST7796	FT6336	√	√	√	√	√	√	32PIN GPIO header, camera interface
ESP32-S3-Touch-LCD-3.5B	ESP32-S3R8	8MB	16MB	320 × 480	QSPI	AXS15231B	AXS15231B	√	√	√	√	√	√	32PIN GPIO header, camera interface
ESP32-S3-Touch-LCD-3.5B-C	ESP32-S3R8	8MB	16MB	320 × 480	QSPI	AXS15231B	AXS15231B	√	√	√	√	√	√	32PIN GPIO header, camera interface
ESP32-S3-Touch-LCD-3.49	ESP32-S3R8	8MB	16MB	172 × 640	QSPI	AXS15231B	AXS15231B	√	√	√	√	√	√	22pin 2.54mm pitch pads
ESP32-S3-Touch-LCD-3.49B	ESP32-S3R8	8MB	16MB	172 × 640	QSPI	AXS15231B	AXS15231B	√	√	√	√	√	√	22pin 2.54mm pitch pads
ESP32-S3-LCD-3.16	ESP32-S3R8	8MB	16MB	320 × 820	RGB	ST7701	-	√	√	√	-	-	√	I2C, UART, USB headers
ESP32-S3-Touch-LCD-2.8	ESP32-S3R8	8MB	16MB	240 × 320	SPI	ST7789	CST328	√	√	√	√	-	√	I2C, UART, SH1.0 12PIN header
ESP32-S3-LCD-2.8	ESP32-S3R8	8MB	16MB	240 × 320	SPI	ST7789	-	√	√	√	√	-	√	I2C, UART, SH1.0 12PIN header
ESP32-S3-Touch-LCD-2.8B	ESP32-S3R8	8MB	16MB	480 × 640	RGB	ST7701	GT911	√	√	√	-	-	√	20PIN header
ESP32-S3-LCD-2.8B	ESP32-S3R8	8MB	16MB	480 × 640	RGB	ST7701	-	√	√	√	-	-	√	20PIN header
ESP32-S3-Touch-LCD-2.8C	ESP32-S3R8	8MB	16MB	480 × 480	RGB	ST7701	GT911	√	√	√	-	-	√	I2C, UART, SH1.0 12PIN header
ESP32-S3-LCD-2.8C	ESP32-S3R8	8MB	16MB	480 × 480	RGB	ST7701	-	√	√	√	-	-	√	I2C, UART, SH1.0 12PIN header
ESP32-S3-Touch-LCD-2.1	ESP32-S3R8	8MB	16MB	480 × 480	RGB	ST7701	CST820	√	√	√	-	-	√	I2C, UART, SH1.0 12PIN header
ESP32-S3-Touch-LCD-2.1B	ESP32-S3R8	8MB	16MB	480 × 480	RGB	ST7701	CST820	√	√	√	-	-	√	I2C, UART, SH1.0 12PIN header
ESP32-S3-Touch-LCD-2	ESP32-S3R8	8MB	16MB	240 × 320	SPI	ST7789T3	CST816	√	-	√	-	-	√	28PIN header, camera interface
ESP32-S3-LCD-2	ESP32-S3R8	8MB	16MB	240 × 320	SPI	ST7789T3	-	√	-	√	-	-	√	28PIN header, camera interface
ESP32-S3-Touch-LCD-1.9	ESP32-S3R8	8MB	16MB	170 × 320	SPI	ST7789	CST816	√	-	√	-	-	√	40PIN header, compatible with Pico header
ESP32-S3-LCD-1.9	ESP32-S3R8	8MB	16MB	170 × 320	SPI	ST7789	-	√	-	√	-	-	√	40PIN header, compatible with Pico header
ESP32-C6-Touch-LCD-1.9	ESP32-C6FH8	-	8MB	170 × 320	SPI	ST7789	CST816	√	-	√	-	-	√	40PIN header, compatible with Pico header
ESP32-C6-LCD-1.9	ESP32-C6FH8	-	8MB	170 × 320	SPI	ST7789	-	√	-	√	-	-	√	40PIN header, compatible with Pico header
ESP32-S3-Touch-LCD-1.85C	ESP32-S3R8	8MB	16MB	360 × 360	QSPI	ST77916	CST816	-	√	√	√	√	√	I2C, UART, 2×14PIN header (1.27mm pitch)
ESP32-S3-Touch-LCD-1.85C-BOX	ESP32-S3R8	8MB	16MB	360 × 360	QSPI	ST77916	CST816	-	√	√	√	√	√	I2C, UART, 2×14PIN header (1.27mm pitch)
ESP32-S3-Touch-LCD-1.85B	ESP32-S3R8	8MB	16MB	360 × 360	QSPI	ST77916	CST816	√	√	√	√	√	√	UART, GPIO
ESP32-S3-Touch-LCD-1.85	ESP32-S3R8	8MB	16MB	360 × 360	QSPI	ST77916	CST816	√	√	√	√	√	√	I2C, UART, GPIO pads
ESP32-S3-LCD-1.85	ESP32-S3R8	8MB	16MB	360 × 360	QSPI	ST77916	-	√	√	√	√	√	√	I2C, UART, GPIO pads
ESP32-S3-Touch-LCD-1.83	ESP32-S3R8	8MB	16MB	240 × 284	SPI	ST7789P	CST816D	√	√	√	√	√	√	Reserved I2C, UART, USB pads
ESP32-C6-Touch-LCD-1.83	ESP32-C6	-	16MB	240 × 284	SPI	ST7789P	CST816D	√	√	√	√	√	√	Reserved I2C, UART, USB pads
ESP32-C6-Touch-LCD-1.69	ESP32-C6	-	16MB	240 × 280	SPI	ST7789V2	CST816T	√	√	-	√	√	√	Reserved USB, I2C, UART, and GPIO pads
ESP32-C6-LCD-1.69	ESP32-C6	-	16MB	240 × 280	SPI	ST7789V2	-	√	√	-	√	√	√	Reserved USB, I2C, UART, and GPIO pads
ESP32-S3-Touch-LCD-1.69	ESP32-S3R8	8MB	16MB	240 × 280	SPI	ST7789	CST816	√	√	-	-	-	√	I2C, UART, GPIO pads
ESP32-S3-LCD-1.69	ESP32-S3R8	8MB	16MB	240 × 280	SPI	ST7789	-	√	√	-	-	-	√	SH1.0 12PIN header
ESP32-C6-LCD-1.54	ESP32-C6	-	16MB	240 × 240	SPI	ST7789	-	√	-	√	√	√	√	I2C, UART pads
ESP32-C6-Touch-LCD-1.54	ESP32-C6	-	16MB	240 × 240	SPI	ST7789	CST816	√	-	√	√	√	√	I2C, UART pads
ESP32-S3-LCD-1.54	ESP32-S3R8	8MB	16MB	240 × 240	SPI	ST7789	-	√	-	√	√	√	√	I2C, UART pads
ESP32-S3-Touch-LCD-1.54	ESP32-S3R8	8MB	16MB	240 × 240	SPI	ST7789	CST816	√	-	√	√	√	√	I2C, UART pads
ESP32-S3-Touch-LCD-1.47	ESP32-S3R8	8MB	16MB	172 × 320	SPI	JD9853	AXS5106L	-	-	√	-	-	√	22PIN header
ESP32-S3-LCD-1.47	ESP32-S3R8	8MB	16MB	172 × 320	SPI	ST7789	-	-	-	√	-	-	-	18PIN header
ESP32-S3-LCD-1.47B	ESP32-S3R8	8MB	16MB	172 × 320	SPI	ST7789	-	√	-	√	-	-	√	18PIN header
ESP32-C6-Touch-LCD-1.47	ESP32-C6FH8	-	8MB	172 × 320	SPI	JD9853	AXS5106L	√	-	√	-	-	√	22PIN header
ESP32-C6-LCD-1.47	ESP32-C6FH8	-	8MB	172 × 320	SPI	ST7789	-	-	-	√	-	-	-	18PIN header
ESP32-C3-LCD-1.47	ESP32-C3FH4	-	4MB	172 × 320	SPI	ST7789	-	-	-	√	-	-	-	18PIN header
ESP32-S3-Touch-LCD-1.46B	ESP32-S3R8	8MB	16MB	412 × 412	QSPI	SPD2010	SPD2010	√	√	√	√	√	√	20pin GPIO header
ESP32-S3-Touch-LCD-1.46	ESP32-S3R8	8MB	16MB	412 × 412	QSPI	SPD2010	SPD2010	√	√	√	√	√	√	20pin GPIO header
ESP32-C6-LCD-1.3	ESP32-C6FH4	-	4MB	240 × 240	SPI	ST7789	-	-	-	√	-	-	-	2.54mm 12PIN header
ESP32-C6-LCD-1.3-M	ESP32-C6FH4	-	4MB	240 × 240	SPI	ST7789	-	-	-	√	-	-	-	2.54mm 12PIN header
ESP32-S3-LCD-1.3	ESP32-S3R8	8MB	16MB	240 × 240	SPI	ST7789	-	√	-	√	-	-	√	2.54mm 16PIN header
ESP32-S3-LCD-1.3-B	ESP32-S3R8	8MB	16MB	240 × 240	SPI	ST7789	-	√	-	√	-	-	√	2.54mm 16PIN header, with case
ESP32-S3-LCD-1.3-C	ESP32-S3R8	8MB	16MB	240 × 240	SPI	ST7789	-	√	-	√	-	-	√	2.54mm 16PIN header, with case and prism cube
ESP32-S3-Touch-LCD-1.28	ESP32-S3R2	2MB	16MB	240 × 240	SPI	GC9A01A	CST816	√	-	-	-	-	√	SH1.0 12PIN header
ESP32-S3-LCD-1.28	ESP32-S3R2	2MB	16MB	240 × 240	SPI	GC9A01A	-	√	-	-	-	-	√	2 × 20PIN header (1.27mm pitch)
ESP32-C3-LCD-0.71	ESP32-C3FH4	-	4MB	160 × 160	SPI	GC9D01	-	-	-	-	-	-	√	12PIN GPIO pads
ESP32-S3-LCD-0.85	ESP32-S3	8MB	8MB	128 × 128	SPI	GC9107	-	-	-	√	√	√	√	I2C, UART pads
ESP32-C6-LCD-0.85	ESP32-C6	-	8MB	128 × 128	SPI	ST7735	-	-	-	√	√	√	√	I2C, UART pads
ESP32-C6-GEEK	ESP32-C6	-	16MB	240 × 135	SPI	ST7789P3	-	-	-	√	-	-	-	I2C, UART, GPIO
ESP32-S3-GEEK	ESP32-S3R2	2MB	16MB	240 × 135	SPI	ST7789P3	-	-	-	√	-	-	-	I2C, UART, GPIO
