ESP32-C5 1.47inch LCD Display Development Board, RISC-V 32-bit Processor, 172×320 Resolution, 262K Color, Supports 2.4GHz / 5GHz Wi-Fi 6 And Bluetooth 5 (LE)
WiFi, Bluetooth, LCD (SPI/QSPI), ESP32-C5

ESP32-C5 1.47inch LCD Display Development Board, RISC-V 32-bit Processor, 172×320 Resolution, 262K Color, Supports 2.4GHz / 5GHz Wi-Fi 6 And Bluetooth 5 (LE)

SKU:34961
Part No.:ESP32-C5-LCD-1.47
Brand:Waveshare

$11.99
PriceQuantity
1
$11.592
$11.393
$11.314+

Details

ESP32-C5 1.47inch LCD display development board, RISC-V 32-bit processor, 172×320 resolution, 262K color, supports 2.4GHz/5GHz Wi-Fi 6 and bluetooth 5 (LE)
ESP32-C5 1.47inch LCD display
development board

Integrated LCD display, onboard TF card slot and multiple peripheral interfaces

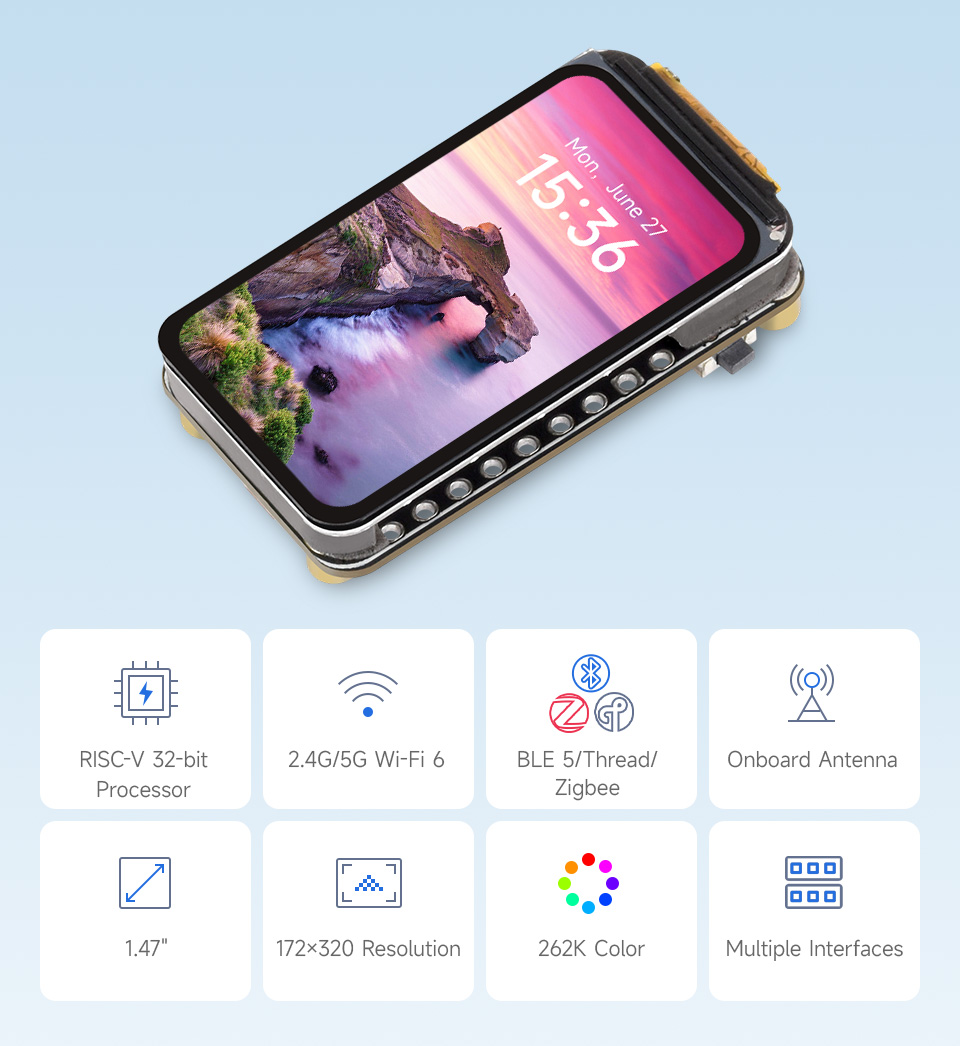

ESP32-C5 LCD 1.47, front view and features

* for reference only, please refer to the actual display effect

version options

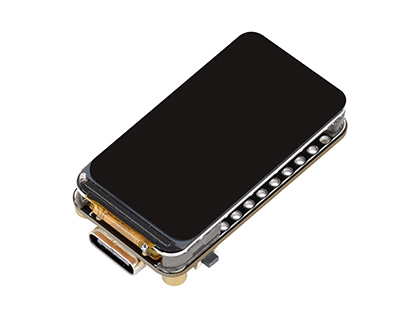

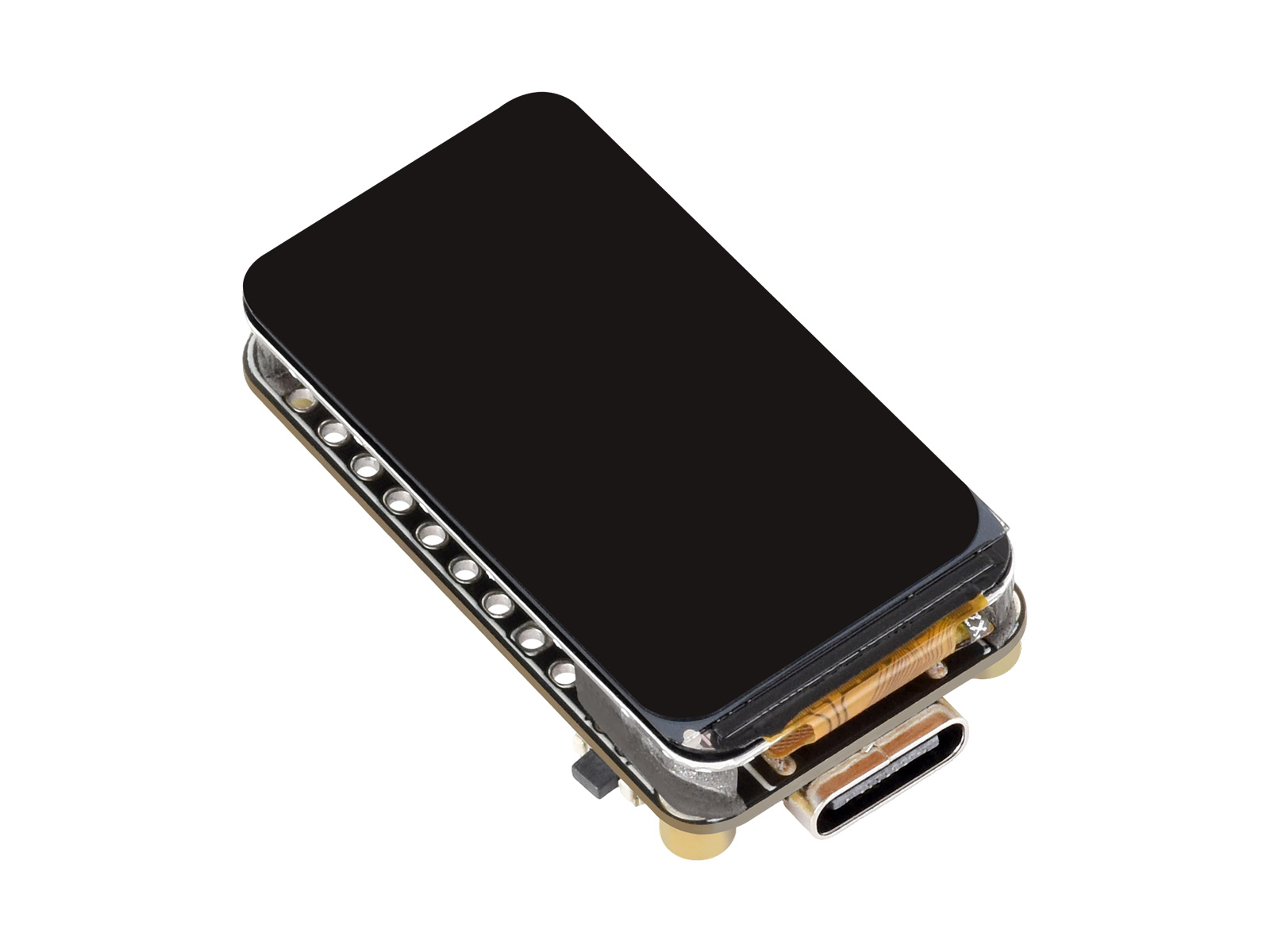

ESP32-C5-LCD-1.47

ESP32-C5-LCD-1.47
Standard version without pinheader

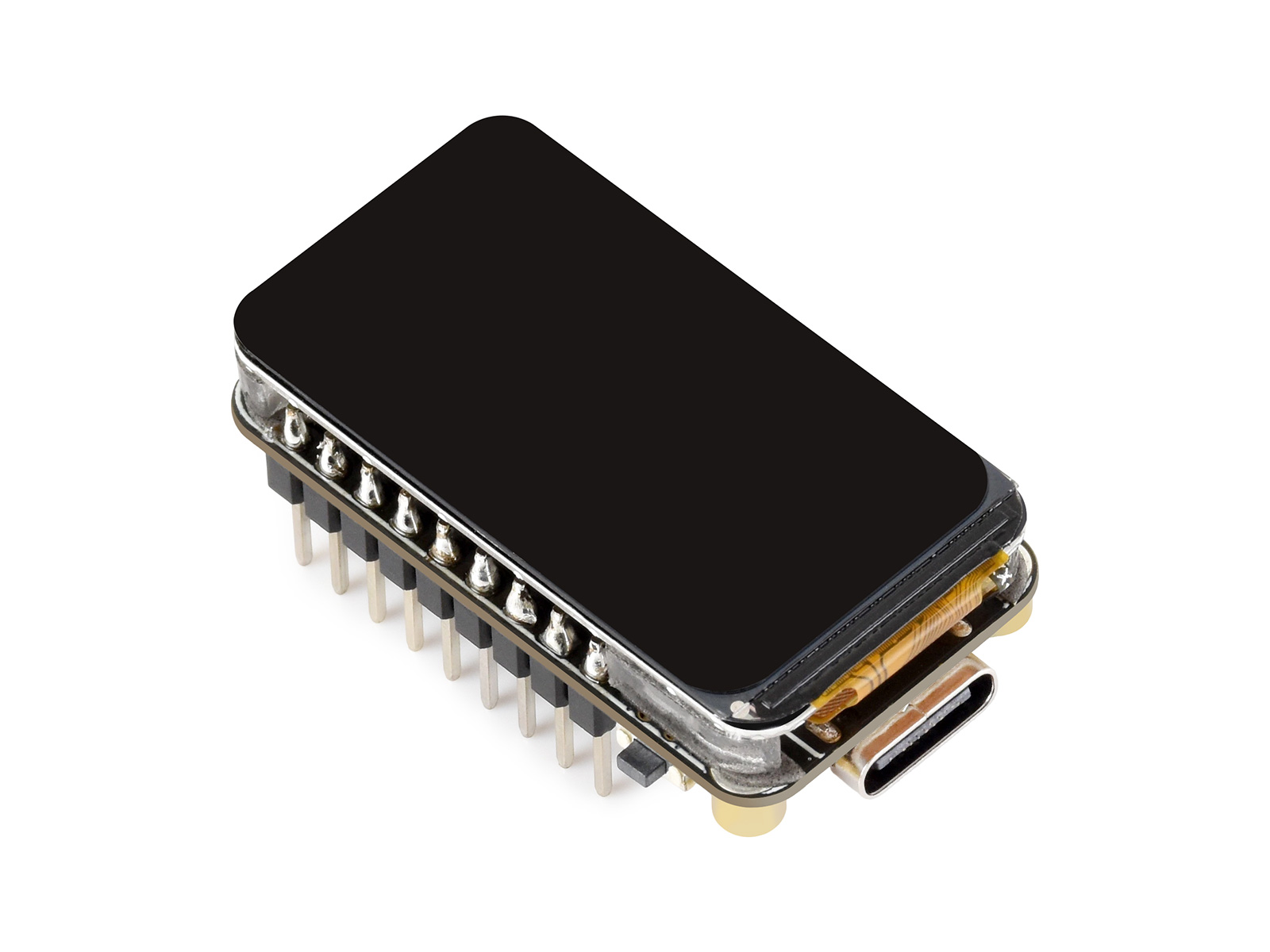

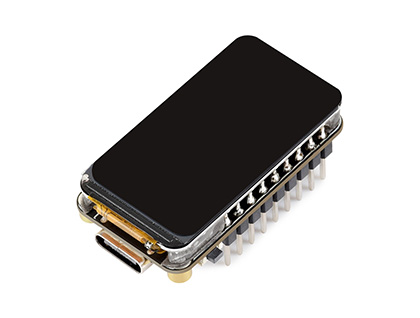

ESP32-C5-LCD-1.47-M

ESP32-C5-LCD-1.47-M
With pre-soldered headers (black)

Features

ESP32-C5-LCD-1.47 is a microcontroller development board with 2.4GHz/5GHz Wi-Fi 6 and Bluetooth 5 (LE) support, and integrates 4MB Flash. Onboard 1.47inch LCD display can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-C5 applications.

  • Equipped with a high-performance 32-bit RISC-V processor with clock speed up to 240MHz, and a low-power 32-bit RISC-V processor with clock speed up to 48MHz
  • Integrated Wi-Fi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread 1.4) wireless communication, with superior RF performance
  • Built-in 320KB ROM, 384KB HP Static RAM, 16KB LP Static RAM and 4MB Flash memory
  • Onboard 1.47inch LCD display, 172 × 320 resolution, 262K color
  • Onboard USB-C port supporting native ESP32-C5 USB download, debugging, and serial communication, depending on firmware configuration
  • Onboard TF card slot for external TF card storage of pictures or files
  • Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
  • Built-in RGB LED with clear acrylic sandwich panel for cool lighting effect
  • Adapting multiple GPIO pins

ESP32-C5 suitable for AIoT applications

Powered by a high-performance 32-bit RISC-V processor and a low-power 32-bit RISC-V processor, the main frequency is up to 240MHz, features powerful wireless connectivity and secure encryption mechanisms

ESP32-C5 with high-performance 32-bit RISC-V processor
Wi-Fi 6 and BLE 5 support

Supports Wi-Fi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread 1.4)
Its Bluetooth Low Energy Subsystem Supports Bluetooth 5 (LE) And Bluetooth Mesh

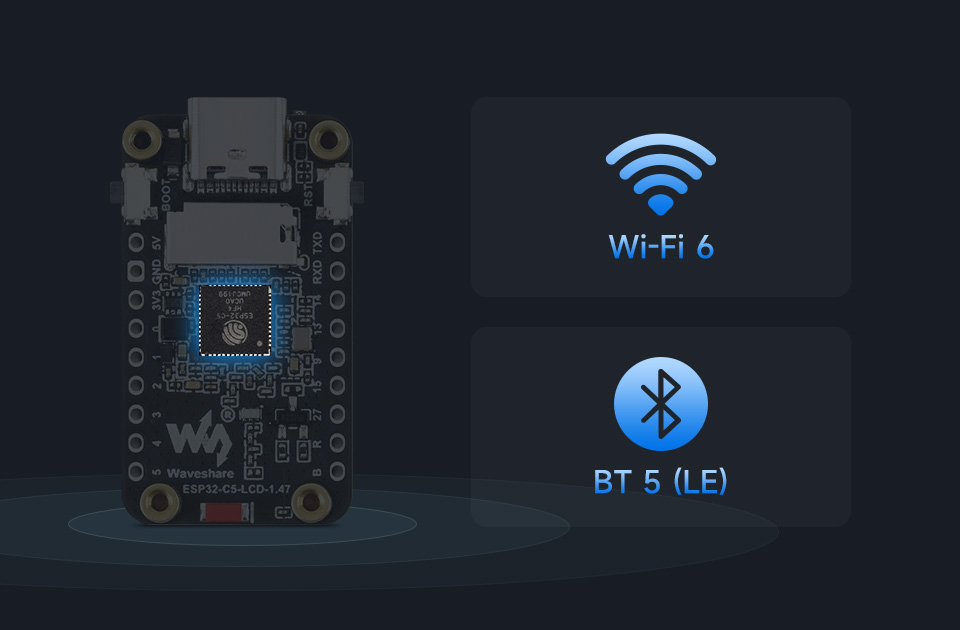

ESP32-C5-LCD-1.47, with WIFI 6 and BLE 5 support
Application Scenarios
HMI HMI ESP32-C5 LCD 1.47, application scenarios

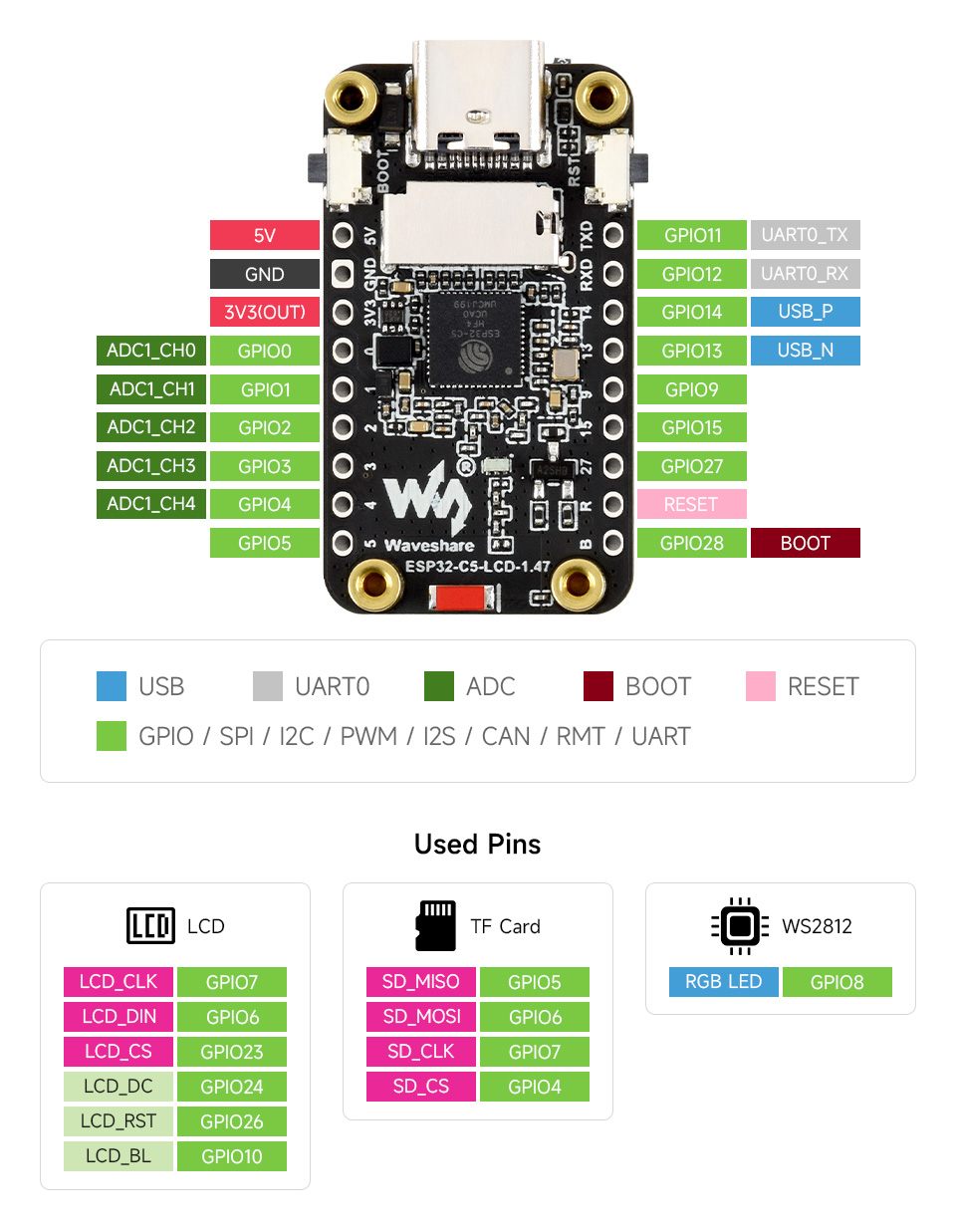

Supports multiple peripherals

Supports the expansion of multiple peripherals via GPIO header

ESP32-C5 LCD 1.47, supports multiple peripherals
What's On Board

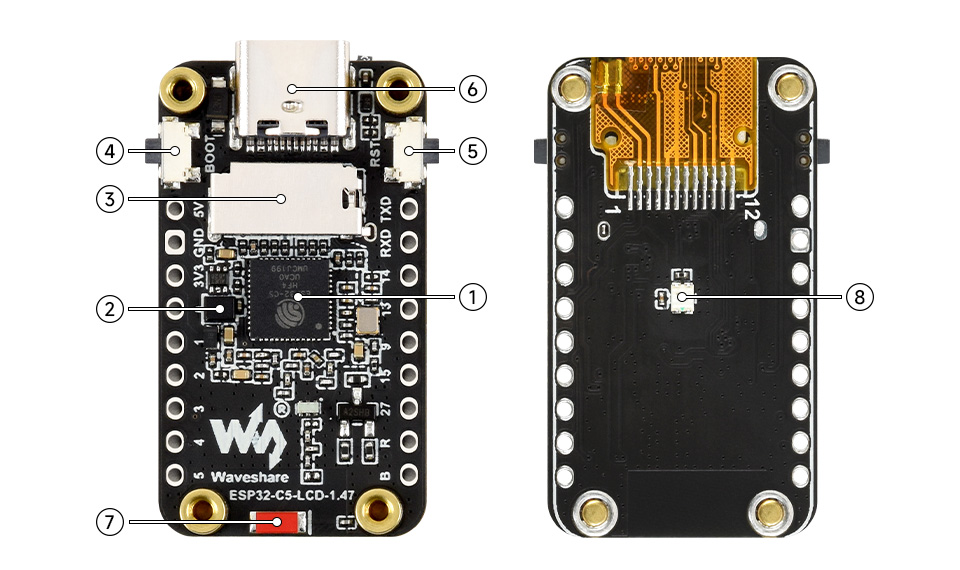

ESP32-C5 LCD 1.47, what's on board
  1. ESP32-C5FH4
  2. MP1605GTF
    step-down DC/DC converter, 1A output (Max.)
  3. TF card slot
  4. BOOT button
  1. RESET button
  2. USB-C port
  3. Onboard ceramic antenna
  4. WS2812 RGB LED

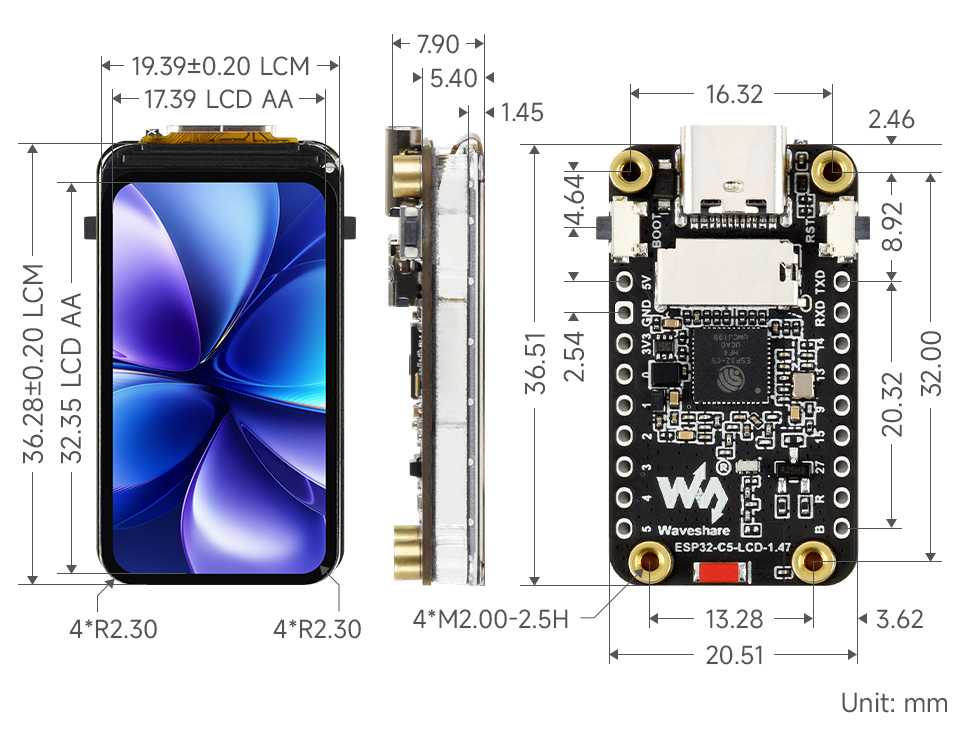

outline dimensions
ESP32-C5 LCD 1.47, outline dimensions
Resources & Services
resources and services
Wiki: docs.waveshare.com/ESP32-C5-LCD-1.47
ESP32 LCD Selection
Model Core Configuration display onboard resources Peripheral interfaces
CPU PSRAM Flash pixels Interface Display Touch IMU RTC TF Speaker mic battery
header
AMOLED display

ESP32-S3-Touch-AMOLED-2.41		 ESP32-S3R8 8MB 16MB 600 × 450 QSPI RM690B0 FT6336 √ √ √ - - √ I2C, UART, USB, 34PIN GPIO header

ESP32-S3-Touch-AMOLED-2.41-B		 ESP32-S3R8 8MB 16MB 600 × 450 QSPI RM690B0 FT6336 √ √ √ - - √ I2C, UART, USB, 34PIN GPIO header, with case

ESP32-C6-Touch-AMOLED-2.16		 ESP32-C6 - 16MB 480 × 480 QSPI CO5300 CST9220 √ √ √ √ √ √ I2C, UART, USB, and GPIO pads

ESP32-S3-Touch-AMOLED-2.16		 ESP32-S3R8 8MB 16MB 480 × 480 QSPI CO5300 CST9220 √ √ √ √ √ √ I2C, UART, USB, and GPIO pads

ESP32-S3-Touch-AMOLED-2.06		 ESP32-S3R8 8MB 32MB 410 × 502 QSPI CO5300 FT3168 √ √ √ √ √ √ I2C, UART, and USB reserved pads

ESP32-C6-Touch-AMOLED-2.06		 ESP32-C6 - 16MB 410 × 502 QSPI CO5300 FT3168 √ √ - √ √ √ I2C, UART, and USB reserved pads

ESP32-S3-Touch-AMOLED-1.91		 ESP32-S3R8 8MB 16MB 240 × 536 QSPI RM67162 FT3168 √ - √ - - √ 40PIN header

ESP32-S3-AMOLED-1.91		 ESP32-S3R8 8MB 16MB 240 × 536 QSPI RM67162 - √ - √ - - √ 40PIN header

ESP32-C6-Touch-AMOLED-1.8		 ESP32-C6 - 16MB 368 × 448 QSPI SH8601 FT3168 / FT6146 √ √ √ √ √ √ I2C, UART, USB pads

ESP32-S3-Touch-AMOLED-1.8		 ESP32-S3R8 8MB 16MB 368 × 448 QSPI SH8601 FT3168 / FT6146 √ √ √ √ √ √ I2C, UART, GPIO pads

ESP32-S3-Touch-AMOLED-1.75		 ESP32-S3R8 8MB 16MB 466 × 466 QSPI CO5300 CST9217 √ √ √ √ √ √ I2C, UART, USB, 8PIN headers (2.54mm pitch)

ESP32-S3-Touch-AMOLED-1.75-B		 ESP32-S3R8 8MB 16MB 466 × 466 QSPI CO5300 CST9217 √ √ √ √ √ √ I2C, UART, USB, 8PIN headers (2.54mm pitch)

ESP32-S3-Touch-AMOLED-1.75C		 ESP32-S3R8 8MB 32MB 466 × 466 QSPI CO5300 CST9217 √ - - √ √ √ I2C, UART, USB, GPIO pads

ESP32-C6-Touch-AMOLED-1.64		 ESP32-C6 - 16MB 280 × 456 QSPI CO5300 FT6146 √ - √ - - √ 22PIN header (2.54mm pitch)

ESP32-S3-Touch-AMOLED-1.64		 ESP32-S3R8 8MB 16MB 280 × 456 QSPI CO5300 FT3168 √ - √ - - √ 2 × 11PIN headers (2.54mm pitch)

ESP32-C6-Touch-AMOLED-1.43		 ESP32-C6 - 16MB 466 × 466 QSPI CO5300 FT6146 √ √ √ √ √ √ UART, I2C, 16PIN header (2.54mm pitch)

ESP32-C6-Touch-AMOLED-1.43-B		 ESP32-C6 - 16MB 466 × 466 QSPI CO5300 FT6146 √ √ √ √ √ √ UART, I2C, 16PIN header (2.54mm pitch)

ESP32-S3-Touch-AMOLED-1.43		 ESP32-S3R8 8MB 16MB 466 × 466 QSPI SH8601
/C05300		 FT3168
/FT6146		 √ √ √ - - √ I2C, UART, USB, 2 × 14PIN headers

ESP32-S3-Touch-AMOLED-1.43-B		 ESP32-S3R8 8MB 16MB 466 × 466 QSPI SH8601
/C05300		 FT3168
/FT6146		 √ √ √ - - √ I2C, UART, USB, 2 × 14PIN headers

ESP32-S3-Touch-AMOLED-1.43C		 ESP32-S3 8MB 8MB 466 × 466 QSPI CO5300 CST820 - - - √ √ √ I2C, UART, USB pads

ESP32-C6-Touch-AMOLED-1.32		 ESP32-C6 - 16MB 466 × 466 QSPI CO5300 CST820 - - - √ √ √ SH1.0 12PIN header

ESP32-C6-Touch-AMOLED-1.32		 ESP32-C6 - 16MB 466 × 466 QSPI CO5300 CST820 - - - √ √ √ SH1.0 12PIN header

ESP32-S3-Touch-AMOLED-1.32		 ESP32-S3-PICO-1-N8R8 8MB 8MB 466 × 466 QSPI CO5300 CST820 - - - √ √ √ SH1.0 12PIN header
LCD display

ESP32-Touch-LCD-3.5		 ESP32-D0WDR2-V3 2MB 16MB 320 × 480 SPI ST7796 FT6336 - √ √ √ √ √ 32PIN GPIO header

ESP32-S3-Touch-LCD-3.5		 ESP32-S3R8 8MB 16MB 320 × 480 SPI ST7796 FT6336 √ √ √ √ √ √ 32PIN GPIO header, camera interface

ESP32-S3-Touch-LCD-3.5-C		 ESP32-S3R8 8MB 16MB 320 × 480 SPI ST7796 FT6336 √ √ √ √ √ √ 32PIN GPIO header, camera interface

ESP32-S3-Touch-LCD-3.5B		 ESP32-S3R8 8MB 16MB 320 × 480 QSPI AXS15231B AXS15231B √ √ √ √ √ √ 32PIN GPIO header, camera interface

ESP32-S3-Touch-LCD-3.5B-C		 ESP32-S3R8 8MB 16MB 320 × 480 QSPI AXS15231B AXS15231B √ √ √ √ √ √ 32PIN GPIO header, camera interface

ESP32-S3-Touch-LCD-3.49		 ESP32-S3R8 8MB 16MB 172 × 640 QSPI AXS15231B AXS15231B √ √ √ √ √ √ 22pin 2.54mm pitch pads

ESP32-S3-Touch-LCD-3.49B		 ESP32-S3R8 8MB 16MB 172 × 640 QSPI AXS15231B AXS15231B √ √ √ √ √ √ 22pin 2.54mm pitch pads

ESP32-S3-LCD-3.16		 ESP32-S3R8 8MB 16MB 320 × 820 RGB ST7701 - √ √ √ - - √ I2C, UART, USB headers

ESP32-S3-Touch-LCD-2.8		 ESP32-S3R8 8MB 16MB 240 × 320 SPI ST7789 CST3530 √ √ √ √ - √ I2C, UART, SH1.0 12PIN header

ESP32-S3-LCD-2.8		 ESP32-S3R8 8MB 16MB 240 × 320 SPI ST7789 - √ √ √ √ - √ I2C, UART, SH1.0 12PIN header

ESP32-S3-Touch-LCD-2.8B		 ESP32-S3R8 8MB 16MB 480 × 640 RGB ST7701 GT911 √ √ √ - - √ 20PIN header

ESP32-S3-LCD-2.8B		 ESP32-S3R8 8MB 16MB 480 × 640 RGB ST7701 - √ √ √ - - √ 20PIN header

ESP32-S3-Touch-LCD-2.8C		 ESP32-S3R8 8MB 16MB 480 × 480 RGB ST7701 GT911 √ √ √ - - √ I2C, UART, SH1.0 12PIN header

ESP32-S3-LCD-2.8C		 ESP32-S3R8 8MB 16MB 480 × 480 RGB ST7701 - √ √ √ - - √ I2C, UART, SH1.0 12PIN header

ESP32-S3-Touch-LCD-2.1		 ESP32-S3R8 8MB 16MB 480 × 480 RGB ST7701 CST820 √ √ √ - - √ I2C, UART, SH1.0 12PIN header

ESP32-S3-Touch-LCD-2.1B		 ESP32-S3R8 8MB 16MB 480 × 480 RGB ST7701 CST820 √ √ √ - - √ I2C, UART, SH1.0 12PIN header

ESP32-S3-Touch-LCD-2		 ESP32-S3R8 8MB 16MB 240 × 320 SPI ST7789T3 CST816 √ - √ - - √ 28PIN header, camera interface

ESP32-S3-LCD-2		 ESP32-S3R8 8MB 16MB 240 × 320 SPI ST7789T3 - √ - √ - - √ 28PIN header, camera interface

ESP32-S3-Touch-LCD-1.9		 ESP32-S3R8 8MB 16MB 170 × 320 SPI ST7789 CST816 √ - √ - - √ 40PIN header, compatible with Pico header

ESP32-S3-LCD-1.9		 ESP32-S3R8 8MB 16MB 170 × 320 SPI ST7789 - √ - √ - - √ 40PIN header, compatible with Pico header

ESP32-C6-Touch-LCD-1.9		 ESP32-C6FH8 - 8MB 170 × 320 SPI ST7789 CST816 √ - √ - - √ 40PIN header, compatible with Pico header

ESP32-C6-LCD-1.9		 ESP32-C6FH8 - 8MB 170 × 320 SPI ST7789 - √ - √ - - √ 40PIN header, compatible with Pico header

ESP32-S3-Touch-LCD-1.85C		 ESP32-S3R8 8MB 16MB 360 × 360 QSPI ST77916 CST816 - √ √ √ √ √ I2C, UART, 2×14PIN header (1.27mm pitch)

ESP32-S3-Touch-LCD-1.85C-BOX		 ESP32-S3R8 8MB 16MB 360 × 360 QSPI ST77916 CST816 - √ √ √ √ √ I2C, UART, 2×14PIN header (1.27mm pitch)

ESP32-S3-Touch-LCD-1.85B		 ESP32-S3R8 8MB 16MB 360 × 360 QSPI ST77916 CST816 √ √ √ √ √ √ UART, GPIO

ESP32-S3-Touch-LCD-1.85		 ESP32-S3R8 8MB 16MB 360 × 360 QSPI ST77916 CST816 √ √ √ √ √ √ I2C, UART, GPIO pads

ESP32-S3-LCD-1.85		 ESP32-S3R8 8MB 16MB 360 × 360 QSPI ST77916 - √ √ √ √ √ √ I2C, UART, GPIO pads

ESP32-S3-Touch-LCD-1.83		 ESP32-S3R8 8MB 16MB 240 × 284 SPI ST7789P CST816D √ √ √ √ √ √ Reserved I2C, UART, USB pads

ESP32-C6-Touch-LCD-1.83		 ESP32-C6 - 16MB 240 × 284 SPI ST7789P CST816D √ √ √ √ √ √ Reserved I2C, UART, USB pads

ESP32-C6-Touch-LCD-1.69		 ESP32-C6 - 16MB 240 × 280 SPI ST7789V2 CST816T √ √ - √ √ √ Reserved USB, I2C, UART, and GPIO pads

ESP32-C6-LCD-1.69		 ESP32-C6 - 16MB 240 × 280 SPI ST7789V2 - √ √ - √ √ √ Reserved USB, I2C, UART, and GPIO pads

ESP32-S3-Touch-LCD-1.69		 ESP32-S3R8 8MB 16MB 240 × 280 SPI ST7789 CST816 √ √ - - - √ I2C, UART, GPIO pads

ESP32-S3-LCD-1.69		 ESP32-S3R8 8MB 16MB 240 × 280 SPI ST7789 - √ √ - - - √ SH1.0 12PIN header

ESP32-C6-LCD-1.54		 ESP32-C6 - 16MB 240 × 240 SPI ST7789 - √ - √ √ √ √ I2C, UART pads

ESP32-C6-Touch-LCD-1.54		 ESP32-C6 - 16MB 240 × 240 SPI ST7789 CST816 √ - √ √ √ √ I2C, UART pads

ESP32-S3-LCD-1.54		 ESP32-S3R8 8MB 16MB 240 × 240 SPI ST7789 - √ - √ √ √ √ I2C, UART pads

ESP32-S3-Touch-LCD-1.54		 ESP32-S3R8 8MB 16MB 240 × 240 SPI ST7789 CST816 √ - √ √ √ √ I2C, UART pads

ESP32-S3-Touch-LCD-1.47		 ESP32-S3R8 8MB 16MB 172 × 320 SPI JD9853 AXS5106L - - √ - - √ 22PIN header

ESP32-S3-LCD-1.47		 ESP32-S3R8 8MB 16MB 172 × 320 SPI ST7789 - - - √ - - - 18PIN header

ESP32-S3-LCD-1.47B		 ESP32-S3R8 8MB 16MB 172 × 320 SPI ST7789 - √ - √ - - √ 18PIN header

ESP32-C6-Touch-LCD-1.47		 ESP32-C6FH8 - 8MB 172 × 320 SPI JD9853 AXS5106L √ - √ - - √ 22PIN header

ESP32-C6-LCD-1.47		 ESP32-C6FH8 - 8MB 172 × 320 SPI ST7789 - - - √ - - - 18PIN header

ESP32-C5-LCD-1.47		 ESP32-C5FH4 - 4MB 172 × 320 SPI ST7789 - - - √ - - - 18PIN header

ESP32-C3-LCD-1.47		 ESP32-C3FH4 - 4MB 172 × 320 SPI ST7789 - - - √ - - - 18PIN header

ESP32-S3-Touch-LCD-1.46B		 ESP32-S3R8 8MB 16MB 412 × 412 QSPI SPD2010 SPD2010 √ √ √ √ √ √ 20pin GPIO header

ESP32-S3-Touch-LCD-1.46		 ESP32-S3R8 8MB 16MB 412 × 412 QSPI SPD2010 SPD2010 √ √ √ √ √ √ 20pin GPIO header

ESP32-C6-LCD-1.3		 ESP32-C6FH4 - 4MB 240 × 240 SPI ST7789 - - - √ - - - 2.54mm 12PIN header

ESP32-C6-LCD-1.3-M		 ESP32-C6FH4 - 4MB 240 × 240 SPI ST7789 - - - √ - - - 2.54mm 12PIN header

ESP32-S3-LCD-1.3		 ESP32-S3R8 8MB 16MB 240 × 240 SPI ST7789 - √ - √ - - √ 2.54mm 16PIN header

ESP32-S3-LCD-1.3-B		 ESP32-S3R8 8MB 16MB 240 × 240 SPI ST7789 - √ - √ - - √ 2.54mm 16PIN header, with case

ESP32-S3-LCD-1.3-C		 ESP32-S3R8 8MB 16MB 240 × 240 SPI ST7789 - √ - √ - - √ 2.54mm 16PIN header, with case and prism cube

ESP32-S3-Touch-LCD-1.28		 ESP32-S3R2 2MB 16MB 240 × 240 SPI GC9A01A CST816 √ - - - - √ SH1.0 12PIN header

ESP32-S3-LCD-1.28		 ESP32-S3R2 2MB 16MB 240 × 240 SPI GC9A01A - √ - - - - √ 2 × 20PIN header (1.27mm pitch)

ESP32-C3-LCD-0.71		 ESP32-C3FH4 - 4MB 160 × 160 SPI GC9D01 - - - - - - √ 12PIN GPIO pads

ESP32-S3-LCD-0.85		 ESP32-S3 8MB 8MB 128 × 128 SPI GC9107 - - - √ √ √ √ I2C, UART pads

ESP32-C6-LCD-0.85		 ESP32-C6 - 8MB 128 × 128 SPI ST7735 - - - √ √ √ √ I2C, UART pads

ESP32-C6-GEEK		 ESP32-C6 - 16MB 240 × 135 SPI ST7789P3 - - - √ - - - I2C, UART, GPIO

ESP32-S3-GEEK		 ESP32-S3R2 2MB 16MB 240 × 135 SPI ST7789P3 - - - √ - - - I2C, UART, GPIO

Weight: 0.09 kg

Quick Overview

ESP32-C5-LCD-1.47

  1. ESP32-C5-LCD-1.47 x1
  2. Black header ×2
1ESP32-C5-LCD-1.47
2

ESP32-C5-LCD-1.47-M

ESP32-C5-LCD-1.47 with pre-soldered headers x1

ESP32-C5-LCD-1.47-M
