ESP32-S3 1.47inch Touch Display Development Board, 172×320 Resolution, 262K Display Color, Supports 2.4GHz Wi-Fi / BLE 5, 240MHz LX7 Dual-core Processor

ESP32-S3-Touch-LCD-1.47

Onboard 1.47inch IPS touch display, can smoothly run GUI programs such as LVGL

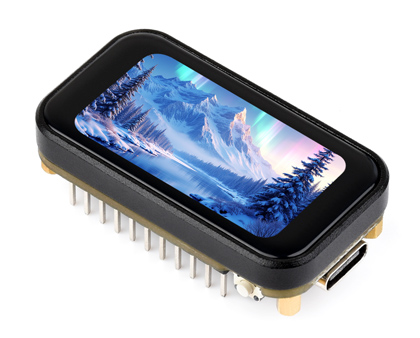

ESP32-S3 1.47inch Touch Display Development Board, front view

version options

ESP32-S3-Touch-LCD-1.47
Standard version

ESP32-S3-Touch-LCD-1.47-M
With pre-soldered header (black)

Features

ESP32-S3-Touch-LCD-1.47 uses ESP32-S3R8 chip with 2.4GHz WiFi and Bluetooth BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 1.47inch IPS display can smoothly run GUI programs such as LVGL.

Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
Onboard 1.47inch capacitive touch LCD display, 172×320 resolution, 262K color
Adapting multiple IO interfaces, supports full-speed USB standard
Onboard TF card slot for external TF card storage of pictures or files
Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios

LCD Specifications

DISPLAY SIZE	1.47inch	Resolution	172 × 320 pixels
Display Driver	JD9853	Touch Driver	AXS5106L
Display Interface	4-wire SPI	Touch Interface	I2C
DISPLAY PANEL	IPS	Touch Type	Capacitive

ESP32-S3 suitable for AIoT applications

Powered by a high-performance 32-bit LX7 Dual-core processor, the main frequency is up to 240 MHz, Powerful AI Computing Capability & Reliable security features

ESP32-S3 with high-performance 32-bit RISC-V processor

Wi-Fi and BLE 5 support

ESP32-S3 integrates 2.4GHz Wi-Fi (802.11 b/g/n) with 40 MHz of bandwidth support, its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh

ESP32-S3 1.47inch Touch Display Development Board, with WIFI 6 and BLE 5 support

Application Scenarios

Pin Definition

Supports the expansion of multiple peripherals via GPIO header

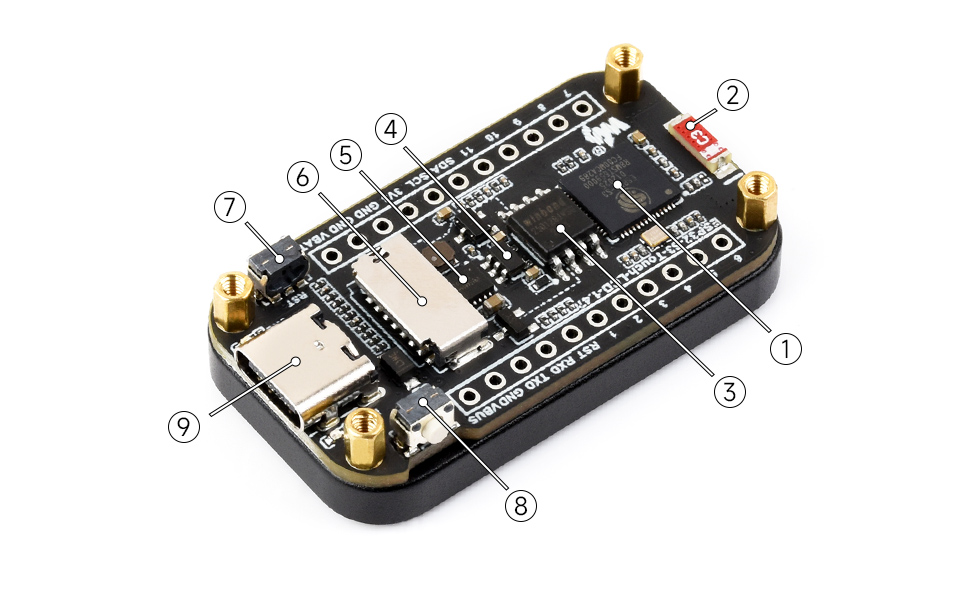

What's On Board

ESP32-S3R8
Onboard ceramic antenna
16MB Flash
ME6217C33M5G
Low dropout regulator, 800mA output (Max.)

ETA6098
TF card slot
RESET button
BOOT button
Type-C interface

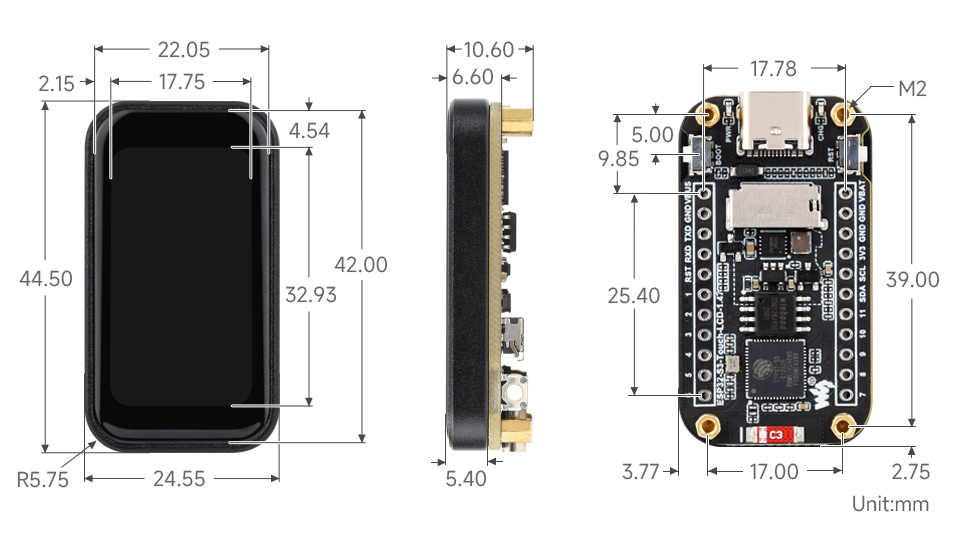

Outline dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/ESP32-S3-Touch-LCD-1.47

ESP32 LCD Selection

Model	display				onboard resources								Peripheral interfaces
Model	pixels	Interface	Display	Touch	IMU	RTC	TF	Buzzer	Speaker	mic	battery header	antenna	Peripheral interfaces
