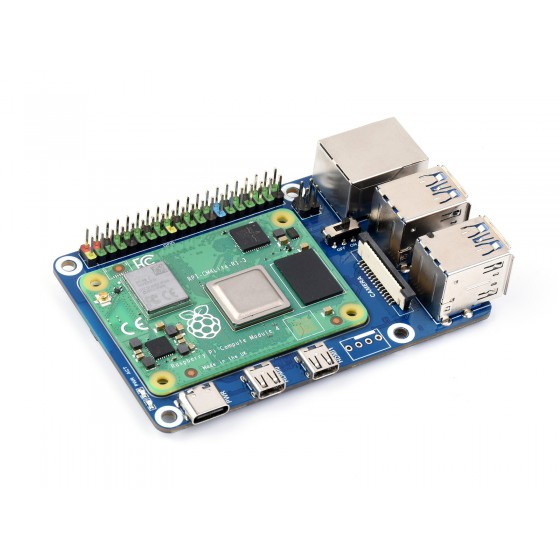

CM4 To Pi 4B Adapter for Raspberry Pi, Alternative Solution for Raspberry Pi 4B, CM4 optional

SKU: 23603
Part Number: CMPI4102008
Brand: Waveshare

$77.99 Out of Stock
$76.792+
$76.193+
$75.954+
Description

Details

CM4 To Pi 4B Adapter for Raspberry Pi, Alternative Solution for Raspberry Pi 4B, CM4 optional
CM4 To Pi 4B Adapter for Raspberry Pi

Alternative Solution for Raspberry Pi 4B

Designed For You
  • Need a Pi4B with eMMC function while the TF card is not very stable? This adapter is designed for you
  • If you need 4-ch USB3.0 and dislike the slow USB2.0 interface, you can choose this adapter
  • Suitable for application scenarios which require wider temperature range
  • Need to find an alternative solution for your product which is designed based on the Raspberry Pi 4B
Features at a glance
  • Onboard standard CM4 connector, support access to CM4 Lite / eMMc series boards with Quad Core Cortex A72 64-bit processor, more powerful performance
  • Easily compatible with the interfaces of Raspberry Pi 4B board
  • Onboard 4-ch USB 3.0 ports, compatible with USB 2.0 / 1.1 transmission
  • Onboard RJ45 Gigabit Ethernet port, 10 / 100 / 1000 M adaptive
  • Onboard PoE header, for connecting PoE HATs

Based on Raspberry Pi CM4

Use CM4 to reproduce the original appearance of the Pi 4B as much as possible
More Cost-effective Choice

* CM4 is optional
Install CM4 Easily

Onboard Standard CM4 Connector
Support Access To Compute Module 4 Lite / eMMC Series Boards

* CM4 is optional

Selection Guide

This adapter board supports all variants of Compute Module 4
Currently available CM4 options (with Wireless) are listed below

PART NUMBER RAM eMMC Flash Recommended Reason
CMPI4101008 1GB 8GB With WiFi, suitable for applications with low RAM requirement
CMPI4101016 1GB 16GB
CMPI4102008 2GB 8GB Alternative solution for Pi4B-2GB version
With WiFi and eMMC
CMPI4102032 2GB 32GB
CMPI4104008 4GB 8GB Alternative solution for Pi4B-4GB version
With WiFi and eMMC
CMPI4104032 4GB 32GB
Check more other CM4 variants

Compatible with Pi 4B Series HATs

Easy access to Pi 4B series HATs or other development projects

for reference only, RS485 CAN HAT (B) is NOT included.

Interface Introduction
Outline dimensions
Resources & Services

Weight: 0.058 kg

Quick Overview

  1. CM4-to-Pi4-Adapter x1
  2. OPTIONS Compute Module 4 x1
  3. Screws pack (locked to the board) x1
1
2
3
