NVIDIA Jetson AGX Orin Developer Kit, Server-Class AI Performance At The Edge, Up To 275 TOPS

SKU: 22147
Part Number: Jetson AGX Orin Developer Kit



NVIDIA Jetson AGX Orin Developer Kit, Server-class AI performance at the edge, up to 275 TOPS

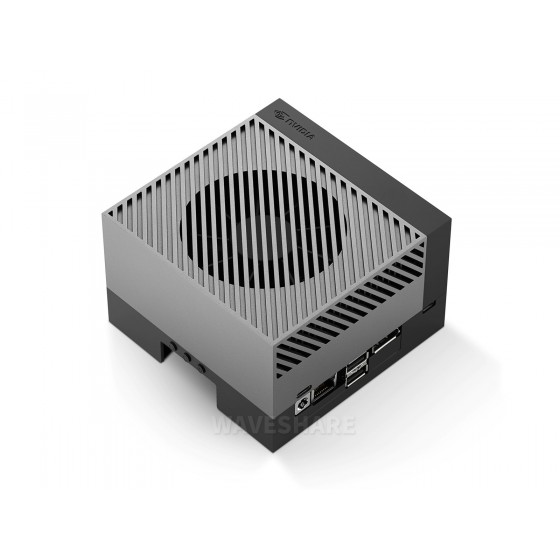

Jetson AGX Orin Developer Kit

Server-class AI performance at the edge

The NVIDIA Jetson AGX Orin Developer Kit includes a high-performance, power-efficient Jetson AGX Orin module. With up to 275 TOPS for running the NVIDIA AI software stack, this developer kit lets you create advanced robotics and edge AI applications for manufacturing, logistics, retail, service, agriculture, smart city, healthcare, and life sciences.

More powerful performance

The Jetson AGX Orin provides 8X the performance of Jetson AGX Xavier with the same compact form factor and compatible pinouts, integrating NVIDIA Ampere architecture GPU, Arm Cortex-A78AE CPU, next-generation deep learning and vision accelerator, high-speed interface, faster memory bandwidth, and multi-mode sensor support, for supporting multiple concurrent AI application channels.

AI Performance 275 TOPs
GPU NVIDIA Ampere architecture with 2048 NVIDIA® CUDA® cores and 64 tensor cores
CPU 12-core Arm Cortex-A78AE v8.2 64-bit CPU
3MB L2 + 6MB L3
DL Accelerator 2x NVDLA v2.0
Vision Accelerator PVA v2.0
Memory 32GB 256-bit LPDDR5
204.8 GB/s
Storage 64GB eMMC 5.1
Video Encode 2x 4K60 | 4x 4K30 | 8x 1080p60 | 16x 1080p30 (H.265)
Video Decode 1x 8K30 | 3x 4K60 | 7x 4K30 | 11x 1080p60 | 22x 1080p30 (H.265)
Camera 16 lane MIPI CSI-2 connector
PCIe x16 PCIe slot:
Lower x8 PCIe Gen4
RJ45 Up to 10 GbE
M.2 Key M x4 PCIe Gen 4
M.2 Key E x1 PCIe Gen 4, USB 2.0, UART, I2S
USB Type-C 2x USB 3.2 Gen2 with USB-PD support
USB Type-A 2x USB 3.2 Gen2
2x USB 3.2 Gen1
USB Micro-B USB 2.0
DisplayPort DisplayPort 1.4a (+MST)
microSD slot UHS-1 cards up to SDR104 mode
Other 40-pin header (I2C, GPIO, SPI, CAN, I2S, UART, DMIC)
12-pin automation header
10-pin audio panel header
10-pin JTAG header
4-pin fan header
2-pin RTC battery backup connector
DC power jack
Power, Force Recovery, and Reset buttons
Dimensions 110mm x 110mm x 71.65mm
(Height includes feet, carrier board, module, and thermal solution)

Weight: 1.643 kg

Quick Overview

  1. Jetson AGX Orin Developer Kit x1
