Raspberry Pi 3 Model B+, the Improved Version

SKU: 14481
Part Number: Raspberry Pi 3 Model B+
Brand: Raspberry Pi Foundation

$41.99
$41.792+
$41.693+
$41.654+

Related Products:

Description

Details

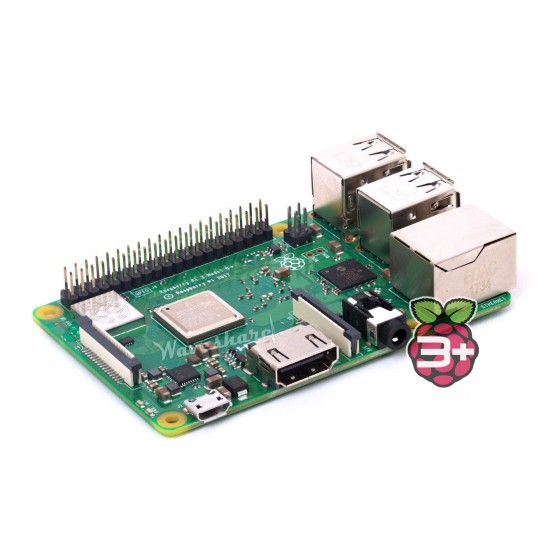

Raspberry Pi 3 Model B+, the Third Generation Pi, the Improved Version

Overview

Raspberry Pi 3 Model B+ is the improved version of Raspberry Pi 3 Model B, the key improvements include:

  • 1.4GHz 64-bit quad-core ARM Cortex-A53 CPU
  • Dual-band 802.11ac wireless LAN and Bluetooth 4.2
  • Faster Ethernet (Gigabit Ethernet over USB 2.0)
  • Power-over-Ethernet support (with separate PoE HAT)
  • Improved PXE network and USB mass-storage booting
  • Improved thermal management

Raspberry Pi 3 Model B+ Specifications

  • Broadcom BCM2837B0, Cortex-A53 (ARMv8) 64-bit SoC @ 1.4GHz
  • 1GB LPDDR2 SDRAM
  • 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2, BLE
  • Gigabit Ethernet over USB 2.0 (maximum throughput 300 Mbps)
  • Extended 40-pin GPIO header
  • Full-size HDMI
  • 4 USB 2.0 ports
  • CSI camera port for connecting a Raspberry Pi camera
  • DSI display port for connecting a Raspberry Pi touchscreen display
  • 4-pole stereo output and composite video port
  • Micro SD port for loading your operating system and storing data
  • 5V/2.5A DC power input
  • Power-over-Ethernet (PoE) support (requires separate PoE HAT)

Development Resources

Wiki : www.waveshare.com/wiki/Raspberry_Pi_3_Model_B+

Weight: 0.099 kg

Quick Overview

  1. Raspberry Pi 3 Model B+ x1
