Atmel-ICE Basic Kit, Comes with Additional Adapter and Cables

SKU: 14638
Part Number: Atmel-ICE-B2

$121.99
$120.992+
$119.993+
$118.994+

Select Version:

Description

Details

Atmel-ICE Basic Kit, Powerful development tool for debugging and programming Atmel SAM and AVR microcontrollers, Comes with additional adapter and cables

Overview

Atmel-ICE is a powerful development tool for debugging and programming Atmel ARM® Cortex®-M based Atmel SAM and AVR® microcontrollers with on-chip debug capability.

Key Features

  • Supports JTAG, SWD, PDI, TPI, aWire, SPI and debugWIRE interfaces
  • Full source-level debugging in Atmel Studio
  • Supports all built-in hardware breakpoints in the target microcontroller (number depends on the OCD module in the target)
  • Up to 128 software breakpoints
  • 1.62 to 5.5V target operation
  • USB powered
  • Provides both ARM Cortex Debug Connector (10-pin) pin-out and AVR JTAG connector pin-out

Supported Software

  • Perfectly supports Atmel Studio 6.2 or higher version
  • Directly supports ICC8AVR or higher version
  • Supports programming HEX files generated by ICCAVR, CVAVR, IAR, etc.

Supported Devices

  • Programming and on-chip debugging of all Atmel AVR 32-bit MCUs on both JTAG and aWire interfaces
  • Programming and on-chip debugging of all Atmel AVR XMEGA® family devices on both JTAG and PDI 2-wire interfaces
  • JTAG and SPI programming and debugging of all Atmel AVR 8-bit MCUs with OCD support on either JTAG or debugWIRE interfaces
  • Programming and debugging of all Atmel SAM ARM Cortex-M based MCUs on both SWD and JTAG interfaces
  • Programming of all Atmel tinyAVR® 8-bit MCUs with support for the TPI interface

For more details, please visit UC3, Mega, SAM , Tiny, Xmega

Specifications

Interface voltage 1.62V ~ 5.5V
JTAG clock 32kHz ~ 7.5MHz
PDI clock 32kHz ~ 7.5MHz
debugWIRE baudrate 4kbit/s ~ 0.5Mbit/s
aWire baudrate 7.5kbit/s ~ 7Mbit/s
SPI clock 8kHz ~ 5MHz
SWD clock 32kHz ~ 2MHz
PC interface USB 2.0 high speed

Physical Interfaces

Atmel-ICE Connection Options

Note :
While connecting the adapter board to a target, please pay attention to the Pin 1 (indicated by white spot or square solder pad).
The adapter board included in Atmel-ICE-B2 is compatible with the official one in the Atmel-ICE Full Kit.

① 10-pin AVR JTAG header

② 6-pin AVR ISP/debugWIRE/PDI/aWire/TPI header

SPI/debugWIRE
PDI
aWire
TPI

10-pin AVR ISP header is also available through our extra free 6-pin to 10-pin ISP cable

③ 10-pin SAM JTAG/SWD header

Development Resources

Wiki : www.waveshare.com/wiki/Atmel-ICE

Selection Guide

Atmel-ICE: includes everything in the official Atmel-ICE Full Kit, and an extra free 6-pin to 10-pin ISP cable
Atmel-ICE-B2: includes everything in the official Atmel-ICE Basic Kit, and more adapter and cables from Waveshare, provides the same functions as Atmel-ICE Full Kit in lower price

Package Content

Weight: 0.178 kg

Quick Overview

  1. Atmel-ICE unit x1
  2. USB cable (1.8m, high-speed, micro-B) x1
  3. IDC flat cable with 10-pin 50-mil connector and 6-pin 100-mil connector x1

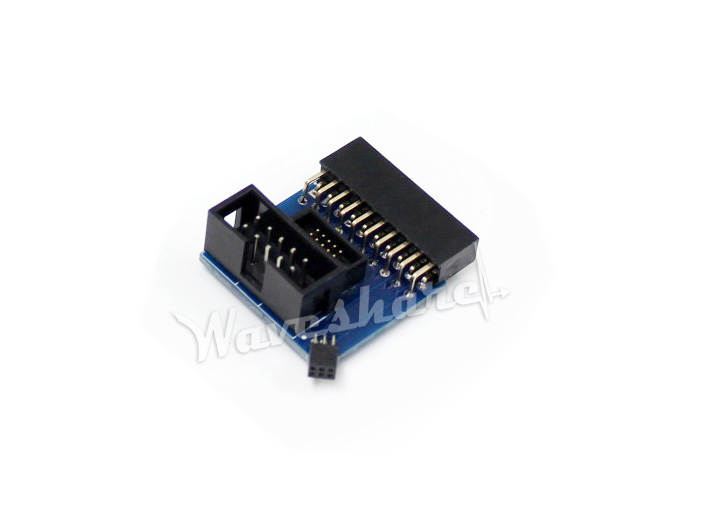

  4. Multi-functional adapter board x1
  5. 10pin flat cable x1
  6. 10pin 100mil squid cable x1
  7. 6-pin to 10-pin ISP cable x1
1-3
4
5
6
7
