SIM800C GSM / GPRS / Bluetooth HAT for Raspberry Pi, 2G Communication

SKU: 16157
Part Number: SIM800C GSM/GPRS HAT
Brand: Waveshare

$19.99
$18.992+
$18.493+
$18.294+

Description

Details

Prohibited by the module manufacturer SIMCOM, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.
SIM800C GSM/GPRS/Bluetooth HAT For Raspberry Pi, 2G Communication
GSM / GPRS / Bluetooth HAT
for Raspberry Pi

SMS support, 2G communication & Bluetooth data transmission

Based on SIM800C

Features at a glance

The SIM800C GSM/GPRS HAT is a handy, low power Raspberry Pi HAT which features multi communication functionalities: GSM, GPRS, and Bluetooth, with up to 85.6kbps GPRS data rate.

It allows your Pi to easily send messages, connect to wireless Internet, transfer data via Bluetooth, and so on.

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
  • Supports SMS, GPRS, DTMF, HTTP, FTP, MMS, email, etc.
  • Bluetooth 3.0, supports data transferring through Bluetooth
  • UART interface, for connecting host control boards like Arduino/STM32
  • Onboard voltage level translator, 3.3V by default, switch to 5V via jumper
  • 2x LEDs for indicating the module operating status
  • SIM card slot for 1.8V/3V SIM card
  • Autobauding baudrate: 1200bps ~115200bps
  • Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)
  • Supports SIM application toolkit: GSM 11.14 Release 99
  • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications
GSM / GPRS / Bluetooth
Frequency band GSM: 850/900/1800/1900 MHz
Quad-band auto search
Compliant to GSM phase 2/2+
Emitting power Class 4 (2W @ 850/900 MHz)
Class 1 (1W @ 1800/1900 MHz)
GPRS connectivity GPRS multi-slot class 12/10 (default)
GPRS multi-slot class 1~12 (configurable)
GPRS data feature UL/DL data rate: ≤85.6kbps
Supports Packet Broadcast Control Channel (PBCCH)
Coding schemes: CS-1, CS-2, CS-3, CS-4
Supports PAP (Password Authentication Protocol) for PPP connection
Supports Unstructured Supplementary Service Data (USSD)
SMS Supports: MT, MO, CB, Text, PDU
SMS storage: SIM card
Bluetooth Integrates AT commands
Compliant to Bluetooth specification3.0 + EDR
Supports SPP, OPP, HFP/HSP, etc.
Others
Power supply 5V (USB port OR pinheader)
Logic level 5V / 3.3V (default)
Operating temperature -40°C ~ 85°C
Storage temperature -45°C ~ 90°C
Dimensions 30.2 x 65mm
Standard Raspberry Pi 40PIN GPIO

Compatible with Raspberry Pi series boards, Jetson Nano

SMS & email Support

supports sending SMS, email, or MMS by AT commands

Pinout definition
Outline Dimensions
Resources & Services

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Weight: 0.076 kg

Quick Overview

  1. SIM800C GSM/GPRS HAT x1
  2. GSM Antenna x1

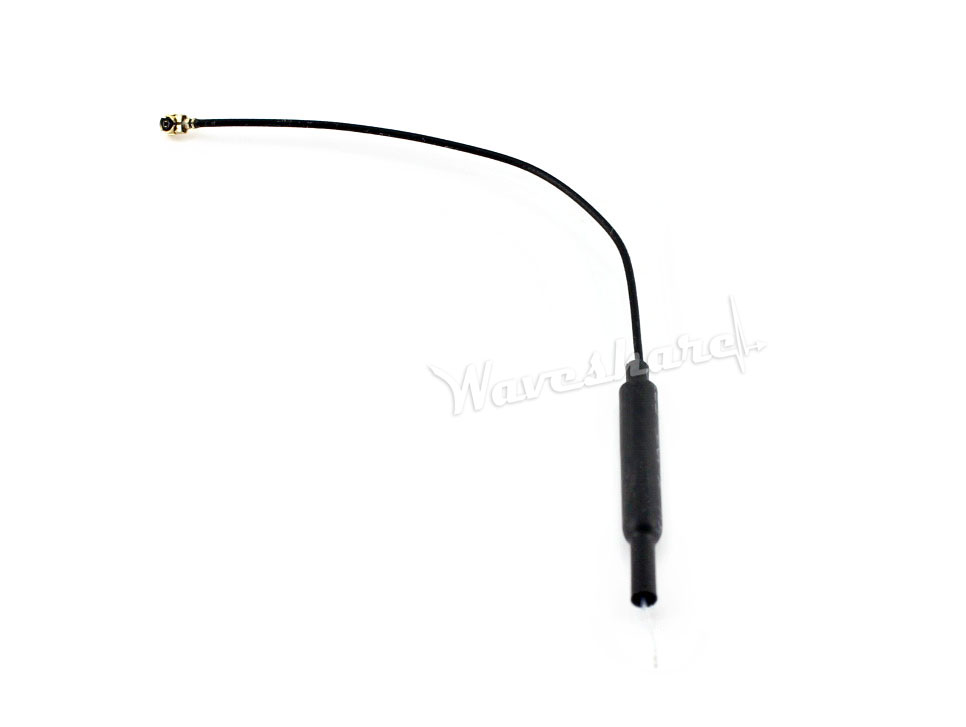

  3. Bluetooth Antenna x1
  4. USB type A plug to micro plug cable x1
  5. RPi screws pack (2pcs) x1
