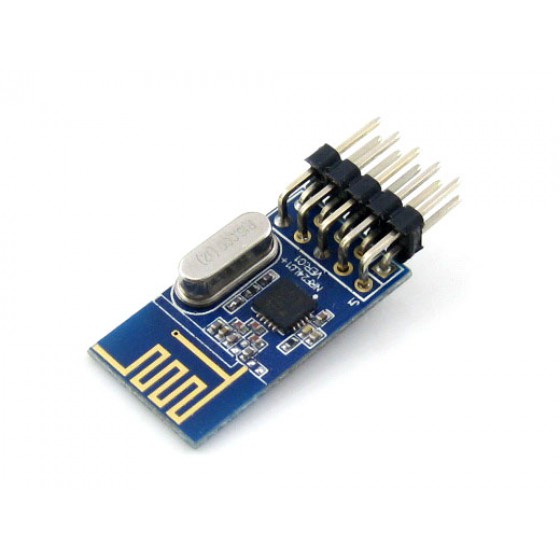

NRF24L01 RF Board (B)

SKU: 5550
Part Number: NRF24L01 RF Board (B)
Brand: Waveshare




Wireless 2.4G solution for SPI interface, horizontal pinheaders


  • Onboard original NRF24L01, much more stable than knock-offs
  • Wireless 2.4G solution for SPI interface
  • Embedded 2.4GHz antenna
  • Communication distance (open outdoor environment):
    • Up to 55m, few or none packet loss (software configuration: 250kbps, 0dBm, low noise amplifier gain)
  • SPI interface pinout is compatible with some Open series boards
  • SMD 0402 resistor/capacitor, lower cost for bulk purchase


  • Only ONE NRF24L01 onboard, while at least TWO NRF24L01 are required to communicate with each other
  • Operating voltage: 1.9V~3.6V (NEVER more than 3.6V)

Development Resources

Wiki :

Weight: 0.002 kg

Quick Overview

  • NRF24L01 RF Board (B) × 1
